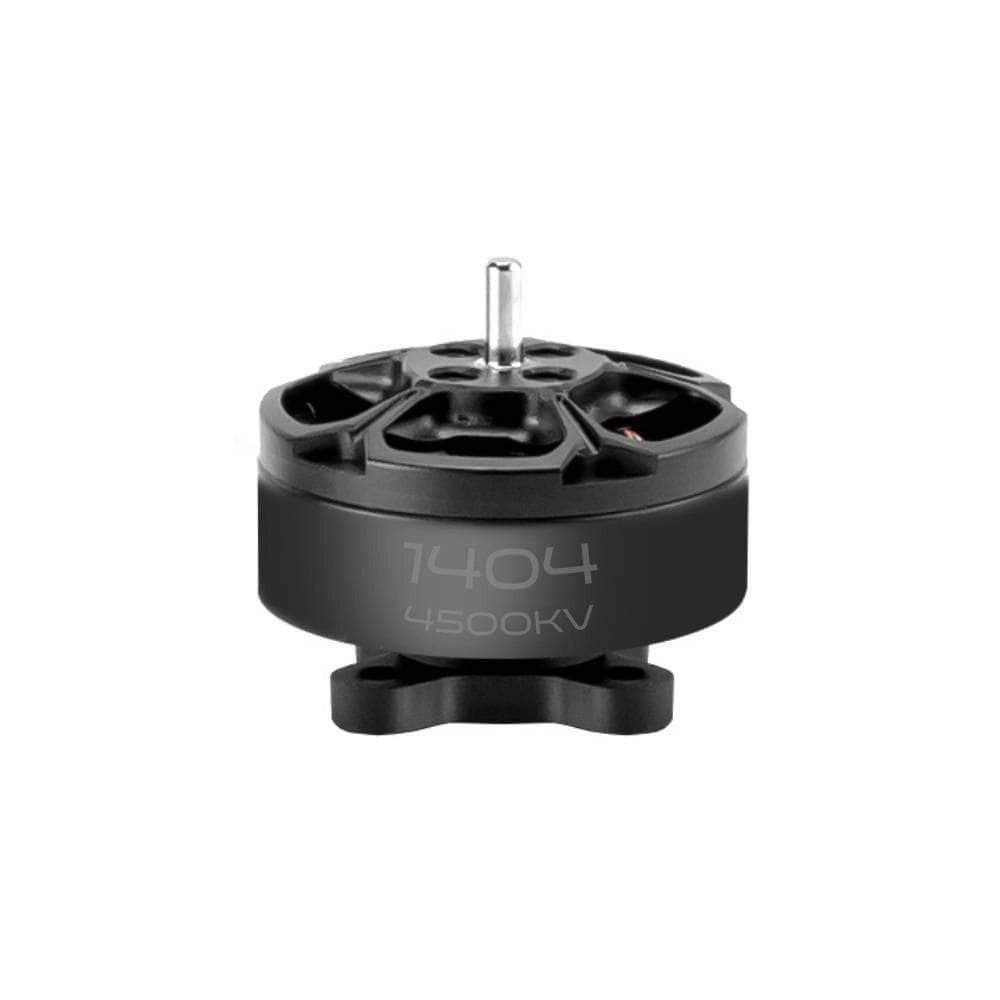

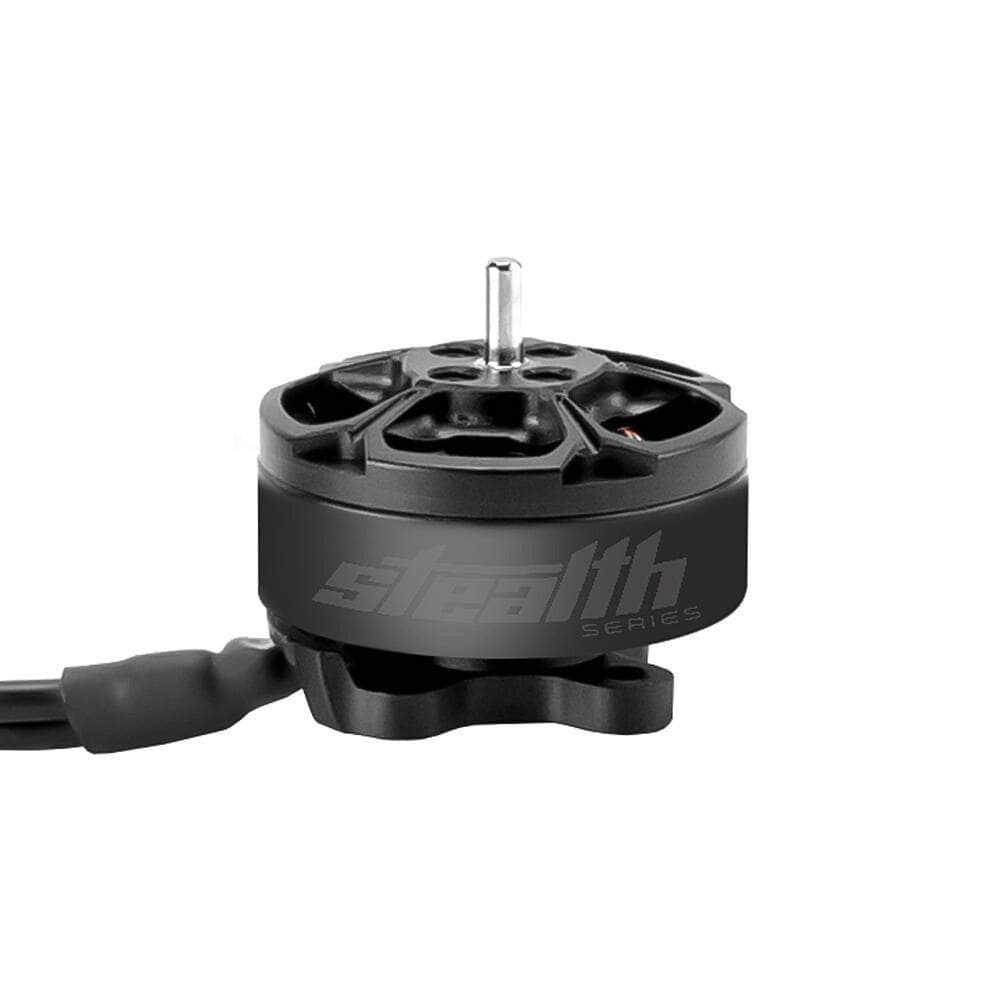

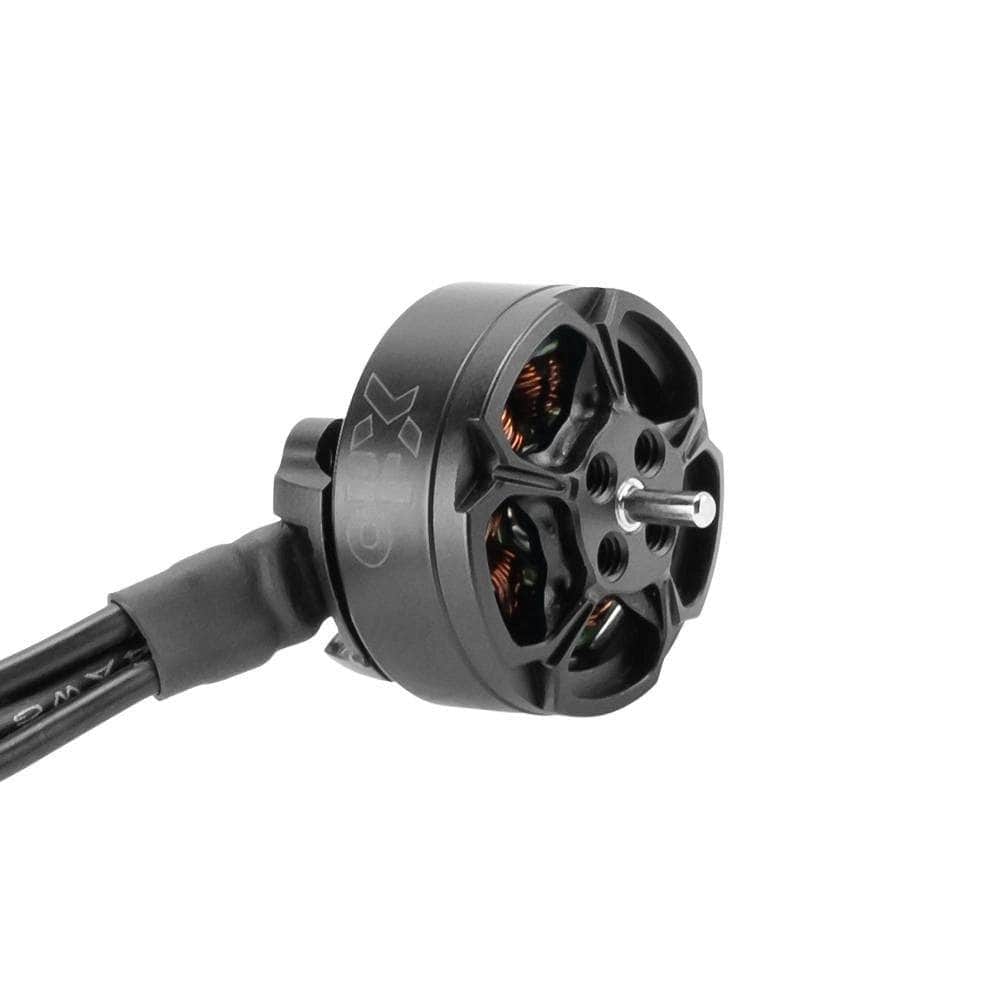

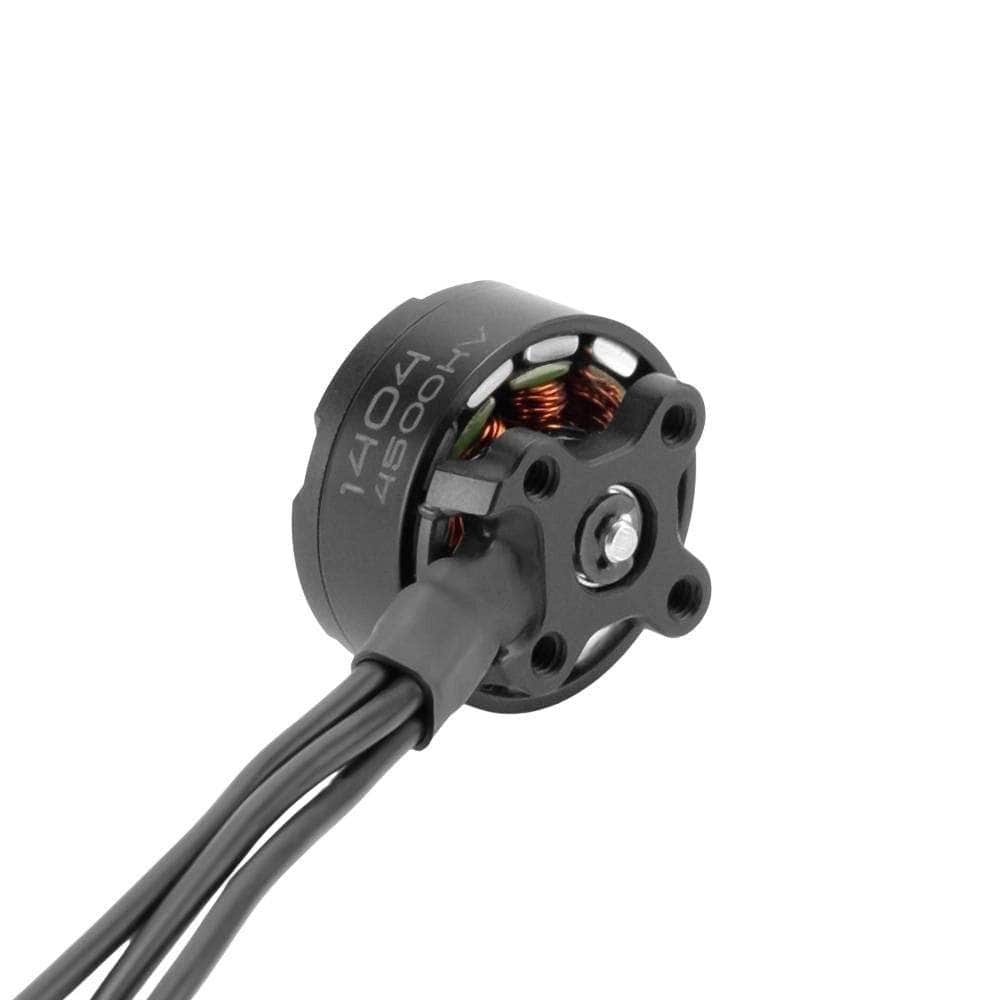

XILO Stealth 1404 Motor - 4500KV

Description

The XILO Stealth 1404 Motor is part of the XILO Stealth series of motors, which has been developed to provide FPV pilots with high-performing and durable motors at an affordable price. The XILO Stealth motors come in a sleek matte black finish. The Stealth motors feature a stainless steel shaft, high-temperature copper winding, smooth stainless-steel bearings, and a no-slip prop mounting surface. The performance of this XILO 1404 motor is top-notch as well. These motors are smooth and efficient. The high-quality aluminum bell provides durability during crashes. This means more flying and less repairing!  No sweat replacements with such an affordable motor.

Check out the rest of our micro motors, as well as the rest of our XILO selection!

Features

• Stealth Design with Black on Black Coloration
• High-Quality Aluminum Bell
• 1404 Stator
• 4500KV

Specifications

• 0.15mm Silicon steel sheet from Kawasaki, Japan
• Recommend: 3-inch prop application
• Motor Cable: 24#AWG  150mm
• Motor Mount: 9 x 9mm(M2 x 4)
• Weight: 9.2g (without wires)
• Motor Size: 18.6×13.2mm
• Suggested ESC: 10-20A
• Stator Diameter: 14mm
• Shaft Diameter: 1.5mm
• 7075-T6 Aluminum bell
• Max Static Thrust: 351g
• Multicolor color design
• Configuration: 9N12P
• Stator Height: 4mm
• KV Value: 4500KV
• Max Power: 225W
• NMB Bearing
• Volts: 15(4S)

Includes

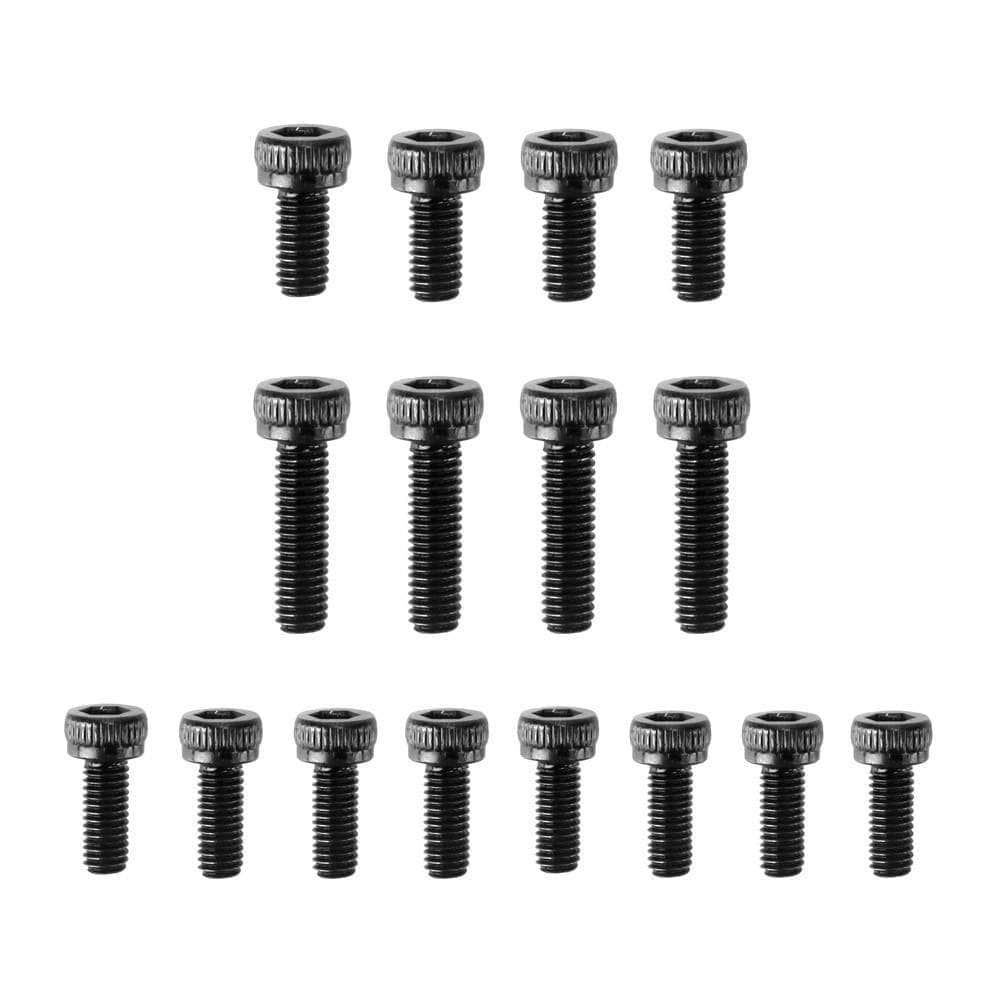

• 4x Mounting Screws (M2x8 Socket Cap)
• 4x Mounting Screws (M2x5 Socket Cap)
• 8x Mounting Screws (M2x6 Socket Cap)
• 1x XILO Stealth 1404 Motor - 4500KV
