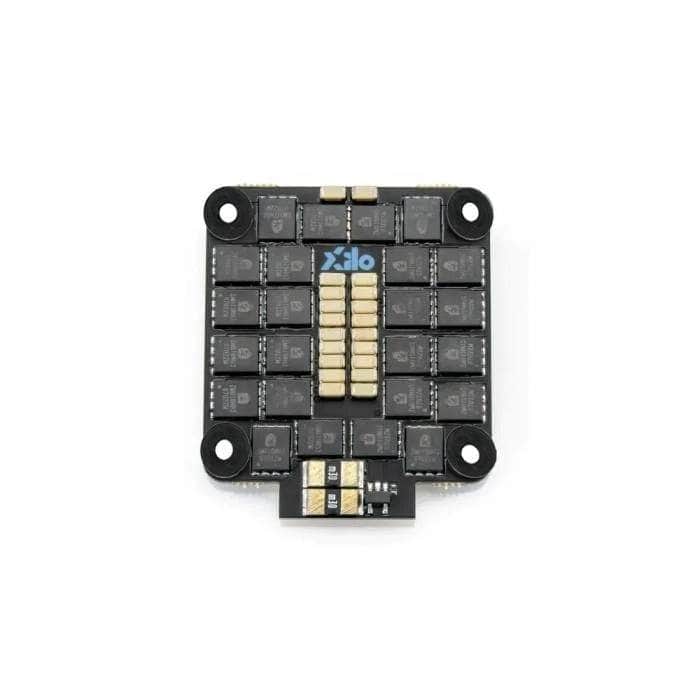

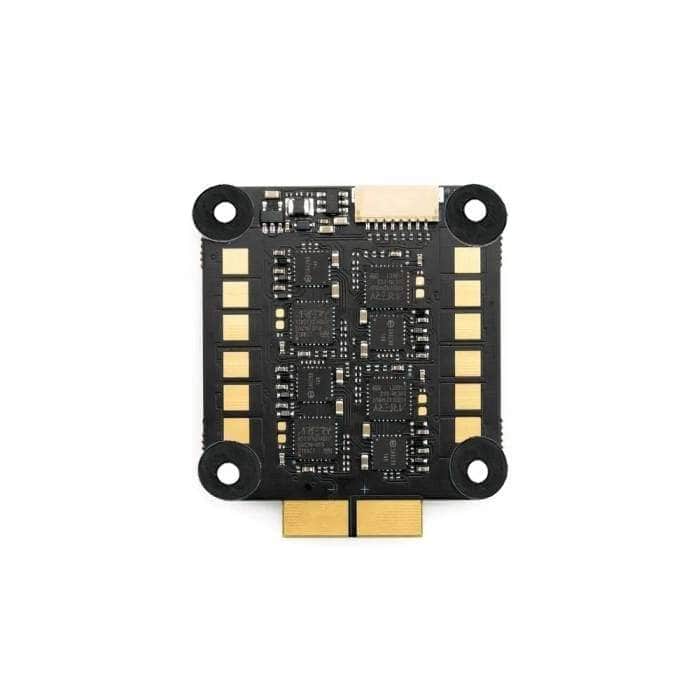

XILO Stax V2 F4 45A AM32 3-6S 4-in-1 ESC

Description

XILO Stax V2 F4 45A AM32 3-6S 4-in-1 ESC is now available through RDQ! This capable ESC comes equipped with the newest AM32 firmware. 30.5x30.5 and Plug-n-Play this board is ready to pair with your favorite flight controller.

Check out all our 30x30 ESCs  and the rest of our Lumenier product selection!

Features

V2 UPDATES

XILO STAX V2 components help get your FPV builds just right.

• Moved the 8-pin plug to the opposite side of the ESC (also added glue to the plug for increased strength)

• External Capacitors Changed to 1000uF (from 470uF)

• Additional Built-in Capacitance

• Updated F4 Processor

• 96K PMW Frequency


XILO... AFFORDABILITY REDEFINED.

Whether you are looking for an ESC for a brand new build or just to freshen up an older quad, the XILO Stax V2 will get the job done, without breaking the bank. Remove the mess of soldering and the chance of making a mistake during build time. The Stax plug n' play capability allows you to simply connect a compatible FC to the ESC with the included 8-pin harness. Simply wire up your motors and accessories, and you are good to go! This 4-in-1 ESC uses F4 processing power to allow complex power management without a hitch. The ESC supports up to 6S input voltage, while 45 amps of continuous support gives you plenty of headroom to push your mini quads to the limit.

• Supports DSHOT 1200, Proshot, Oneshot125 (125-250us), Oneshot42(41.7-83.3us), and Multishot (5-25us). Auto-detection.

• Synchronous rectification technology adds efficiency, damped light

• Adaptive timing, compatible with a wide range of motors and Kv

• Latest Gen. firmware using AM32 with telemetry

• 4x F4 processers for blazing speed (future proof)

• Powerful regenerative braking / active braking.

• Lightweight, and compact size

• 3-6s LiPo battery compatible

• 45A per channel, 55A burst

• Onboard current sensor

• 96K PMW Frequency

Specifications

• Dimensions: 36 x 43mm (including the power pads)

• Weight: 12g (without motor wires)

• Constant: 45 Amps (per channel)

• Mounting Holes: 30.5 x 30.5mm

• Burst: 55 Amps (per channel)

• Input: 3-6s LiPoly

• Processor: F4

• BEC: No

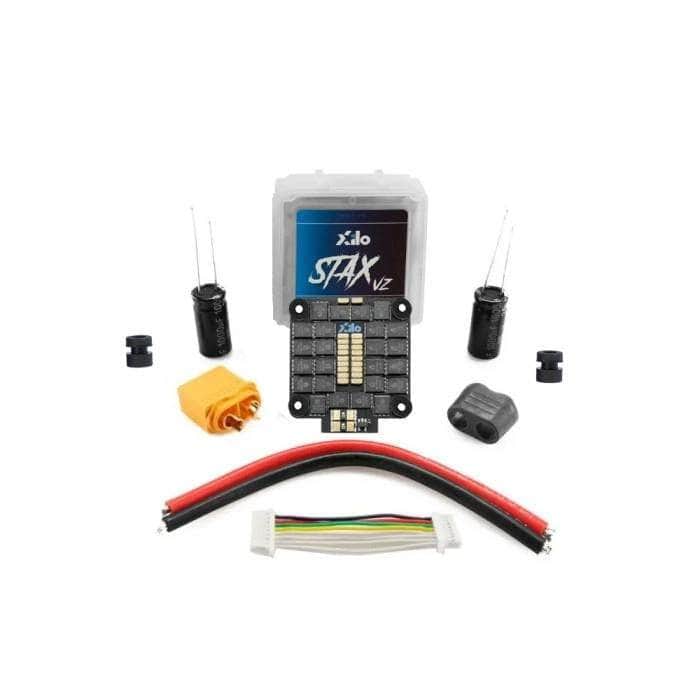

Includes

• 1x XILO Stax V2 F4 45A AM32 3-6S 4-in-1 ESC

• 2x 35v 1000uF Capacitor

• 8x Silicone Grommets

• 1x XT60 Connector

• 2x 14 AWG Wire

• 1x 8pin Harness
