Perfect for HDzero VRX and Goggles
"Excellent coverage, however do not count on the included adhesive."
Details
Description

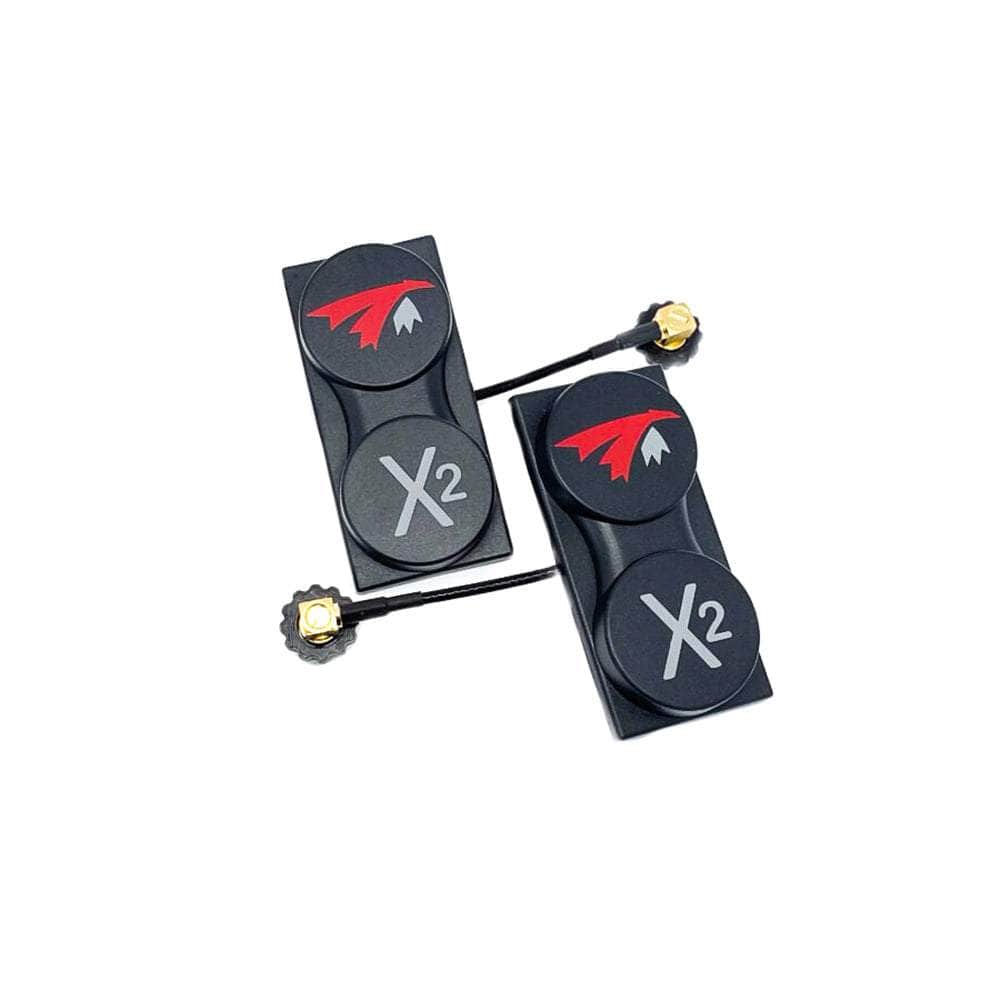

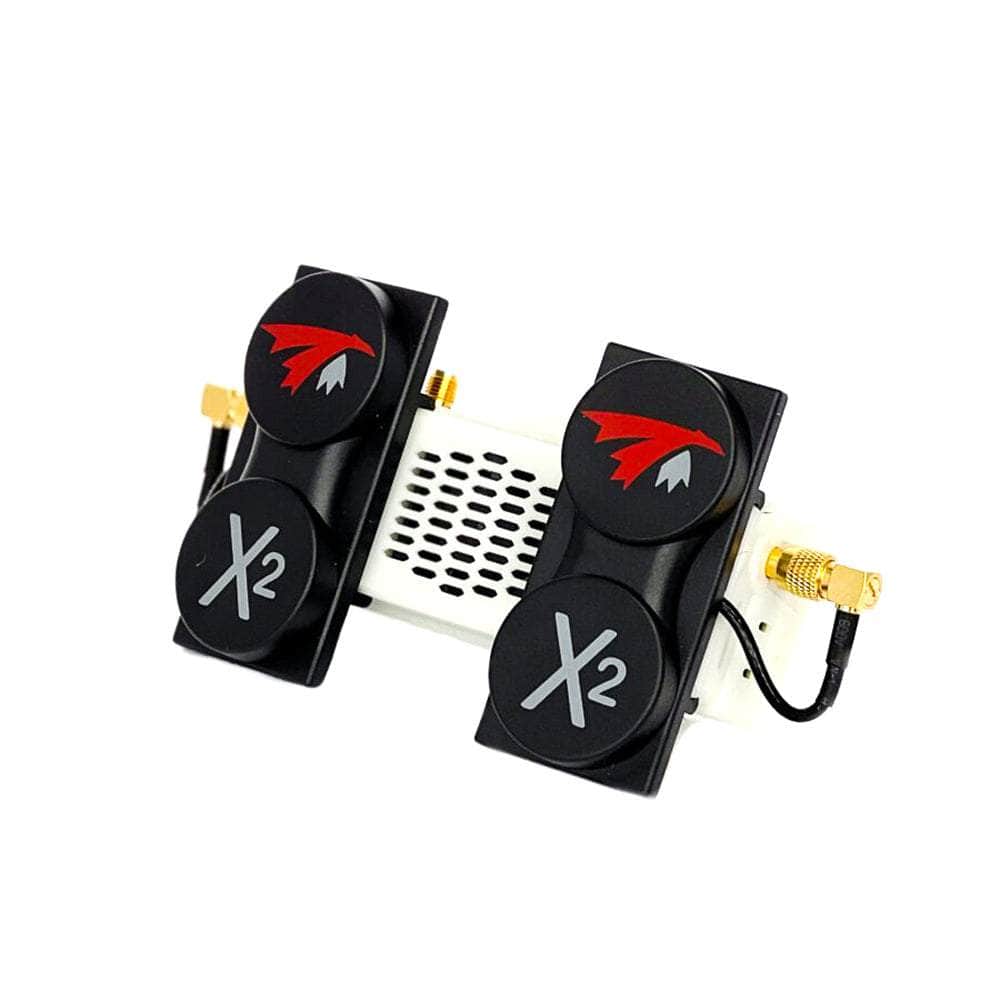

The new TrueRC X2-Air MKII 5.8GHz Receiver Antenna Pair for HDZero VRX4 - RHCP has more gain and more convenience! This is the adaptation of the all mighty X²-AIR into a slick low profile face mount for the HDzero VRX4 module. Simply slide on the antennas on the module’s rails and screw on the custom knurled SMA connectors. Improved 13dBic gain and massive combined beam width of 165deg, yield an amazing flight experience in the toughest conditions.
Check out all our FPV Receivers & Antennas, and all our TrueRC gear!
Features
- Circularly Polarized
- Sector type beam shape (widest on horizontal)
- Mount direct on HDzero module with included slide-on mounts.
- Compact low-profile design, easy to store and transport
- High 13 dBic for unsurpassed long range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
- Super wide 150 degree beam for each antenna combining to 165deg beam width
- Custom knurled SMA connectors
Specifications
- Bandwidth: 5.1GHz-7.0GHz
- Polarization: RHCP
- Gain: 13 dBic
- Beam-Width: 150deg
- Beam-width @-3dB: 75deg
- Antenna Dimensions: 72x34x15mm
- Connector: SMA
- Weight: 20g
Includes
- 2x TrueRC X2-Air MKII 5.8GHz Receiver Antenna Pair for HDZero VRX4
- 2x HDZero VRX4 mounting brackets for X2-Air MKII
More Info
- SKU: 19703
- Barcode: 608597254167
