RCinPOWER GTS V3 0703 23000Kv Micro Motor

Description

The GTS V3 0703 Motor is a powerful new motor by RCINPOWER! Choose a Kv option: 23000Kv or 27000Kv.

Take a look at all of our micro motor selections and our RCInPower collection!

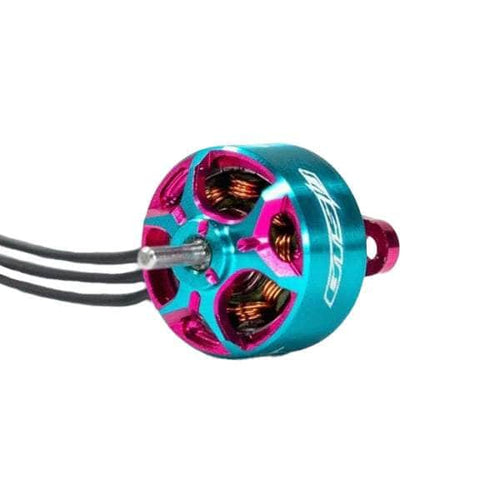

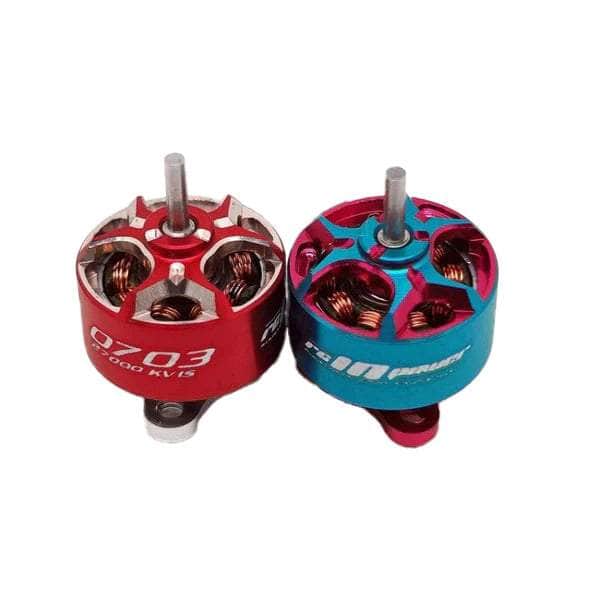

*Images for Reference, Displays Various Color Options.

Features

• Strong Unibell
• Double Ball Bearings
• Plug & Play Connector
• Wires Soldered Directly to PCB

Specifications

• Kv: 23000
• Color: Teal/Pink
• Configuration: 9N12P
• Stator Diameter: 7mm
• Stator Length: 3mm
• Shaft Diameter: 1mm
• Motor Dimensions (Dia. x length): Φ 9.6x9.6mm
• Weight: 1.85g (with plug)
• Idle Current(5)@5V(A): 0.2
• No. of cells (Lipo): 1S
• Max Continuous Power: 24.8
• Internal Resistance: 206mΩ
• Max Current: 5.9A
• Max Efficiency Current: (1-2A)>83%

Includes

• 1x RCinPOWER GTS V3 0703 23000Kv Micro Motor
• 1x Hardware Set
