RCinPOWER GTS V3 0702 29000Kv Micro Motor - Red/Silver

$11.99
Original price $11.99 - Original price $11.99
Original price
$11.99 - $11.99
Current price $11.99
In Stock
Add to Wishlist
Ask a Question

Details

Description

The GTS V3 0702 Motor is a powerful new motor by RCINPOWER! Choose a Kv option: 27000Kv or 29000Kv.

Take a look at all of our micro motor selections and our RCInPower collection!

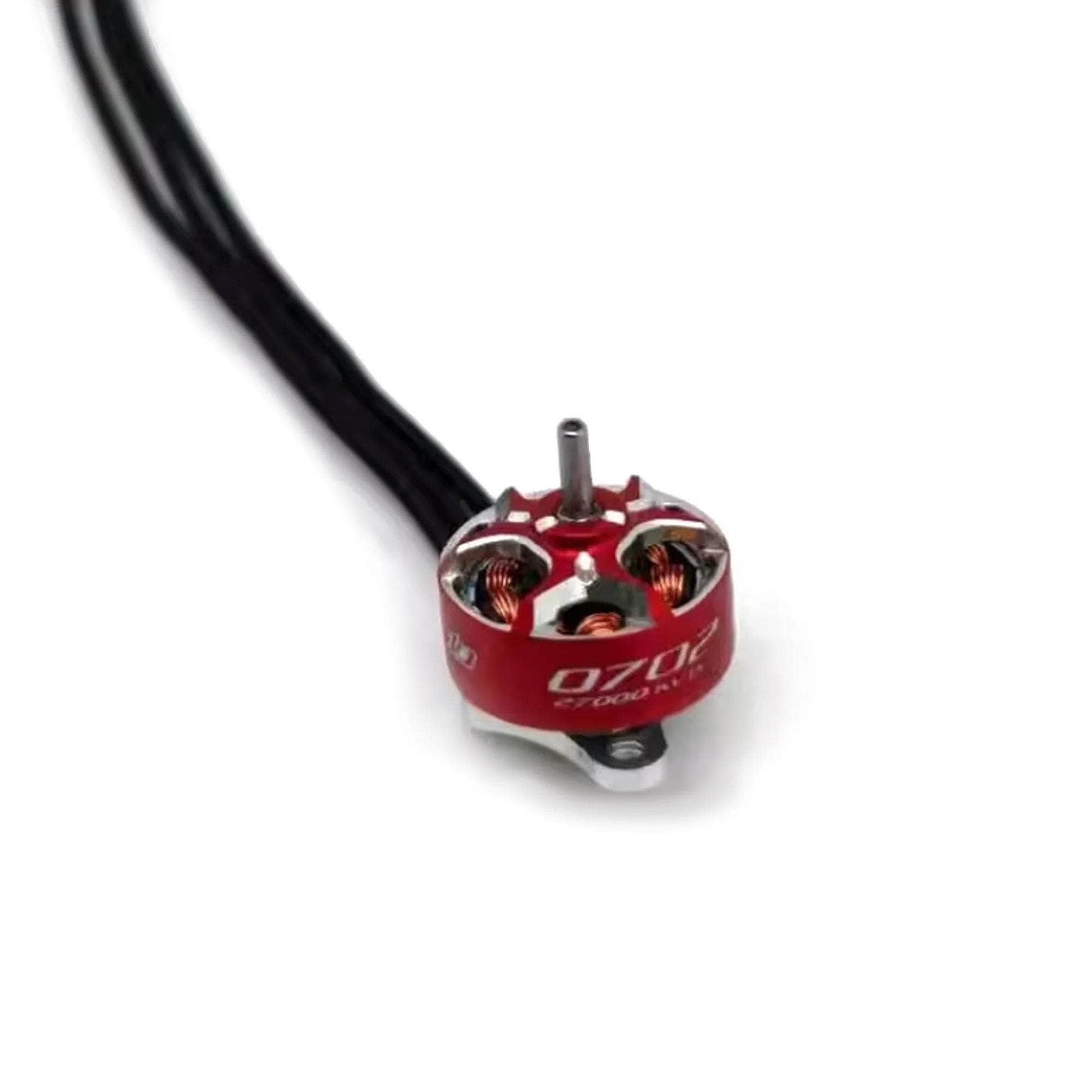

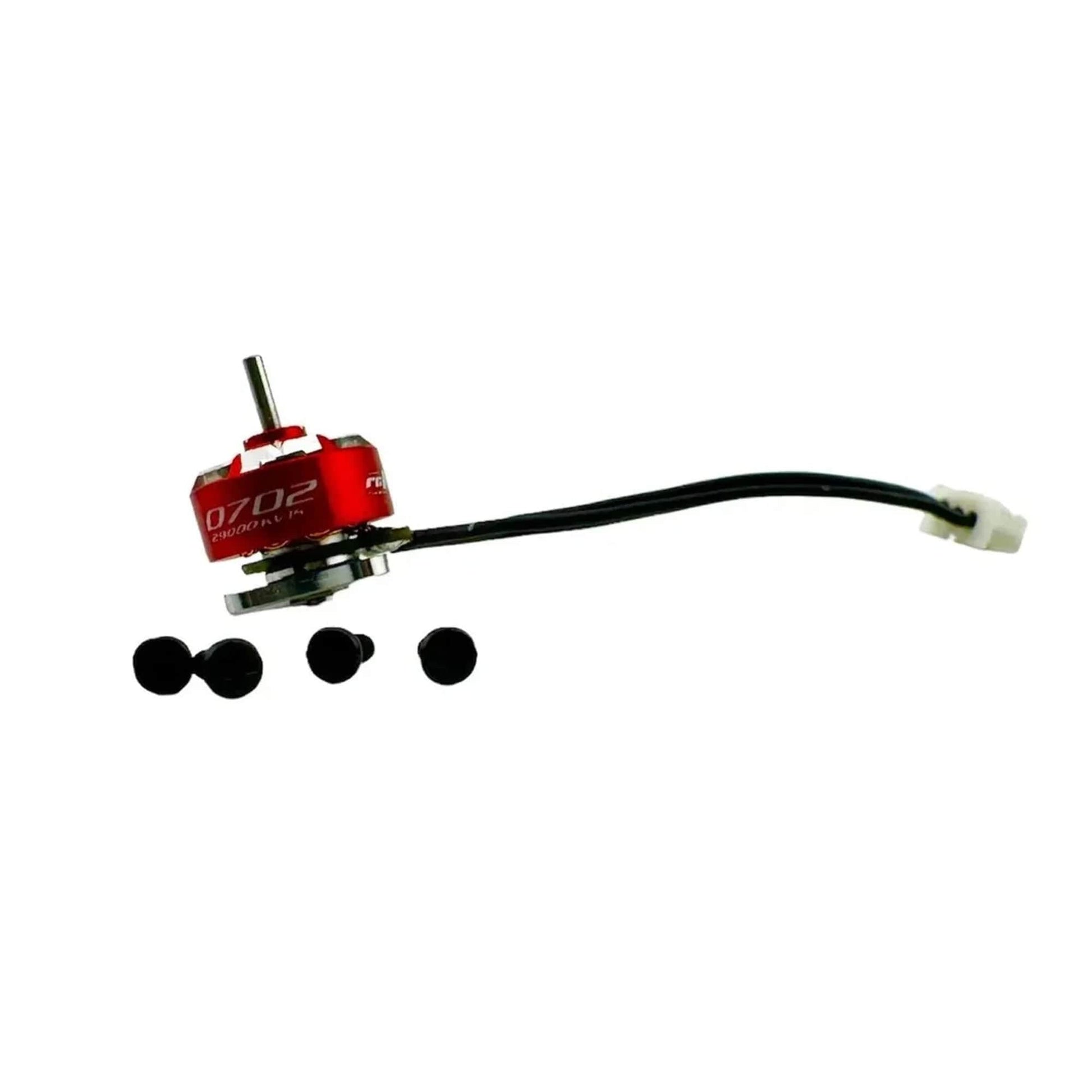

*Images for Reference, Displays Various Kv Options.

Features

RCinPOWER GTS V3 0702 29000Kv Micro Motor - Red/Silver

Specifications

  • Kv: 29000
  • Configuration: 9N12P
  • Stator Diameter: 7mm
  • Stator Length: 2mm
  • Shaft Diameter: 1mm (1.5mm inside)
  • Motor Dimensions (Dia. x length): Φ 9.6x8.1mm
  • Weight: 1.5g (with plug)
  • Idle Current(5)@5V(A): 0.25
  • No. of cells (Lipo): 1S
  • Max Continuous Power: 19.7
  • Internal Resistance: 210mΩ
  • Max Current: 4.7A
  • Max Efficiency Current: (1-2A)>82%

Includes

  • 1x RCinPOWER GTS V3 0702 29000Kv Micro Motor - Red/Silver

More Information:

  • SKU: 6910236005943
  • Barcode: 6910236005943
