The TBS crossfire RC replacement
"As a long time TBS crossfire user, this XR1 is the ideal replacement for the crossfire nano RX on the ELRS side, it just work and works well."
Details
Description

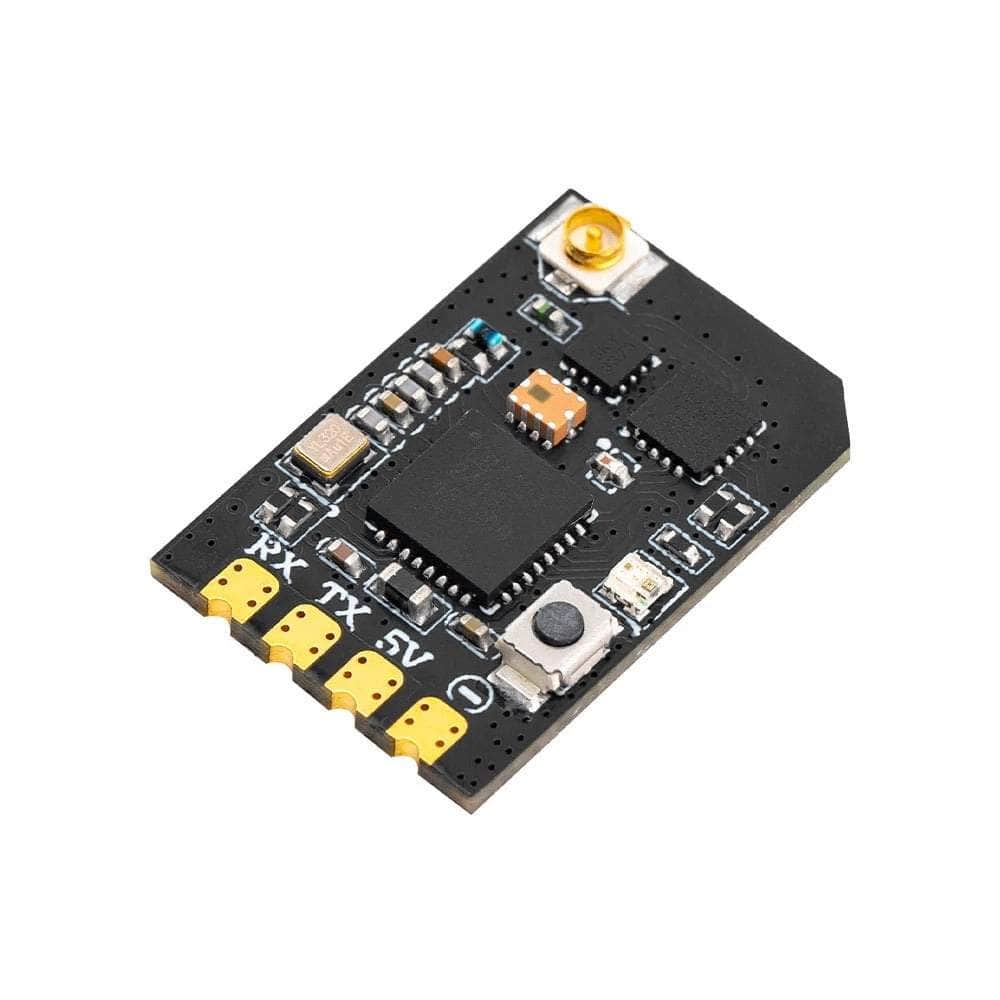

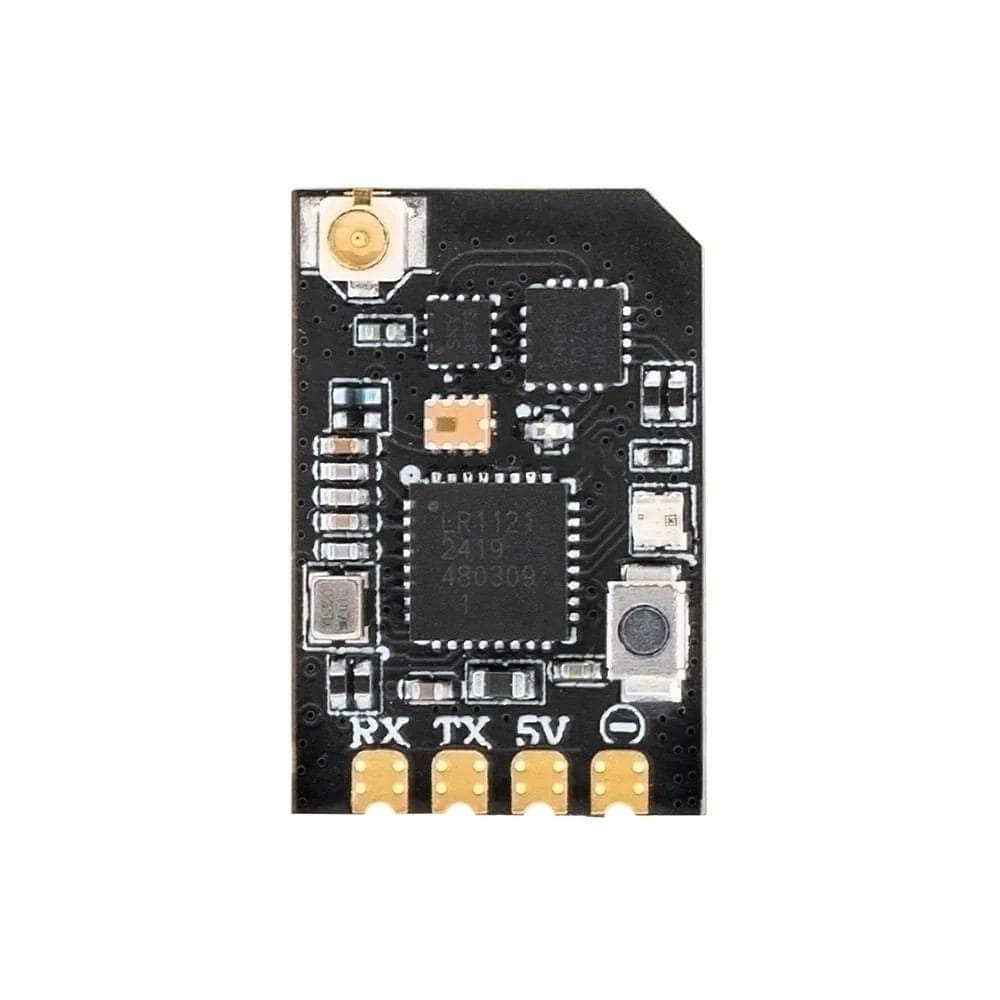

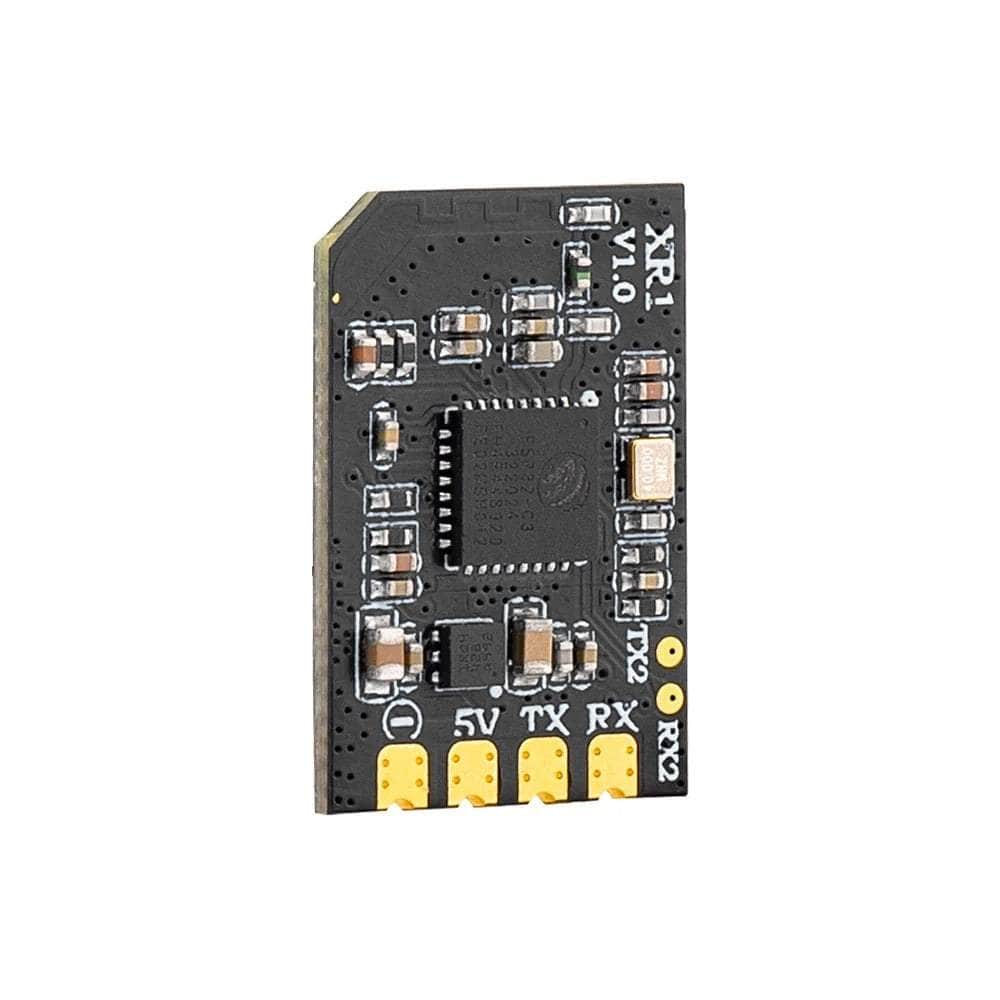

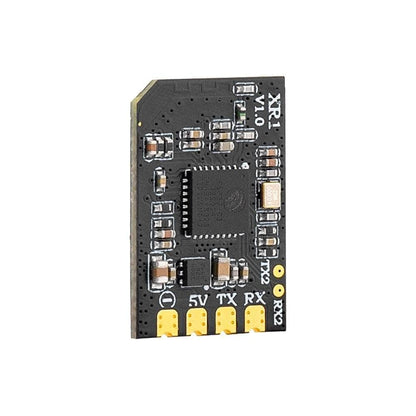

The XR1 Receiver is a tiny ExpressLRS receiver, measuring. Powered by the third-generation Semtech LR1121 transceiver, it operates on 2.4GHz or Sub-G 900MHz, offering excellent range and sensitivity in a lightweight design. With built-in Wi-Fi, the XR1 allows easy configuration and firmware updates through a WebUI on your PC or mobile device.
Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!
Features
- High-Performance MCU
- Advanced Transceiver
- Secondary UART Port
- Telemetry RF Power
- Castled Pads
Specifications
- Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- Firmware Target: RadioMaster XR1 2.4/900 RX
- Maximum Packet Rate: DK500Hz / K1000Hz
- Frequency Range: 2.4GHz or Sub-G 900MHz
- Minimum Packet Refresh Rate: 50Hz
- Dimensions: 20mm x 13mm x 3mm
- Weight: 1.0g (without antenna)
- Telemetry Power: 100mW
- RF Chip: Semtech LR1121
- Type: ISM 2.4 or FCC 915

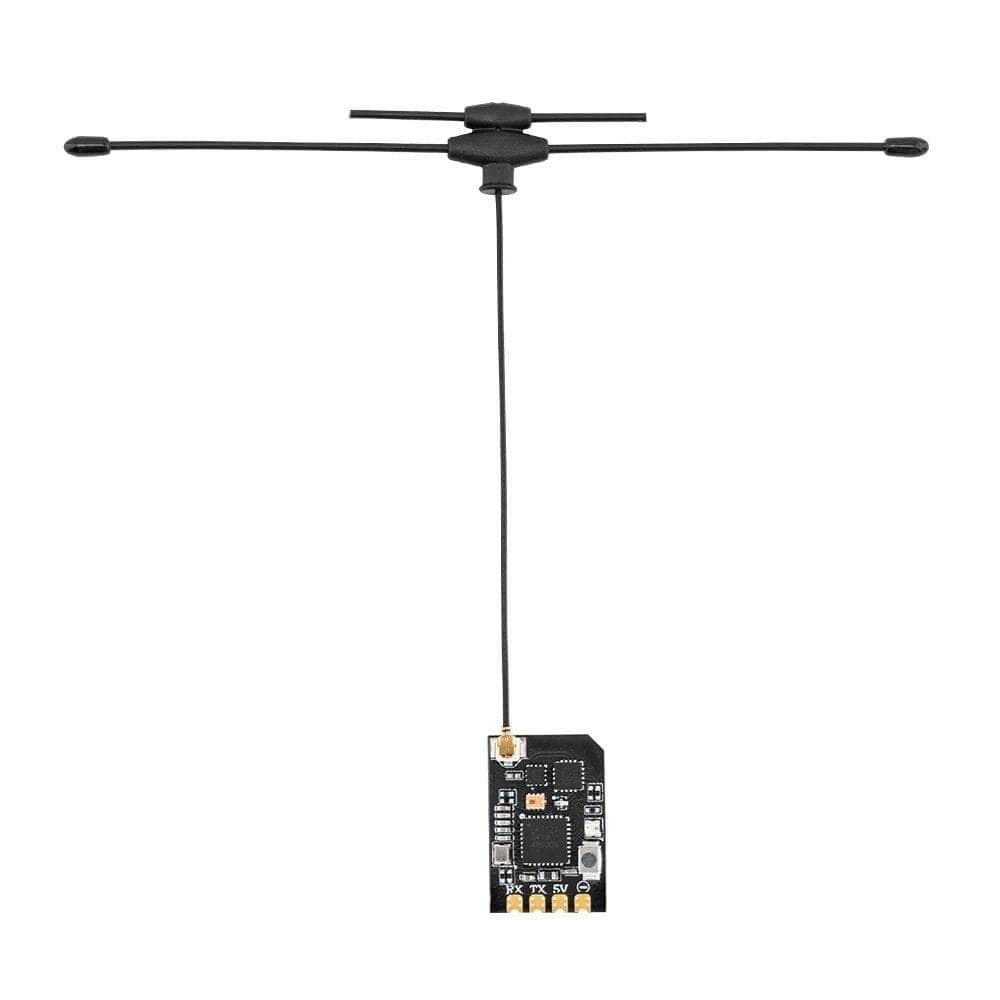

- Antenna: 1x T-Antenna
- Bus Interface 2: UART
- RF Connector: IPEX-1
- Bus Interface 1: CRSF
- Working Voltage: 5V
- MCU: ESP32C3
Includes
- 1x RadioMaster XR1 Nano Multi-Frequency ELRS 2.4GHz/Sub-G 900MHz Dual-Band Receiver
More Info
- SKU: 22848
- Barcode: 723326370168
