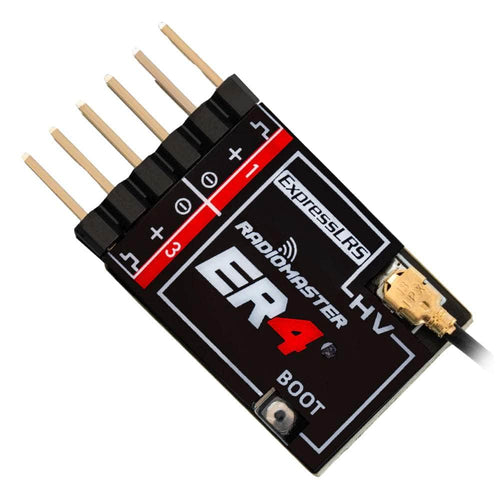

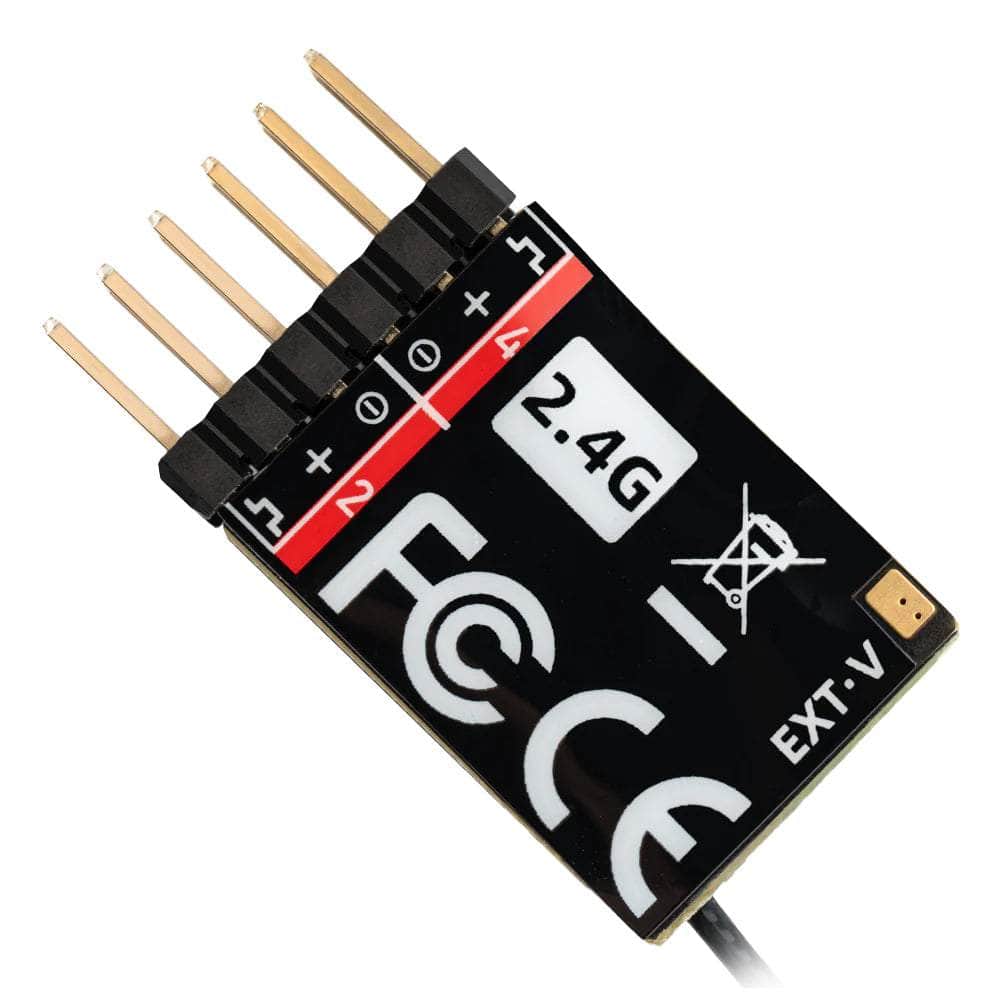

RadioMaster ER4 2.4GHz 4Ch ELRS PWM Receiver

RadioMaster ER4 2.4GHz 4Ch ELRS PWM Receiver

$17.99
$17.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

The RadioMaster ER4 4Ch 2.4GHz ELRS PWM Receiver is designed to provide reliable and flexible control for your models. It has a small volume and drives up to 4 servos simultaneously, making it perfect for small aircraft, ships, and cars.

Check out our RadioMaster selection, the rest of our RC receivers, and all our RC transmitters, modules, and accessories

Features

  • ER4 Receiver User Manual
  • Based on the Revolutionary ExpressLRS System
  • High performance, high reliability, flexible configuration, fast response speed, and ultra-long range
  • Support 4 PWM Channel
  • Optimized ground-up PCB design
  • Automatically voltage telemetry of external battery voltage or built-in receiver voltage
  • Supports Wi-Fi updates and WEBUI configuration
  • High-quality 2.54 mm connector
  • Standard 15 cm High Sensitivity Antenna
  • For small aircraft, boats and cars, and more

RadioMaster ER4 2.4GHz ELRS PWM Receiver
RadioMaster ER4 2.4GHz ELRS PWM Receiver
RadioMaster ER4 2.4GHz ELRS PWM Receiver
RadioMaster ER4 2.4GHz ELRS PWM Receiver
RadioMaster ER4 2.4GHz ELRS PWM Receiver
RadioMaster ER4 2.4GHz ELRS PWM Receiver
RadioMaster ER4 2.4GHz ELRS PWM Receiver

Specification

  • Item: ER4 2.4GHz ELRS PWM Receiver
  • Power supply: DC 4.5 - 8.4V

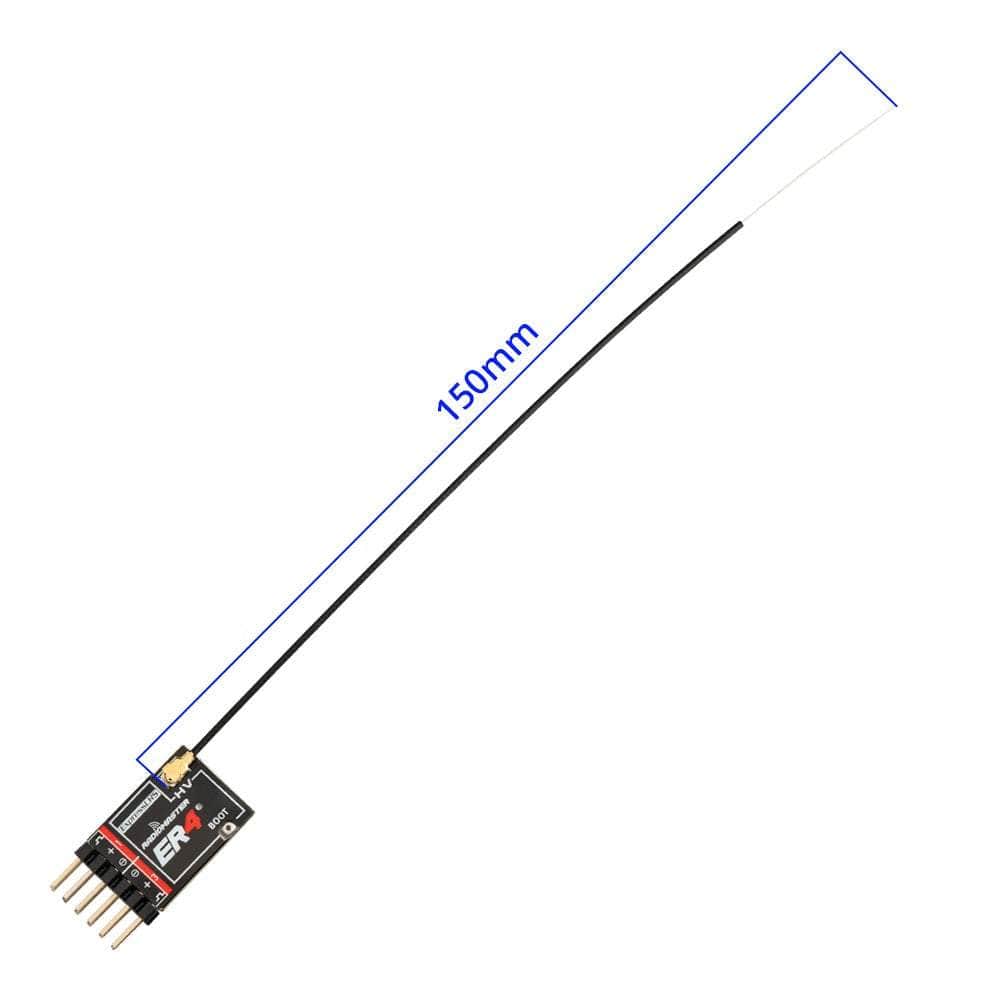

  • Antenna type: 15cm high sensitivity antenna
  • Wireless protocol: ExpressLRS 3.3.0 pre-installed
  • Output channel: 4CH PWM
  • Telemetry power: 10mw
  • Battery voltage detection range: DC 4.0- 35V
  • Weight: 3.0 grams
  • Dimensions: 30x15x5mm
  • Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER4 2400 PWM RX

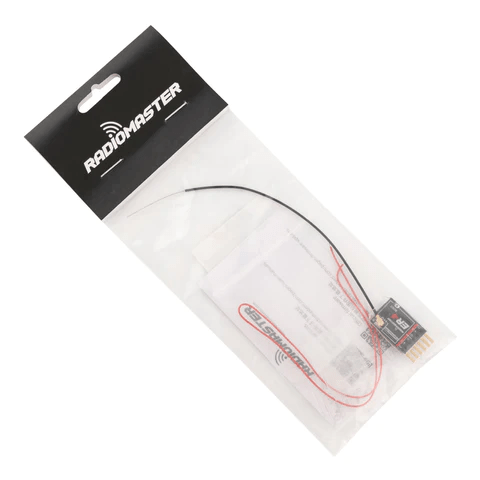

Includes

  • 1x RadioMaster ER4 2.4GHz 4Ch ELRS PWM Receiver
  • 2x Heat-shrink tube
  • 1x Voltage telemetry wire (Type-A)
  • 1x User Card

More Info

  • SKU: HOBP-HP0157.RX-ER4
  • Barcode: 691023501959


Overall rating: 5.0 / 5 from 6 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["service","receiver","model"].

Review highlights

Reviews

"Works great! As decribed!"

— Paul (5/5)

Good little receivers Super lightweight

"Good little receivers Super lightweight and cheap. I have a bunch of these receivers. I use them in a lot of my planes. I also like the voltage telemetry they give out it’s convenient being able to change settings via Wi-Fi. I will definitely keep buying these. They’re also pretty durable. I’ve crashed so many only one of them I think has broke."

— Lucas M. (5/5)

Great receiver for small models!

"Great lightweight, inexpensive ELRS receiver with vbat. Would be nice if vbat was pre-soldered, but easy enough to cut off heatshrink, solder a vbat cable and apply the provided new heatshrink. Also useful for models that have gyro + extra channels, e.g. can be configured with serial on 2/3, and 1 and 4 are still available for things like lights or esc reverse that don't go through the gyro."

— Bryce A. (5/5)

Excellent service, very happy with

"Excellent service, very happy with the purchase .. thank you!"

— Imroze K. (5/5)

Great little receiver.

"An ELRS with 4 PWM outputs and built in voltage telemetry. Great for those simple models and reliable enough to use in any model, small, large, cheap or expensive. Don't hesitate, just get at least one to see for yourself."

— J.P. M. (5/5)

Great little rx

"Nice Elrs rx put it in a FMS Ranger ,The battery telemetry is great .! Service from RDQ was super fast as always !"

— Lisa G. (5/5)

Q&A

I'm guessing I couldn't get the battery voltage off of a 1S battery? Looks like it can only read as low as 4 volts -- or is there a workaround?
No this is meant for 2+ cells.
