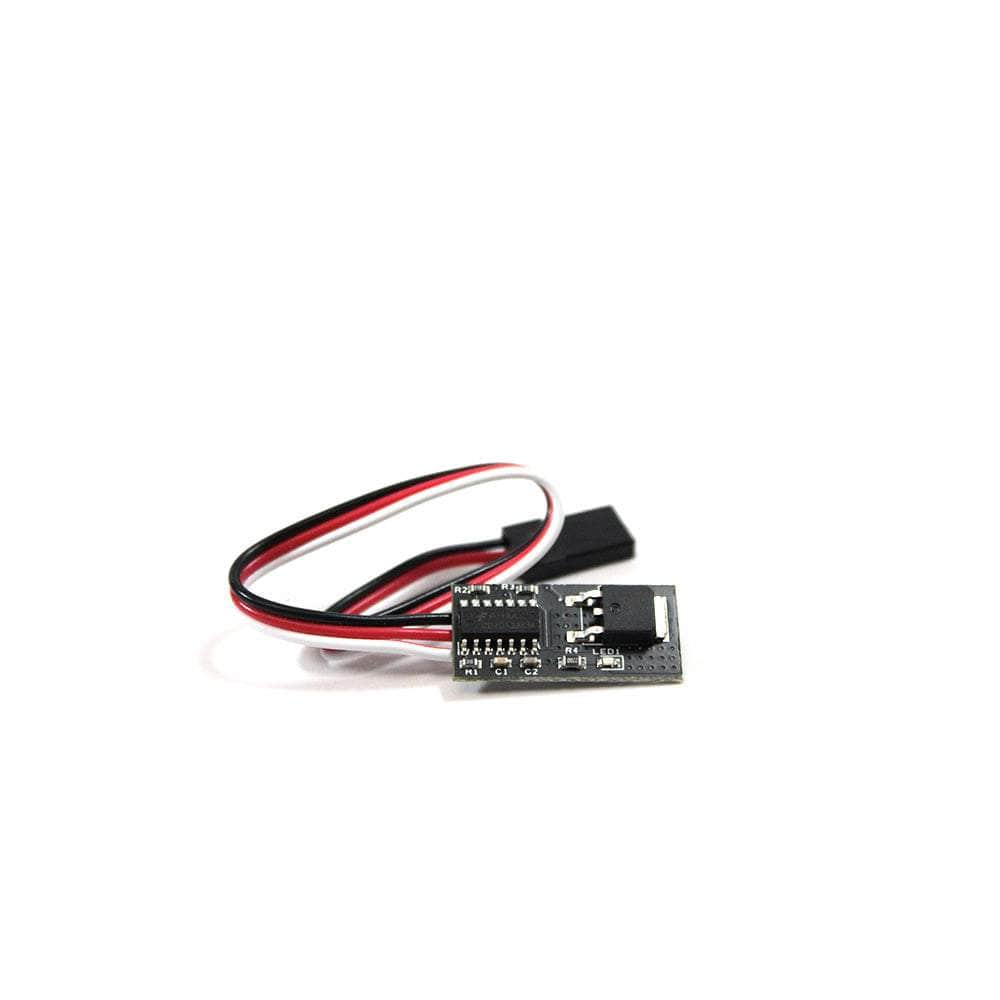

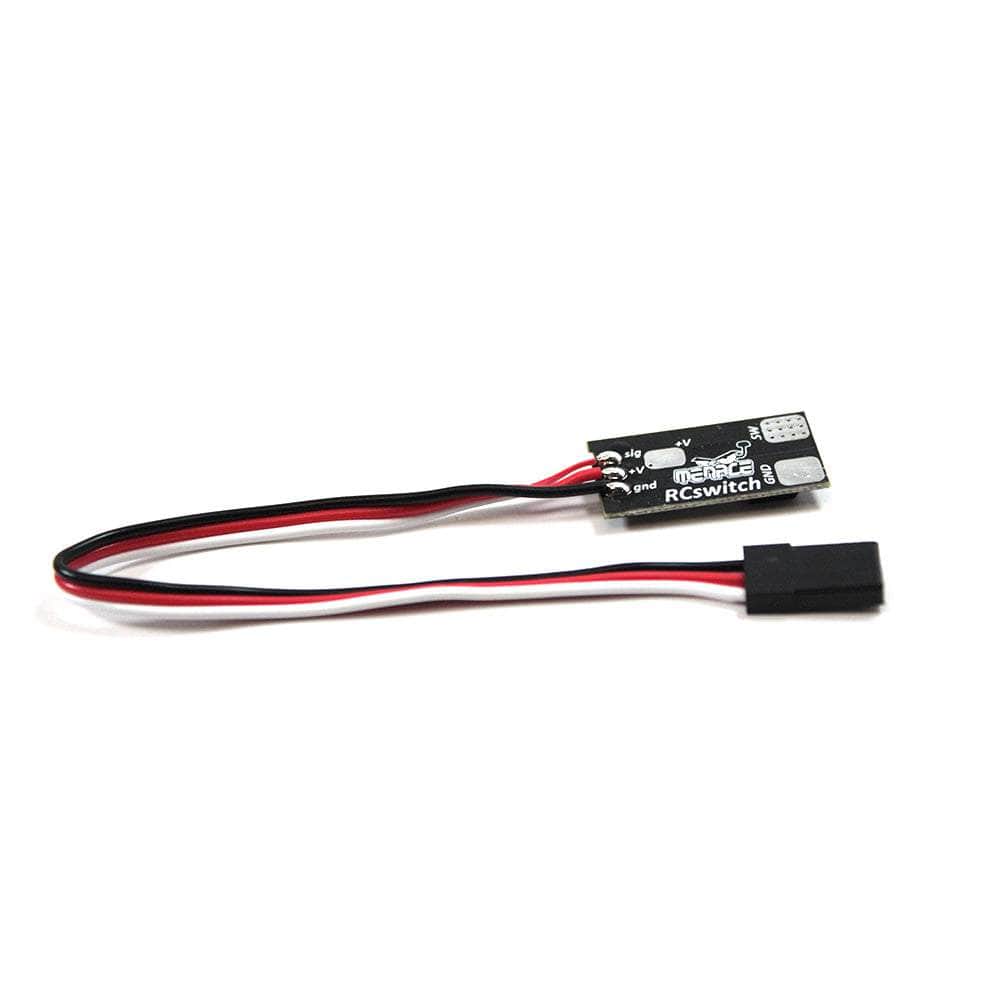

MenaceRC ON/OFF RCswitch 15A Continuous

Description

The Menace RC ON/OFF switch is capable of switching loads or auxiliary items ON/OFF by connecting to your receiver and controlling from any channel on your radio. When the PWM signal is over 1750uS the RC switch will complete the circuit. Making this perfect for switching higher power items on your models such as smoke machines, lights, sound effects, flaps, landing gear, triggering camera shutters etc…

Check out all our flight controller accessories and our Menace selection!

Specifications

• Dimensions: L25.0 x W12.0 x H3.8 mm
• Signal voltage range: 4.75V to 8.4V

• Voltage: 40V
• Cable Length: 150mm
• Weight: 15 grams

Includes

• 1x MenaceRC ON/OFF RCswitch

• 1x Clear Heat shrink

• 1x Sticker

Wiring Diagram
