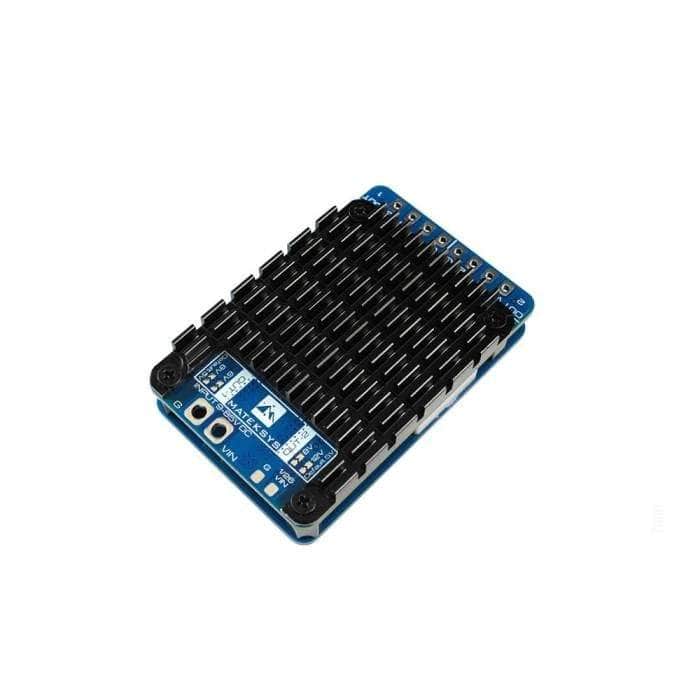

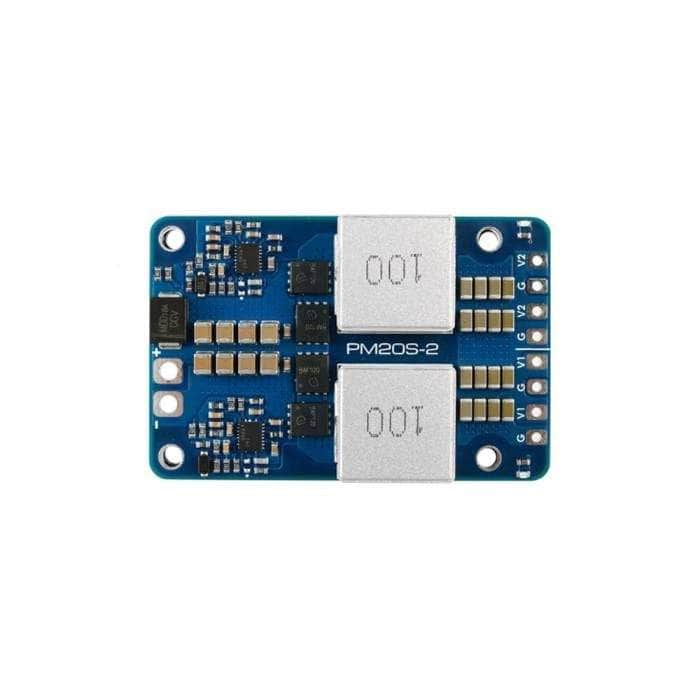

MATEKSYS PM20S-2 Power Module

Description

The MATEKSYS PM20S-2 Power Module is ready to distribute ultimate power for your systems. Equipped with 100V DC components, it supports an input voltage range of 9V to 85V DC with built-in 85V TVS protection. This power module has two independent step-down voltage regulators with continuous current support up to 15A and peak currents of up to 22A. Compact and lightweight, the PM20S-2 is ideal for advanced projects requiring robust and adaptable power solutions.

Check out all our BECs and PDBs, as well as the entire Matek selection!

Features

• Dual Step-Down Voltage Regulators
• Compact and Lightweight
• Wide Input Voltage Range
• High Voltage Capacity
• High Current Support
• Durable Design

Specifications

• Input Voltage Range: Supports 9V to 85V DC with 85V TVS protection

  • 2x Independent Step-Down Voltage Regulators
  • Regulator 1: 5.3V / 6.1V / 8.1V output options
• Supports continuous output current: up to 15A

  • Regulator 2: 5.3V / 8.1V / 12.2V output options
• Peak current of up to 22A

  • Supports continuous output current of up to 15A
• 1K: 25K voltage divider built-in for 3.3V-based voltage ADC
• Made with: 100V DC components
• Size & Weight: 61x40x15mm, 63g
• Peak current: up to 22A

Includes

• 1x Matek PM20S-2 Power Module
