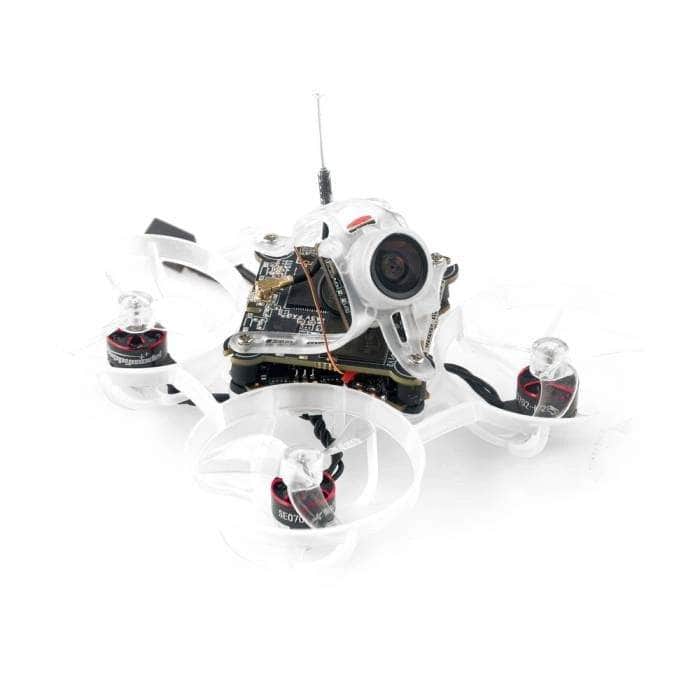

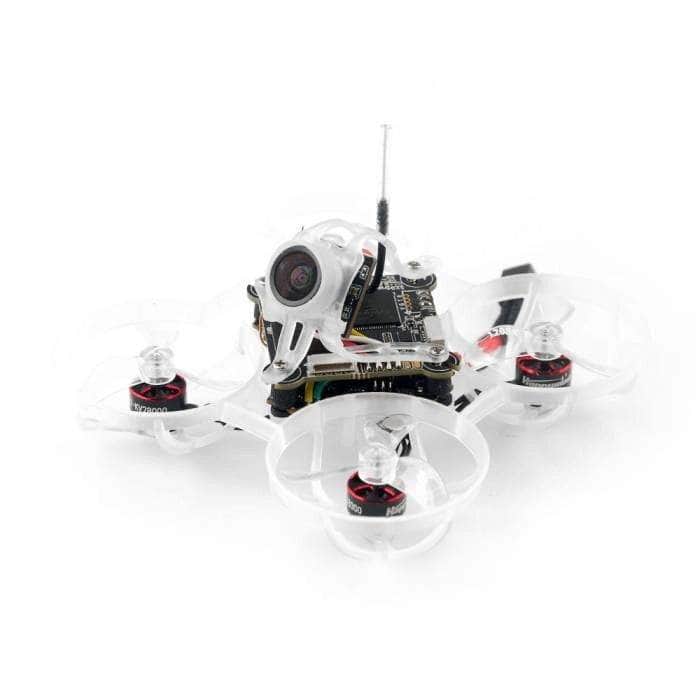

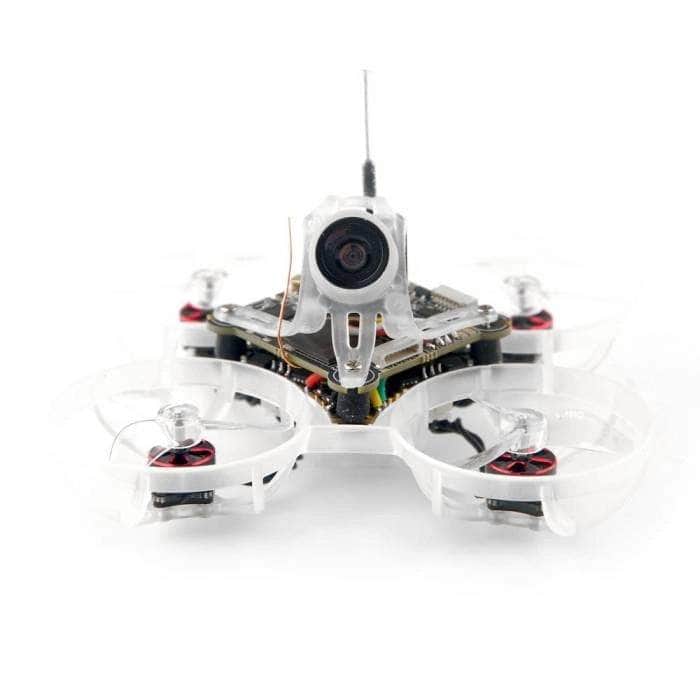

HappyModel BNF Mobula6 ELRS 2024 Ultra Light 65mm Brushless HDZero Eco Whoop - ELRS 2.4GHz

Description

Introducing the Mobula6 2024 ECO 1S 65mm ultra-light micro FPV Whoop from Happymodel, an innovative aircraft engineered for unparalleled performance. Equipped with an all-in-one flight controller featuring a Serial ELRS Receiver and 5.8G Openvtx, this whoop offers agile and dynamic flight experiences. Weighing just 23.3 grams, it is one of the lightest options available, powered by SE0702 brushless motors for smooth and powerful performance. This whoop captures crystal-clear imagery indoors or outdoors. With compatibility for both 1S LiPo and LiHV batteries, you can customize your flight experience. Its compact design ensures precise control in tight spaces. Elevate your FPV journey with the Mobula6 2024 ECO, whether you're a seasoned pilot or just starting.

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Features

• Equipped with the lightest brushless motors - SE0702, only 1.49 grams

• AIO Flight controller with Serial ELRS Receiver

• HDZero New ECO VTX and Camera ready

• Compatible with HDZero system

• Onboard black box read

• Smooth and powerful

Specifications

• Item Name: HappyModel BNF Mobula6 ELRS 2024 Ultra Light 65mm Brushless HDZero Eco Whoop - ELRS 2.4GHz

• Size: 81mmx81mmx45mm

• Brand Name: Happymodel

• Wheelbase: 65mm
• Battery plug: A30
• Weight: 23.3g

FLIGHT CONTROLLER

• Power Supply: 1-2S LiPo LiHV Battery Input (DC 2.8V - 8.7V)

• Sensor: BM1270 OR ICM42688P (SPI Connection)

• MCU: STM32F411CEU6 (100MHz, 512K Flash

• Firmware Target: CRAZYBEEF4DX

• Receiver: UART ELRS  V3.0 ready

• Firmware: Bluejay ESC

ONBOARD 4-IN-1 ESC

• Support: ESC-Configurator & BLHeli_S Configuration

• Factory firmware: Z-H-30 - Bluejay, 0.19. 48kHz

• Current: 12A continuous peak 15A (3 seconds)

• Power supply: 1-2S LiPo/LiPo HV

• Default protocol: DSHOT300

MOTORS

• Motor Dimensions (Dia.x Len): 9.5mmx14mm

• Mode: SE0702 KV28000

• Stator Diameter: 7mm

• Configuration: 9N12P

• Shaft Diameter: 1mm

• No.of Cells(Lipo): 1S

• Stator Length: 2mm

• Weight(g): 1.49g

Includes

• 1x HappyModel BNF Mobula6 ELRS 2024 Ultra Light 65mm Brushless HDZero Eco Whoop - ELRS 2.4GHz
• 1x Hardware Set
