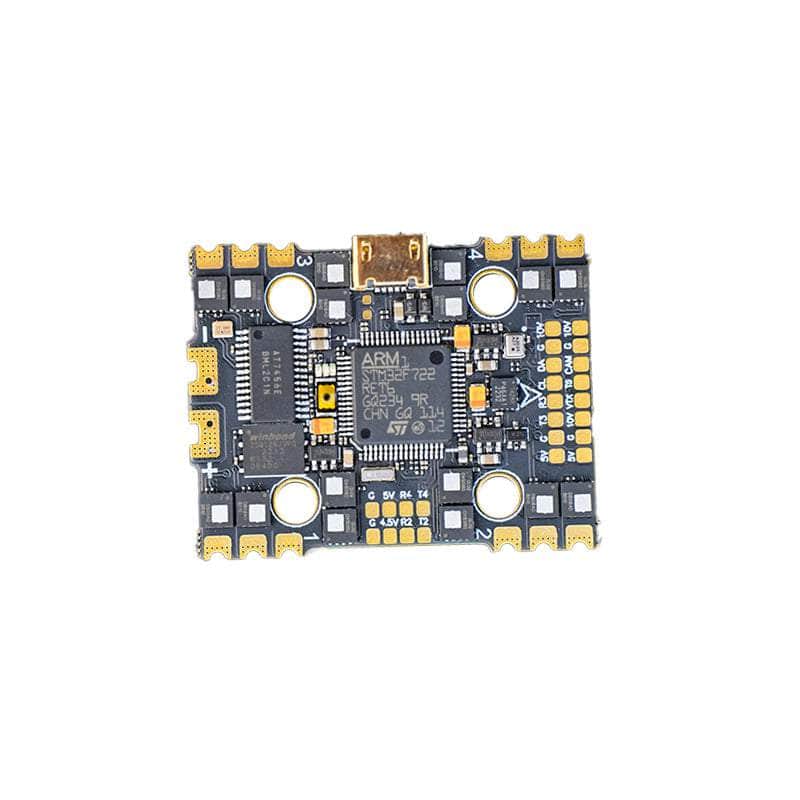

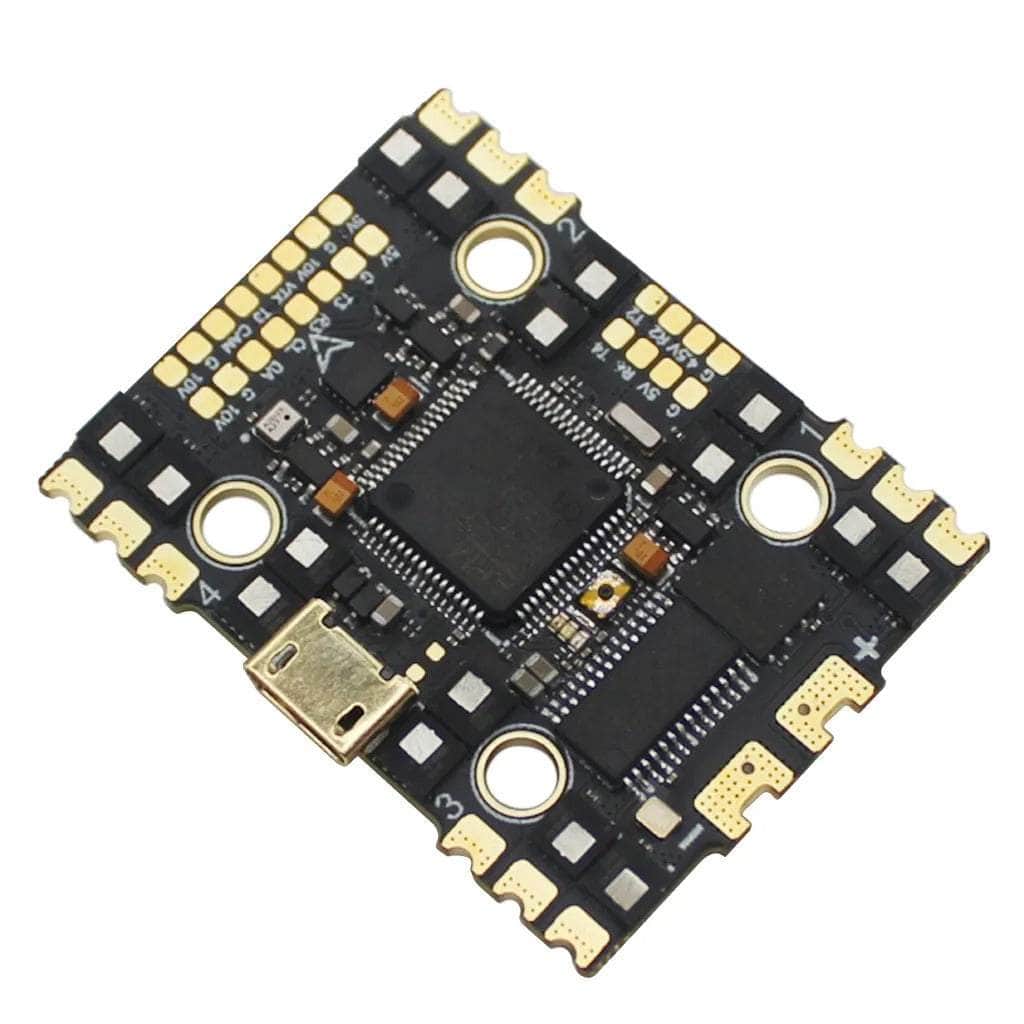

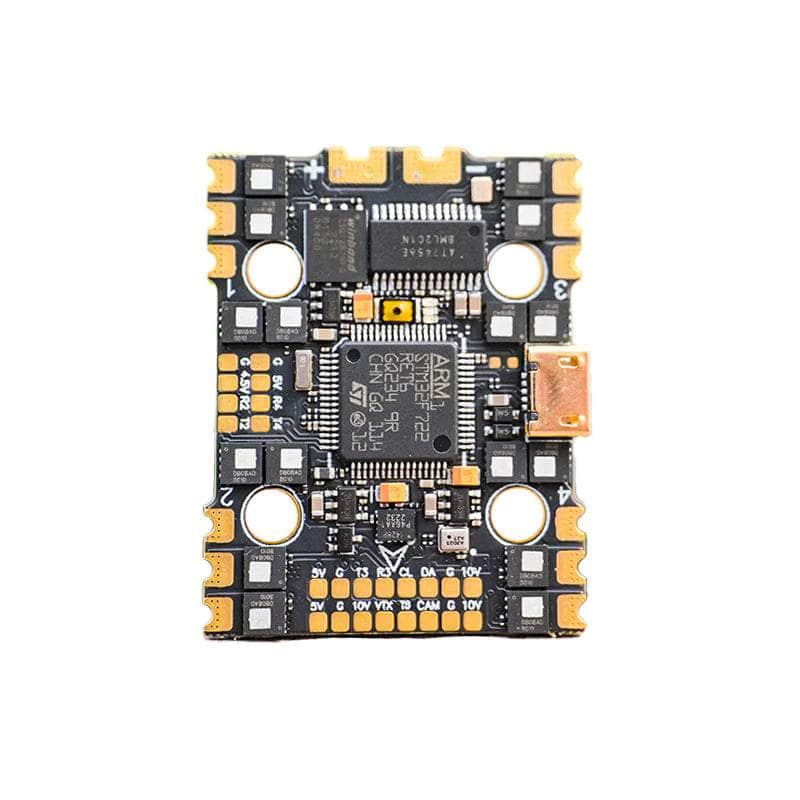

HAKRC F7220 3-6S AIO 20x20 Flight Controller w/ 32Bit 50A 4in1 ESC

Description

A 20x20 AIO is impressive enough, but this comes with an F7 processor for your FC and a 32-bit processor for the ESC, working support of 50 amps of power and 60A burst. For the lightweight 5" enjoyers, this is the dream AIO flight controller. Coming with high-quality mosfets, This board boasts dual BECs,  a 5V/3A, and BEC: 10V/2.5A. The PCB adopts a high-end 8-layer 2oZ thickened copper sheet with stronger overcurrent capacity and good heat dissipation.

Check out our other AIO boards and HAKRC products for sale at RaceDayQuads!

Features

• MOS adopts imported 40V high current withstand MOS, with long service life and strong load capacity.

• Adopting industrial grade LDO, resistant to high temperatures.

• Adopting high-quality Japanese Murata capacitors with strong filtering performance

Specifications

• Size: 40 x 30mm (20mmx20mm mounting hole)

• Packaging size: ø 64 x 64 x 35mm

• Net weight of product: 10g

• Packaging weight: 44g

• Sensor: built-in current sensor

• FC firmware version: HAKRCF7220D

• Receiver: ELRS/TBS Crossfire/Frsky/Futaba/Flysky/DSMX: DSM2 receiver

• ESC firmware version: HAKRC_ AT4G_ Multi_ 32_ 9. Hex

• Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150,
• Dshot300, Dshot600

• CPU: STM32F722RET6

• IMU: ICM42688

• OSD: AT7456E

• Barometer: integrated

• Uart: 5
• BLHeli_32 ESC
• PWM: 24-128K
• Continuous current: 50A

• Peak current: 60A
• Black box: 16M

• BEC: 5V/2.5A

• BEC: 10V/2A

• LED: Adjustable LED light


Includes

• 1x HAKRC F7220 3-6S AIO 20x20 Flight Controller w/ 32Bit 50A 4in1 ESC

Wiring Diagram
