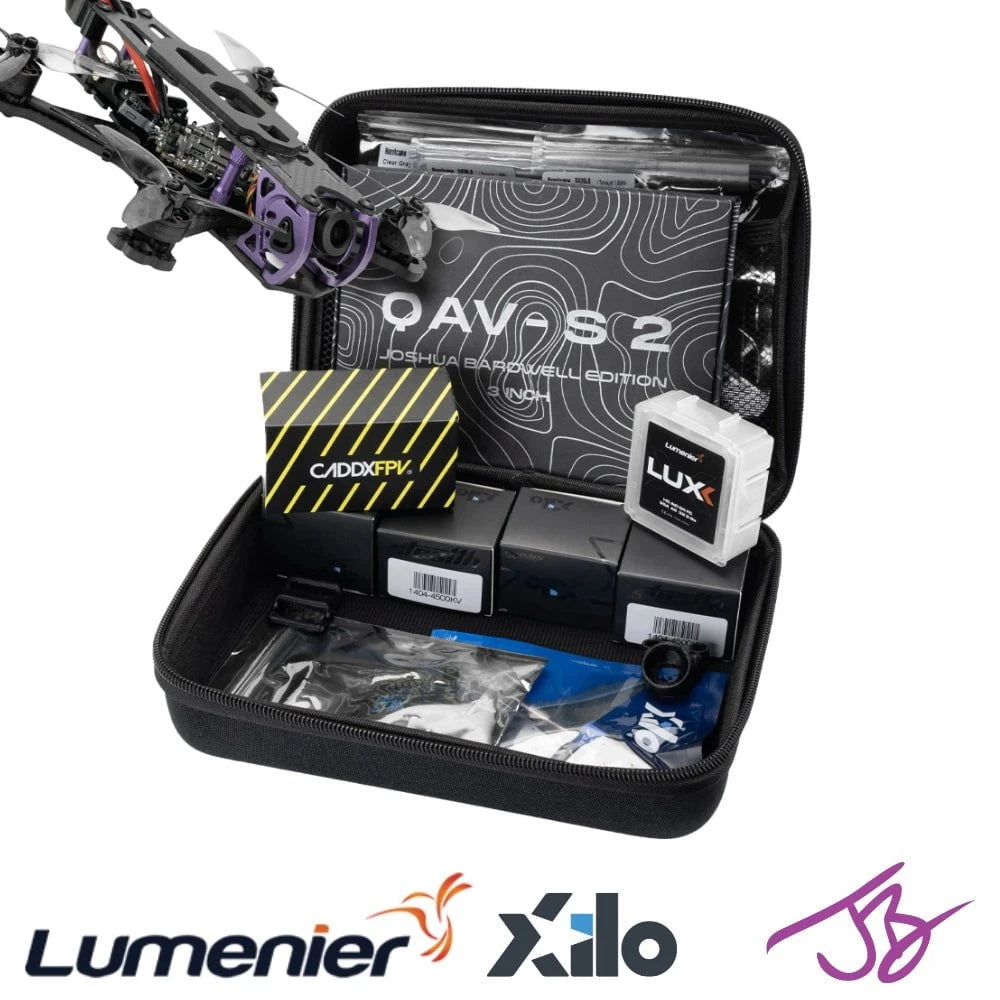

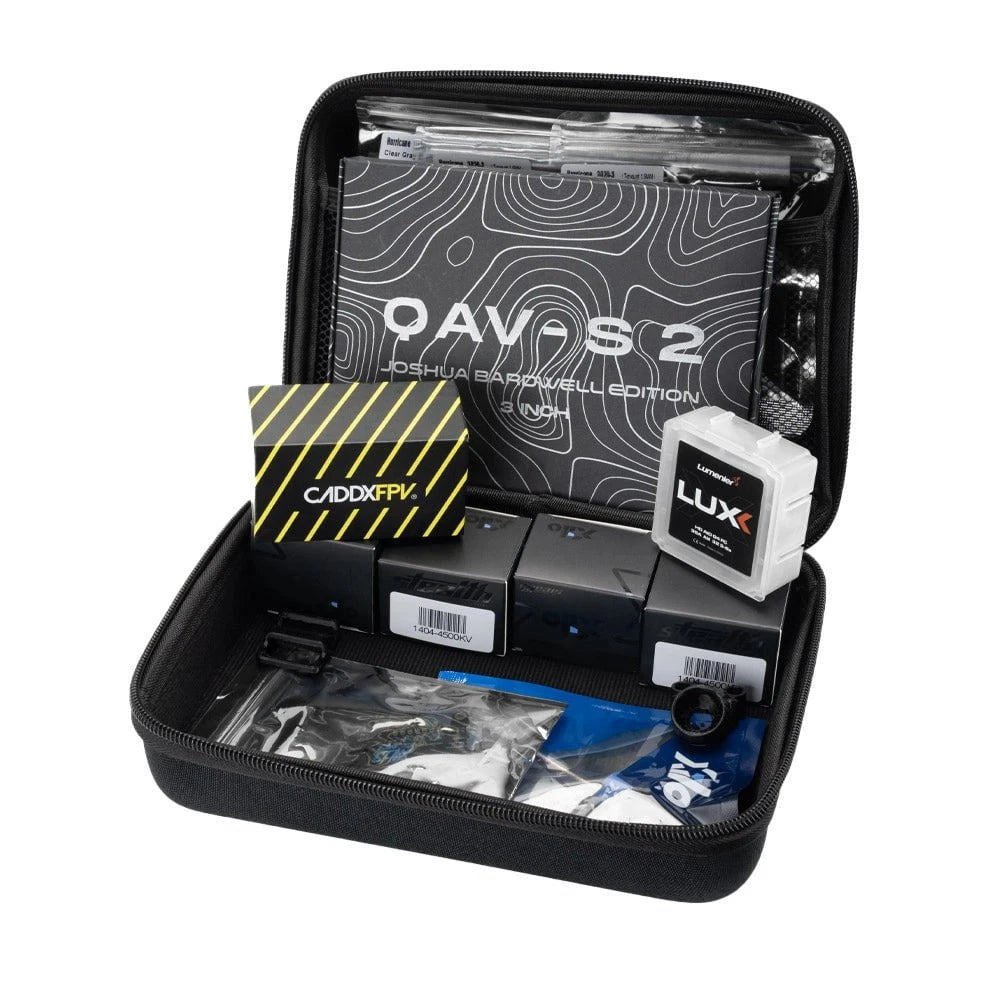

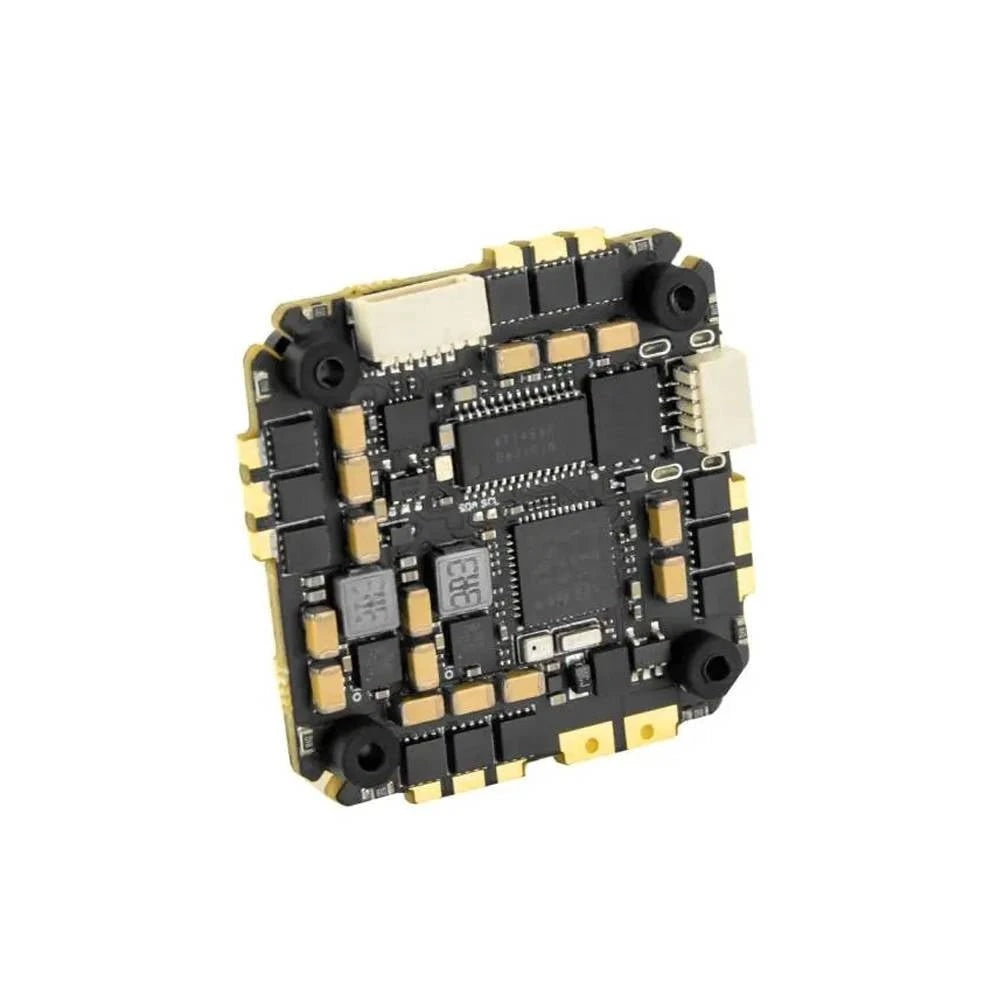

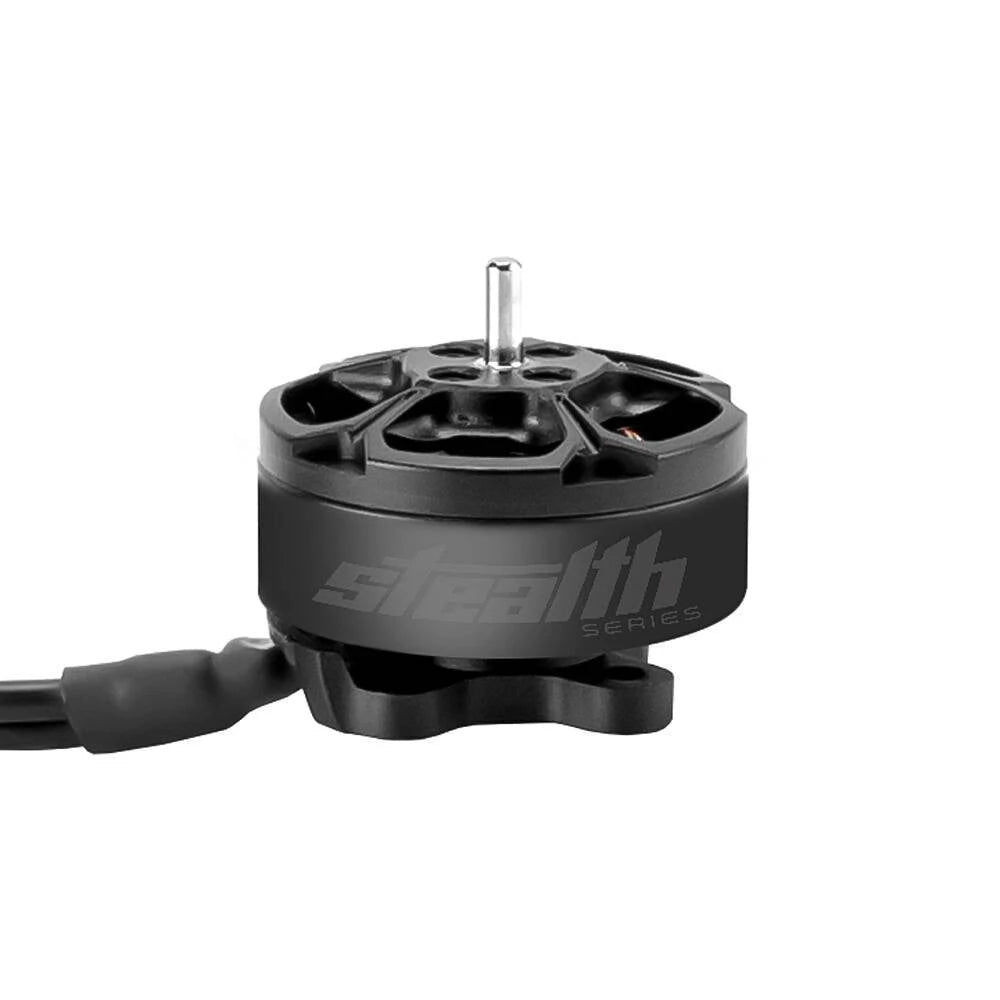

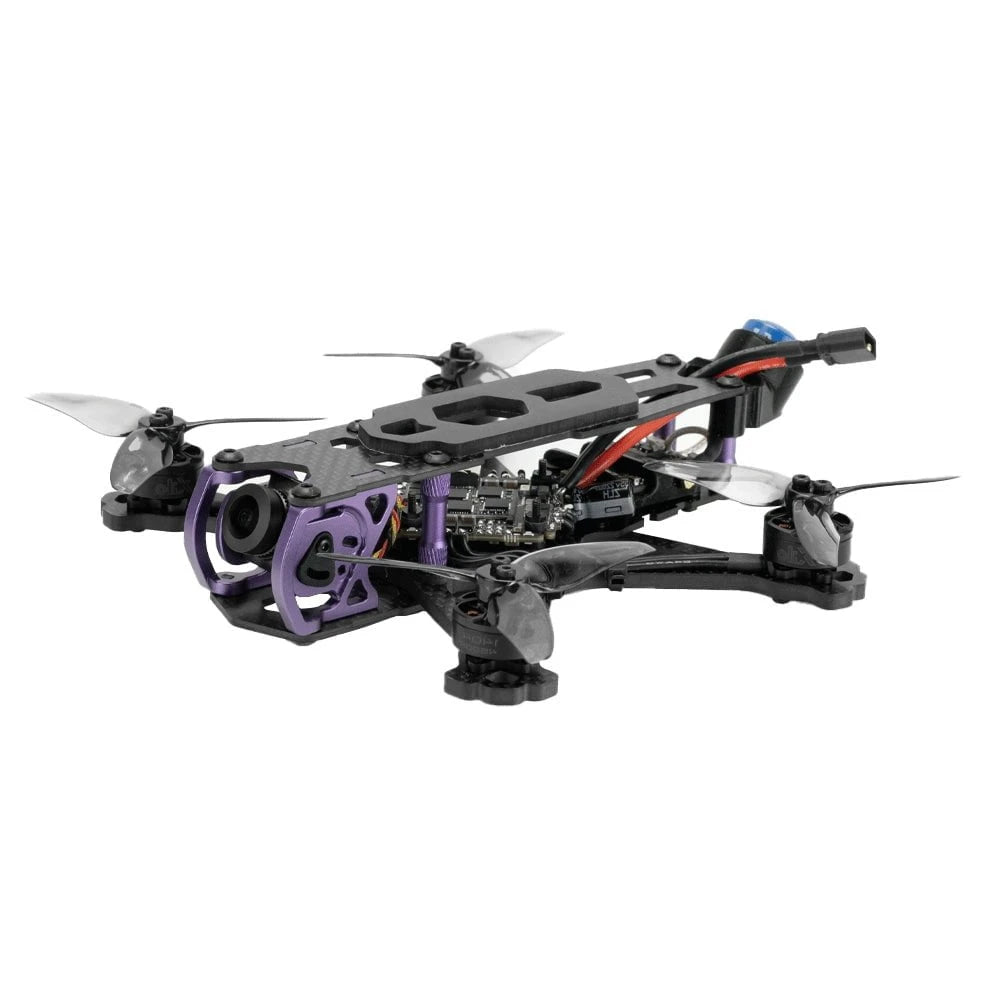

The Lumenier QAV-S 2 Sub-250 Joshua Bardwell SE 3” Analog DIY Kit is designed for Freestyle FPV, featuring a 3" QAV-S 2 frame with aluminum FPV camera plates and a mono plate for the arms. This frame kit accommodates lightweight performance electronics, such as the Lumenier AIO and XILO 1404 motors, and is made from high-quality Lumenier carbon fiber. Compatible with analog systems, this DIY kit comes with all hardware components and the FPV system needed to build the frame. It also includes a step-by-step guide by FPV expert Joshua Bardwell.
Note:
The receiver is not included. A receiver that is compatible with your controller is required.
This is a Full DIY Build Kit with assembly required.
Mono-plate arms for enhanced rigidity and reduced weight

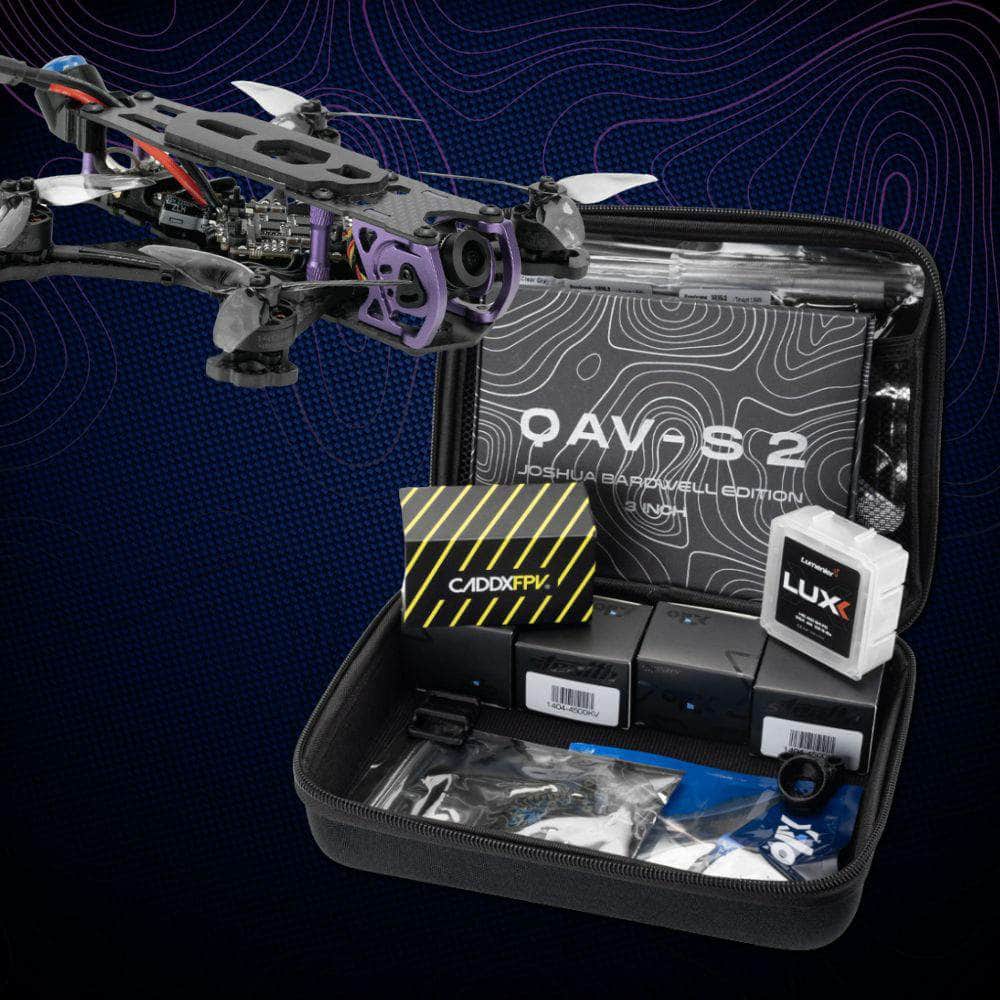

DIY Kit includes everything needed to complete your build
Constructed with high-quality Lumenier components
Lightweight design optimized for sub-250g builds
Durable aluminum FPV camera side plates
Compatible with analog camera mounts
Analog DIY Kit
Video

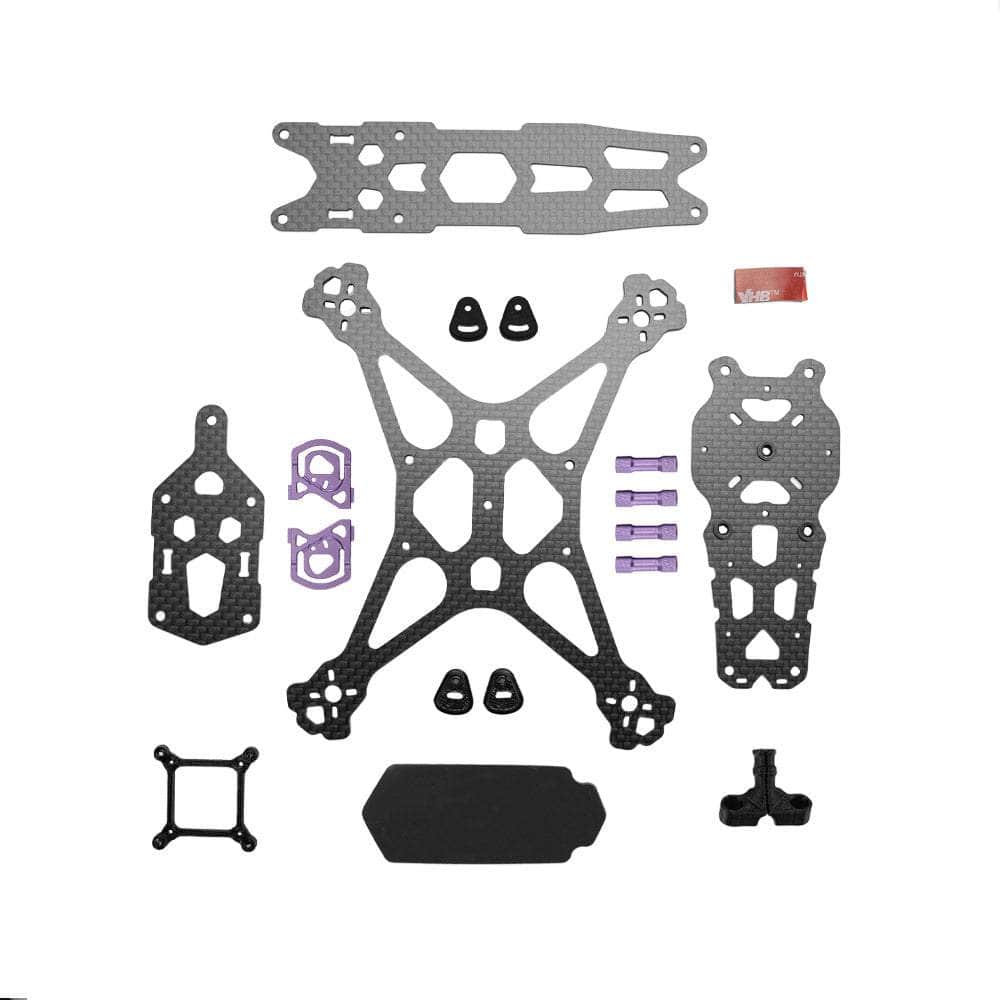

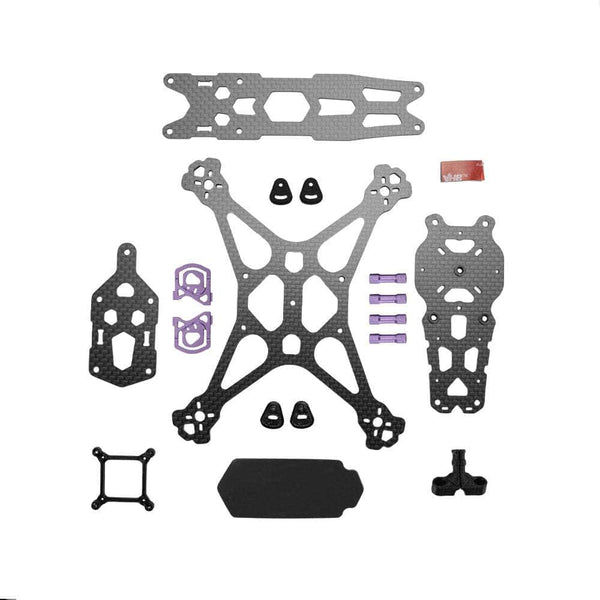

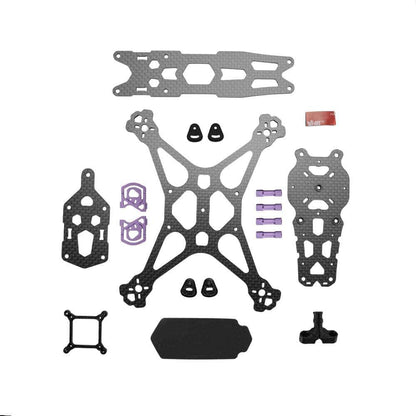

ARM MONO PLATE
The QAV-S 2 Sub-250 Joshua Bardwell Special Edition is truly unique, featuring 3.5mm thick arms paired with an Arm Mono plate. Weighing just 55g (frame only, without accessories), this design strikes an industry-leading balance between lightweight construction and durability, perfect for even the most demanding applications. The Arm Mono plate enhances rigidity while keeping the configuration light.
ALUMINUM CAMERA PLATES
The Lumenier QAV-S2 Sub-250 Joshua Bardwell frame kit features aluminum FPV camera side plates for enhanced protection and flexibility. It supports both HD and analog cameras, including damped mounts optimized for O3 and O4 Air Unit cameras—offering endless possibilities for your setup! These plates are also backward compatible with the QAV-S 2 Bardwell 5" frame kit.
SOFT RUBBER CAMERA ISOLATION MOUNT
The Lumenier QAV-S 2 Sub-250 Joshua Bardwell SE 3" frame kit features a soft rubber camera isolation mount, reducing vibrations for smoother, more stable footage when stabilizing with either on-camera stabilization (RockSteady) or software stabilization (Gyroflow).
Specifications

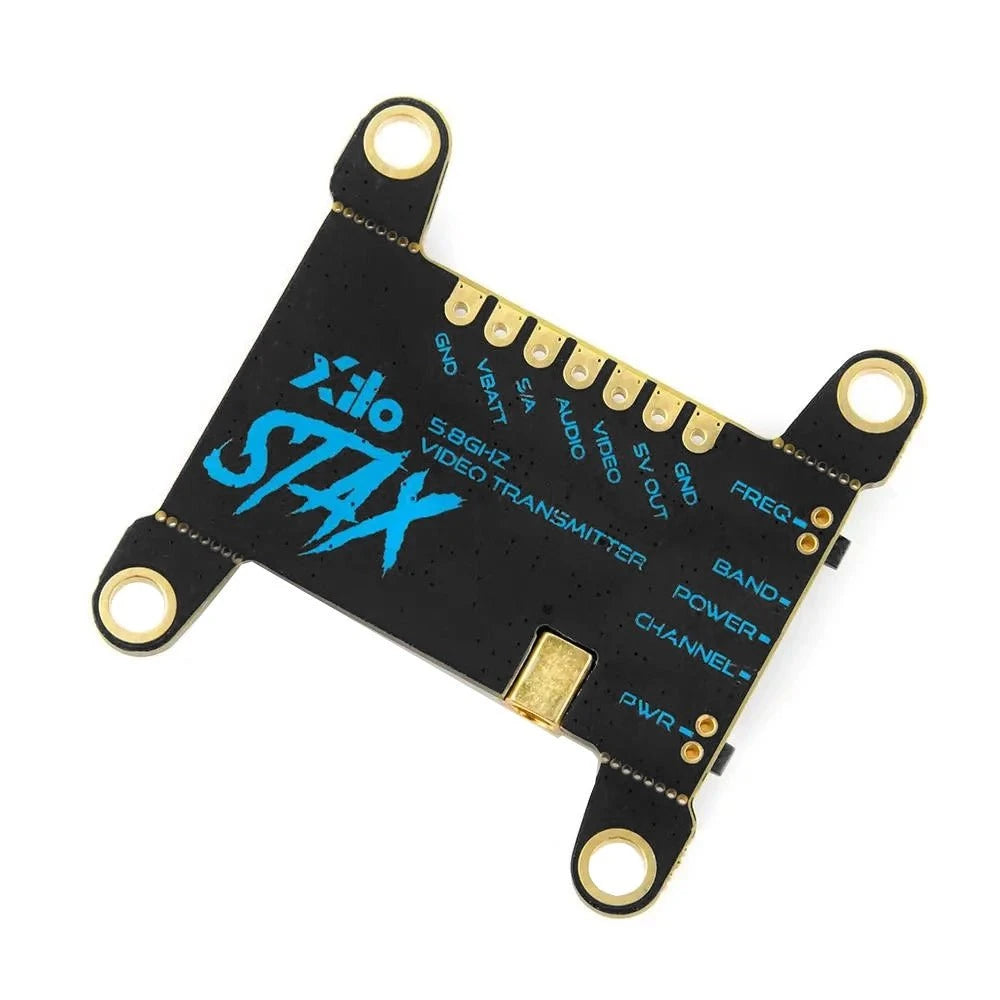

Video Transmitter: XILO STAX 5.8GHz FPV Video Transmitter (25-600mW) w/ Smart Audio
This mount is a drop-in replacement for the camera cage on the Bardwell edition of the Lumenier QAV-S 2. The camera cage portion should be printed in something stiff and tough, like nylon or carbon fiber nylon. PAHT-CF is a great choice if you can print it. This mount was also tested in PETG-CF, and it works decently. These are printed parts, though, so keep in mind that durability will suffer compared to machined aluminum parts.
The damper inserts should be printed in TPU; you can reduce the walls and infill percentage to help with damping if necessary. Machined aluminum parts will be available soon, and these same damper inserts will work with the production parts if needed.
Includes

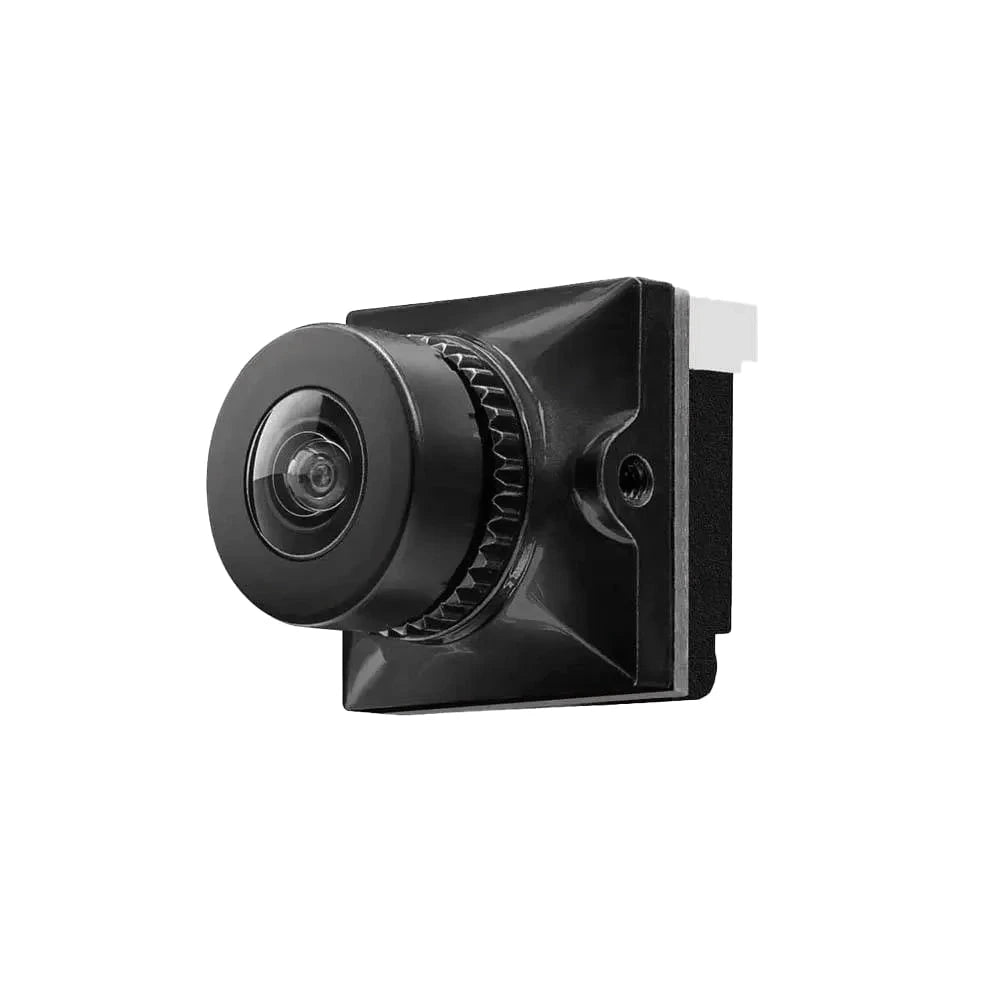

1x Caddx Ratel 2 Micro Starlight 1200TVL Low Latency FPV Camera Black

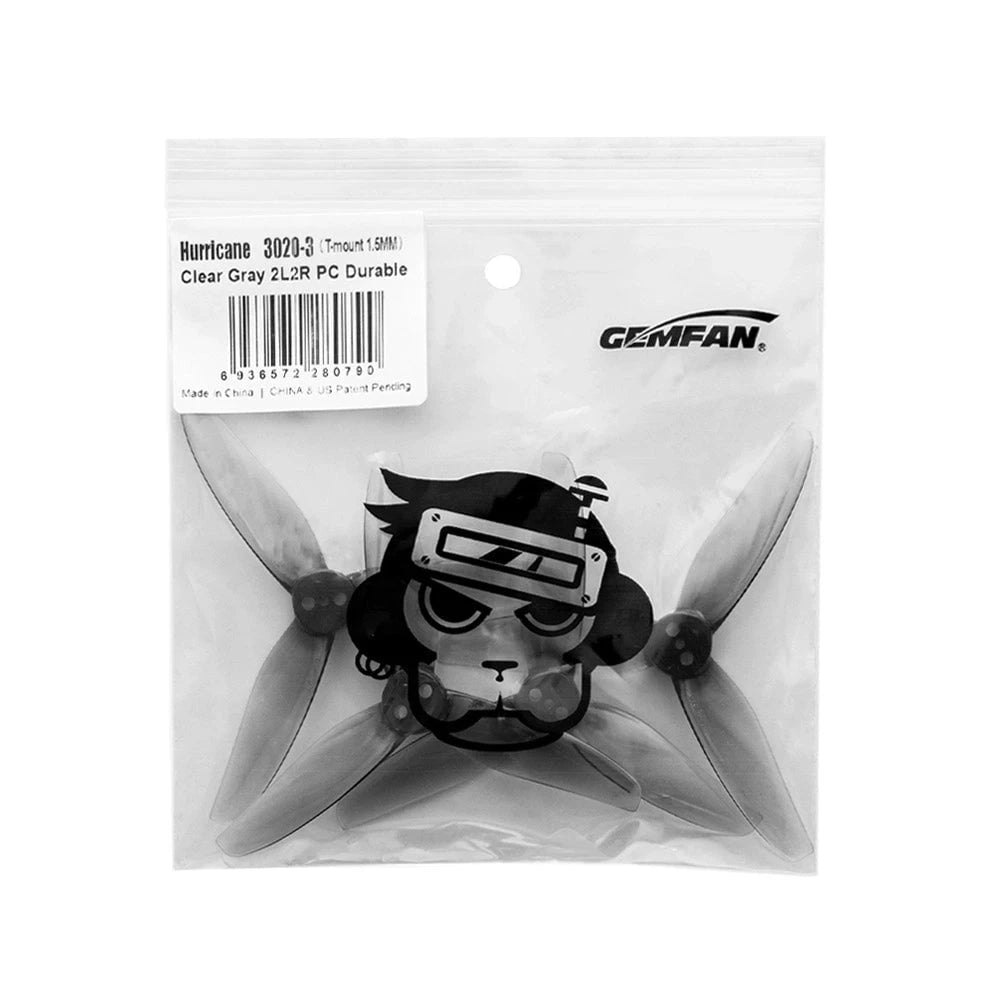

3x Gemfan Hurricane 3020 3-Blade Propeller (1.5mm Shaft - Set of 4)
