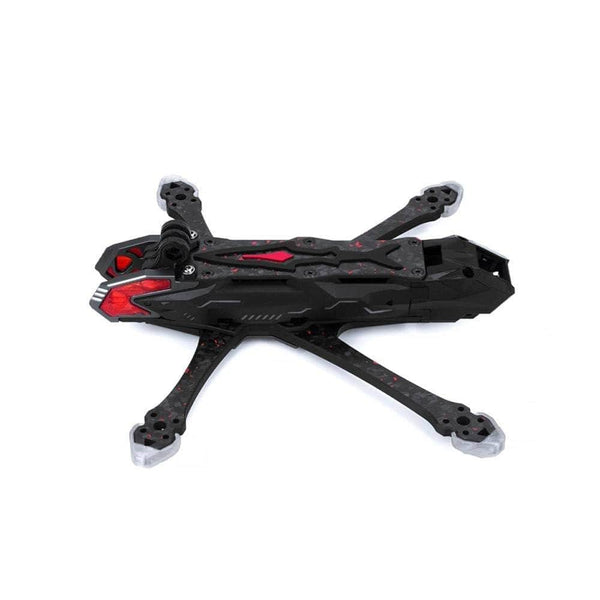

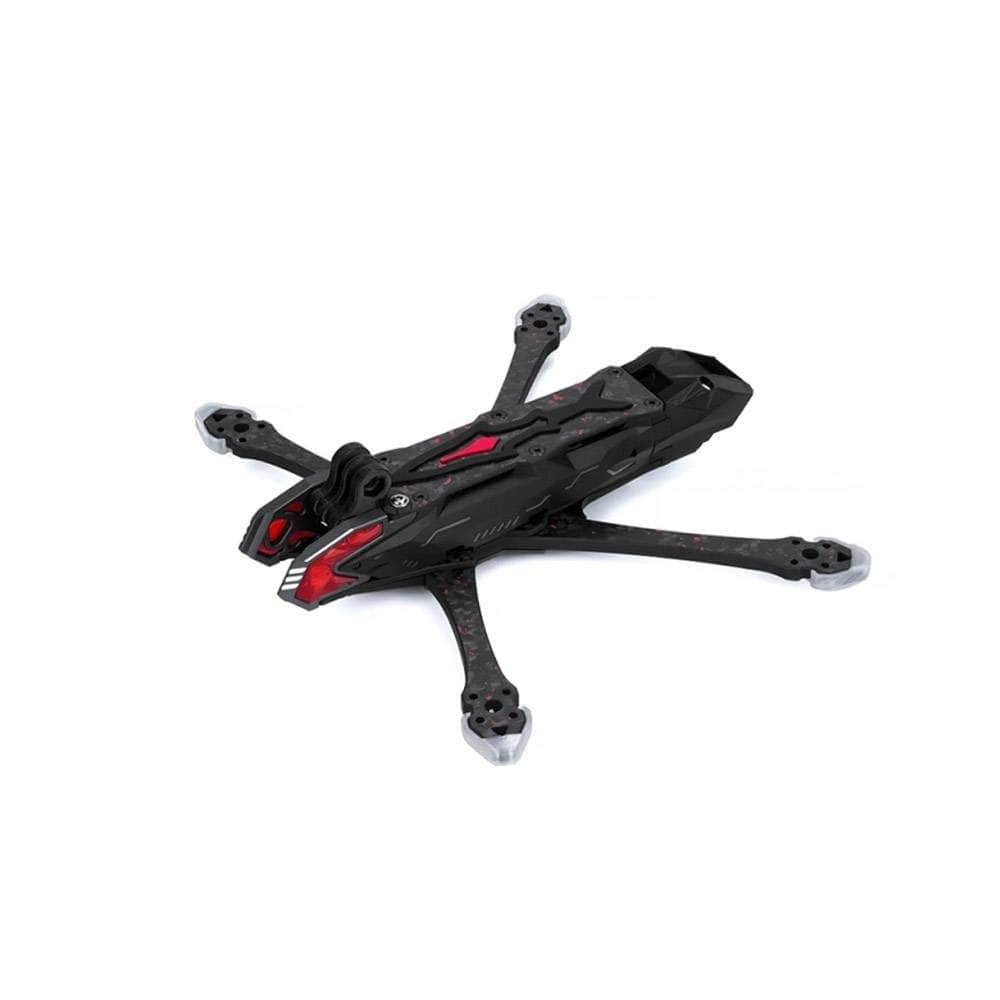

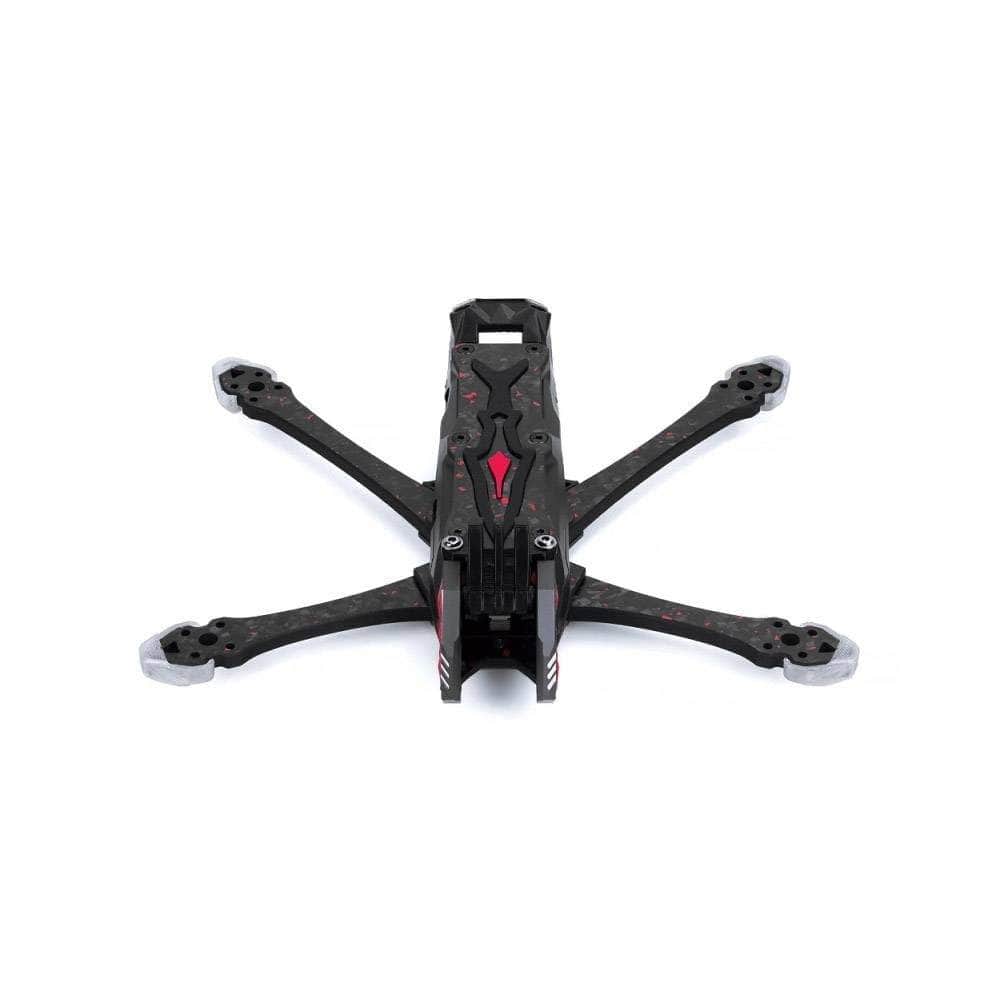

Axisflying Manta5 Pro Frame Kit - Deadcat

Description

The Axisflying Manta 5 Pro Frame Kit is a sleek, extremely durable, and red flake forged carbon flying machine. This frame features deadcat-style design, for FPV pilots seeking stable footage & cinematic flight.  Its durable carbon fiber construction offers strength and agility, perfect for dynamic flying. Try the  Manta 5 Pro Frame Kit for your next build.

Check out our other 5" frames, and all our Axis Flying Products!

Features

• Durable Carbon Fiber Build
• Optimized Flight Stability
• Deadcat-Style Design
• Lightweight and Sleek

• Versatile Usage
• Customizable

Specifications

• VTX Mounting Holes: 20x20mm/M2/M1.6-25x25mm/M2
• Motor Mounting Holes: 16mm x 16mm/M3
• Stack Mounting Holes: 20mm x 20mm/M3
• Prop Mounting Holes: Max 5.1 inch
• Camera Thickness: 19mm, 20mm
• Product Name: Manta 5 Pro
• Carbon Fiber Grade: T700
• Wheelbase: 226.5mm
• Arm Thickness: 6mm
• Stack Height: 23mm
• Frame Weight: 217g
• Bottom Plate: 3mm
• Top Plate: 2mm
• Structure: DC

Includes

• 1x Axisflying Manta 5 Pro Frame Kit - Deadcat
• 1x Hardware Set
