AOS RC V5 O4 Frame Kit - AOS 5"

AOS RC V5 O4 Frame Kit - AOS 5"

$113.99
$113.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

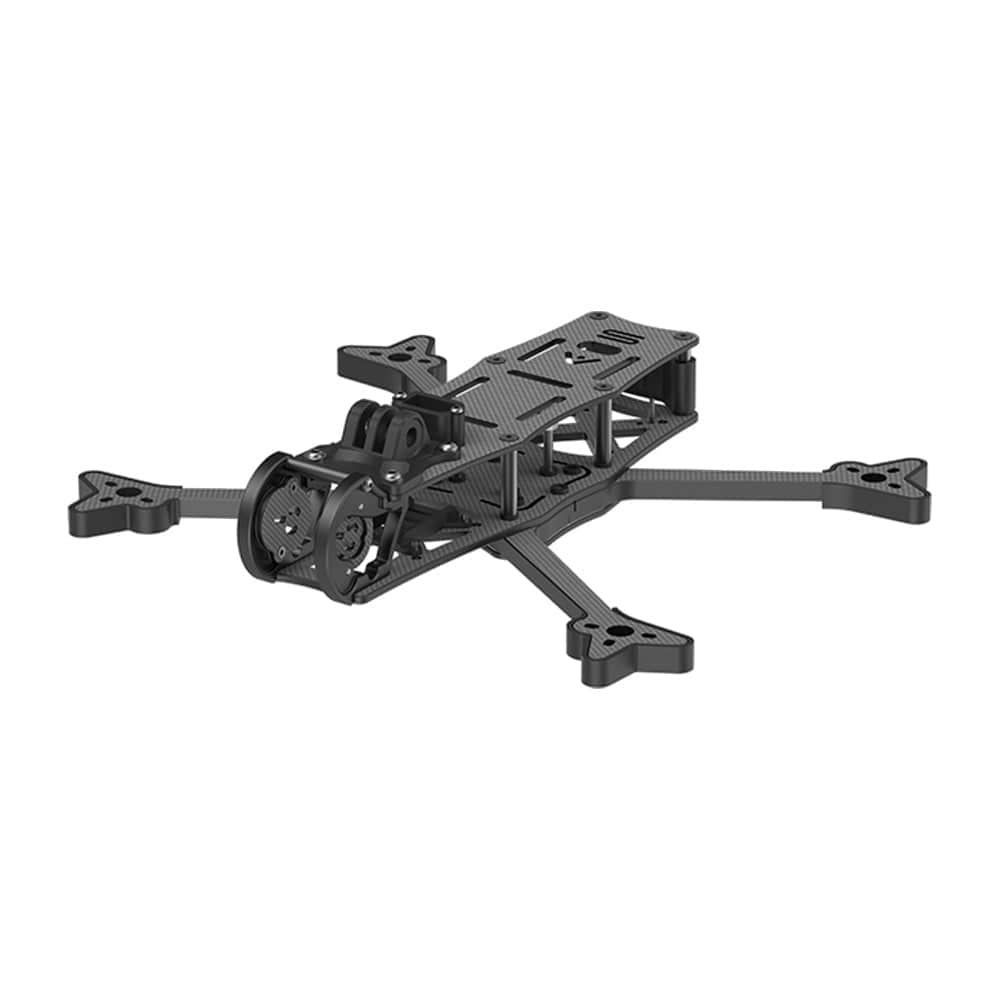

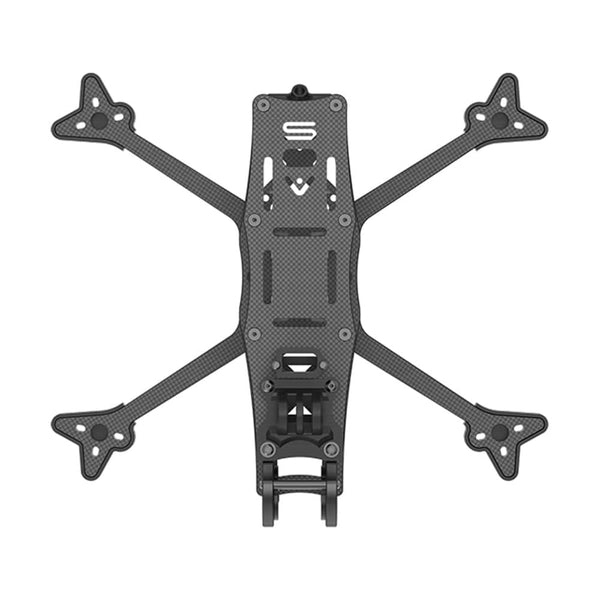

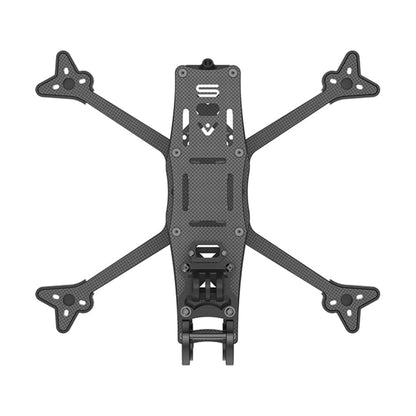

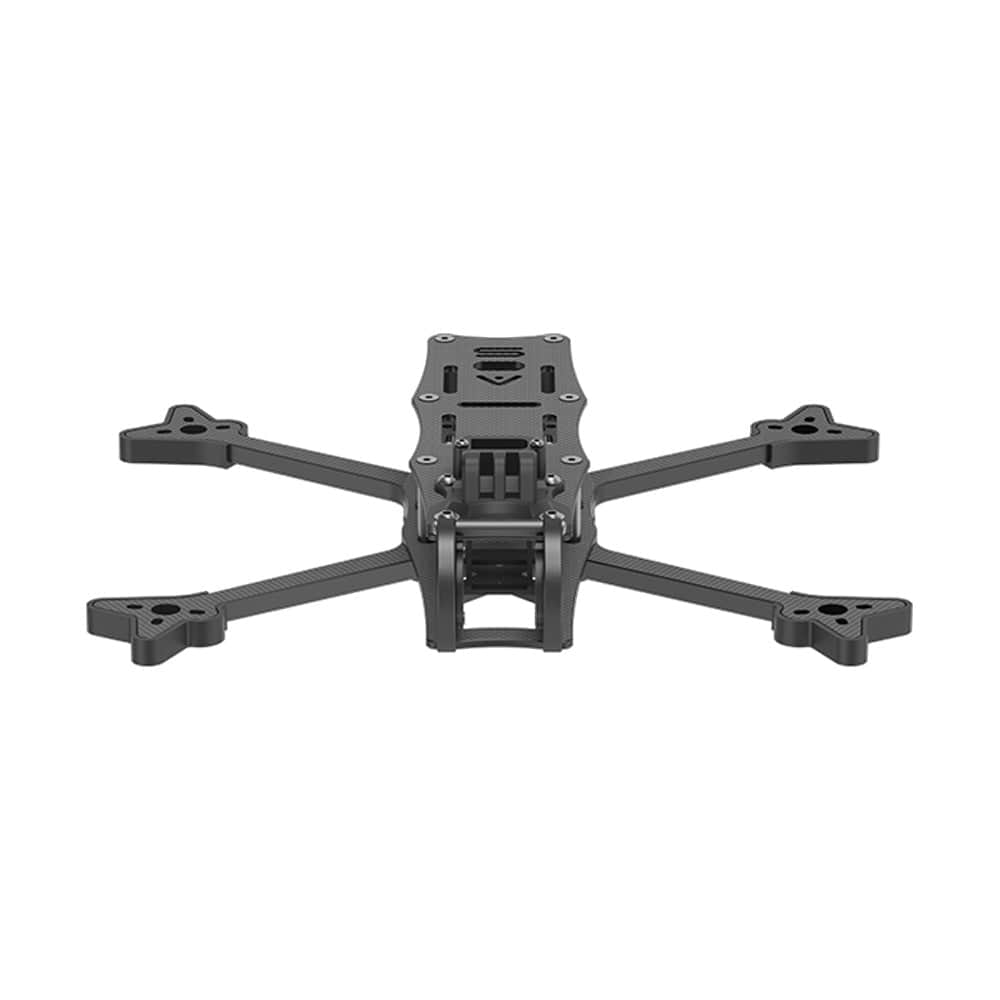

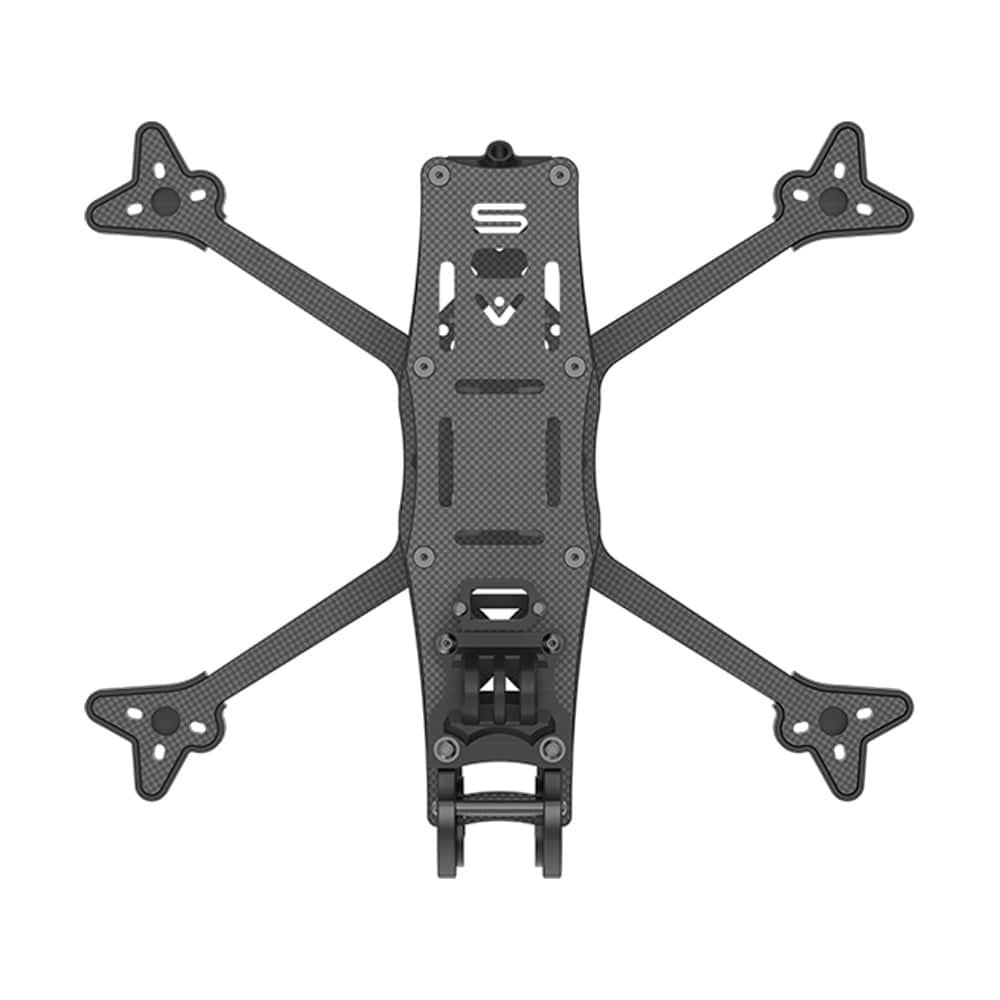

The AOS RC V5 O4 Frame Kit is a compact and durable 5" freestyle drone frame designed for smooth flying and crystal-clear video. Now updated to support the DJI O4 and O4 Pro Air Units, it features advanced vibration-reducing technology, a strong aluminum camera cage, and a wide camera view with no props in sight. Compatible with a range of digital video systems and built for 5.3" props, it offers multiple mounting options for batteries, cameras, and electronics.

Features

  • 32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)
  • DJI O4, DJI O4 Pro, and DJI O3 compatible (soft mount + ND filters)
  • 16 - 19mm motor mounting (supports all standard 5" motors)
  • Three 30.5x30.5mm, 25.5x25.5mm, or 20x20mm stacks
  • Supports Lengthwise or Toilet Tank battery mounting
  • Supports 19-20mm cameras (hard or soft mounted)
  • Reinforced 7075 Aluminum Camera Cage
  • 28x28mm M3 GoPro Mounting Pattern
  • AOS X-Cell Anti-Vibration Technology
  • 155° FOV, no props in view
  • Supports up to 5.3" Props

Specifications

  • Flight Stack Mounting: 20x20 3mm / 25.5x25.5 2mm / 30.5x30.5 3mm
  • Compatible: DJI O4 Pro, DJI O4, DJI O3 (Soft Mount + ND Filters)
  • VTX Mounting: 20x20 2mm / 25.5x25.5 2mm / 30.5x30.5 3mm
  • Motor Mounting: 19x19-3mm / 16x16-3mm
  • Product Name: AOS RC V5 Frame Kit - 5"
  • Rear Standoffs: 32mm
  • Arm Thickness: 6mm
  • Weight: 119-129g
  • FOV: 155°

Includes

  • 1x AOS RC V5 O4 Frame Kit - AOS 5"
  • 1x Hardware Kit
  • 1x TPU Parts Set
  • 2x Battery Strap
  • 2x Battery Pads

More Info

  • SKU: 21596
  • Barcode: 691023518575


Overall rating: 4.3333335 / 5 from 6 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["frame","camera"].

Review highlights

Reviews

excellent frame easy to setup

"excellent frame easy to setup and very durable"

— MICHAEL A. (5/5)

Pretty nice 5" frame

"Designed to be compact & sturdy yet roomy enough for all the electronics except the capacitor and any RX antenna. No provision was made for those necessities The camera cage is notable for it's ease of disassembly to use the different options and the light overall weight I liked."

— Dan S. (4/5)

Really Wanted to Like it.

"The frame is heavy, felt slow and sluggish during flight. I guess I just like light more nimble frames. I'm having much more fun flying my Quadmula F5 Siren Split."

— Iceman821207 (3/5)

Great frame performance, but not as user friendly as claimed

"The quality and durability of the frame have been great so far, even after a couple of crashes. In terms of flight performance, this design does seem superior to competitors. However, when it comes to the building process, the design leaves much to be desired. The instruction sheet is just an exploded view of every component/screw and is hardly legible in certain areas. The provided stack screws are pretty short, almost too short for a speedybee f405 stack. It was a pain to get the xt60 connector to come out of the front like the design intended. With a battery connected, an attached Gopro cannot be angled very much without interfering with the battery xt60 wires. Lastly, the camera cage is placed so far forward that the wire included with my analog camera was just barely long enough. If you have an O3 air unit, you will need to buy a longer camera cable."

— Enrique N. (4/5)

My favorite frame

"Admiringly I’ve been a Rosser fan for quite some time. This particular frame though has outdone all the others. I use his tune, have now built 4 of the quads with this frame, all 8S builds, and they fly flawlessly. Much much more durable than his previous frames as well!"

— Michael C. (5/5)

Great frame

"Great frame once you get it figured out."

— Michael Q. (5/5)
