Analog FPV FatShark Module Adapter V2 for DJI Digital FPV Goggles

Analog FPV FatShark Module Adapter V2 for DJI Digital FPV Goggles

$14.49
$14.49
Add To Wishlist
View full details

Details

Description

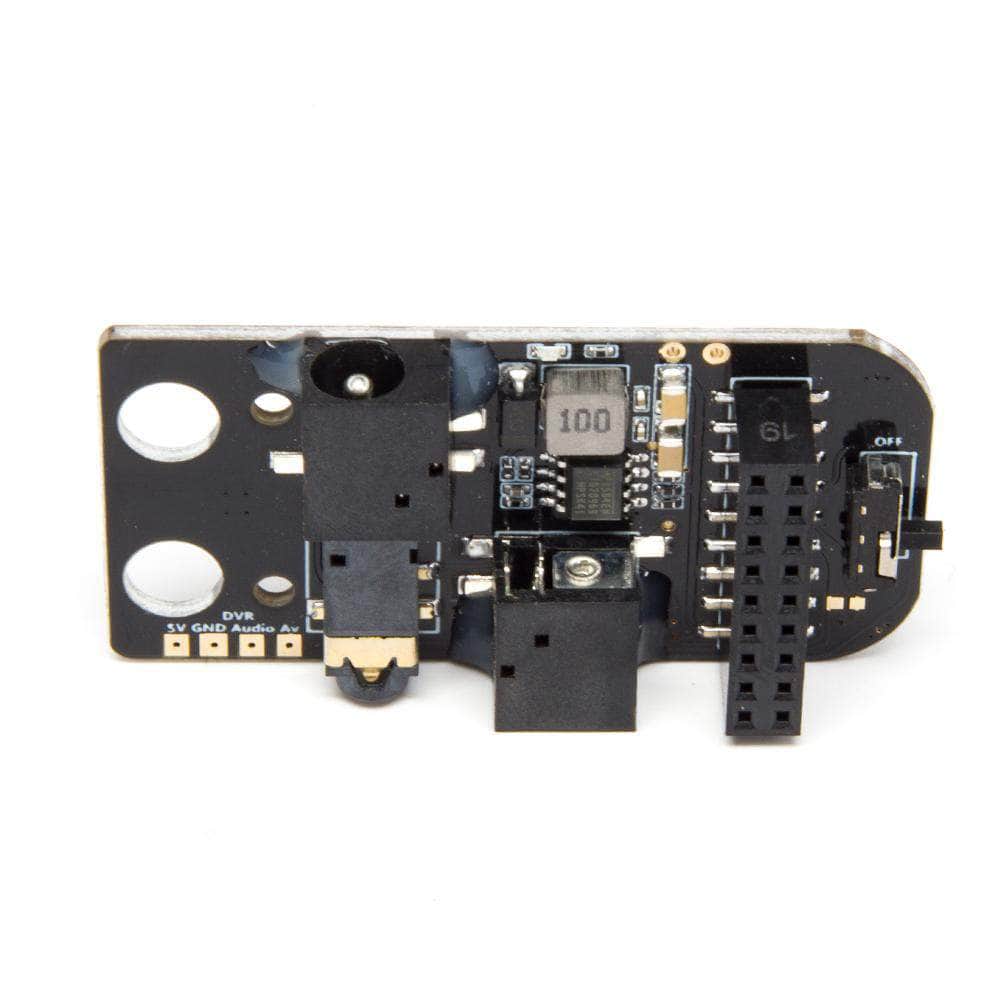

Revised version now includes a power switch and additional solder pads.

The Analog FPV FatShark Module Adapter V2 for DJI Digital FPV Goggles fits so well you can use a fat shark or various third-party fat shark style analog video receivers modules! It transfers video and audio signals to the high-quality screen of DJI FPV goggles for viewing or recording. This compact and lightweight adapter is easy to install and won't void your warranty!

Check out all our DJI compatible frames, electronics & accessories and our FPV receiver modules & antennas collection!
Specifications
  • Input Voltage: 2S-4S (DC5.5x2.1mm)
  • Internal Voltage: 5V 3A (with pad output)
  • Output Voltage: 2S-4S (DC 5.5x2.1mm)
  • Signal Input: Standard Fat Shark Receiver Port
  • Including third-party receivers: Realacc, Furious, etc.
  • Signal output: standard audio / video
  • Power Switch
  • Dimension: 48x28x12mm
  • Weight: 10g (without extension cable)

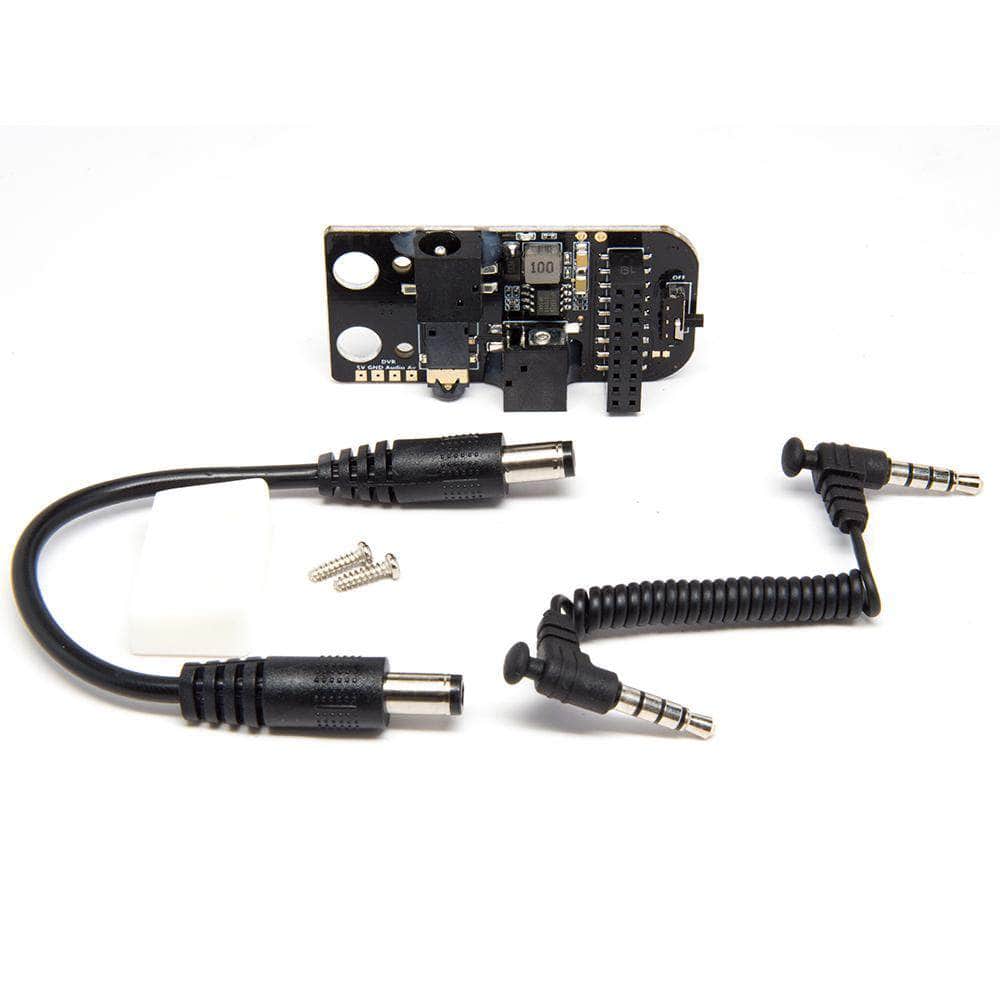

Includes

  • 1x Analog FPV Adapter for DJI Goggles
  • 1x Adapter mounting board and screws
  • 1x Audio and video cable
  • 1x Power cable

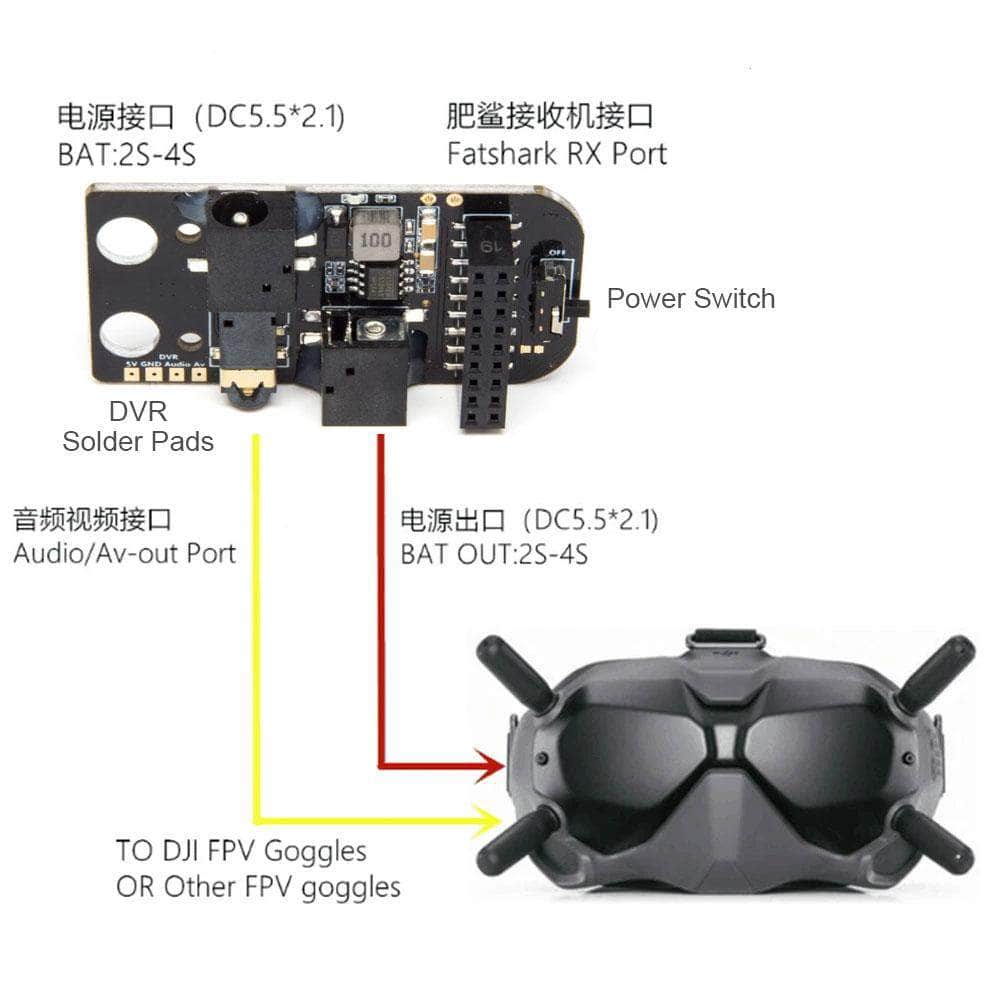

Wiring Diagram




More Info

  • SKU: 691023490604
  • Barcode: 691023490604


Overall rating: 4.362319 / 5 from 69 reviews.

AI Generated Review Summary

The Analog FPV FatShark Module Adapter V2 for DJI Digital FPV Goggles is a compact and lightweight adapter that fits well and is easy to install. It provides a good solution for analog support and includes a power switch. Customers appreciate its great fit and ease of use, though opinions on quality vary.

Summary topics

  • Analog Support Solution (10%): It was observed by customers that the analog support for the DJI Goggles is a good cheap solution for analog support and adds a nice power button.
  • Product Fit (18%): Many customers remarked that the fit of the product is great, with no negative reviews mentioned.
  • Adapter Usability (10%): Customers raved about the adapter, stating that it is easy to use and works totally well.
  • Module Recommendation (20%): Many customers pointed out that this module is excellent and highly recommended, making it a great DIY option.

Review topics: [fit, quality, shipping, works, adapter, mount, support, issues, features, price, module, solution, tape, picture, cable, button, quad, deal, kit, goggles].

Review highlights

  • "Pair it with the detachable aluminum case for a quick reversible solution." — Jason M.
  • "I now can fly my analog equipped quads with the great fit and fill of the DJI goggles." — Vann E.
  • "This kit features an on/off switch which is great and the TBS Fusion module is a perfect fit for it." — Darrell H.

Reviews

"Easy to install, nice and simple."

— Dylan (5/5)

Does what it's supposed to

"Does what it's supposed to do and does it well."

— Jason P. (5/5)

Not just for DJI

"Not only works for DJI but Definitely works with analog goggles as well.."

— Jason D. (5/5)

Works for ground-stations too.

"I ordered this product to use with my ground station tracker. It works as intended but I would have liked to have seen some documention on the product operation. Like for example what the switch is maybe meant to do. As of now it doesn’t appear to do anything as expected like power on/off or video out on/off."

— Michael R. (3/5)

Good cheap analog support, find a good mount

"a good cheap solution for analog support and adds a nice power button, the only problem will be finding the proper mount print, I settled with a TPU print to keep it light weight (bought it from PETRFUX at cults3d) time will tell how long the board lasts"

— Hamdi R. (4/5)

Very easy

"Worked great. Install was easy. Shipping was quick"

— James W. (5/5)

Q&A

Will it work with a RapidFire receiver module?
Yes it will.
I assume this would work with receiver module from a Fatshark Attitude V4. Can you confirm?
It should work with any pinned analog receiver module.
So, in essence, will this work on any goggle with A/V plug?
That is correct.
