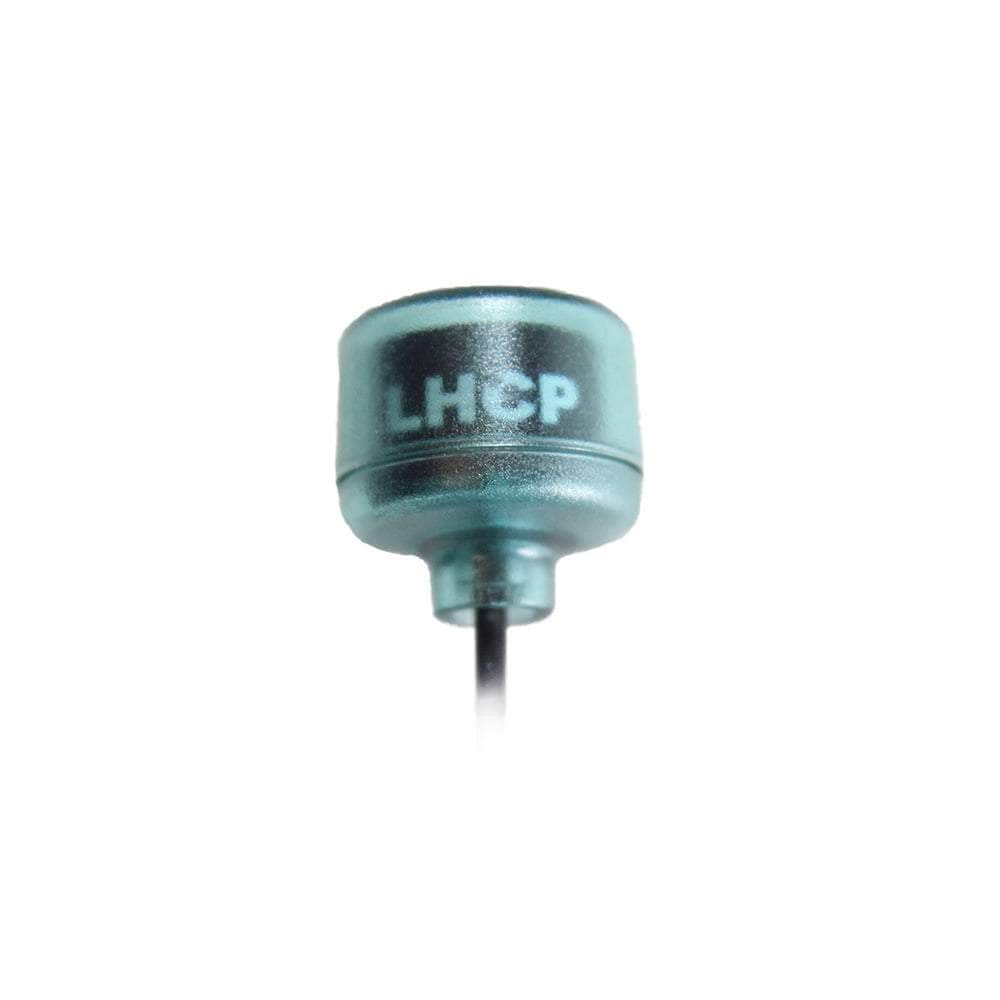

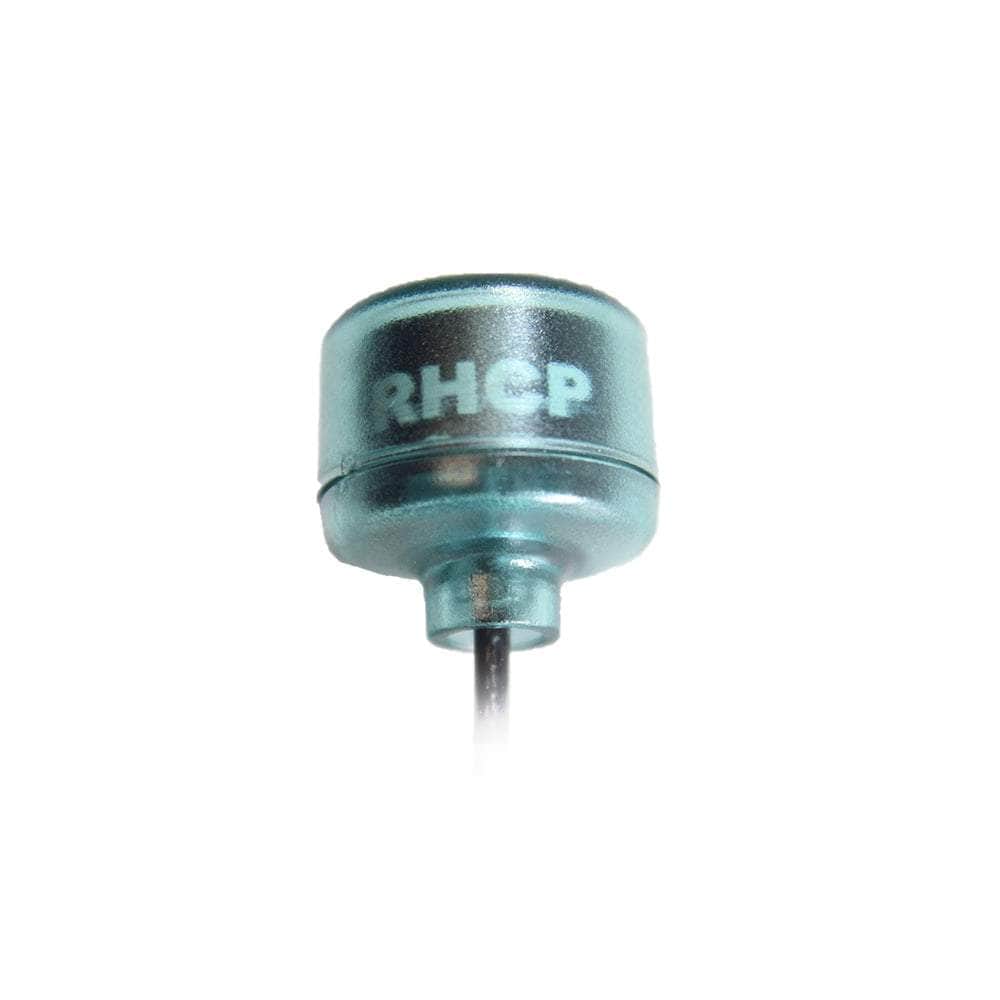

TrueRC Core 5.8GHz 85mm U.FL Antenna - Teal - Choose Your Polarization

$14.99
Original price $14.99 - Original price $14.99
Original price
$14.99 - $14.99
Current price $14.99
Polarization :
In Stock
Add to Wishlist
Ask a Question

Details

Description

Introducing the Core 5.8GHz by TrueRC, yet another amazing VTX antenna to see. This one comes with a U.FL connector for a easy pop in, and flexible 85mm length wire. Choose your configuration for your polarization between RHCP and LHCP, with nice injection molded teal top.

The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. TrueRC team then added a very durable outer shell that protect the antenna from the inevitable crashes.

Check out our ever-expanding selection of VTX antennas and our range of TrueRC gear!

Features

  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
  • Clear indication of polarization direction
  • Smooth radiation pattern with even gain in all directions
  • Excellent axial ratio and efficiency
  • Flexible coax cable option that deflect impacts
  • U.FL connector for a easy pop in

Specifications

  • Gain: 1.9dBic
  • Polarization: LHCP/RHCP
  • Cross-Polar Rejection: -10 to -20dB
  • Bandwidth: 5.5GHz-6.1GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.2:1
  • Weight: 2.5g
  • Dimensions(head): 16.9mm dia. x 13.1mm height.
  • Length: 85mm
  • Cable: TrueRC RG316S/RG402/RG178 coax
  • Connector: U.FL

Includes

  • 1x TrueRC Core 5.8GHz 85mm U.FL Antenna - Teal - Choose Your Polarization

More Information:

  • SKU: 608597255232
  • Barcode: 608597255232
