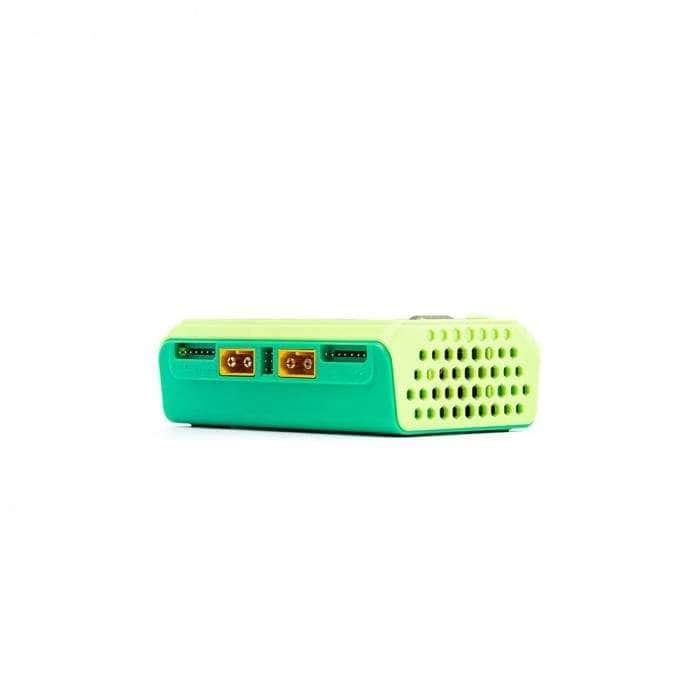

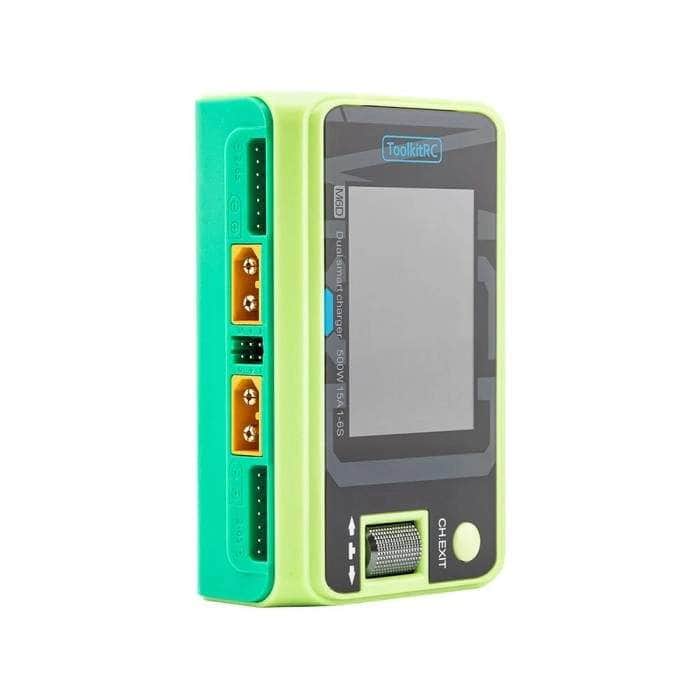

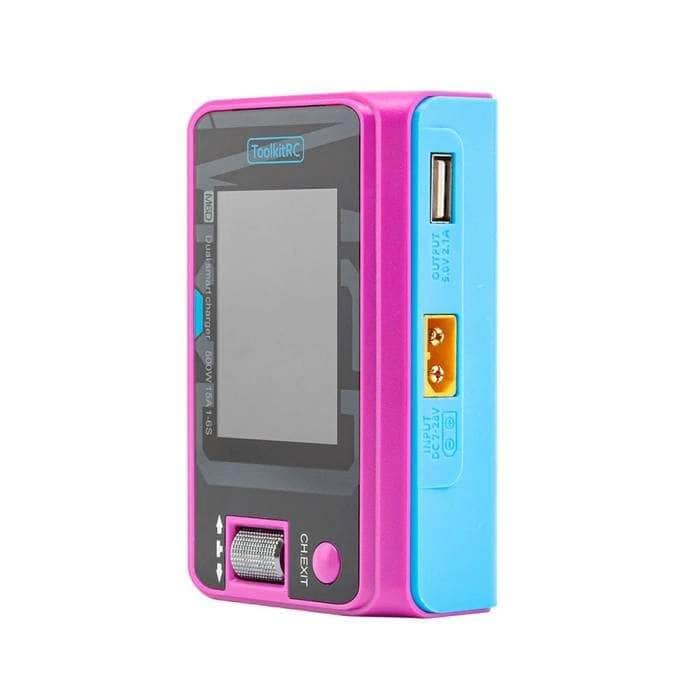

ToolkitRC M6D 500W 15A 1-6S DC Dual Smart Charger (Limited Edition)

Description

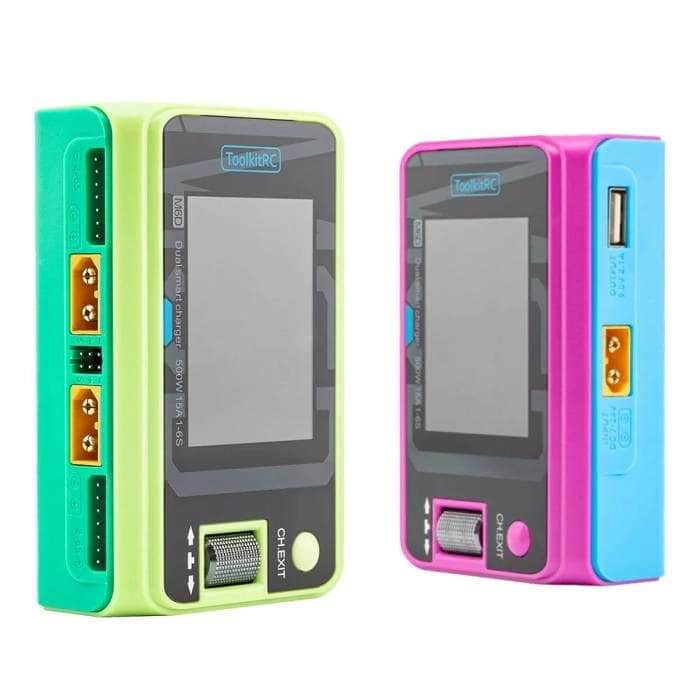

The M6D Dual Smart Charger features asynchronous automatic power distribution and synchronous output for greater power. It includes an optimized heat-dispersing system to dissipate heat quickly. The M6D has an easy-to-use interface, an integrated USB port, and many features. Check out these limited edition colors!

A power supply is required to use this charger, check out the RDQ 360W and 500W power supplies.

Check out our other Battery Chargers and Accessories, and all our ToolkitRC products!

Features

• Optimize heat dissipation

• High power density

• Dual-channel

• Small size

Specifications

• Battery Internal Resistance: 1-100mR @1-6S

• Display: LCD IPS 2.4 inch 320x240 resolution

• Battery Voltage: 1.0V-5.0V @1-6S

• USB: 2.1A@5V upgrade@USB3.0

• Size: 108.5mm x 80.5mm x 46mm

• Bal Cur. : 800mA @2-6S

• Input: 7-28V@MAX30A

• Accuracy: <0.005V

• Weight: 300g

• Charging Power:

  • 0.1-15A@250W x2（Asynchronous mode）

  • 0.1-25A@500W（Synchronous mode）

• Discharging Power:

  • 0.1-15A@250Wx2 Recycle Mode

  • 0.1-3A@12Wx2 Normal Mode

• Battery Type:

• LiPo LiHV LiFe Lion@1-6S

• NiMh @1-16S Pb @1-10S

Includes

• 1x ToolkitRC M6D 500W 15A 1-6S DC Dual Smart Charger (Limited Edition) - Choose Your Color
