T-Motor VELOX V2306 V3 5" Power System

Description

T-Motor VELOX V2306 V3 5" Power System! A Cost-effective power system to get that spare frame or back-up drone running. A full set of Velox motors, in your choice of Stator and Kv. This kit is excellent in performance and affordability. Make every flight a great value!

Check out our other 30x30 Stacks & Combos, our vast motor selection and all of our T-Motor products!

Features

• Motors, Stack, & Props in Convenient Kit
• Affordability
• Reliable Stack
• Multiple KV Available
• Cinematic or Freestyle

Specifications

FLIGHT CONTROLLER

• Unified target: TMTR-TMOTOR Velox F7
• Typical application: 170-450 multi-rotor
• Installation holes: 30.5x30.5/4mm
• Gyroscope: ICM-42688-P (SPI)
• Input voltage: 12-27V (3-6S)
• Firmware: STM32F7X2
• BEC: 5V2A&10V1.5A
• Size: 37.5x40x6.4mm
• Model: Velox F7 SE
• MCU: STM32F722
• OSD: AT7456&HD
• Black box: 128MB
• Bluetooth: TMFC
• USB: Type-C
• Weight: 9g
• UARTS: 6

ESC

• Mounting holes: 30.5x30.5/4mm
• Peak Current (5S): 60A
• Size: 41x44.4x5.8mm
• Input voltage: 3-6S
• Weight: 12.3g
• Current: 50A

1750KV Motor

• Power Cable Gauge: 20# 150mm
• Motor Bolt Pattern: 16x16mm
• Max Power (60s): 820.7W
• Peak Current (60s): 34.9A
• Weight (Incl. Cable): 33.8g
• Idle Current (10V): 0.85A
• Configuration: 12N14P
• Rated Voltage(LiPo): 6S
• Shaft Diameter: 5mm
• Brand: T-motor
• Color: Purple
• Stator: 2306
• KV: 1750

1950KV MOTOR

• Power Cable Gauge: 20# 150mm
• Motor Bolt Pattern: 16x16mm
• Weight (Incl. Cable): 33.7g
• Peak Current (60s): 41.7A
• Idle Current (10V): 1.3A
• Max Power (60s): 976W
• Configuration: 12N14P
• Rated Voltage(LiPo): 6S
• Shaft Diameter: 5mm
• Brand: T-motor
• Color: Green
• Stator: 2306
• KV: 1950

PROPELLER

• Material: Polycarbonate
• Mounting Hole: 5mm
• Hub Thickness: 7mm
• Length: 5.1"
• Weight: 5g
• Pitch: 4.6"

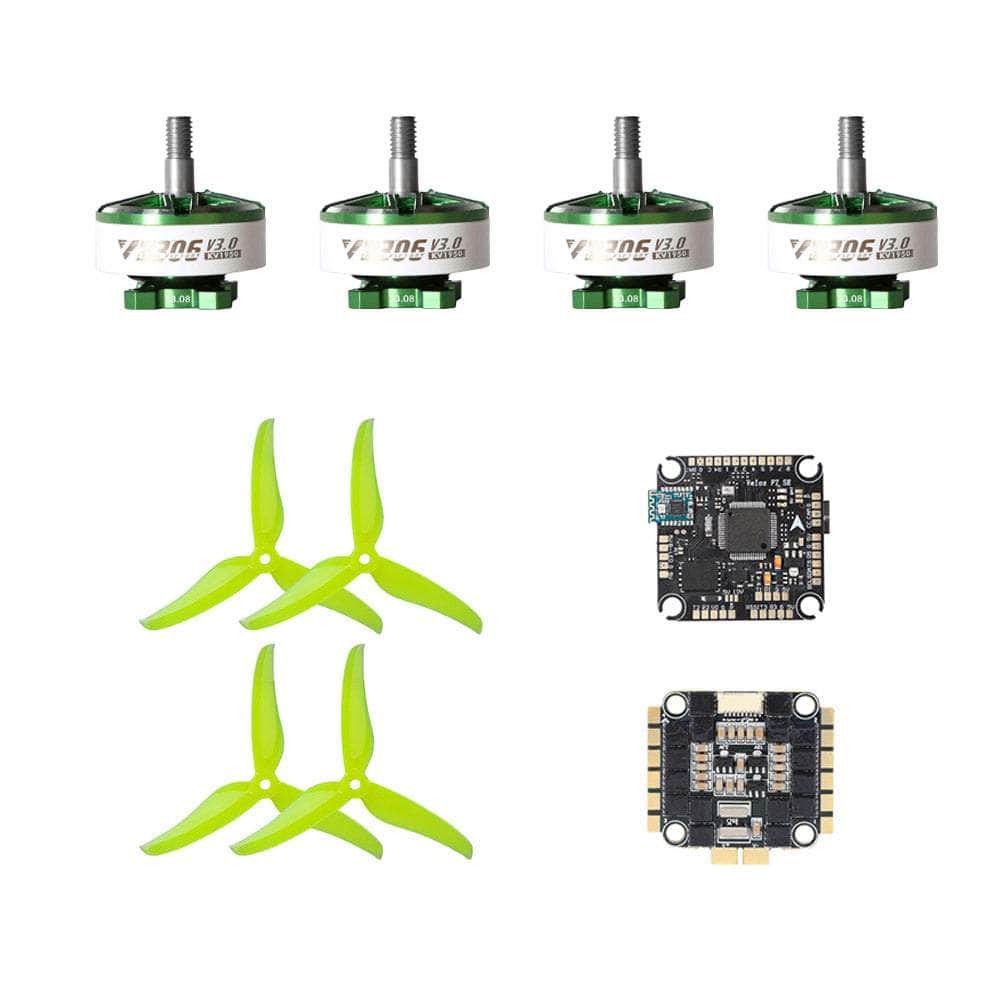

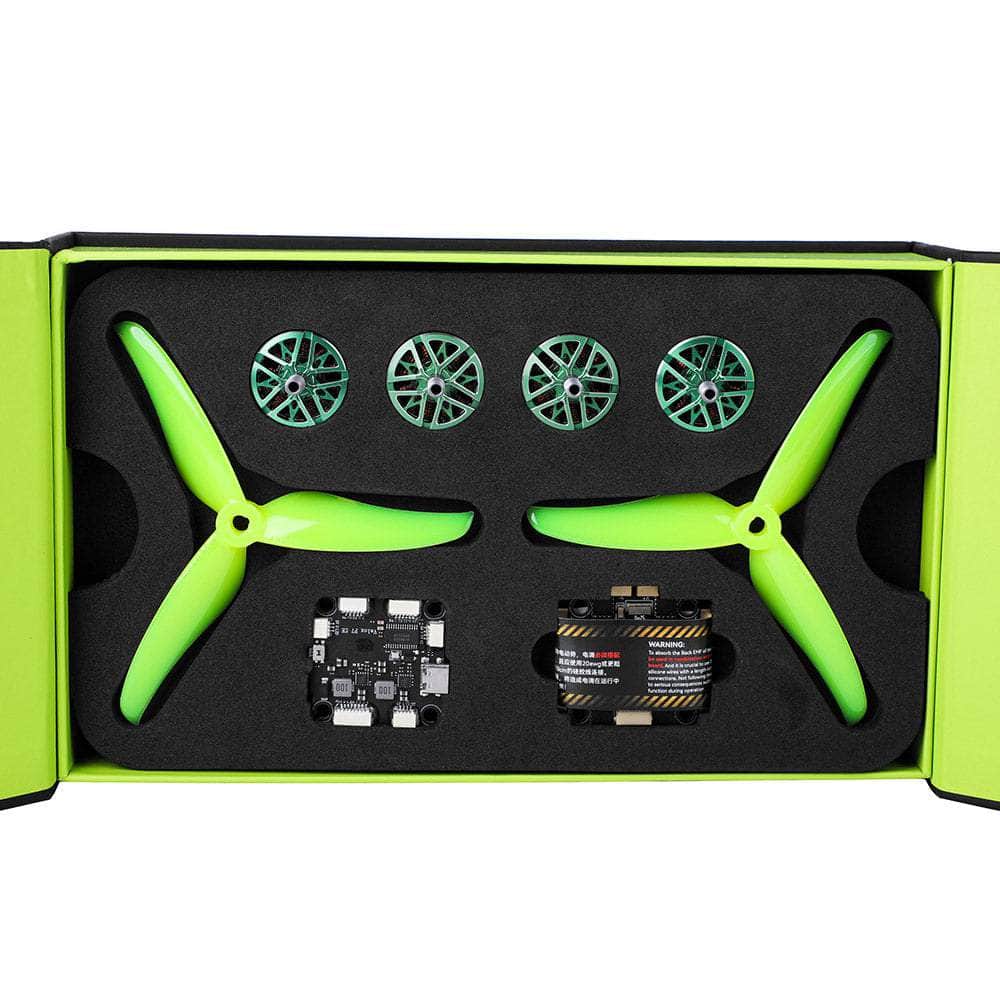

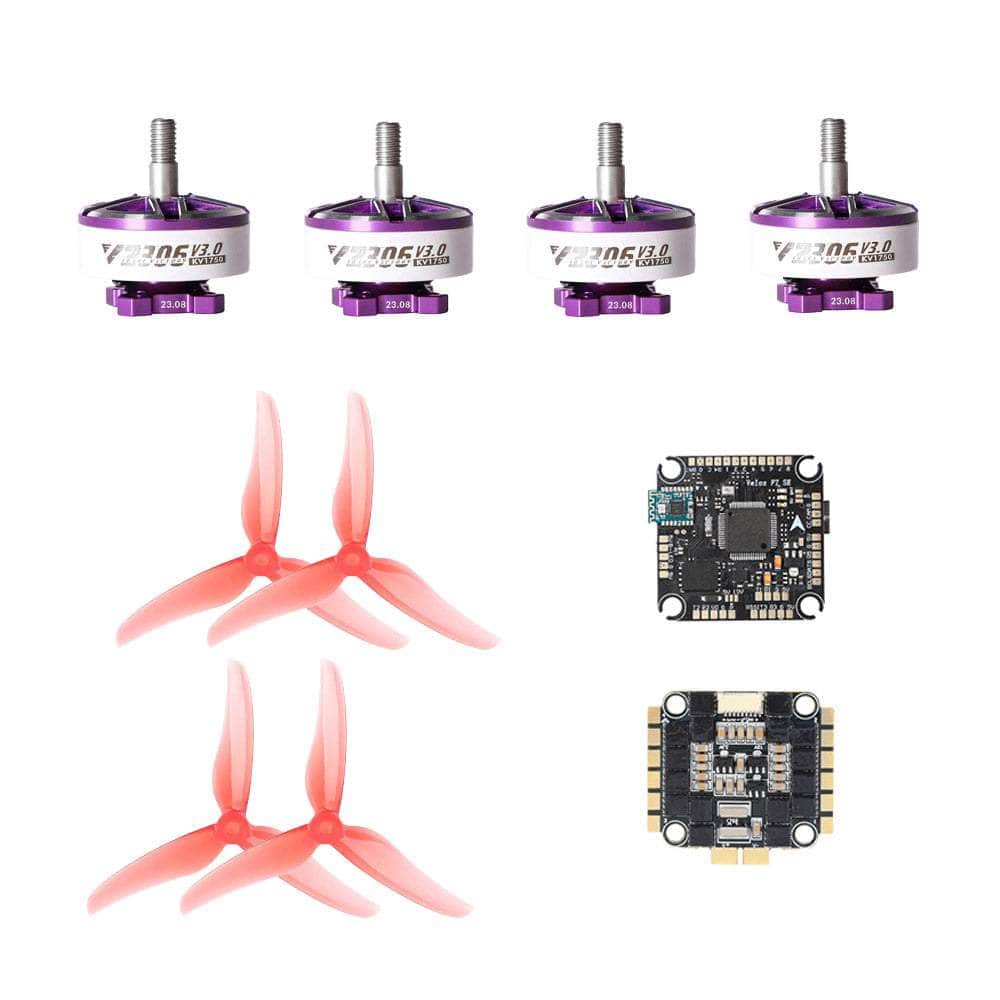

Includes

• 4x T-Motor VELOX V2306 V3 Motor - Choose Your KV)
• 1x T-Motor Velox SE F7 Flight Controller
• 1x T-Motor Velox V50A 3-6S 4-in-1 ESC
• 4x T-Motor T5146 Propeller (Set of 4)
• 1x Hardware Kit
