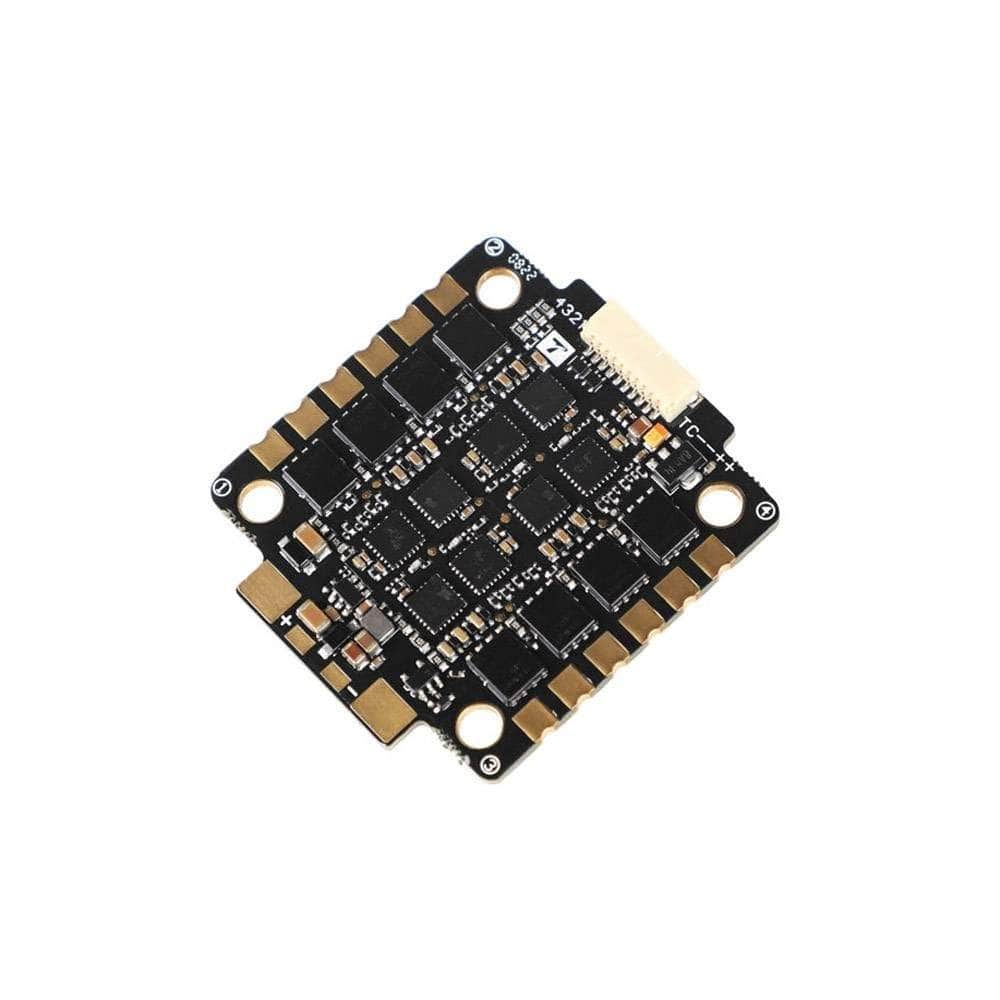

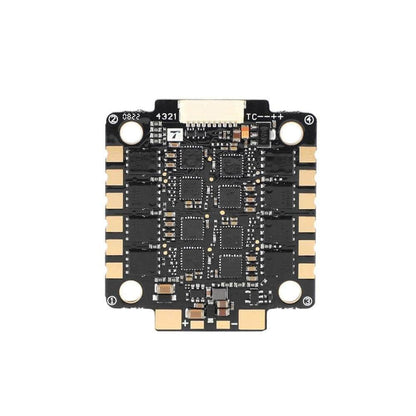

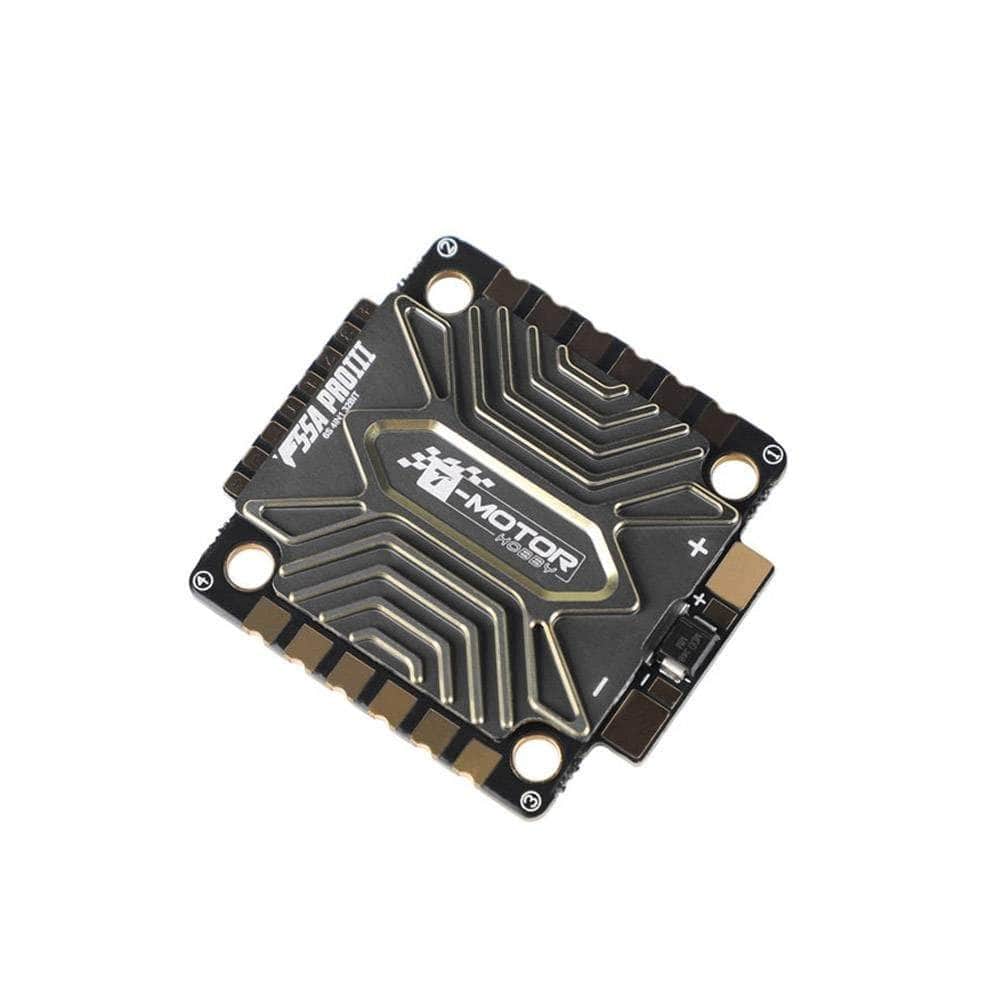

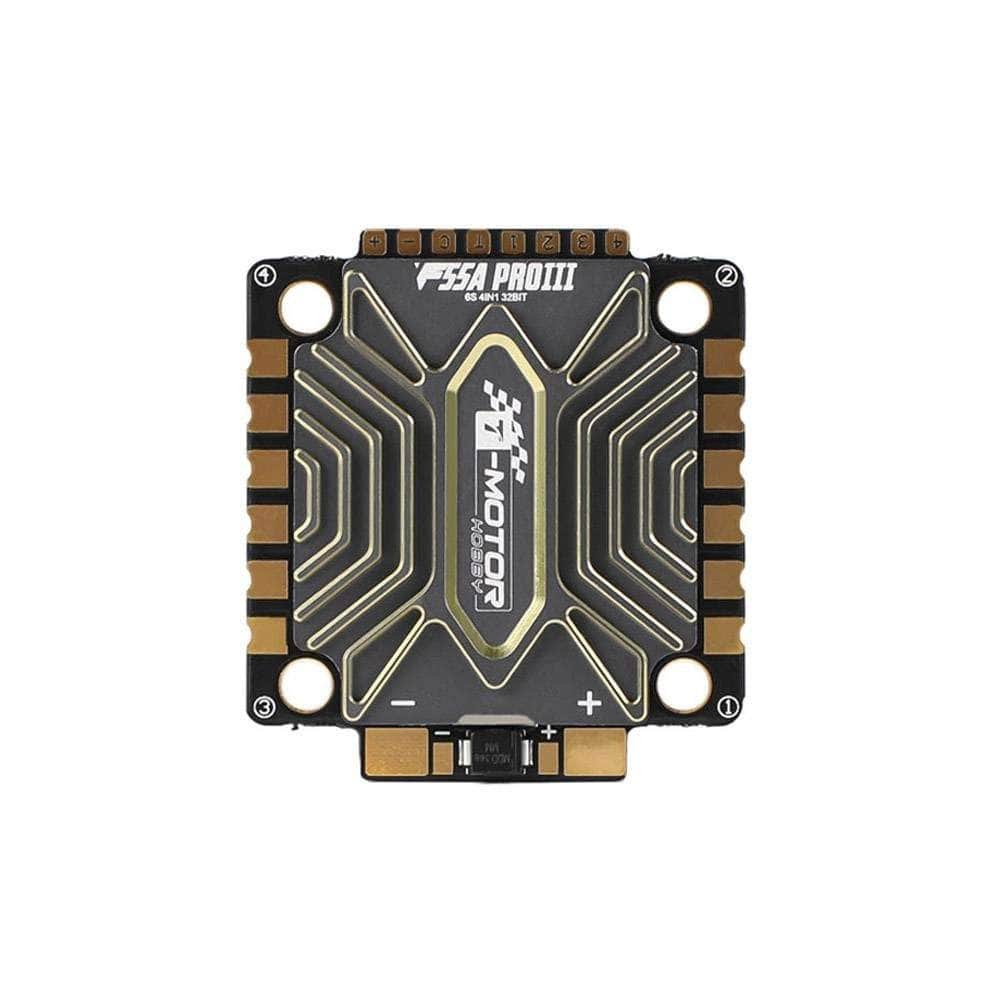

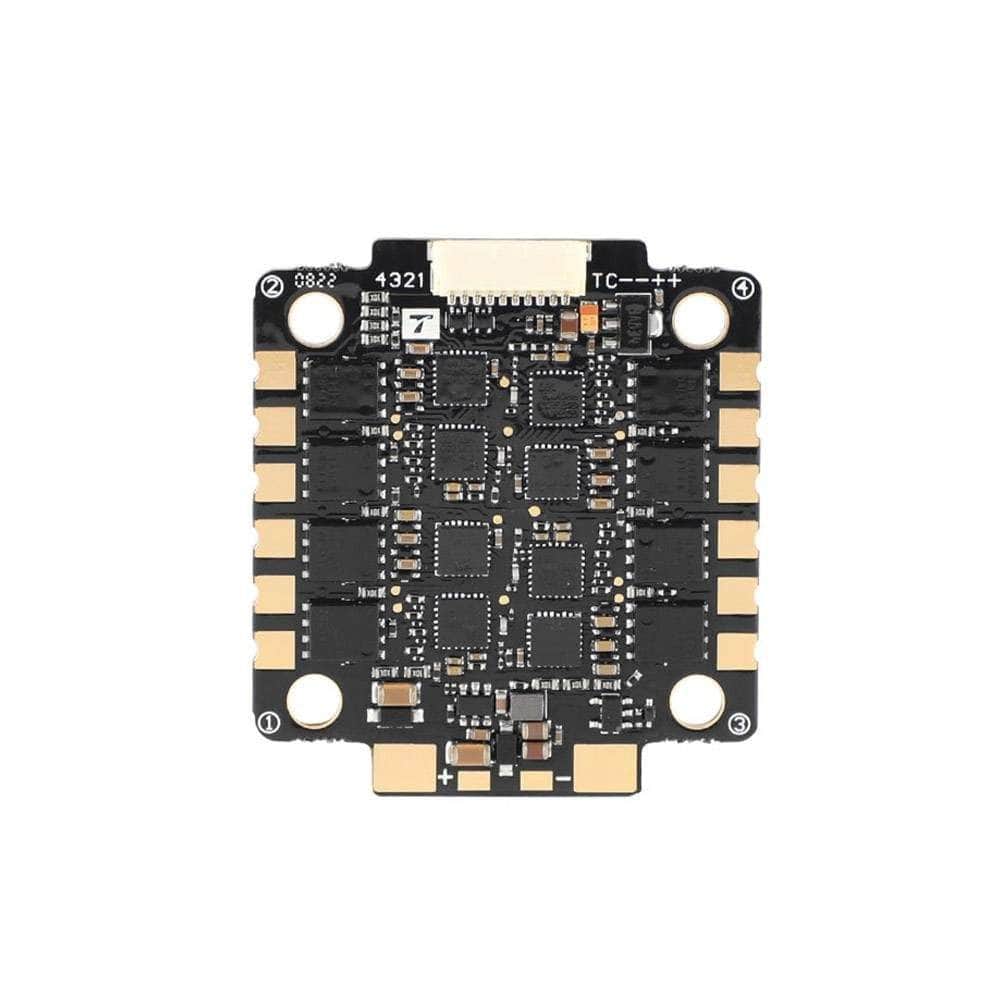

T-Motor F55A Pro III 55A 3-8S AM32 4-in-1 ESC - 30x30

Description

Experience superior performance with the T-Motor F55A PRO III 4-in-1 ESC. Featuring TPHR8504 MOSFETs and the STM32G071 microcontroller, and AM32 Firmware - it's ready for high-intensity flights. Supporting 3-8S it’s designed for optimal motor compatibility, while its dual heat sink ensures effective cooling. The F55A Pro III 4-in-1 ESC is ready keep your drones airborne.

Check out all our 30x30 ESCs  as well as our T-Motor products!

Features

• TPHR8504 MOSFETs
•  STM32G071 MCU

• Adjustable PWM Frequency Range

• Efficient Heat Management

• Wide Voltage Support

• Top-Tier Performance

• Enhanced Durability

• AM32 Firmware

Specifications

• Mounting Hole: 30.5 x 30.5mm/M3

• Peak Current: 65A (10 Seconds)

• Amperage Meter: 200

• Size: 44x40x7.5mm

• Telemetry: Support

• Voltage: 3S-8S Lipo

• Firmware: AM32

• Weight: 17.8g

• Current: 55A

• BEC: No

Includes

• 1x T-Motor F55A Pro III 55A 3-8S AM32 4-in-1 ESC - 30x30

• 1x 61mm Double-Ended SH1.0-10P Silicone Cable

• 1x 61mm Single Head SH1.0-10P Silicone Cable

• 4x High Yellow Shock Absorbing Washer

• 4x Low Yellow Shock Absorbing Washer

• 1x Capacitor
