TMOTOR Motor T-Motor F1408-II 1408 3950Kv Motor

T-Motor F1408-II 1408 3950Kv Motor

$18.89
$18.89 - $18.89
$18.89 - $18.89
$18.89
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

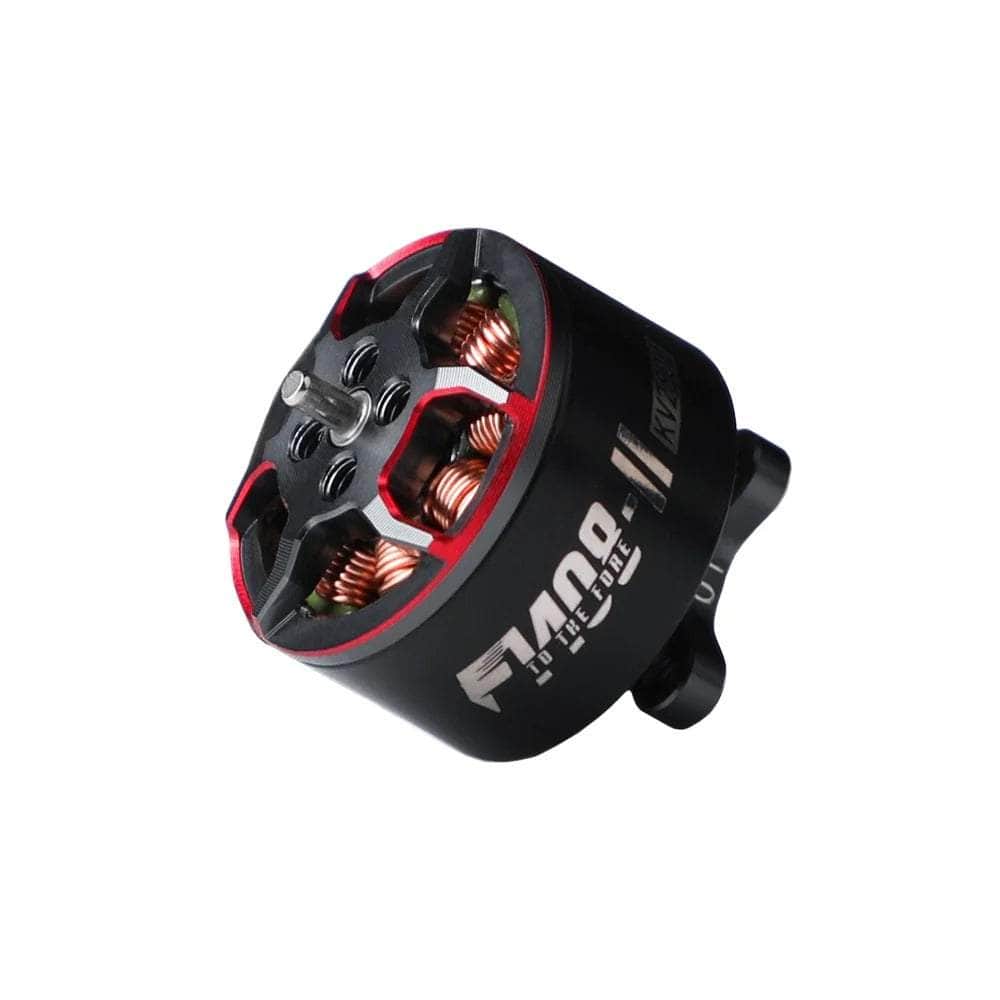

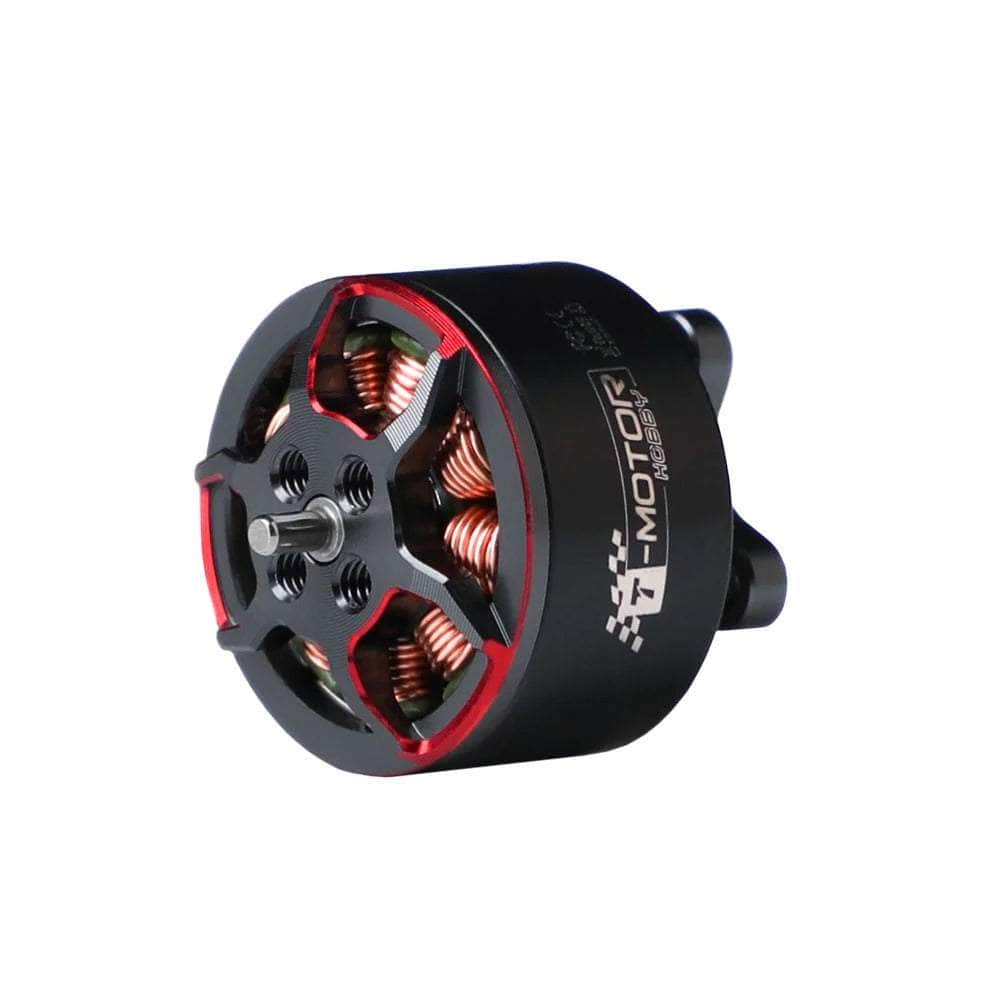

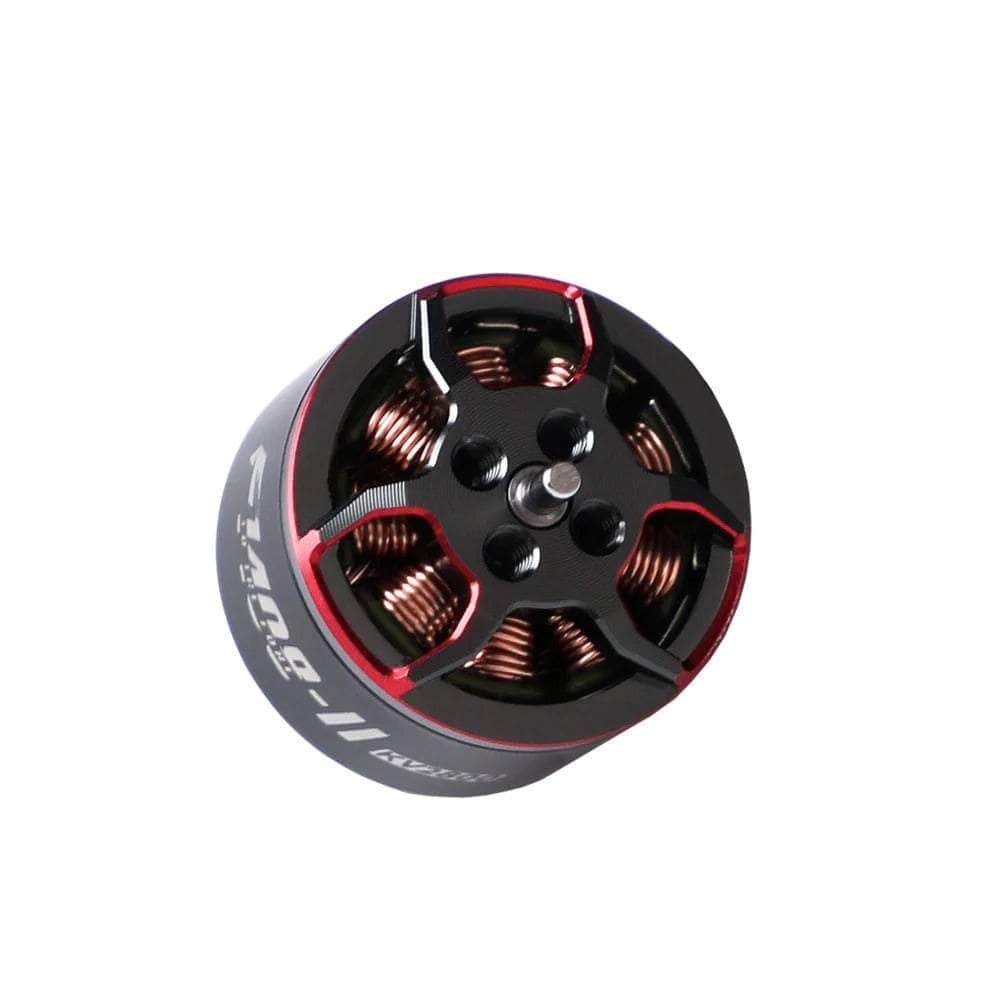

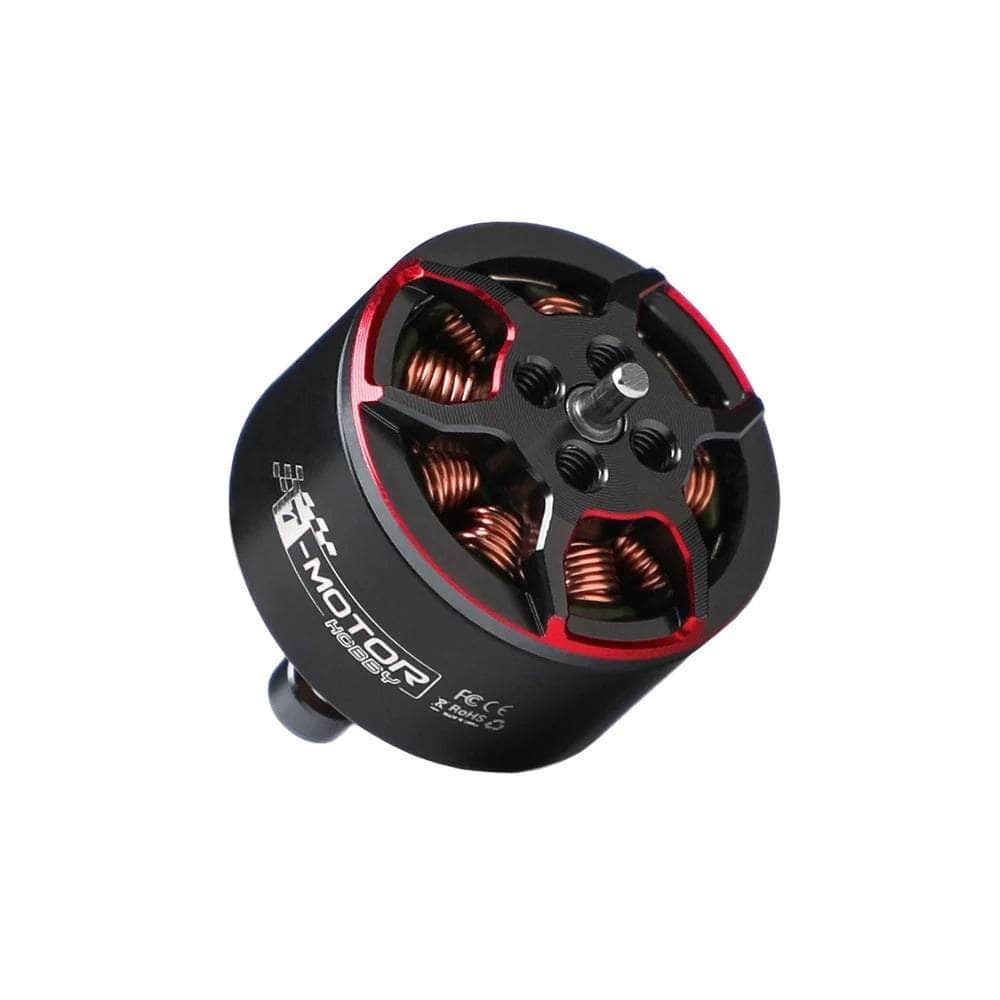

Check out the V2 of a classic from T-Motor, the T-motor F1408-II. This is an ultra light weight motor weighing in at only 12.7g. The high manufacturing standards and premium performance offered by T-motor to make sure your builds will stand out like none other.  F1408-II has been upgraded to be more durable and is suitable for 3"-4" props.

Check out our other 1408 motors, and all our T-Motor products!



Specifications

  • Kv: 3950Kv
  • Input Voltage: 3-4S LiPo
  • Configuration: 9N12P
  • Peak Current: 22.4A
  • Idle Current(10v): 0.86A
  • Internal Resistance: 88mΩ
  • Motor Dimensions: Φ17.9mm x 20.2mm
  • Stator Dimensions: Φ14mm x 08mm
  • Shaft Diameter: 1.5mm
  • Mounting Pattern: Φ9mm
  • Wire Dimensions: 24AWG x 150mm
  • Lead: 24g 150mm
  • Weight: 12.75 (excluding Cables),14.95g (Including Cable)
  • Motor Bolt Pattern: 12 x 12mm

Includes

  • 1x T-Motor F1408-II 1408 3950Kv Motor

More Information:

  • SKU: 16924
  • Barcode: 6971360356509
