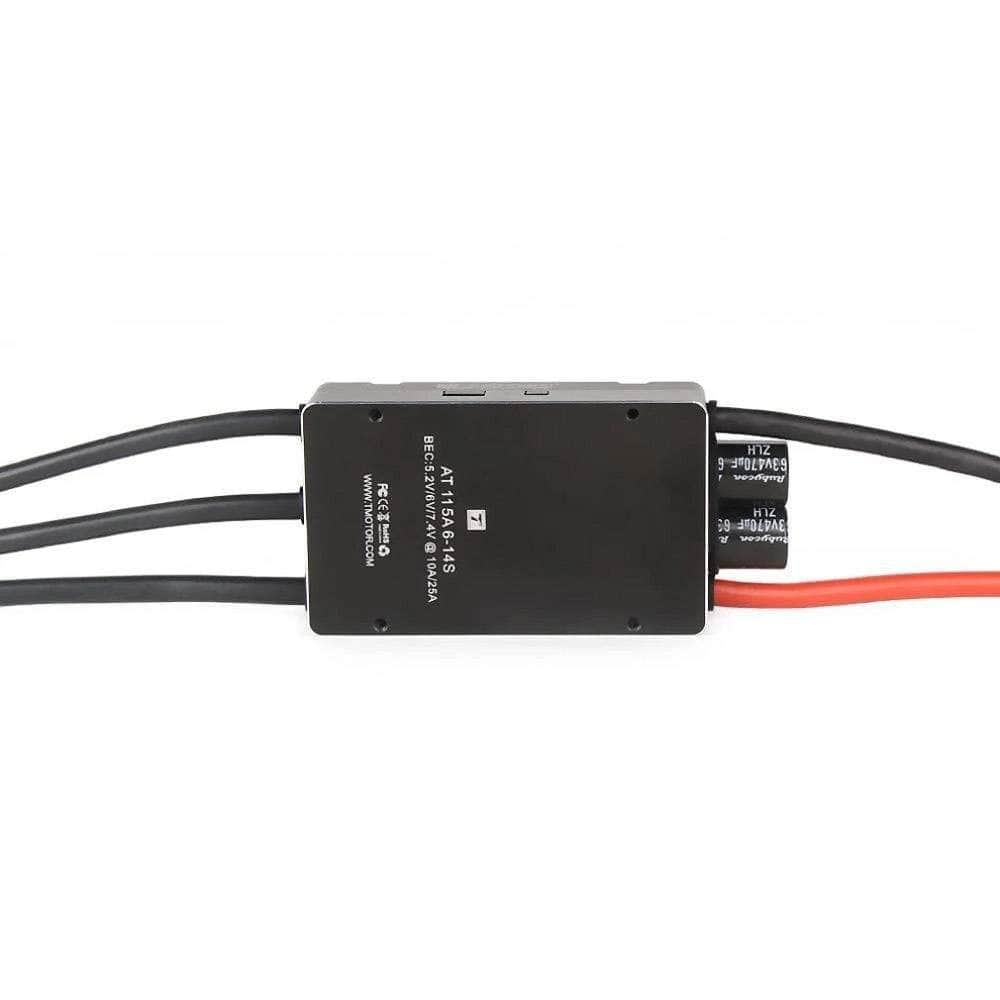

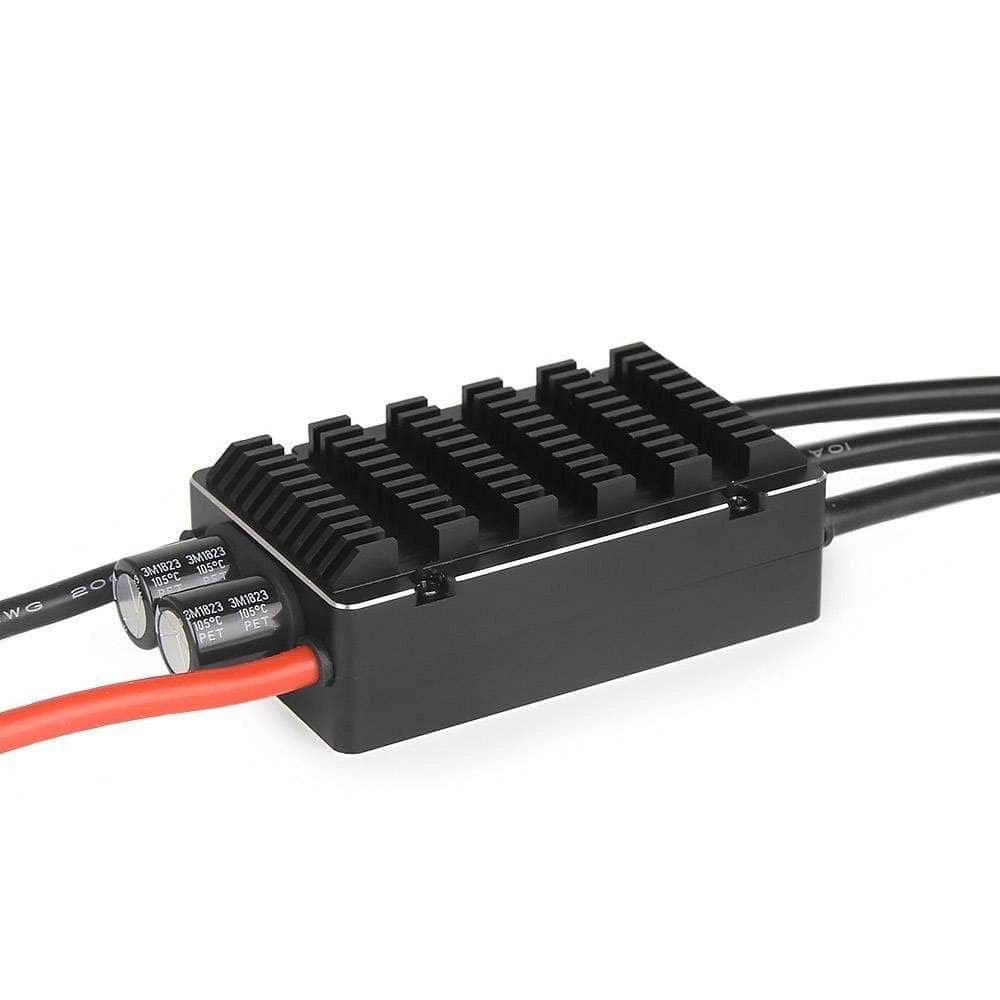

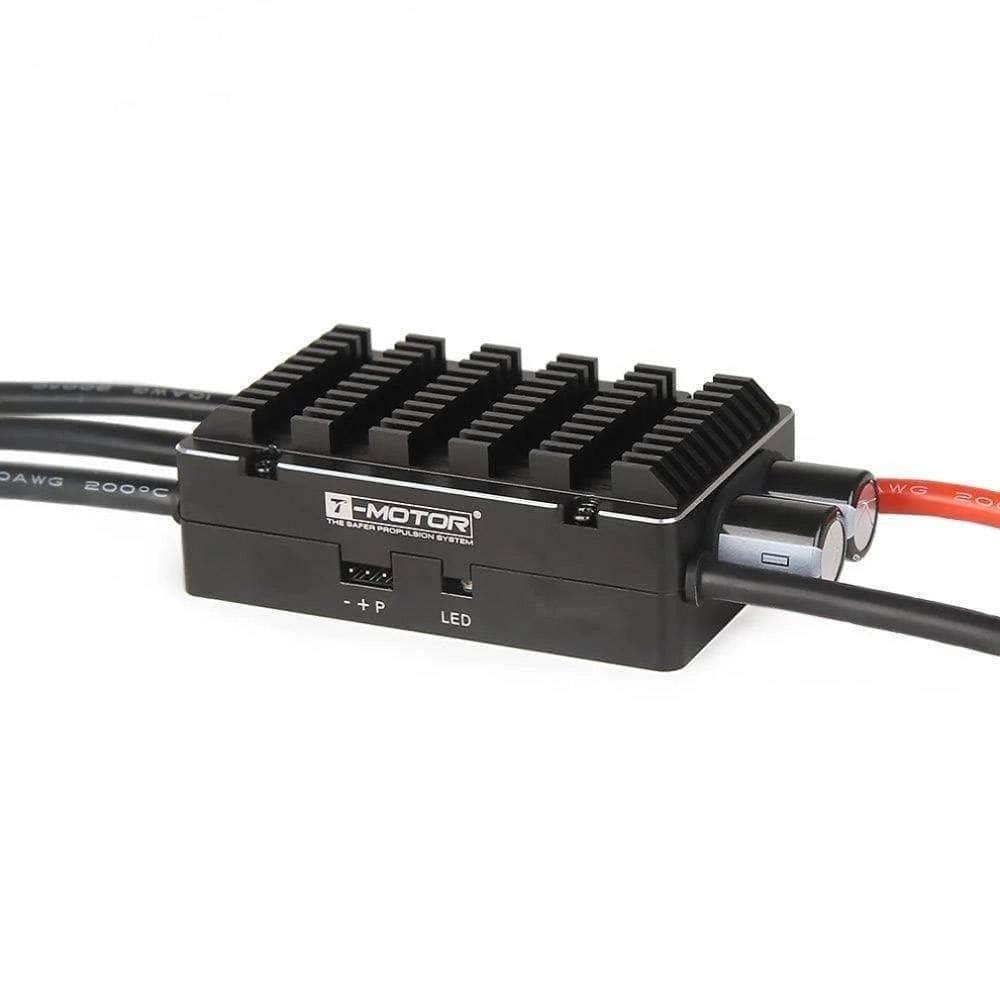

T-Motor AT115A 6-14S VTOL Fixed Wing Single ESC

Description

The newest solution in fixed wing ESCs from T-Motor, the AT115A VTOL Fixed Wing Single ESC. It supports 6–14S lithium batteries and weighs 182 grams. With a maximum peak current of 120A, the built-in UBEC can simultaneously drive six servos under a 6S voltage. It is recommended for use with AT3-7 series motors.

Browse our collection of ESCs and all our T-Motor products!

Features

• Switching Power Supply Solution
• Wide Battery Compatibility
• Motor Compatibility
• Lightweight Design
• High Peak Current
• Built-in UBEC

Specifications

• BEC Output: 5.2V/6V/7.4V/10A/25A
• Continuous Current: 115A
• Burst Current (<10s): 120A
• Dimensions: 92 x 46 x 27.3 mm
• ESC Type: Single Arm
• BEC Mode: Switch
• Voltage: 6-14S
• Weight: 182g
• Amps: 115

Includes

• 1x T-Motor AT115A 6-14S VTOL Fixed Wing Single ESC
