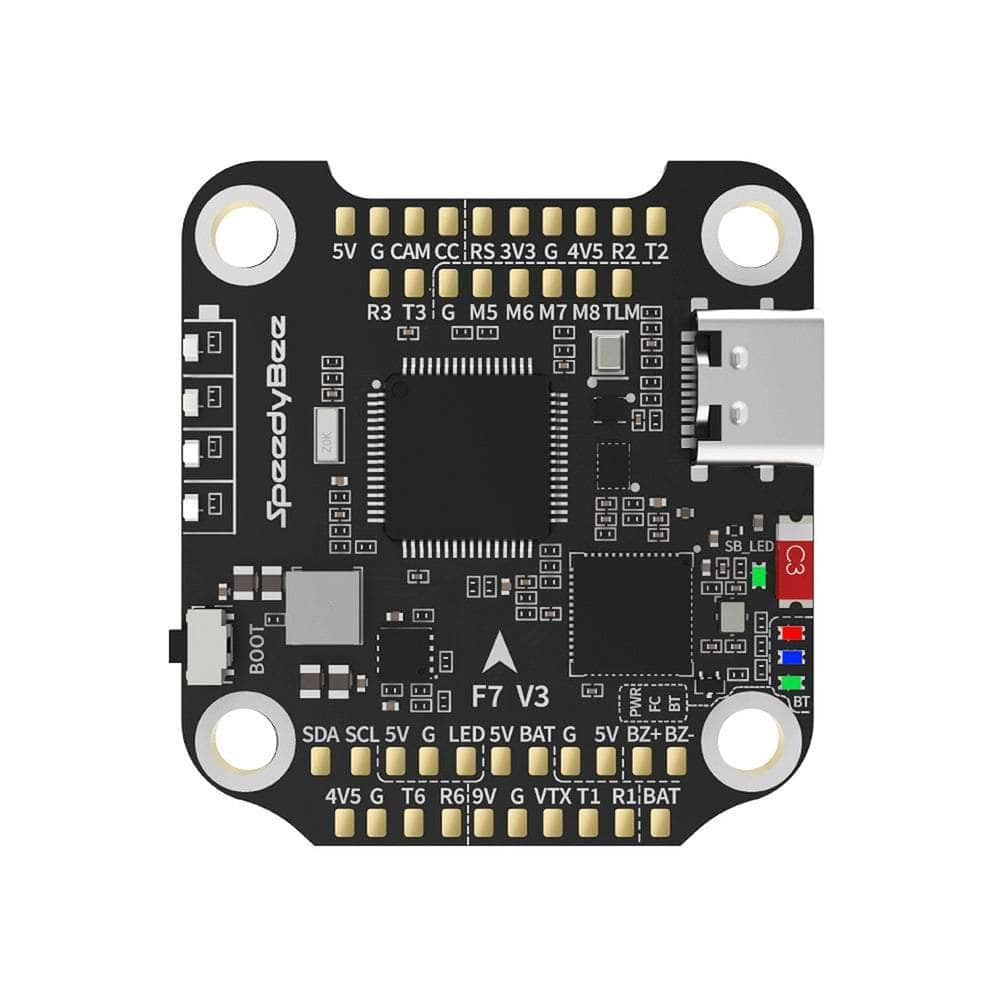

SpeedyBee V3 F722 3-6S 30x30 Flight Controller

Description

The improvements to the SpeedyBee V3 F722 3-6S 30x30 Flight Controller are staggering! This flight controller comes with onboard Wi-Fi which boasts 33% faster wireless firmware flashing and full Betaflight Configuration. With an optimized algorithm and upgraded Bluetooth/Wi-Fi chip, you can dive into your Blackbox data every time you land your quad. Just take your smartphone out, connect, and download your flight in 20 seconds. The path to progress has never been easier. As if that weren't enough, this FC can support up to 8 motors and has solder-free plugs for your VTX, RX, camera, GPS, and 4x LED strips. If you hate soldering, this is the Flight Controller for you!

Browse all our 30x30 flight controllers and all our Speedy Bee products!

Features

• DJI Plug and Play
• Built in Wi-Fi and Bluetooth
• Camera control pad
• Blackbox
• 6 Uarts, buzzer pad, and I2C

Specifications

• MCU: STM32F722

• IMU: BMI270

• USB: Type-C

• Baro: BMP280 (I2C)

• OSD: BetaFlight OSD w/ AT7456E chip

• BLE Support, used for Flight Controller configuration

• WiFi Support, used for data transfer, e.g firmware flashing, and Blackbox analysis.
• DJI Air Unit plug: A full DJI Air Unit JST slot onboard

• BlackBox: 500MB onboard data flash
• BetaFlight Camera Control Pad: Yes

• Power input: 3S - 6S Lipo

• 10 groups of 5V output, three +5V pads and 1 BZ+ pad (used for Buzzer) on front side, and 6 +5V output included in the connectors on bottom side. The total current load is 2A.
• 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 4A.
• Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
• Supported. Designed for 3.3V-input receivers. Up to 500mA current load.

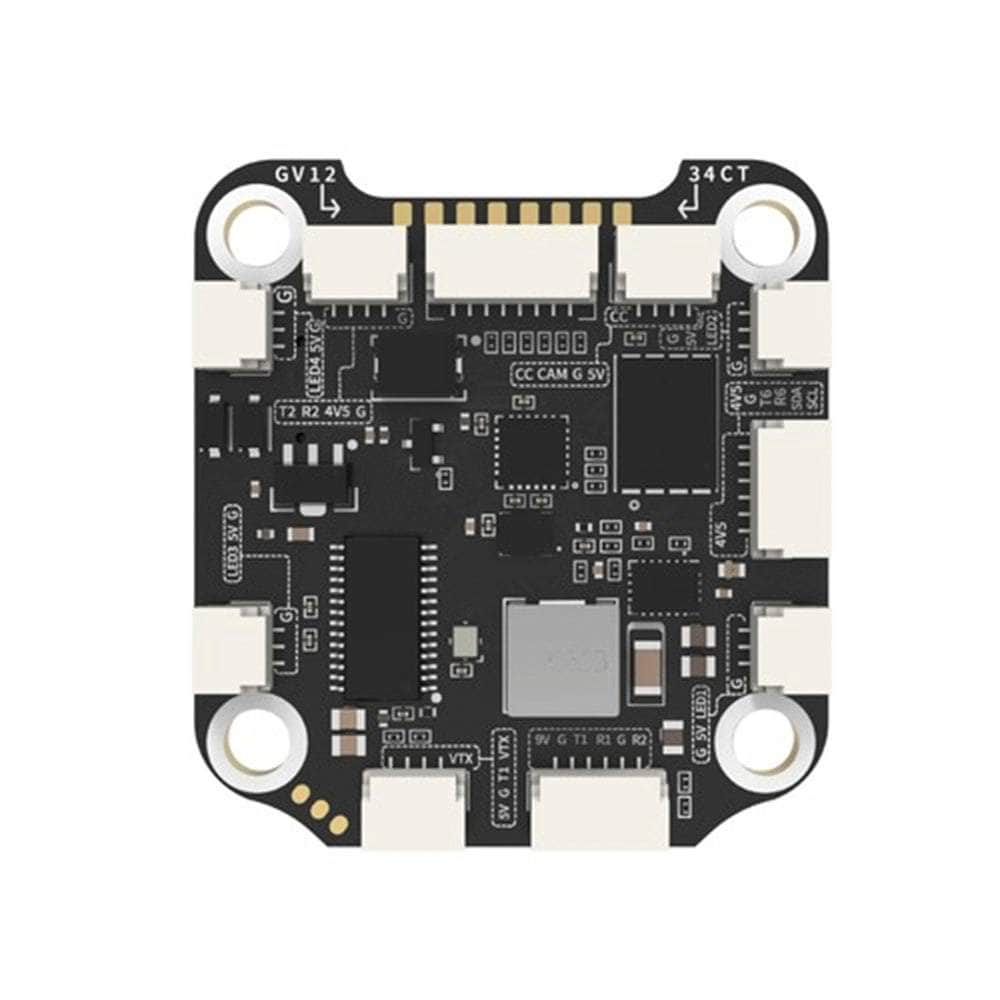

• ESC signal M1 - M4 on bottom side and M5-M8 on front side.

• UART: 5 sets (UART1, UART2, UART3, UART4, UART6)

• ESC Telemetry: UART UART4 RX

• I2C: Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.

• LED: Used for WS2812 LED controlled by Betaflight firmware.

• Buzzer: BZ+ and BZ- pad used for 5V Buzzer

• Boot button: Yes

• RSSI input: Yes

• SmartPort: Supported

• Support Flight Controller Firmware: BetaFlight(Default), EMUFlight, INAV

• Target: SPEEDYBEEF7V3

• Mounting: 30.5x30.5mm, 4mm hole size

• Dimension: 41(L) x 38(W) x 8.1(H)mm

• Weight: 9g

Includes

• 1x SpeedyBee F7 V3 30x30 Flight Controller

Wiring Diagram
