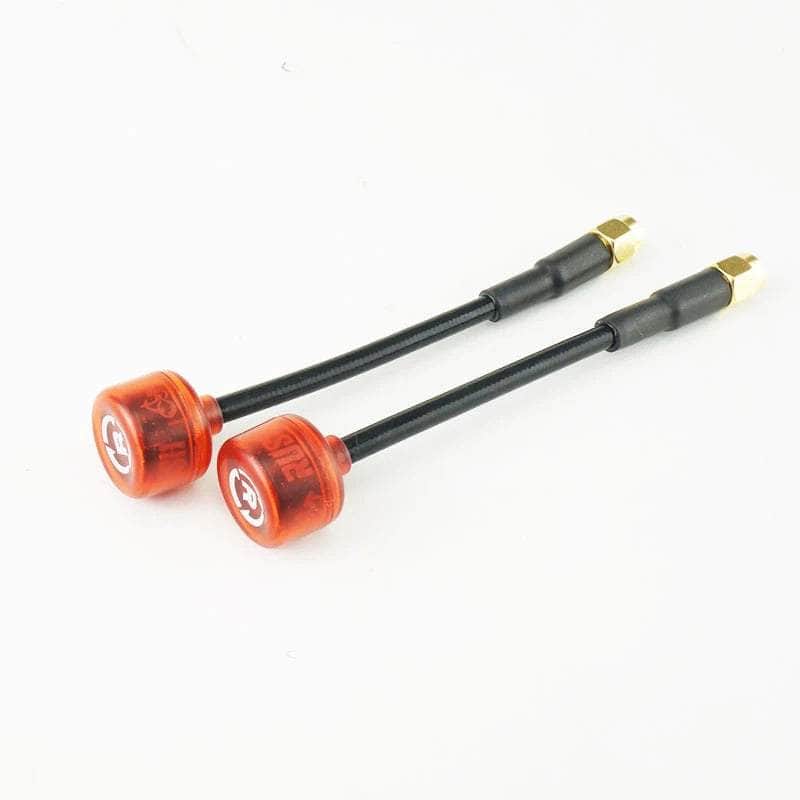

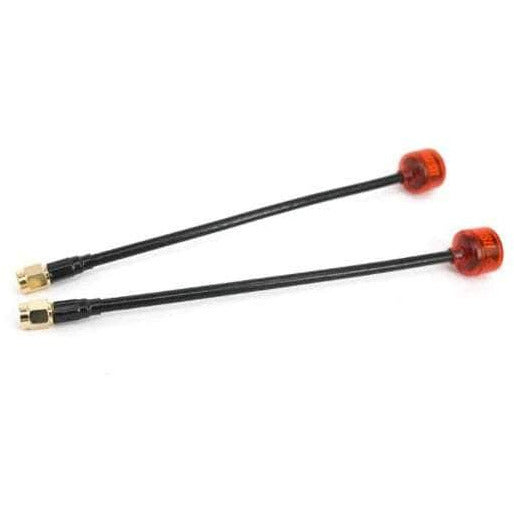

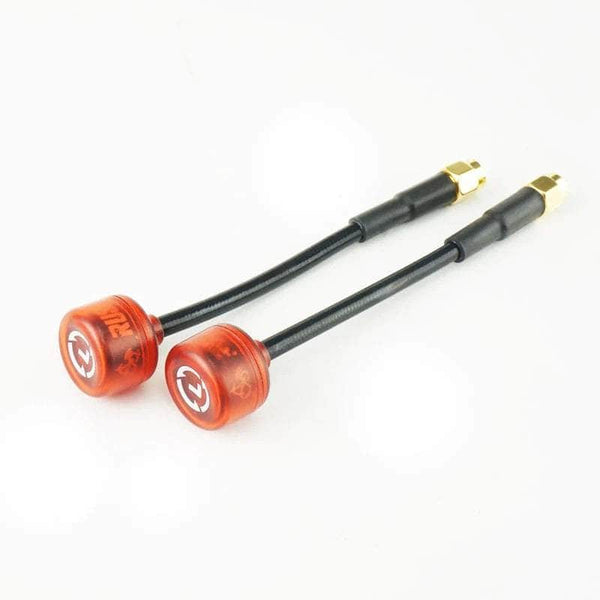

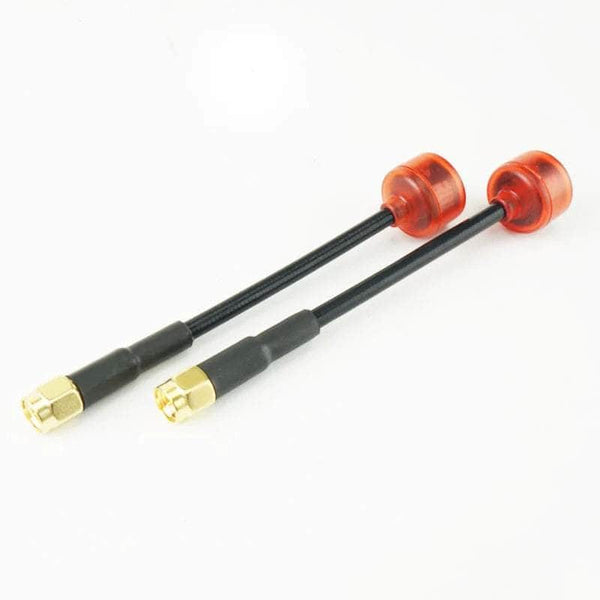

RUSHFPV Cherry Ultra Extended 5.8GHz SMA Antenna (2pc) - Transparent Red - Choose Your Polarization

$12.99
Original price $12.99 - Original price $12.99
Original price
$12.99 - $12.99
Current price $12.99
Polarization :
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

RushFPV's pushes the boundaries with their ultra-extended cherry antennas. With incredible range and near-perfect transmission efficiency, these antennas are perfect for your long-range or racing quads.

Be sure to check out our other Rush FPV Products and our wide variety of antennas!

Features

  • Cherry antennas from RushFPV are optimized for racing FPV drones
  • Maximum signal coverage. The 5.6-6 GHz bandwidth covers the entire frequency band, and all channels have almost the same transmission power.
  • Ideal axial ratio of circular polarization.
  • Effectively suppresses screen flicker caused by multi-beam interference.
  • Small and strong.
  • Optimized design obtained by massive impact tests.
  • The flexible pipe can withstand angular bends and shocks to avoid damaging the cable.
  • Between 5650 and 5950 MHz VSWR is below 1.2, which means transmission efficiency up to 98%. It can also help reduce VTX heating.
  • Quick installation. Antenna clamps have the same size as standard SMA flange connectors. The length of the antenna tube can be shortened according to your needs.
  • Quality guarantee. Cherry antennas are tuned to the performance of a professional microwave laboratory Rush FPV, and each antenna is checked by a network analyzer before sending from the factory.

Specifications

  • Gain: 1.2dBi
  • S11 SWR: 1.4 max - 1.1 min
  • Band Width: 5600-6000-MHz
  • Axial Ratio: Around 1.0
  • Polarization: LHCP or RHCP
  • Connector: SMA

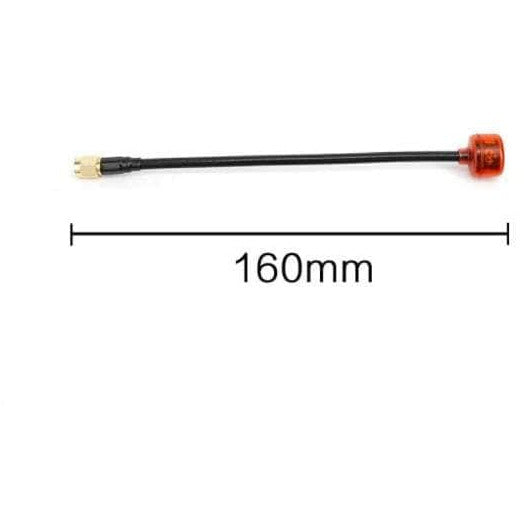

  • Length (end of SMA to base of Antenna): 14CM

Includes

  • 2 x Rush FPV Cherry Ultra Extended 5.8GHz SMA Antenna

More Information:

  • SKU: RUSH-DC6L
  • Barcode: 691023516342
