IFLIGHT FC RDQ Bardwell F7 V2 3-6S 30x30 Flight Controller - JBF7 V2

RDQ Bardwell F7 V2 3-6S 30x30 Flight Controller - JBF7 V2

$84.99
$84.99 - $84.99
$84.99 - $84.99
$84.99
In Stock
Add to Wishlist
Ask a Question

Details

Description

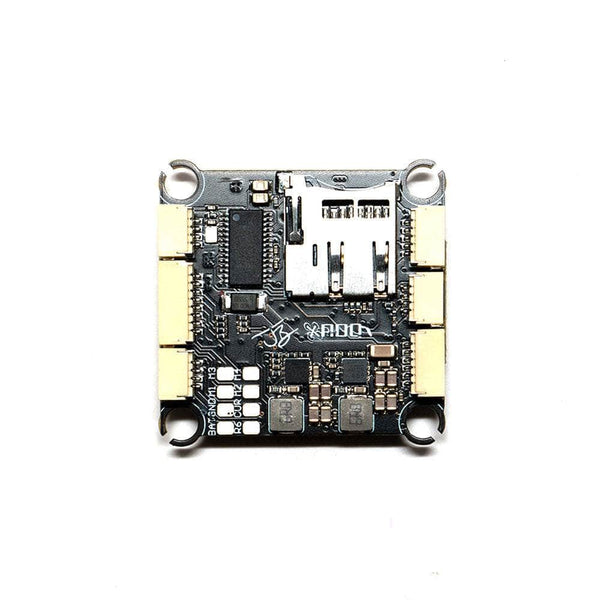

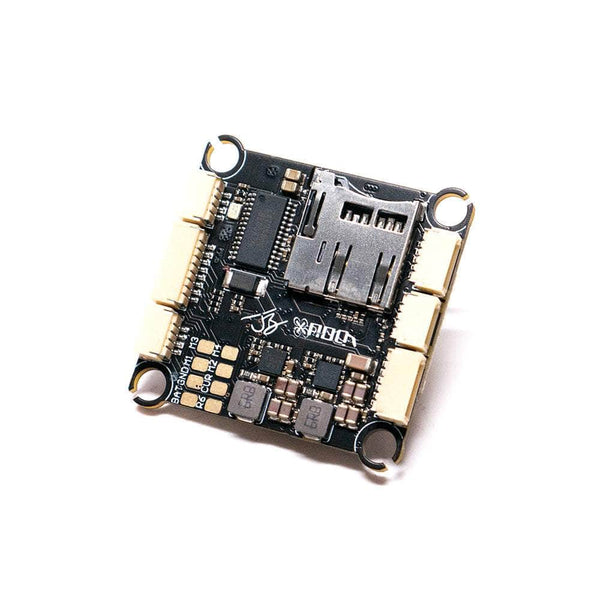

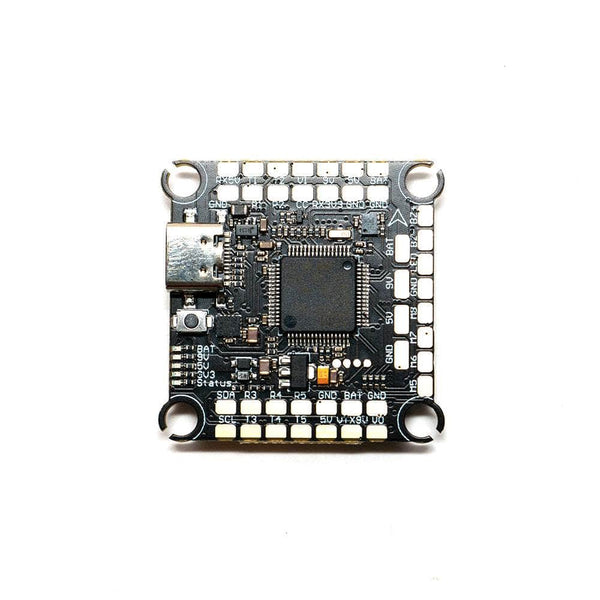

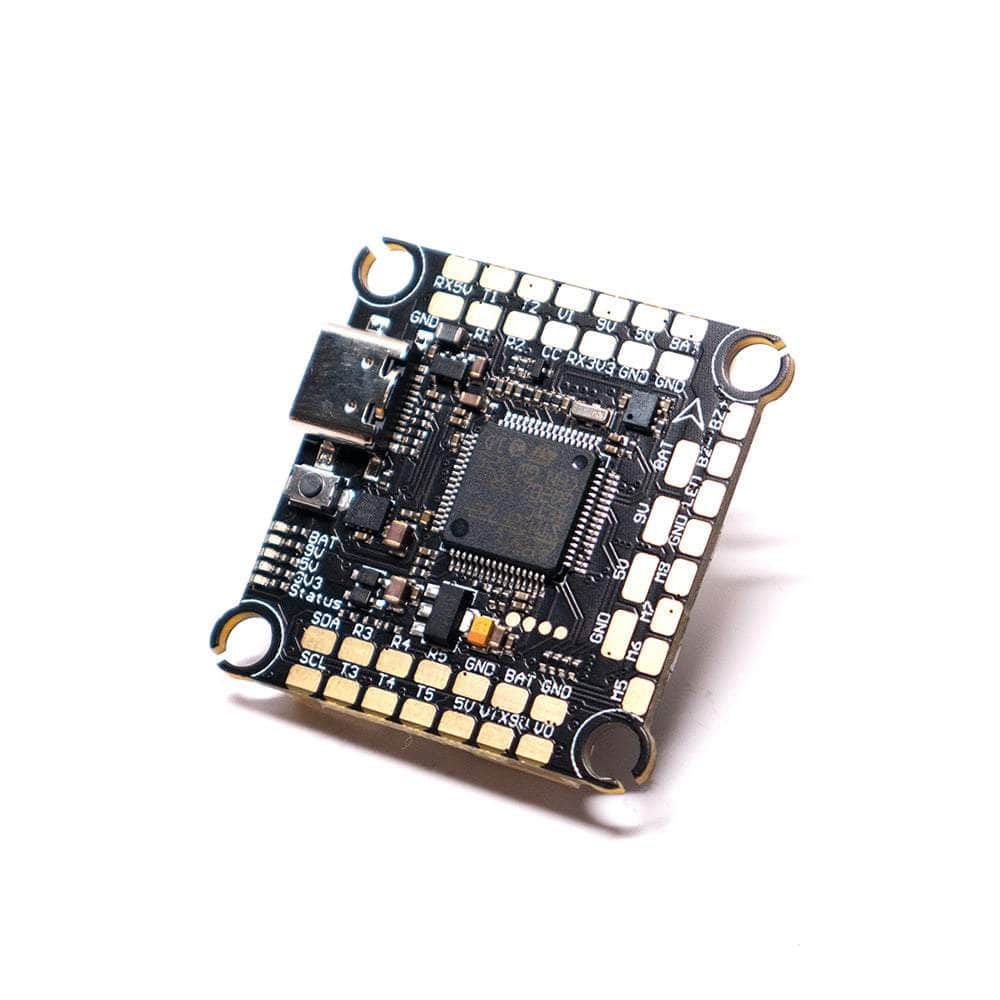

The new JBF7 V2 takes everything great about the original JBF7 and adds a few key features that you asked for. Just like the original, it's got an F7 processor, SD card slot for black box logging, and 8 motor outputs. It's got a flexible pad layout that can handle almost any combination of peripherals you could want. Pads are large and heavy--easy for beginners to solder to and reduce the risk of lifted pads. With the new JBF7 V2, we switched to USB-C; we added a VTX pit switch; we added plugs for all of the major features, and we included pre-made plugs for common peripherals, to allow a no-solder or less-solder build for people using those peripherals. We also added small status LEDs for major components, to make troubleshooting easier. For those who like autonomous flight, the board now includes a barometer.

Check out all our 30x30 FCs and the full range of RDQ Products!

If you have any issues accessing the Black Box features please type out this text in the CLI to get black box data to your SD card "set sdcard_detect_inverted=on" press ENTER, then type "save" and press ENTER.

Features

  • Manual written and feature set selected by Joshua Bardwell.
  • Board layout focused on flexibility and resilience. You can build what you want, how you want, without stress.
  • ESC 4-in-1 plug also has solder pads, for troubleshooting, or if you want to direct-solder the ESC.
  • Plug-and-play support for DJI Air Unit. Voltage regulator allows up to 6S input.
  • Eight motor pads for easy resource remapping or for that octo cinelifter you're thinking of building.
  • SD card slot for blackbox logging.
  • All major functions available in SH plugs, and pre-made wire set included for most common peripherals
  • USB-C plug
  • VTX pit switch built-in (9v rail only) allows you to power down the video transmitter using a controller switch
  • Barometer on board (no iNav target at release date, but possible for the future)
  • Status LEDs for major components allow easier troubleshooting
  • 9v regulator rated for 3A. Verified to power HDZero Freestyle and DJI VTX.

Joshua Bardwell's Comprehensive Manual

Specifications

  • Input Voltage: 3-6S LiPo
  • MCU: STM32F722
  • Gyro: BMI270
  • Barometer: DPS310
  • Power Outputs: 5V 3A, 9V 3A (w/ Pit Switch), 3.3V, vBat
  • BF Target: JBF7 V2
  • UARTs: 5 (I2C SDA/SCL shared with UART 3)
  • Plugs: 4in1 ESC, RX, Analog Cam, HD Cam, VTX, LED/Buzzer
  • Mounting Pattern: 30.5x30.5mm
  • Weight: 8.3g (w/ gummies & USB Protector)

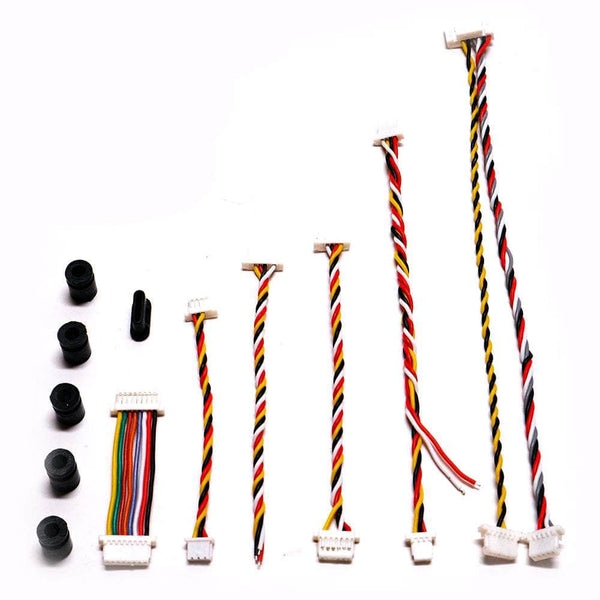

Includes

  • 1x RDQ Bardwell F7 V2 3-6S 30x30 Flight Controller - JBF7 V2
  • 1x 4in1 ESC Cable
  • 1x DJI Air Unit / HD Camera Cable
  • 1x Analog Camera Cable
  • 1x Analog VTX Cable
  • 1x LED / Buzzer Cable
  • 1x Receiver Cable
  • 1x USB-C Protector
  • 1x Set of Gummies

Wiring Diagram

For in depth wiring instructions, see Joshua Bardwell's Comprehensive Manual



More Information:

  • SKU: 19564
  • Barcode: 691023522466
