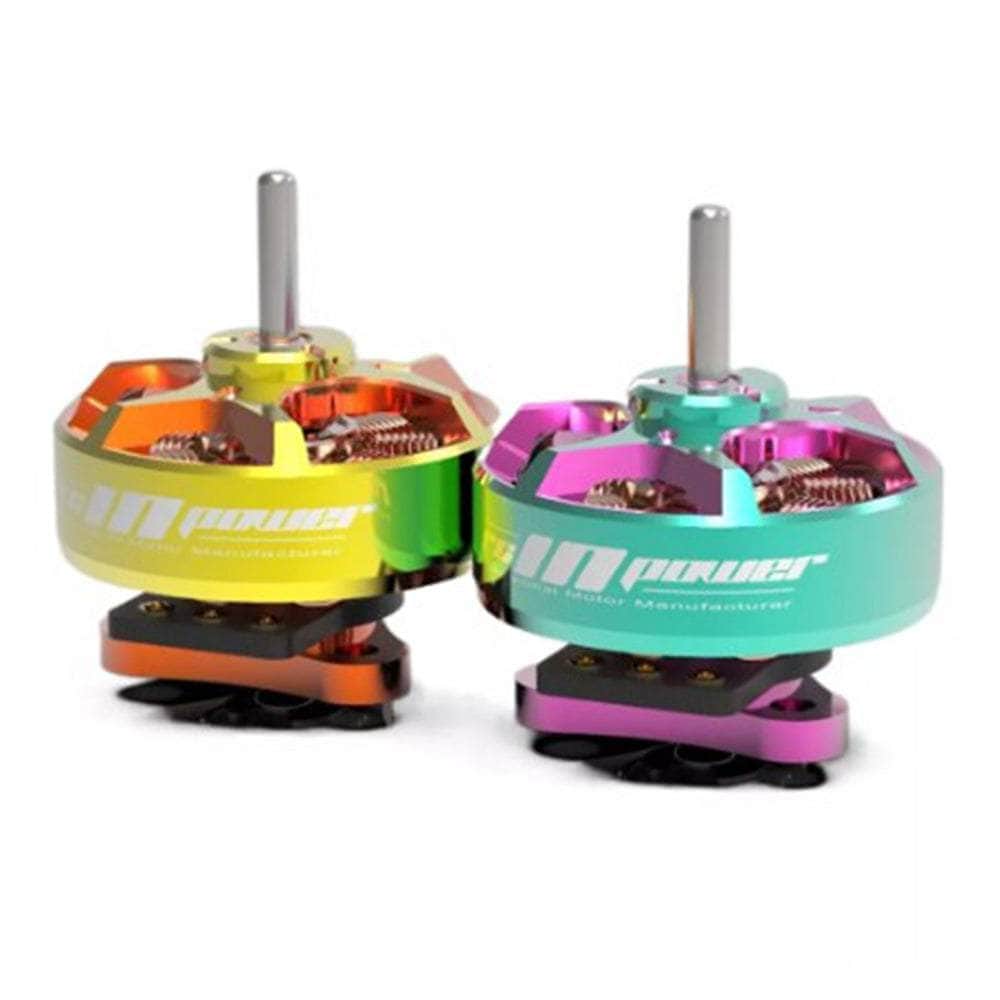

RCINPOWER Motor Teal & Pink RCinPOWER GTS V3 0802 25000Kv Micro Motor - Choose Color

RCinPOWER GTS V3 0802 25000Kv Micro Motor - Choose Color

$12.89
$12.89 - $12.89
$12.89 - $12.89
$12.89
Color :
In Stock
Add to Wishlist
Ask a Question

Details

Description

The GTS V3 0802 Motor is a powerful new motor by RCINPOWER! Choose a Kv option: 22000Kv, 25000Kv, 27000Kv.

Take a look at all of our micro motor selections and our RCInPower collection!

Specification:

  • Kv: 25000
  • Configuration: 9N12P
  • Stator Diameter: 8mm
  • Stator Length: 2mm
  • Shaft Diameter: 1mm (1.5mm inside)
  • Motor Dimensions (Dia. x length): Φ 11.2x8.2mm
  • Weight: 1.97g (with plug)
  • Idle Current(5)@5V(A): 0.25
  • No. of cells (Lipo): 1S
  • Max Continuous Power: 24.1
  • Internal Resistance: 105mΩ
  • Max Current: 6.5A
  • Max Efficiency Current: (1-2A)>82%

Includes

  • 1x RCInPower GTS V3 0802 25000Kv Motor

More Information:

  • SKU: RCIN-GTSV3-0802-25K-TEAL
  • Barcode: 691023490567
