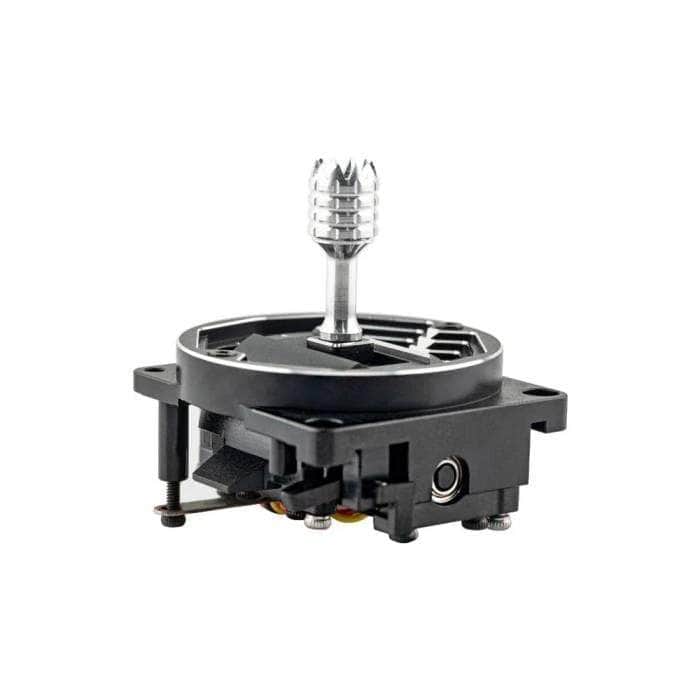

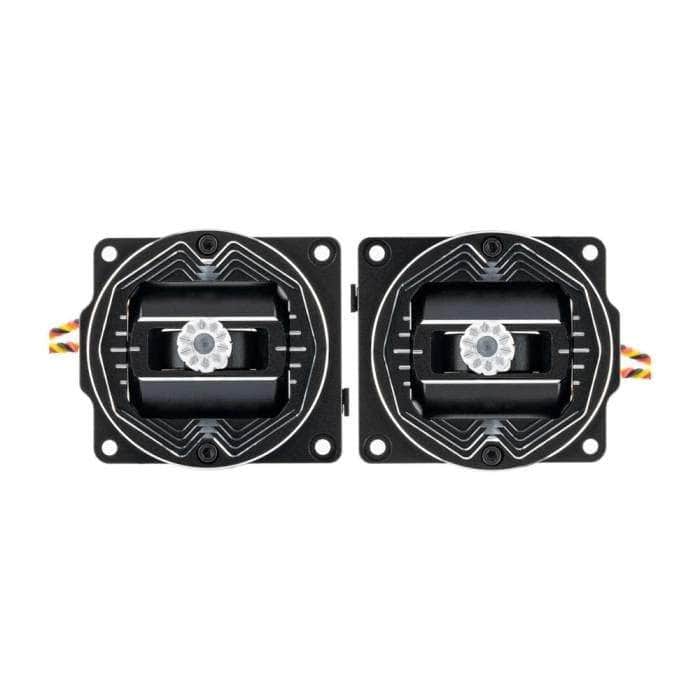

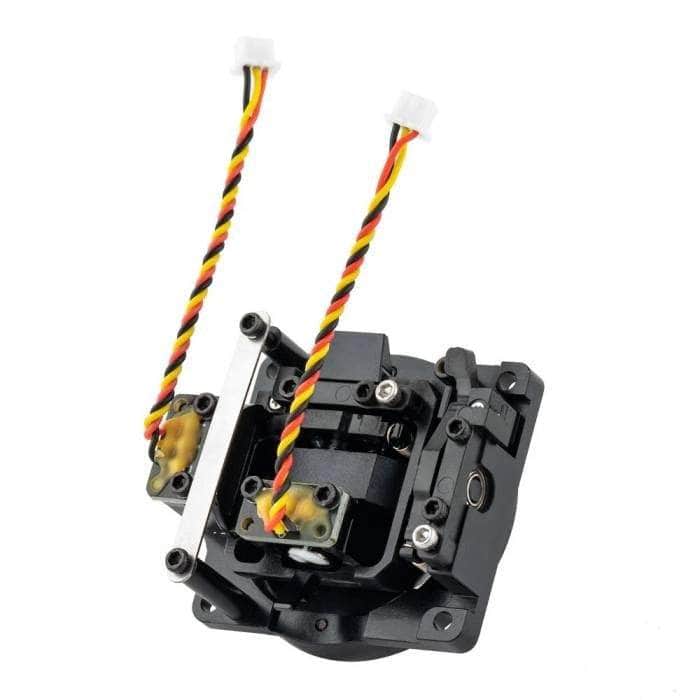

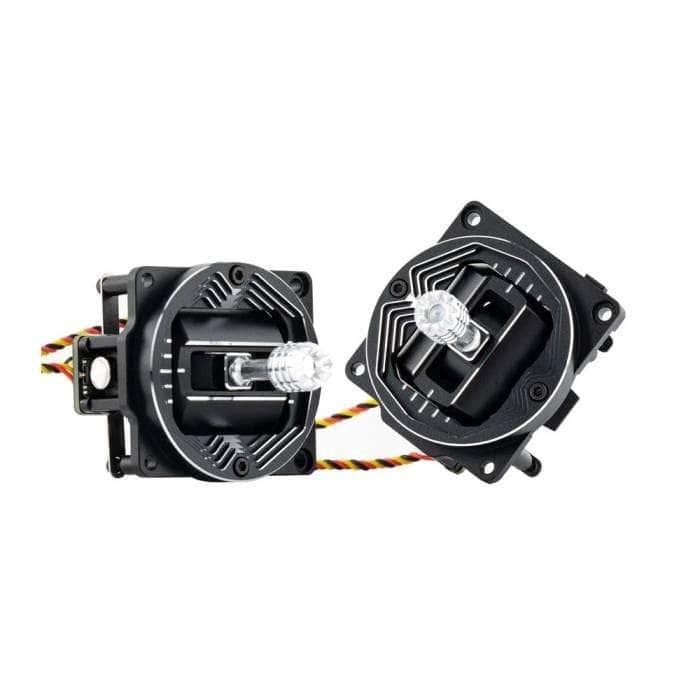

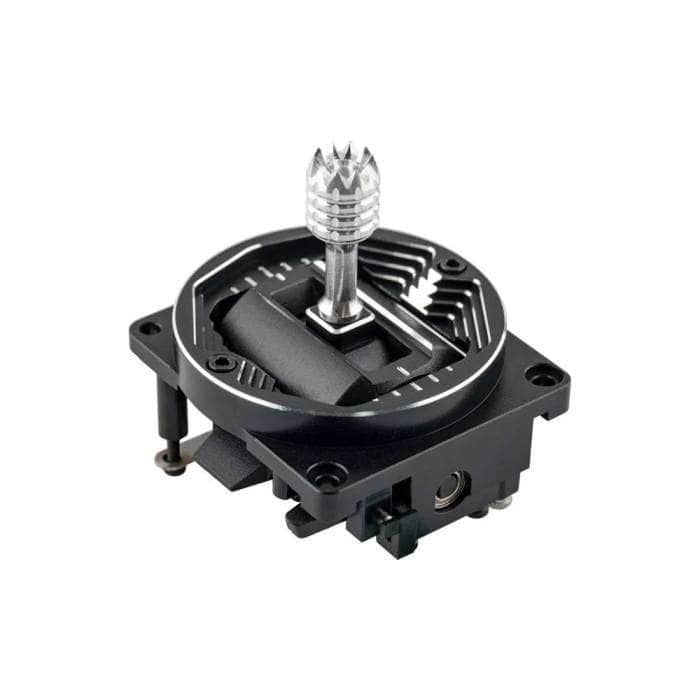

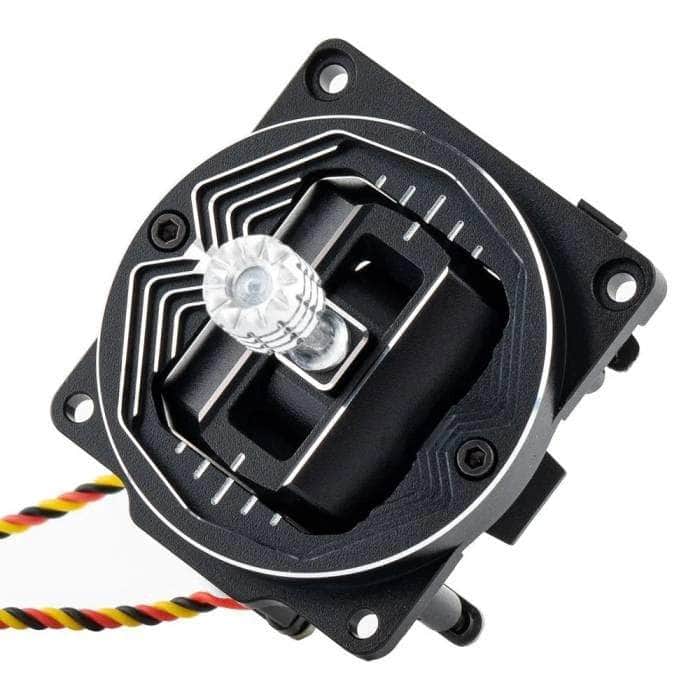

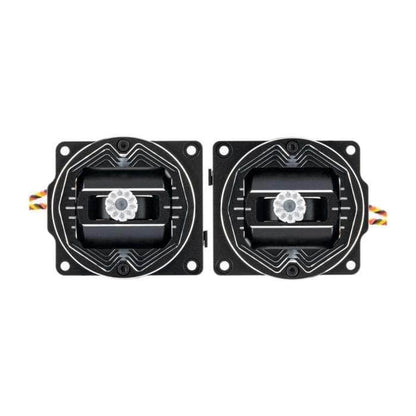

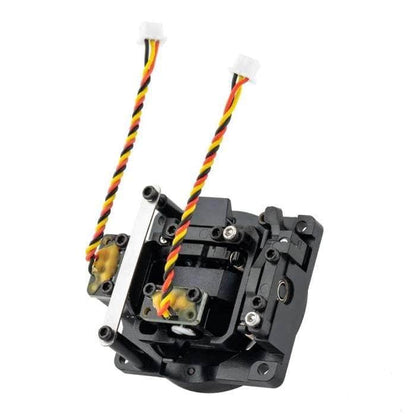

RadioMaster Nano CNC AG01 Hall Gimbal - Set

Description

This RadioMaster AG01 Nano CNC Hall Gimbal Set is the next line of precision gimbals for the Pocket radio from RadioMaster. The AG01 is fully CNC milled for ultimate precision for a smooth and precise feel. The AG01 will level up your Pocket radio!

The AG01 gimbals have been in development with our engineers and champion pro pilots!

Check out our RadioMaster collection and all our RC transmitters!

Features

• Improved Control and Responsiveness

• Easy Installation and Adjustment

• CNC-Machined Aluminum

• Enhanced Durability

• Hall Effect Sensors

• Latest Technology

• Sleek Appearance

• Compact Design

Specifications

• Adjustable Vertical Travel Range: 38°-54°

• Sensor Type: Non-Contact Hall Effect

• Bearing: Quad Precision Bearings

• Make: Pocket AG01 Nano Gimbal

• Temperature Range: -20°C-85°C

• Linearity: Real-Time (No Latency)

• Self-Centering Adjustment: Yes

• Manufactuer: RadioMaster

• Working Voltage: DC 3.3V

• Adjustable Tension: Yes

• Mode Adjustment: Yes

• Size: 42x37x43mm

• Weight: 32g

• Color: Black

Includes

• 1x RadioMaster Nano CNC AG01 Hall Gimbal - Set
  • 1x RadioMaster Nano CNC AG01 Hall Gimbal - Throttle
  • 1x RadioMaster Nano CNC AG01 Hall Gimbal - Centering
• 2x L-Shaped Hexagon Socket Screwdriver
• 4x Hard Tension Spring
• 1x Hardware Set
• 1x Manual
