Details
Description

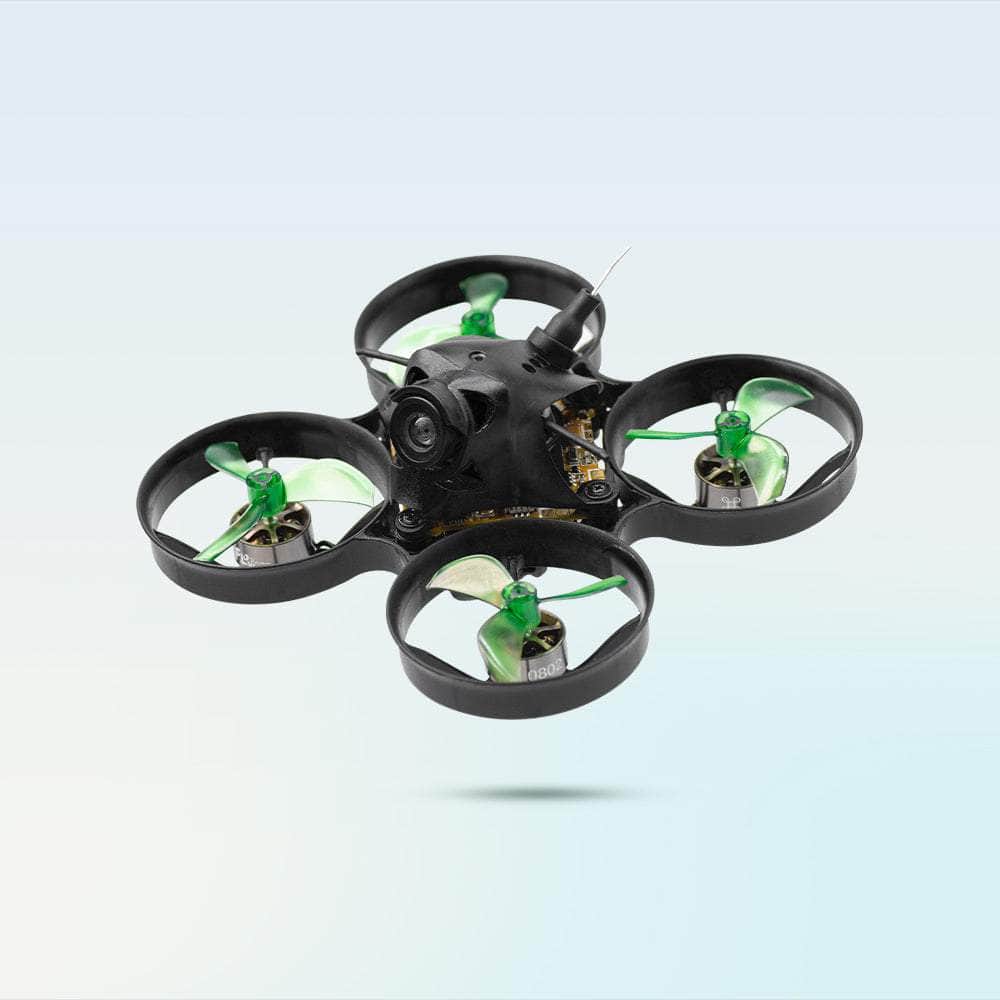

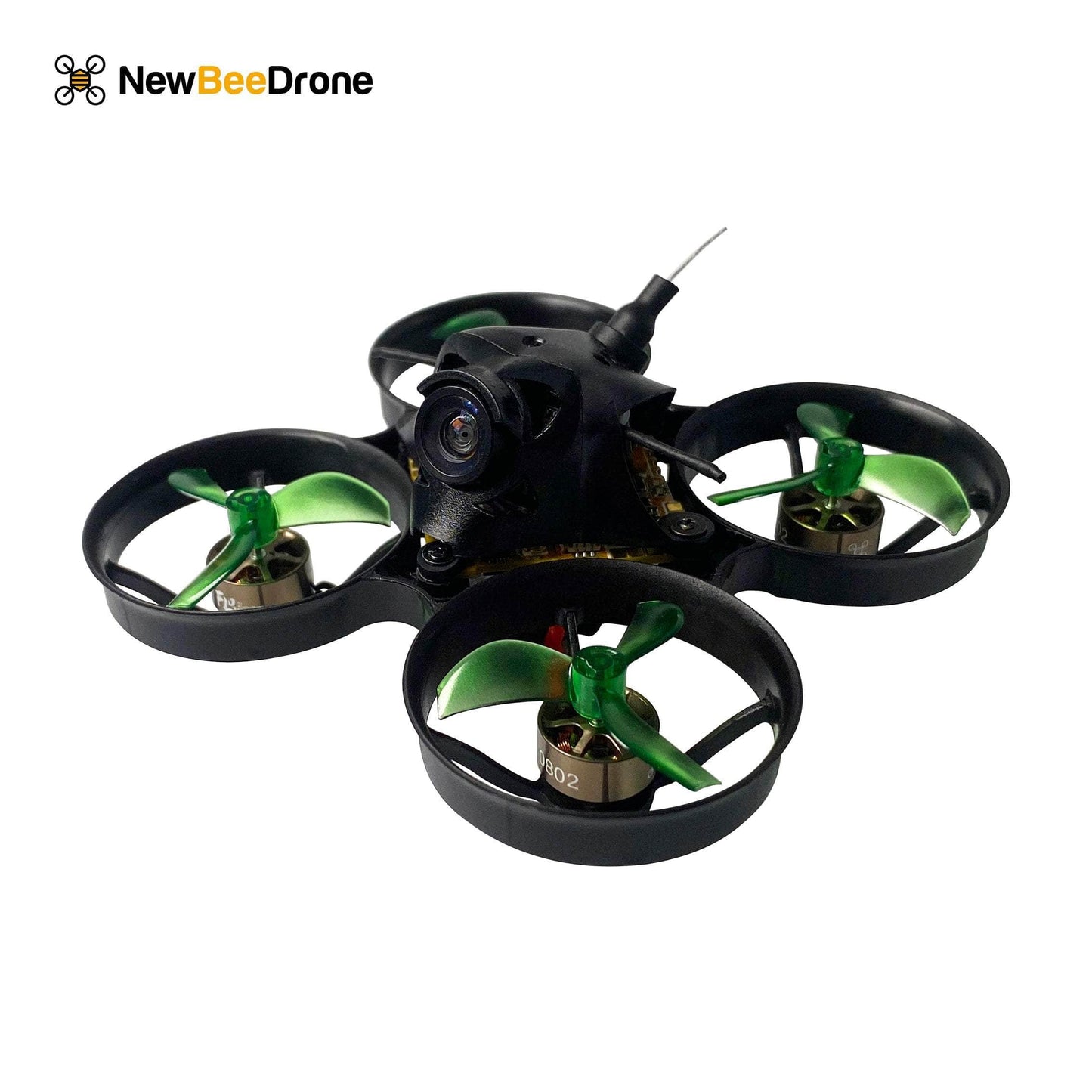

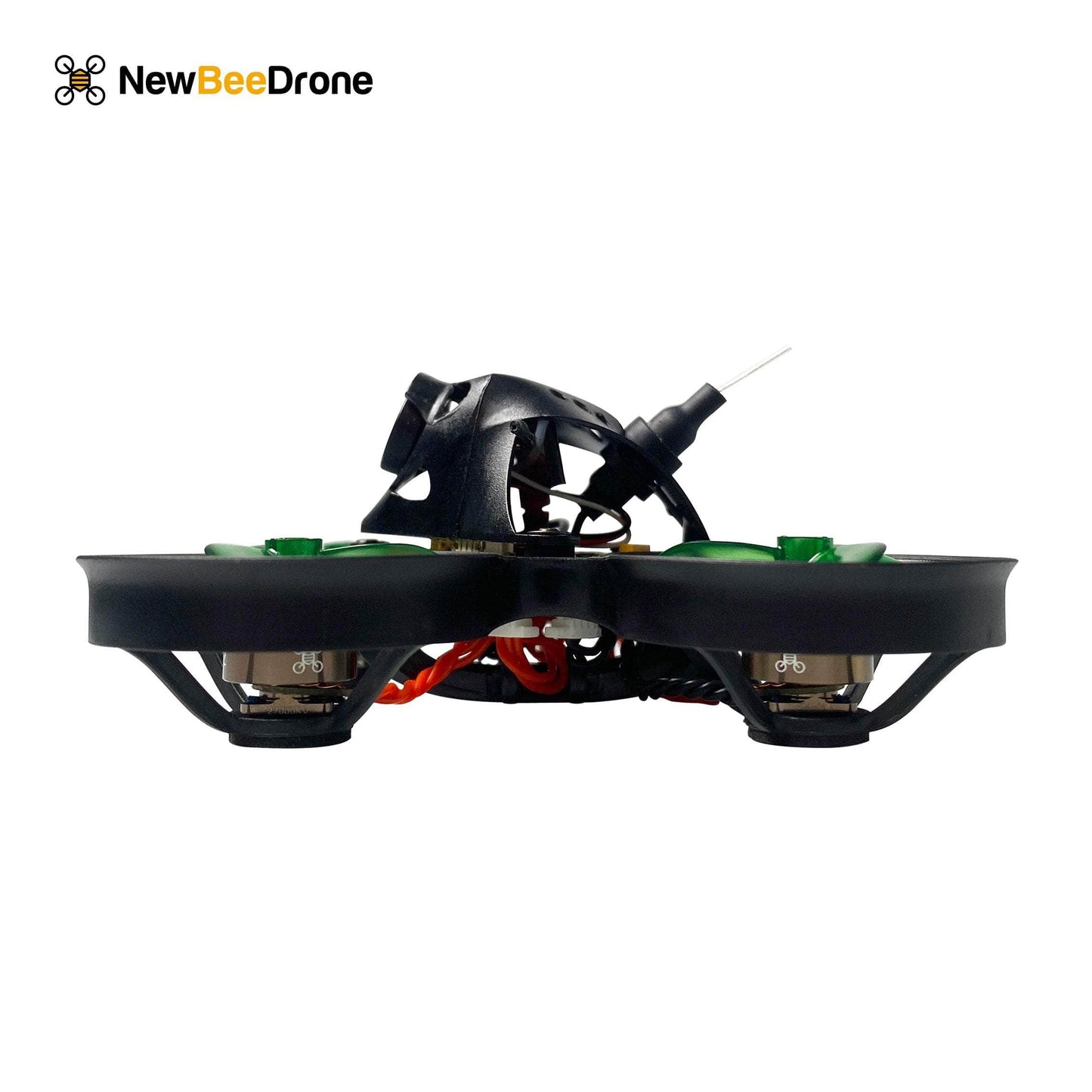

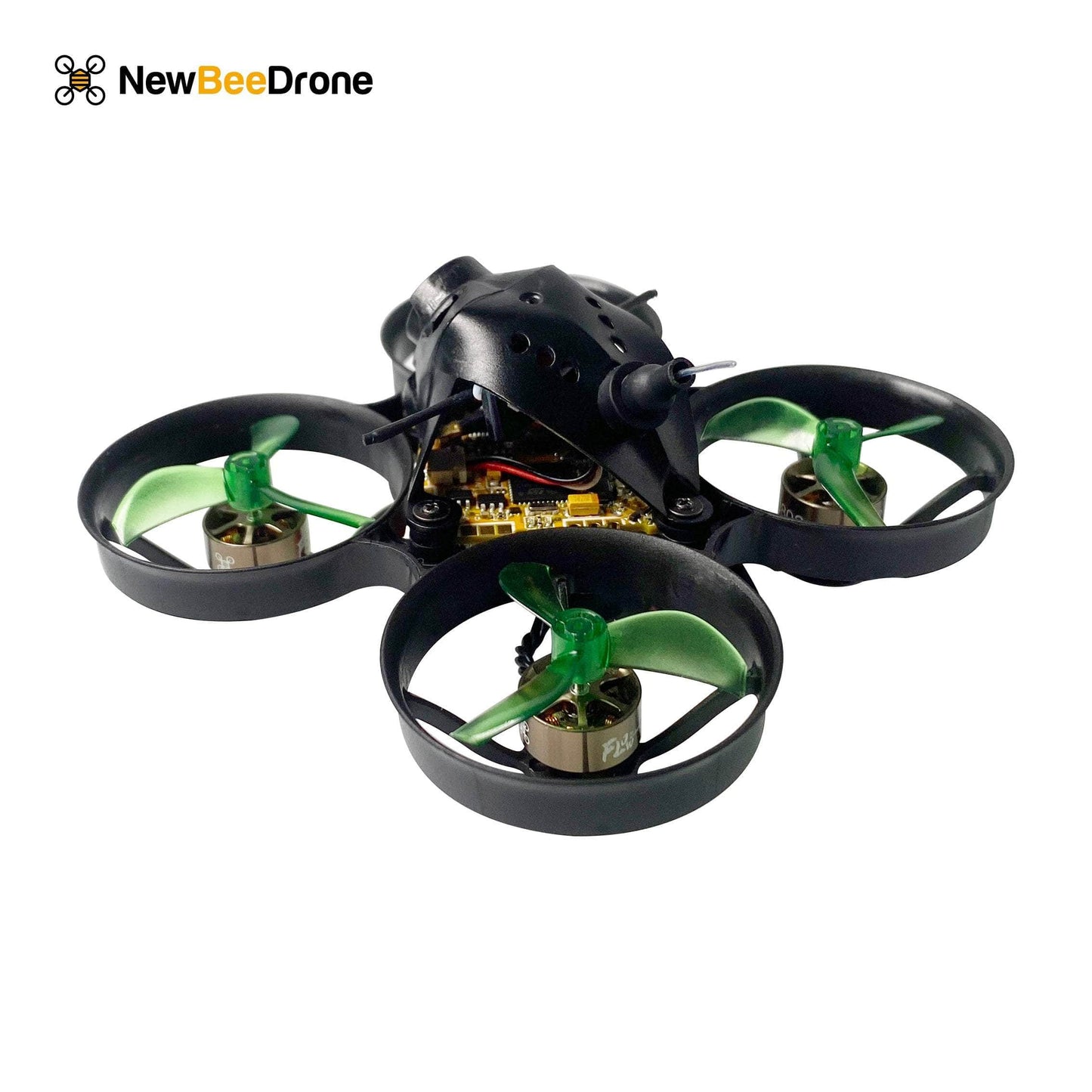

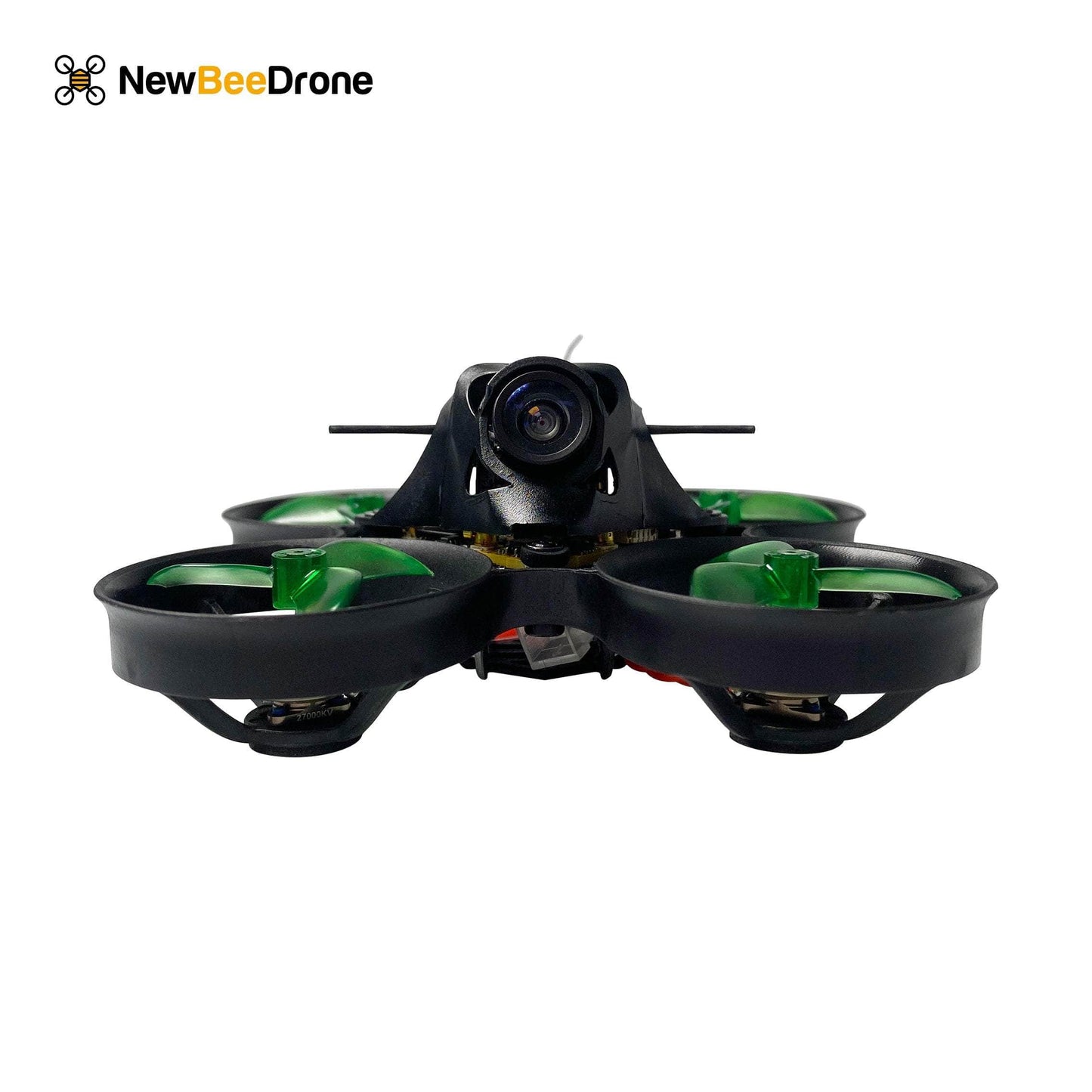

NewBeeDrone x Team BlackSheep AcroBee65 BLV4 BNF CRSF 27000KV
Specifications:
Drone Size: 65mm
Flight Controller: BeeBrain BLV4 CRSF build in VTX and Crossfire Receiver
Frame: Cockroach65 Brushless Frame (Solid Black Color)
Motors: Flow 0802 27000kv Double Ball Bearing Brushless motor
Propellesr: Azi Tri-Blade 31mm Propeller(Jade Green Color)
Camera: BeeEye Camera
Canopy: Goober Canopy v1(Solid Black)
Total Weight of the Drone without battery: 24.8g
BeeBrain BLV4 CRSF Spec:
MCU: STM32F411
GYRO:BMI270
VTX: Switchable output power from 5mw- 25mw(for Racing) - SmartMAX(SmartMax up to 400mw) with BeeTX 5.8Ghz Antenna
ESC: 12A BLHeliS Pre-Flash with Bluejay 0.18 target: S-H-40 48kHz
ESC Connector: JST-1.0 3Pin
OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
Receiver: Crossfire Nano receiver with MINIMORTAL T Antenna
Flight Controller Weight: 6.5g(Include antennas and battery connector)
Flight Controller Size: Outer dimensions: 29x29x7.6mm
Flight Controller Holes: 25.5x25.5mm
Battery input: 1-2S (For 2S you will need to set throttle cap at less 50%)
Uart2:
Crossfire Nano receiver (Binding instruction: just like the Crossifre Nano, after power up the drone, hold the bind button on back side of the USB to get into bind mode)
Power Connector: NBD-PH2.0 connector
Batteries not included.
Recommend Battery:
Nitro Nectar Gold 300 mAh 1S PH2.0
Nitro Nectar Gold 250 mAh 1S PH2.0
Firmware:
1. BeeBrain BLV4 CRSF Betaflight 4.4 firmware
All New firmware can be found on our Github Page
What’s include:
1x NewBeeDrone x Team BlackSheep AcroBee65 BLV4 BNF CRSF 27000KV
Warning:
This drone has been carefully crafted using only newbeedrone parts. It is important to note that any use of non-compatible parts from other brands may result in technical difficulties. Additionally, should you choose to modify the drone, it is crucial that you assume full responsibility for any resulting issues. It is not advisable to proceed with modifications without the necessary knowledge and expertise. We appreciate your understanding and cooperation in ensuring the safe operation of the drone.
Note* The 27000kv motor on your device is designed for high performance and may be too strong for most users. To ensure safety, the factory has set the device to only use 80% of the maximum power by default. However, if you require more power, it is possible to adjust the settings through the Betaflight software, which can be accessed under the PID tab. Please note that increasing the power beyond the default setting may increase the risk of damage to the device or injury to yourself or others, and should be done with caution.
How to Video:
More Information:
- SKU: sku-40580253941843
