Description

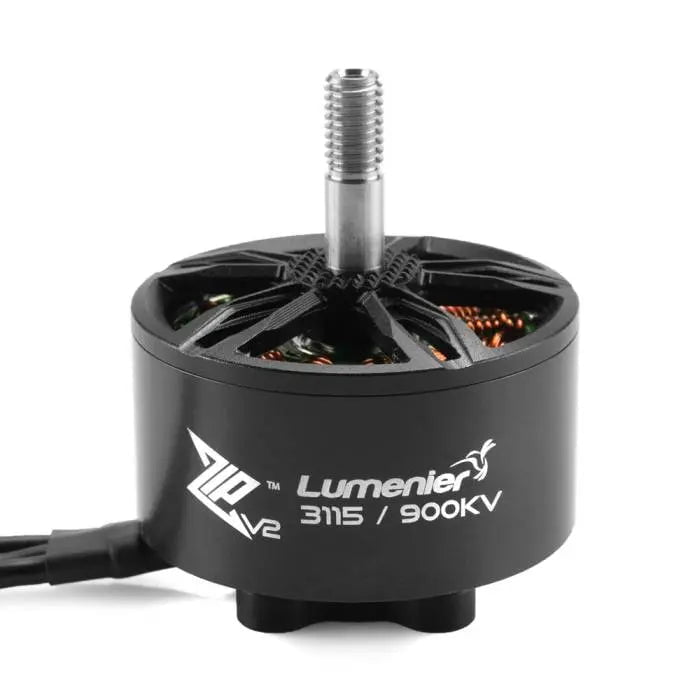

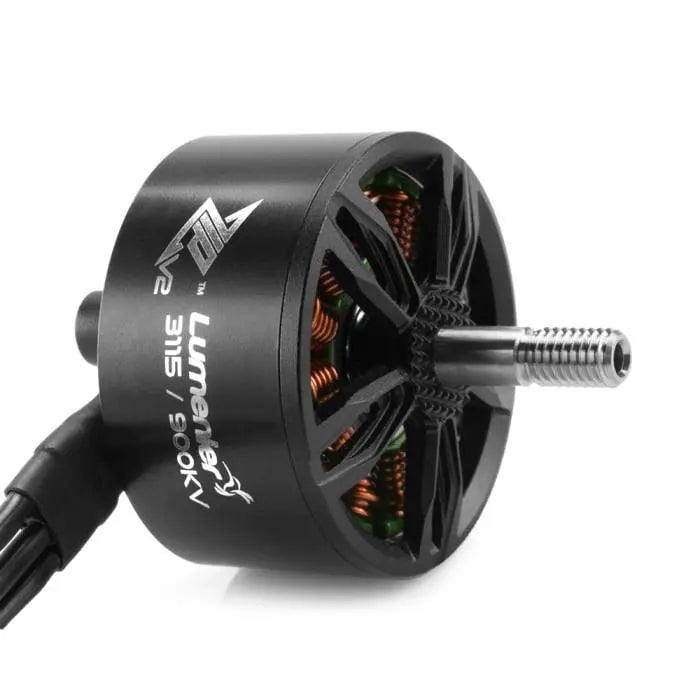

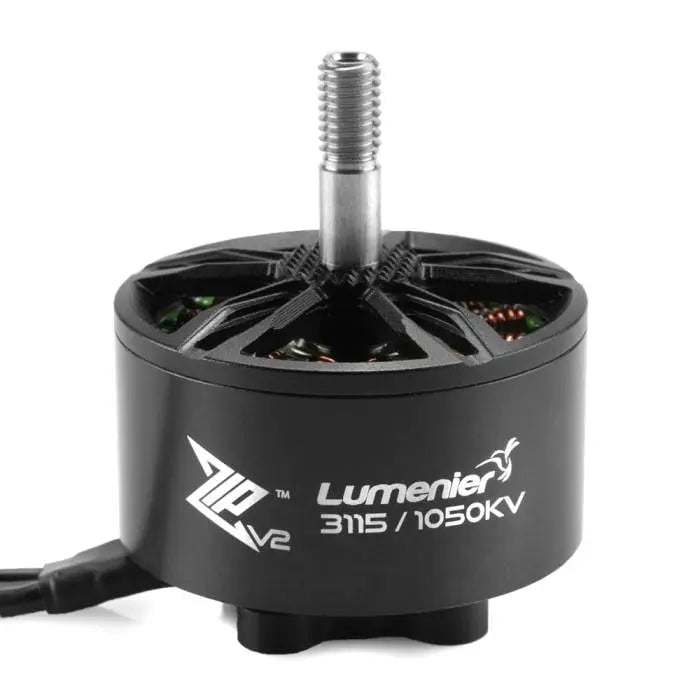

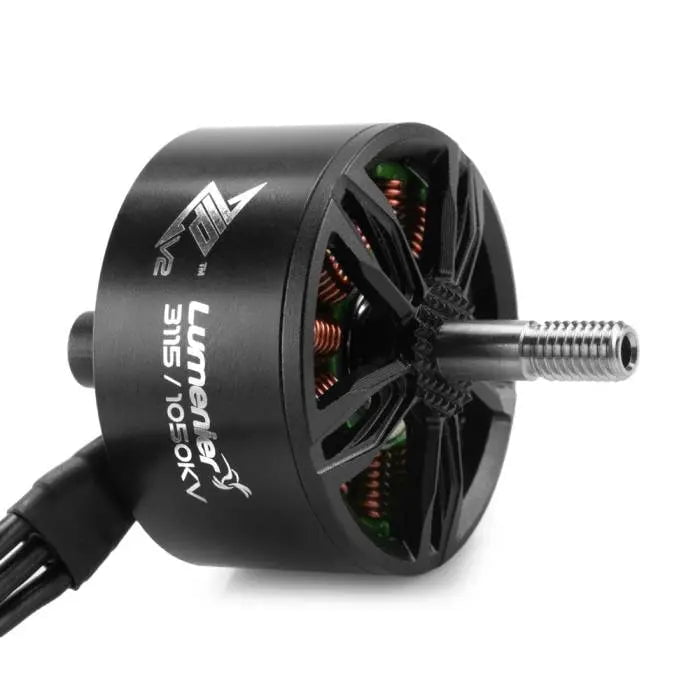

The Lumenier ZIP motor line continues to grow with the addition of the ZIP V2 3115 Motor. With two different KV options to choose from, you'll have a ZIP to match every setup.
The ZIP V2 series by Lumenier is the culmination of years of FPV drone motor manufacturing experience. The ZIP V2 motors feature top-of-the-line components and powerful N52H curved magnets for maximum power. This gives you the best-performing motor for your racing or freestyle drone. Lumenier has always been known for its silky smooth motors, and the ZIP V2 motors are no exception. Each motor is dynamically balanced and tested at the factory to ensure a smooth and perfectly running motor out of the box, resulting in clear and jello-free flight footage.
The Titanium Alloy hollow shaft ZIP motors allow drone pilots to use traditional propellers with nuts. The shafts are made from high-quality and light-weight Titanium Alloy to ensure the best durability possible with threads that will not strip.
The motor features a hollow Titanium Alloy shaft with screw termination for easy maintenance. The ZIP V2 3115 motors come in at an impressive 98g. The 3115 size works well with a 8-10" prop on 6s.
Cinematic Series
The new Cinematic Motors in the ZIP V2 series are purposefully built for the professional cinematographer in mind. The ZIP V2 Cinematic motors feature an all-black matte finish to seamlessly blend into the background, not drawing any unwanted attention to your drone during shoots. Additionally, the ZIP V2 motors feature premium components for top-of-the-line performance and extra reliability. Lumenier motors are guaranteed to give you the best so you can get the job done right.
Specifications
- Inner Shaft Diameter: 4.8mm / Titanium Alloy
- Stator: 0.2mm Kawasaki Steel silicon steel
- Bell and Base: 7075 Anodized Aluminum

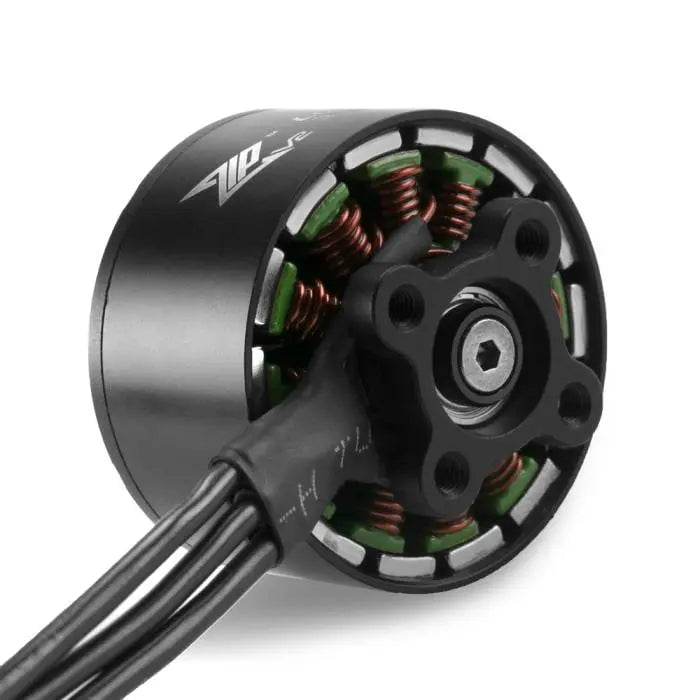

- Base Mounting Pattern: 19x19mm M3
- Bearings: Japanese NMB 11X5X5
- Motor Connection: Bare Wire
- Magnets: N52H Arc Magnets
- Weight: 98g (short wires)
- Motor Wire: 18AWG 200°c, 50cm total length
- Configuration: 12N14P
- No.of Cells(Lipo): 4-6S
- KV: 900KV or 1050KV
- POPO Compatible: No
- Wire AWG: 18AWG
- Stator Size: 3115
- Prop Shaft: 5mm

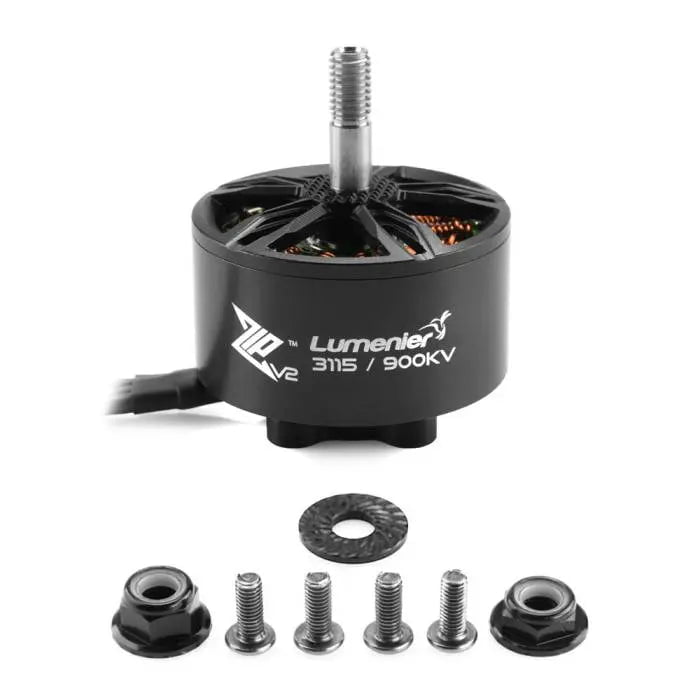

Includes
- 1x Lumenier ZIP V2 3115 Cinematic Motor (Choose 900KV or 1050KV)
- 1x Low Profile Locking Prop Nut
- 1x Standard Locking Prop Nut
- 4x Mounting Screws (M3x8)
- 1x Spacer/Washer
More Information:
- SKU: 16989
- Barcode: 764613349771
