Description

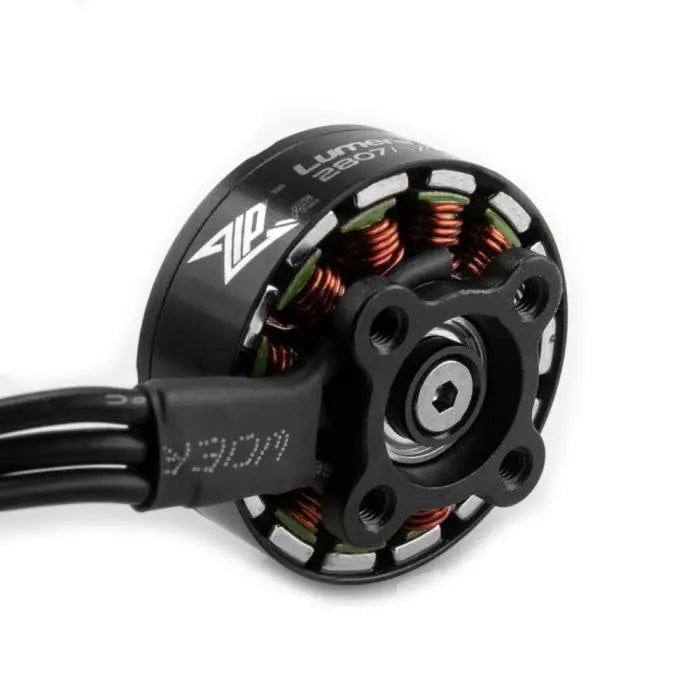

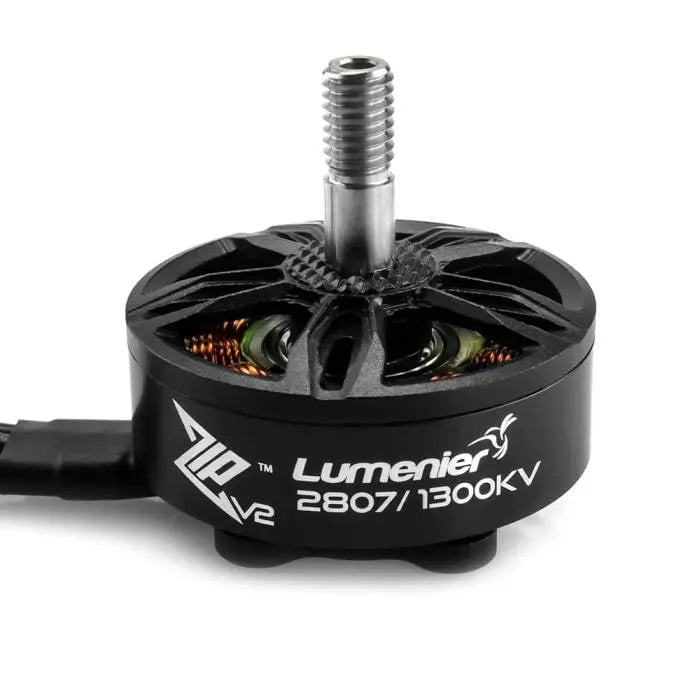

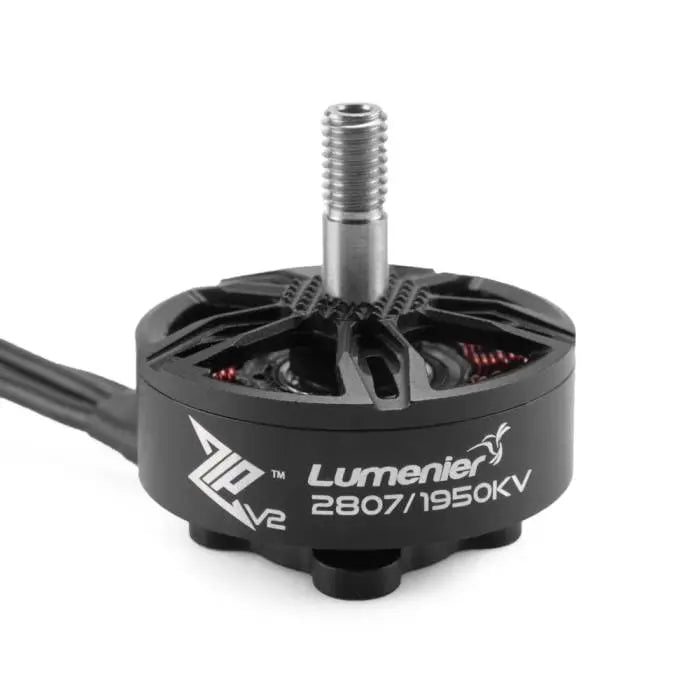

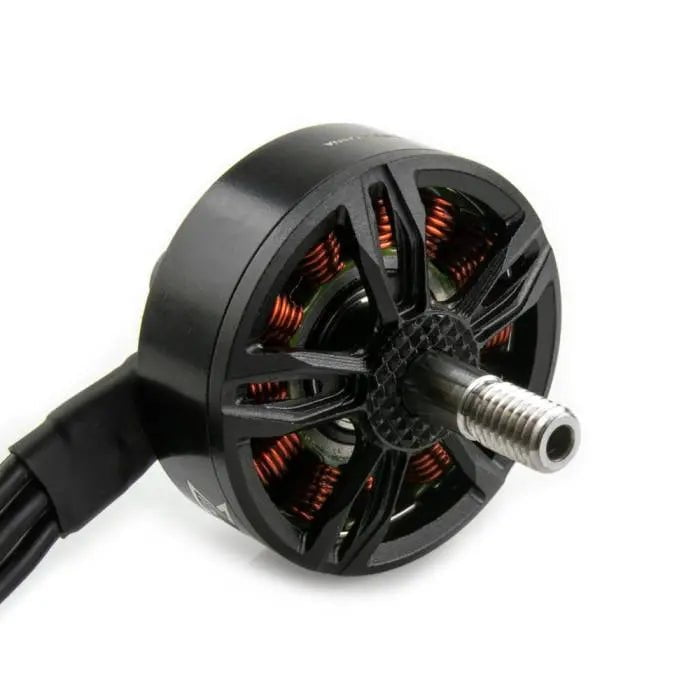

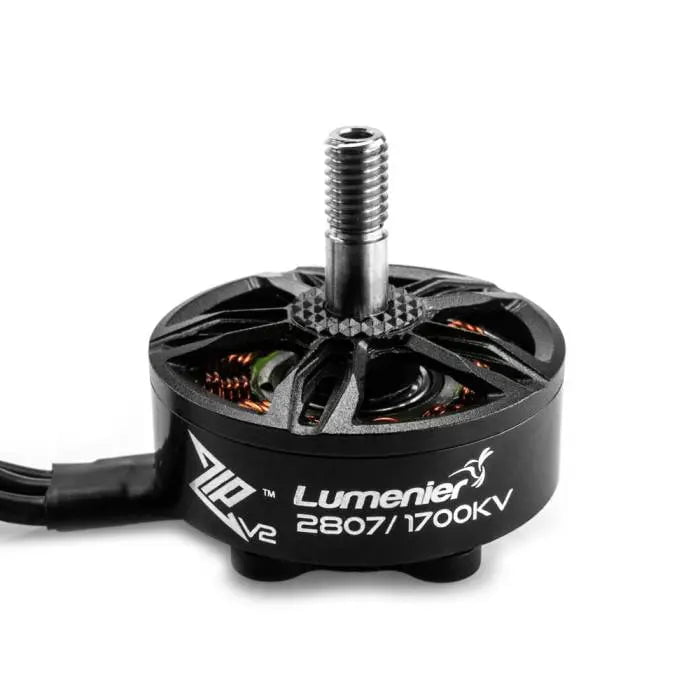

The ZIP V2 series by Lumenier represents years of expertise in the FPV drone motor industry. Designed for both racing and freestyle drones, these motors are built with high-quality components and powerful N52H curved magnets, ensuring maximum power and performance. Known for their silky-smooth operation, the ZIP motors deliver a vibration-free flight experience, ensuring clear, jello-free video footage.
Each motor is dynamically balanced and rigorously tested at the factory for flawless operation right out of the box.
The ZIP V2 Cinematic Motors are purposefully designed for professional cinematography, featuring a matte black finish that helps the motor seamlessly blend into the background during filming. These motors combine top-tier performance and reliability to meet the demanding needs of cinematic drone pilots.
The motors are equipped with a Titanium Alloy hollow shaft, which provides exceptional strength while keeping the motor lightweight. The durable shafts are designed with high-quality threads that won’t strip, allowing for reliable use of traditional propellers with nuts. The motors also feature a screw termination for easy maintenance and upgrades.
Features:
- Premium N52H Curved Magnets for maximum power and efficiency
- Titanium Alloy Hollow Shaft for lightweight strength and durability
- Cinematic Focus: Matte black finish for professional use
- Smooth, Vibration-Free Flight: Dynamically balanced for jello-free footage
- Premium Components for long-lasting reliability
Specifications:
-
Base Mounting Pattern: 19x19mm M3
-
Motor Dimensions: 33mm x 19.5mm
-
Inner Shaft Diameter: 4.8mm / Titanium Alloy
-
Prop Shaft: 5mm
-
Motor Connection: Bare Wire
-
Magnets: N52H Curved
-
Weight: 45g (with short wires)
-
Stator Diameter: 28mm x 07mm (0.2mm Kawasaki Silicon Steel)
-
Windings: 12N14P
-
KV Options: 1300KV, 1700KV, 1950KV
-
Stator Size: 2807
-
Bearing Size: Japanese NMB 12X6X4
-
Cells (LiPo): 3-8S (6S most common)

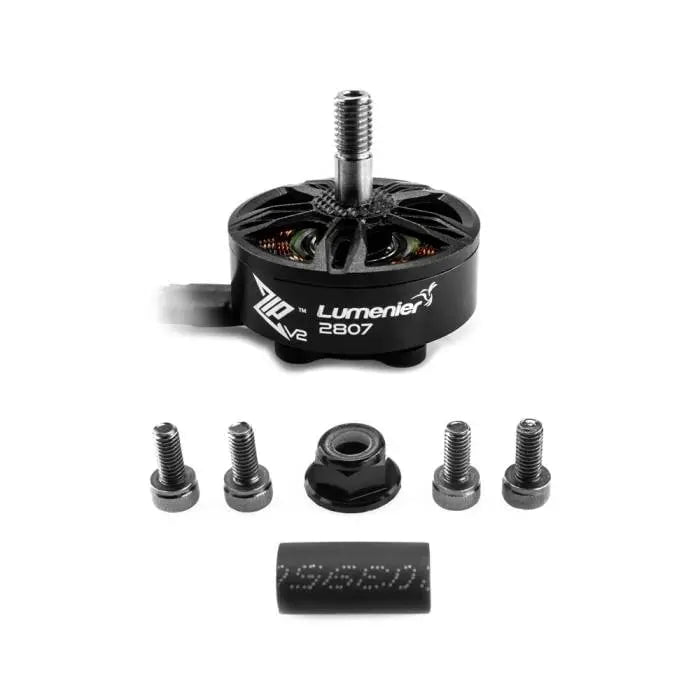

Includes:
- 1x Lumenier ZIP V2 2807 Cinematic Motor (Choose 1300KV, 1700KV, or 1950KV)
- 3x 20cm Extra Motor Wires with heat shrink
- 1x Low Profile Locking Prop Nut
- 1x Standard Locking Prop Nut
- 4x Mounting Screws (M3x7)
- 1x Spacer/Washer
More Information:
- SKU: 15936
- Barcode: 751313220134
