Lumenier ZIP V2 2305 Cinematic Motor w/ M3 Shaft - 1800KV/2400KV/3200KV

Description

The ZIP V2 series by Lumenier combines years of experience in FPV motor development. These motors are built with top-tier components and powerful N52SH curved magnets to deliver maximum power and superior heat resistance. Whether you're racing or doing freestyle flying, the ZIP V2 motors provide the ultimate performance. Known for their smoothness, each motor is dynamically balanced and rigorously tested to ensure flawless operation, guaranteeing jello-free, stable footage from your drone.

The Cinematic Motors in the ZIP V2 series are designed specifically for professional drone cinematographers. Featuring a sleek matte black finish, these motors help your drone blend into the background without drawing attention during shoots. The ZIP V2 Cinematic motors combine the perfect balance of reliability and high performance, ensuring your drone is ready to capture stunning footage.

V2 Updates

The ZIP V2 motors continue to deliver top-of-the-line performance with premium components and enhanced reliability. Lumenier motors are known for their quality and performance, and the ZIP V2 series is no exception.

• Upgraded Lightweight Bell Design
• Same incredible performance
• Ultra-lightweight Shaft for improved handling and efficiency

Features:

• M3 to M5 Prop Shaft Conversion: Uses traditional M3 or M5 propellers with the included spacer
• Dynamically Balanced for smooth, clear flight footage
• Ultra-Lightweight Design: Weighs only 24g
• Japanese NSK Bearings for enhanced durability
• Premium 7075 Aluminum Bell and Base Casing for extra strength
• N52H Magnets for maximum power and efficiency

Specifications:

• Mounting: M3 shaft with an additional aluminum spacer to convert M3 to M5 for universal propeller compatibility
• Stator: 0.15mm Nippon Steel Silicone Steel

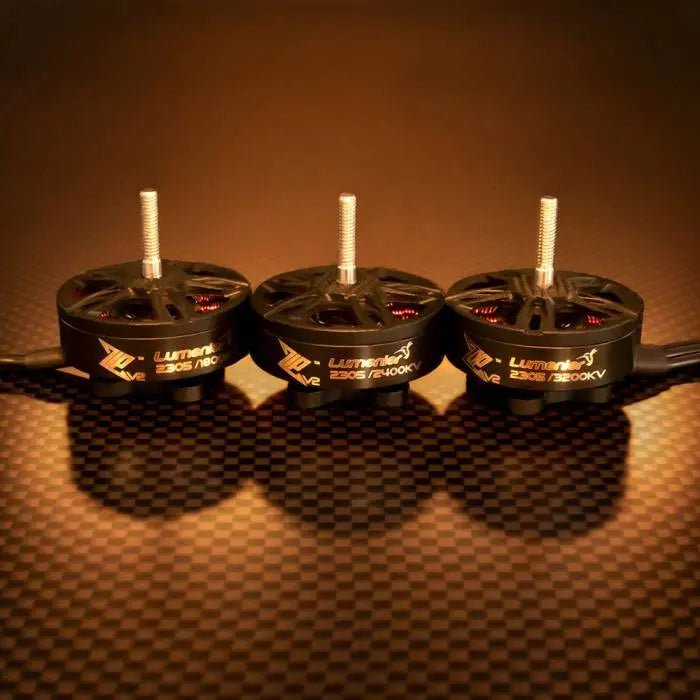

• KV Options: 1800KV, 2400KV, or 3200KV
• Bearings: Japanese NSK 5x2x2.5mm
• Wire Gauge: 20AWG
• Rotor: N52H Arc Magnets
• Bolt Pattern: 16x16mm
• Motor Configuration: 9N12P
• Base & Bell Casing: Aluminum 7075
• Prop Shaft: 3mm
• Weight: 24g (with short wires)

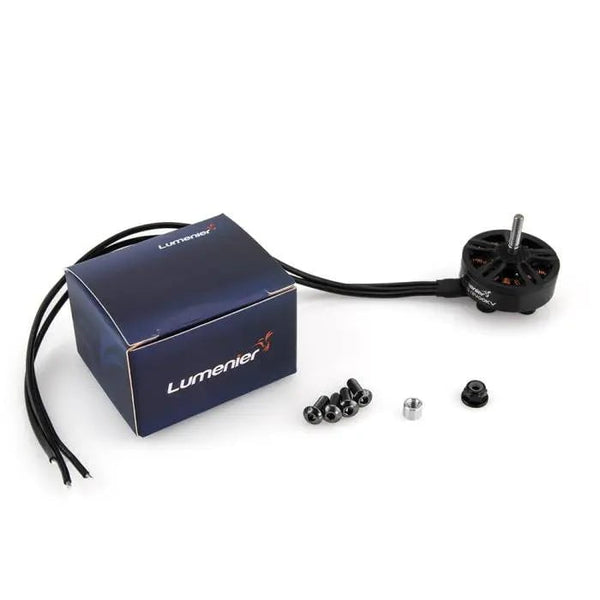

Includes:

• 1x Lumenier ZIP V2 2305 Cinematic Motor (Choose 1800KV, 2400KV, or 3200KV)

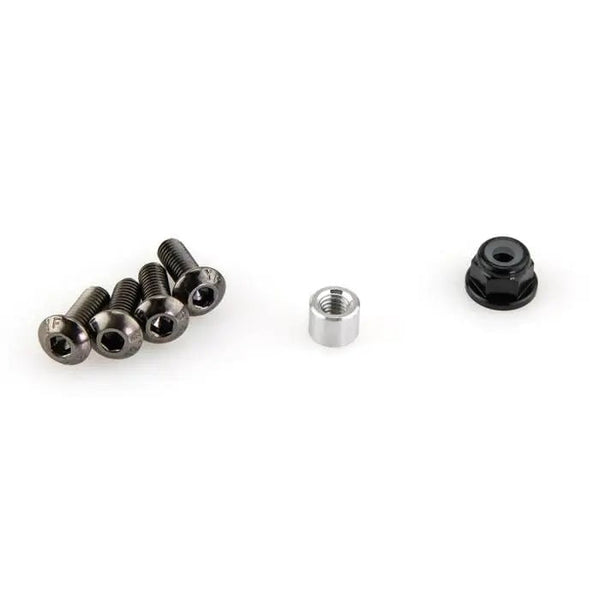

• 4x Mounting Screws (M3x8 Socket Cap)
• 1x M3 Locking Prop Nut

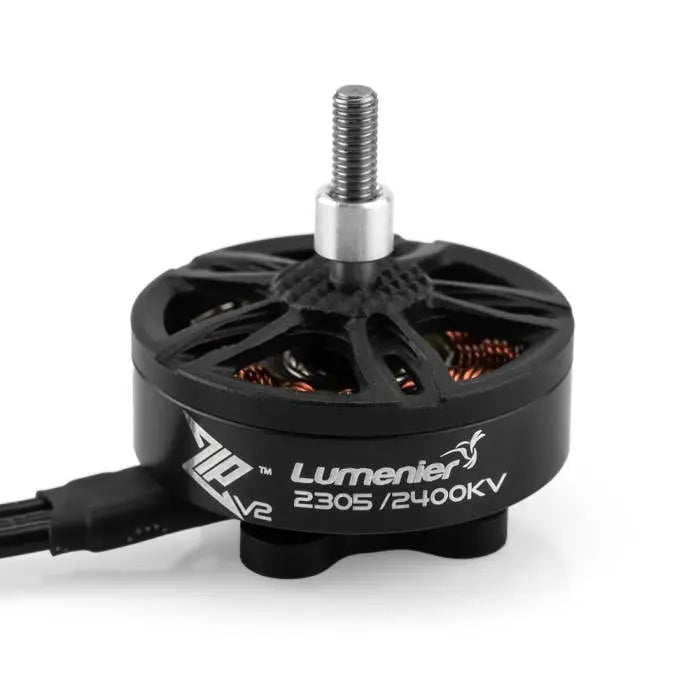

• 1x 5mm to 3mm Aluminum Reducer
