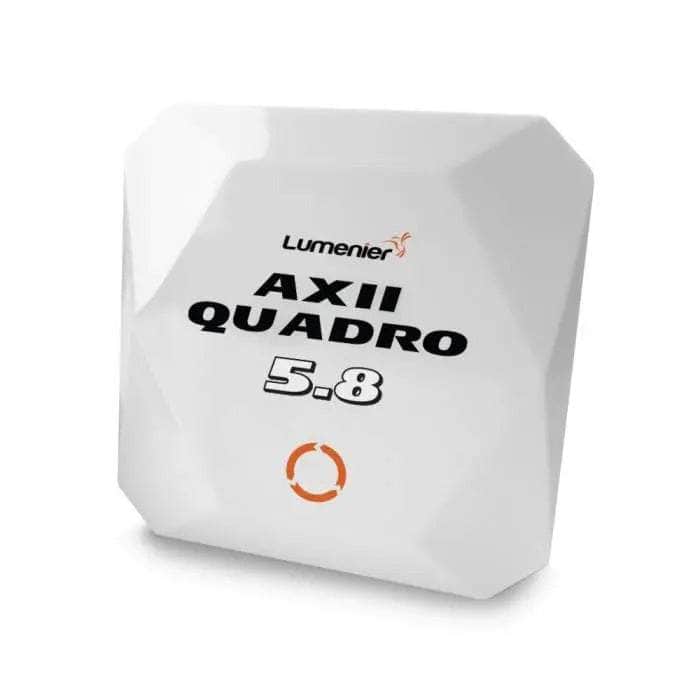

Lumenier AXII Quadro Patch 5.8GHz SMA Antenna - Choose Your Polarization

Description

The Lumenier AXII Quadro 5.8GHz Patch Antenna offers you the best performance you can get from a high gain antenna designed for long-range FPV. The Lumenier AXII Quadro features a custom 4x patch antenna network improving both efficiency and gain. This antenna has an incredible 14.7 dBiC gain for long-range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features a best-in-class 95% efficiency (most patch antennas are below 75%), which means you get amazing performance. Additionally, the AXII Quadro has a 40 degree FOV (field of view) both horizontally and vertically, which is extremely wide for such a high gain antenna (most high gain antennas are below 30 degrees FOV). A wider FOV means you have more usable coverage in the direction the antenna is pointing.Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII Quadro 5.8GHz Patch Antenna.

Check out all our 5.8GHz VTX antennas and all our Lumenier products!

Features

• Compact low-profile / light-weight design
• Designed for goggles or base stations

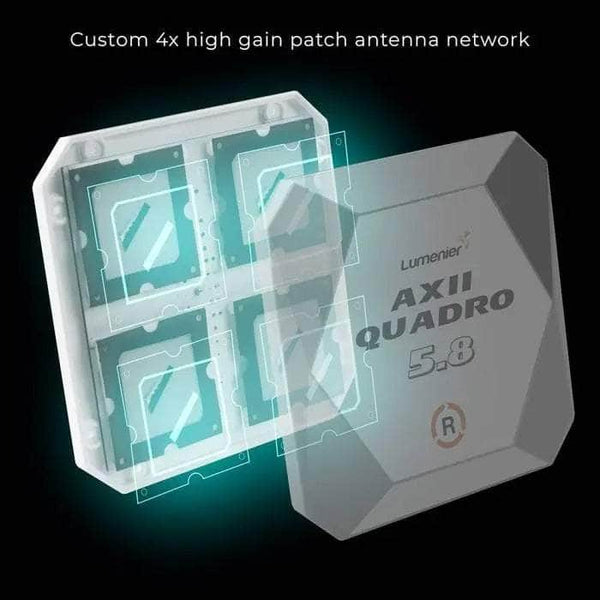

• Custom designed 4x patch antenna network

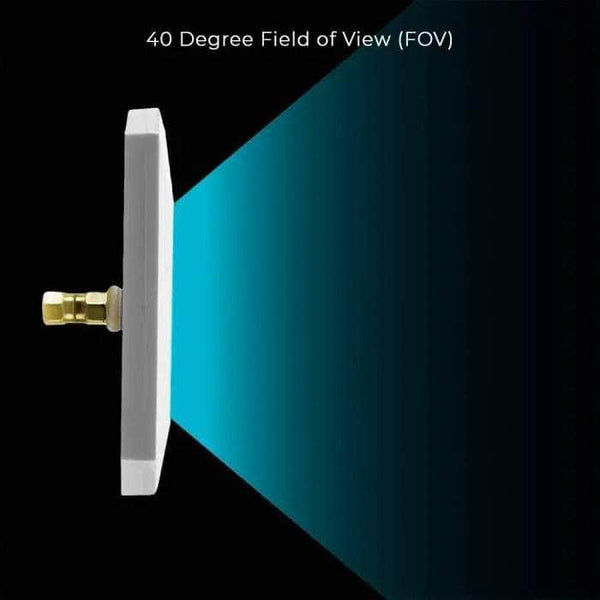

• Wide 40-degree beam width (hor., vert.)
• Incredible 95% efficient
• Circularly Polarized
• High Gain - 14.7 dBiC

Specifications

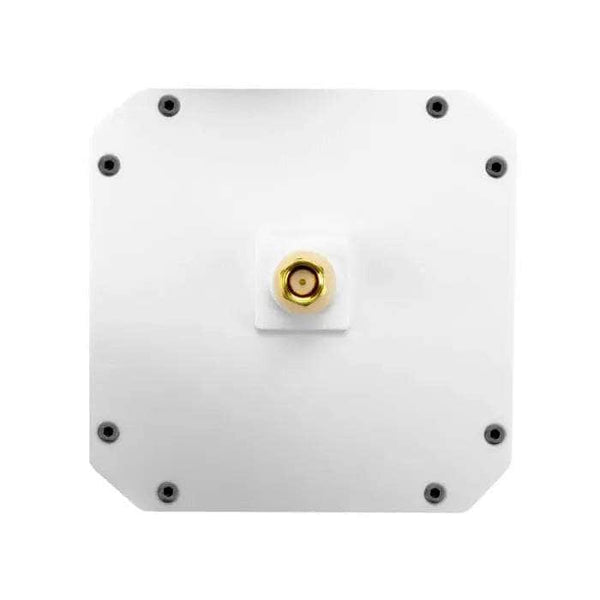

• Connector: SMA

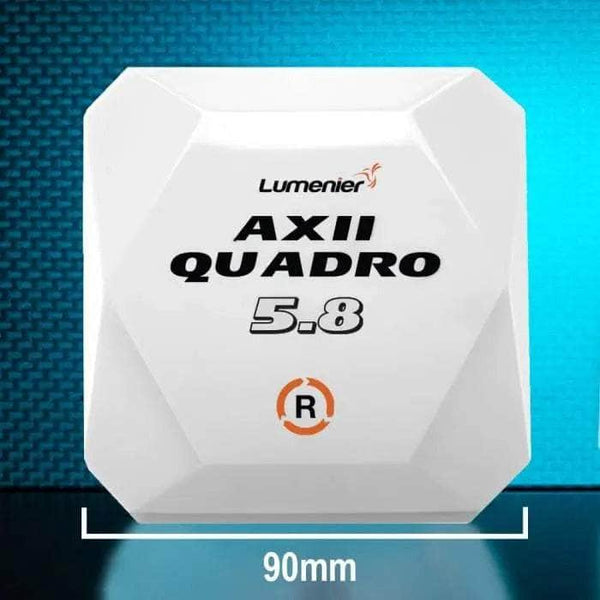

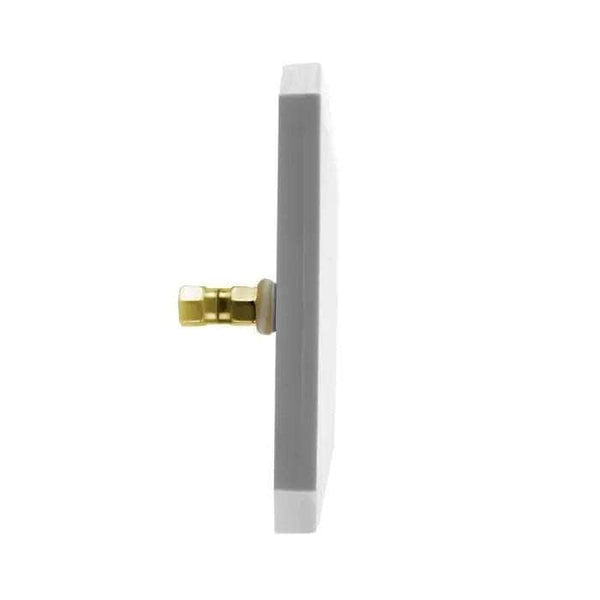

• Dimensions: 90mm x 90mm x 14mm (24mm with SMA)

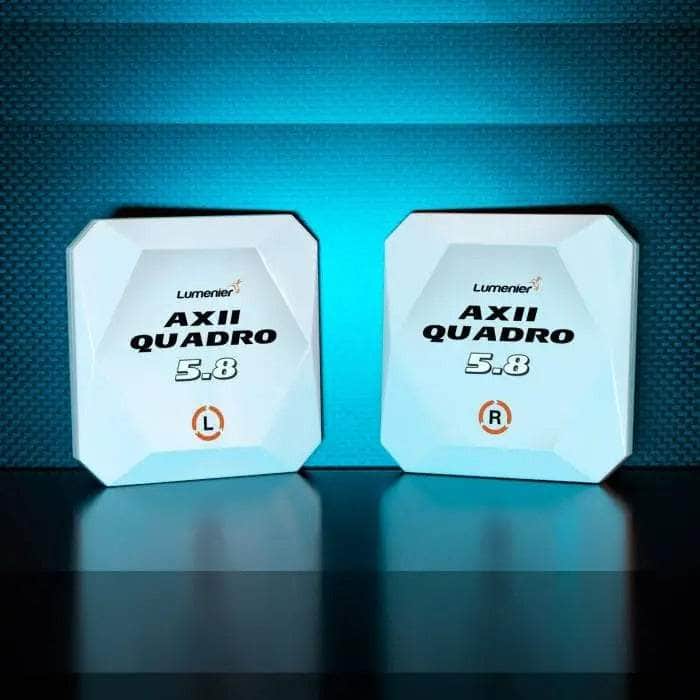

• Right Hand or Left Hand Circularly Polarized (RHCP, LHCP versions)
• FOV: 40° Horizontal/Vertical
• Bandwidth: 220 Mhz
• Frequency: 5.8GHz
• Gain: 14.7dBi
• Weight: 55g

Includes

•  1x Lumenier AXII Quadro Patch 5.8GHz SMA Antenna - Choose Your Polarization

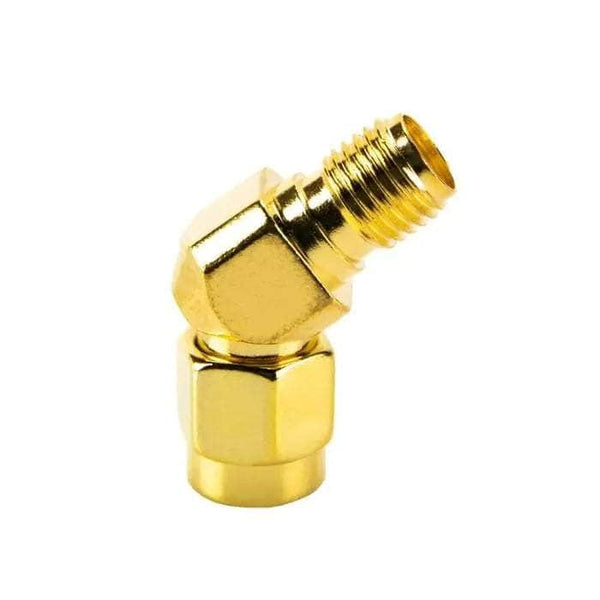

• 1x 45° SMA Adapter
