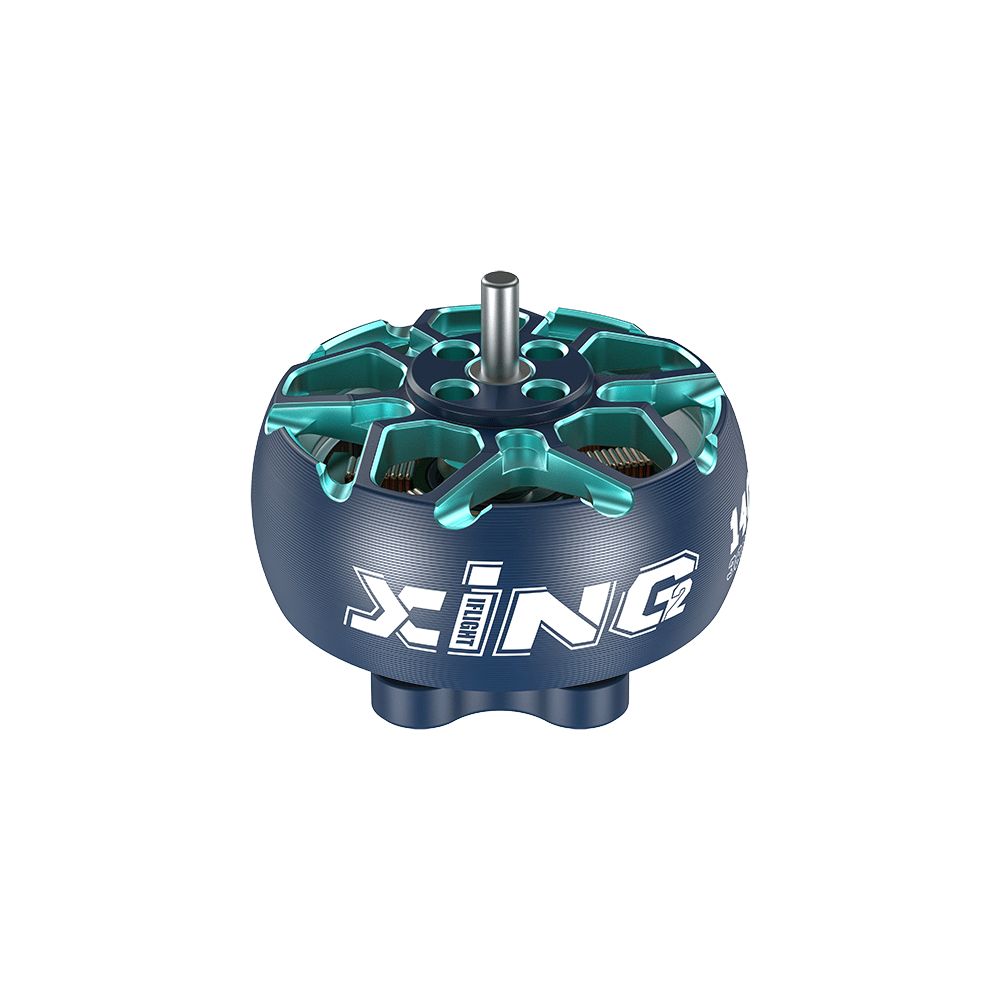

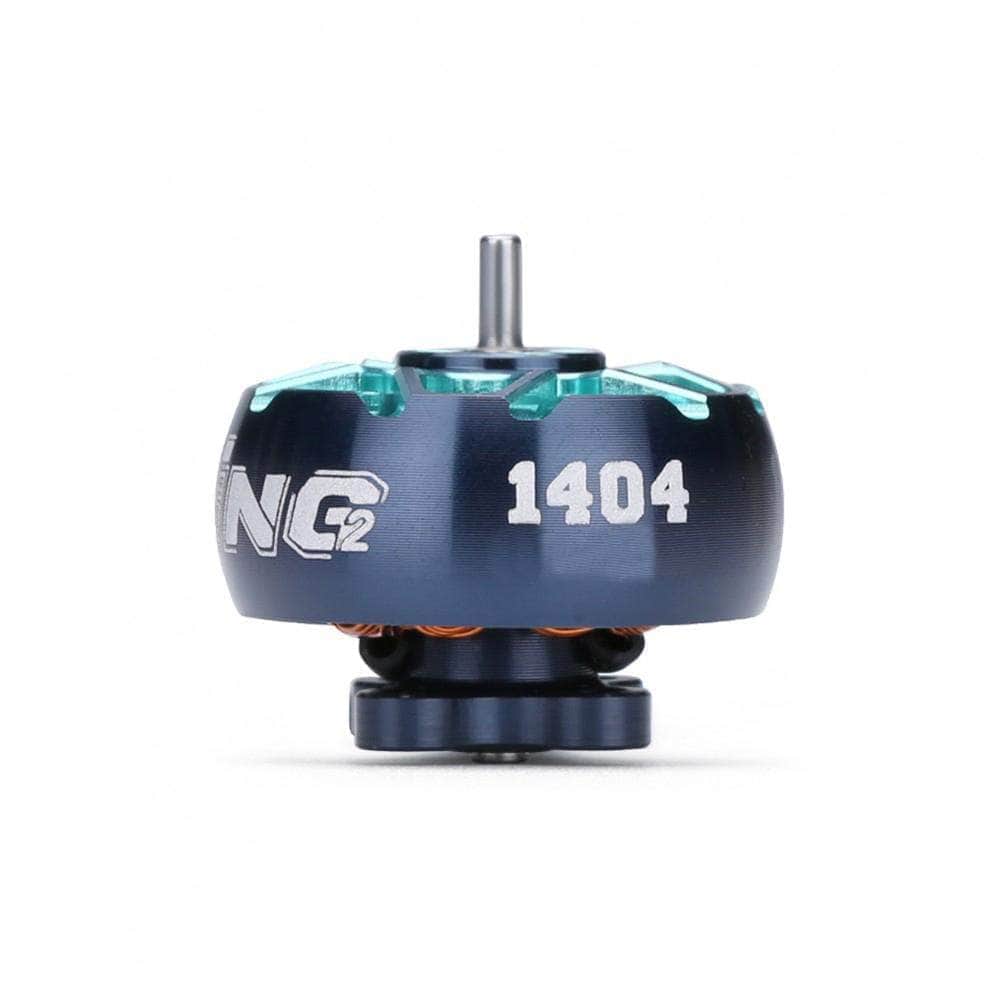

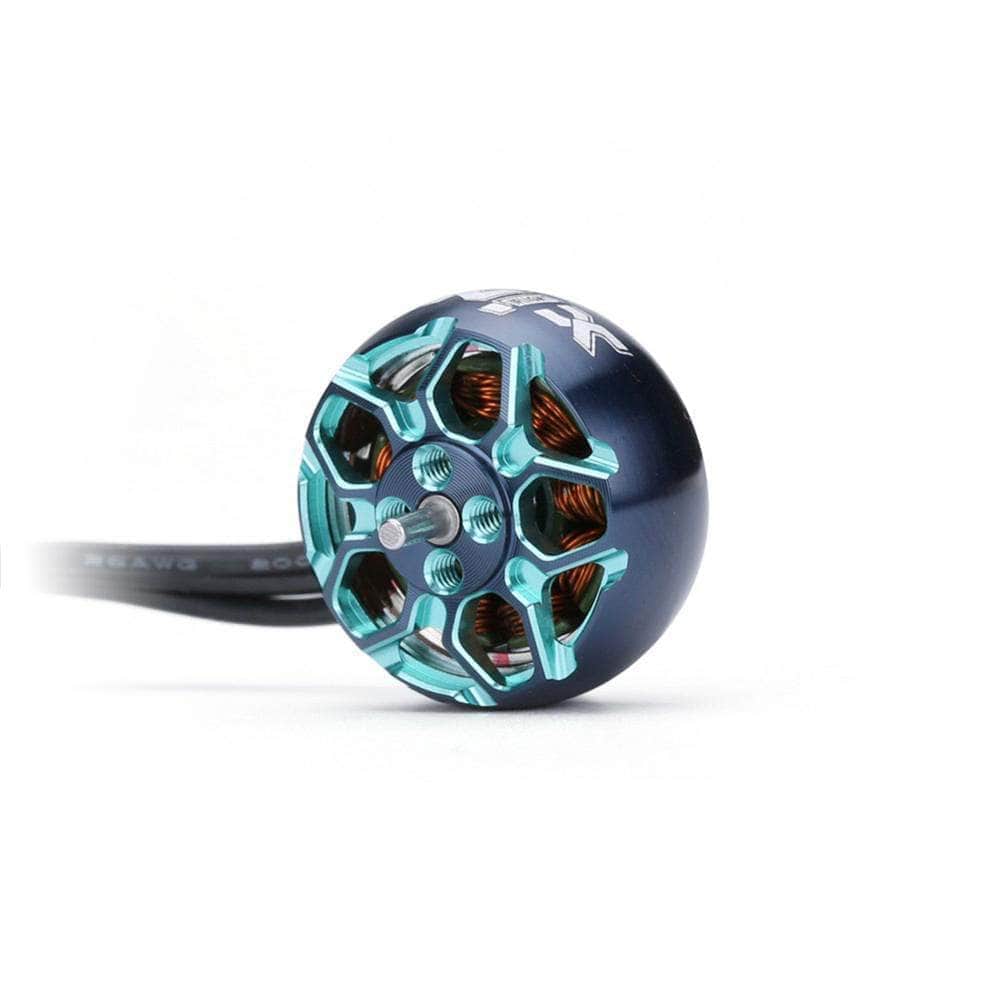

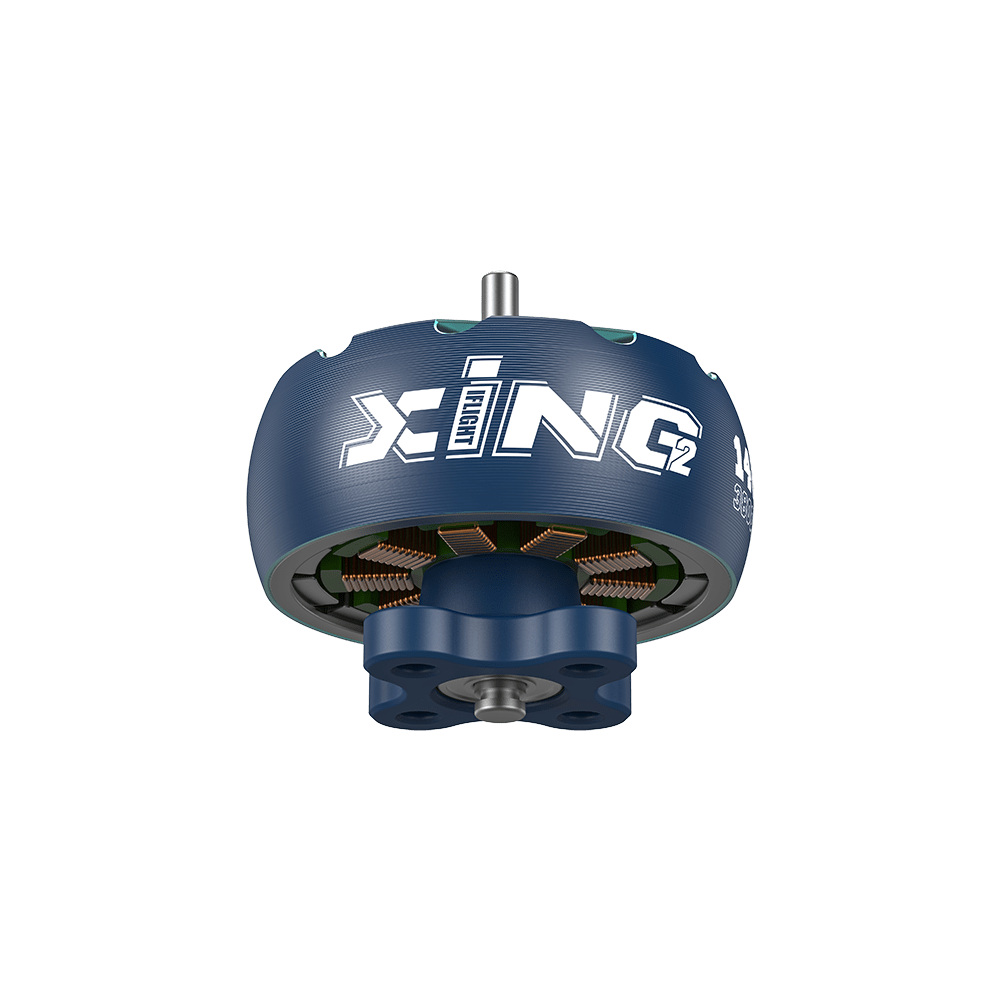

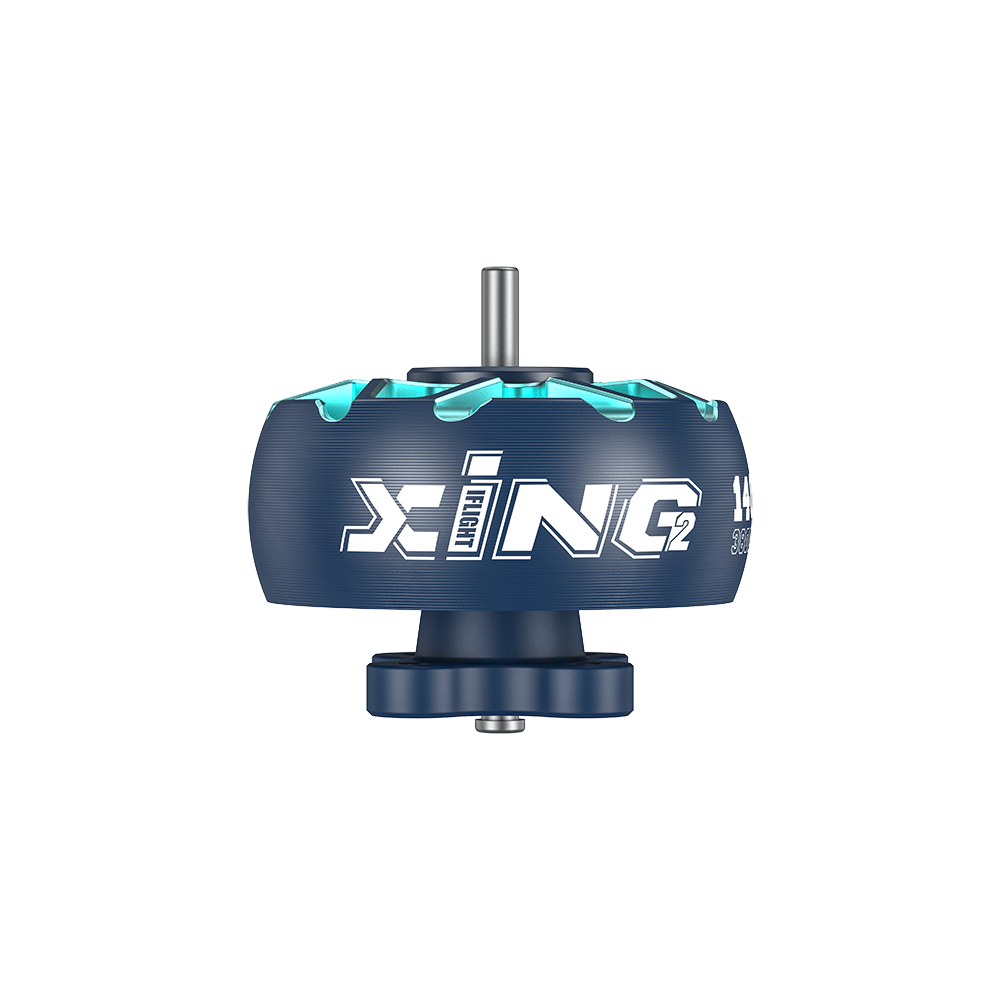

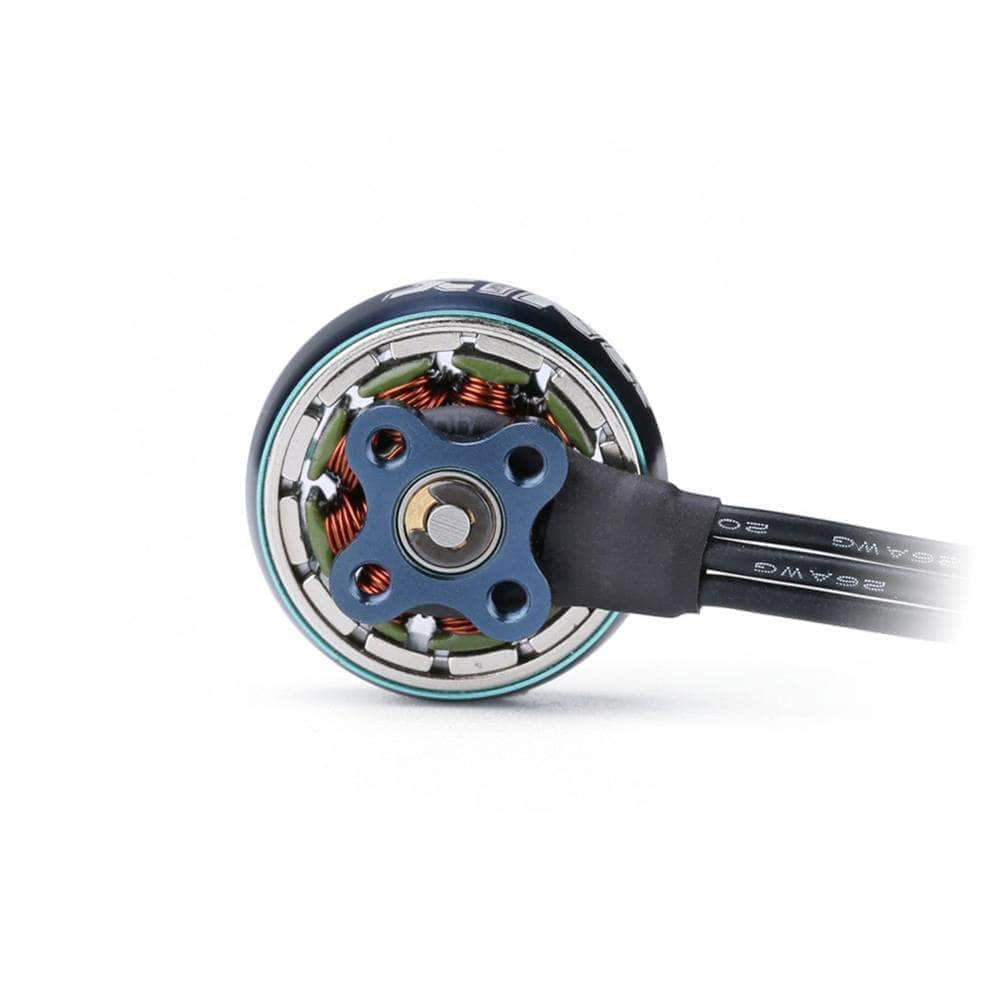

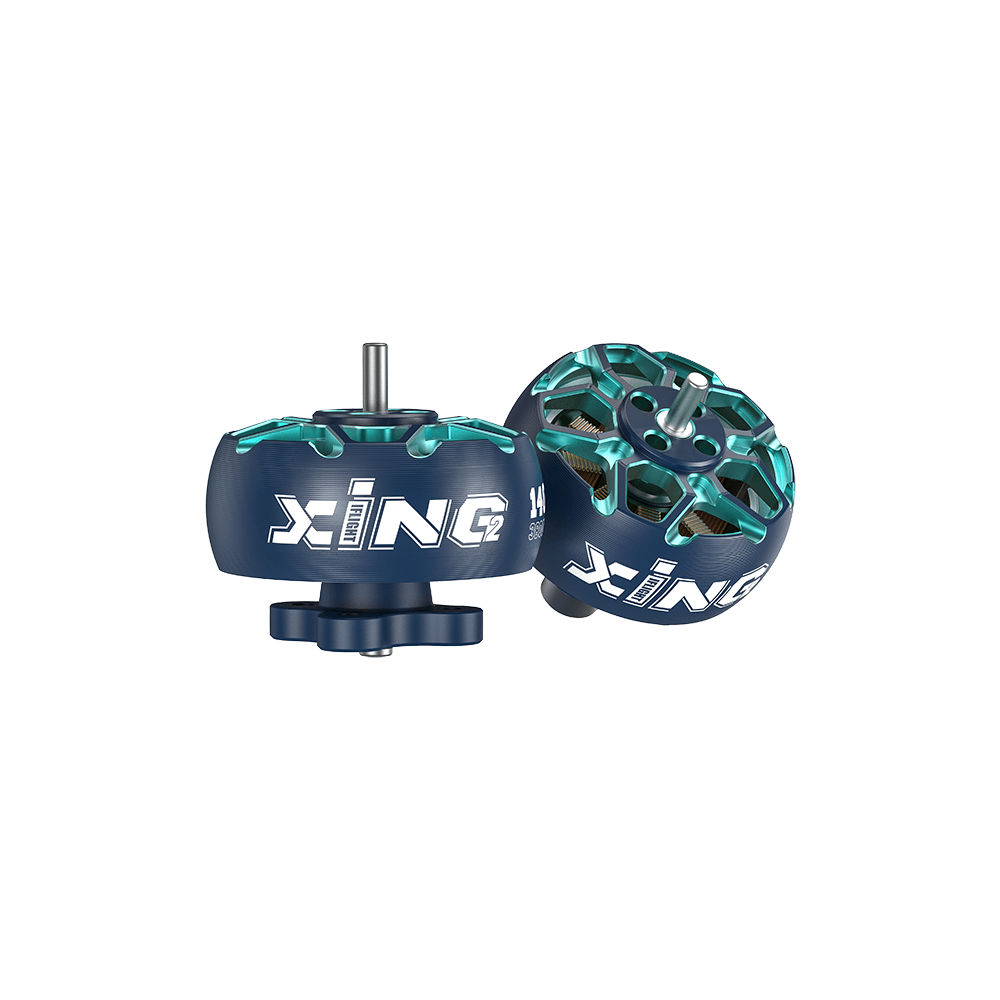

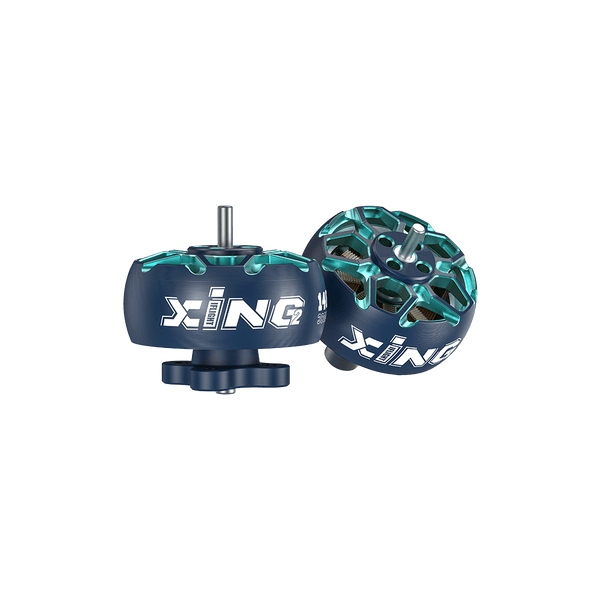

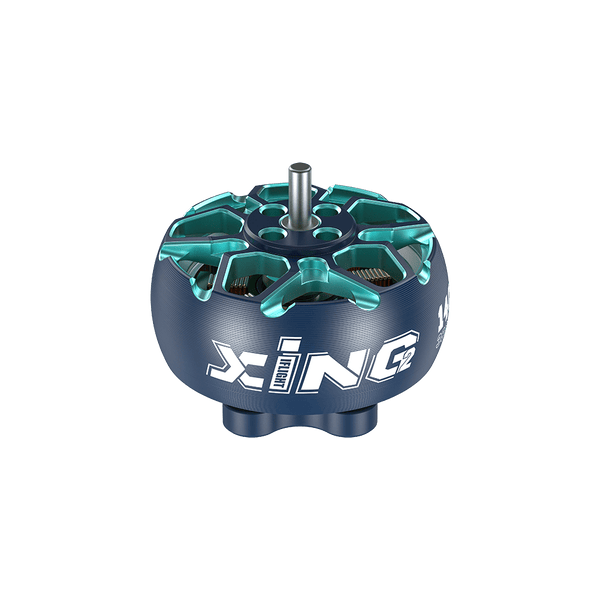

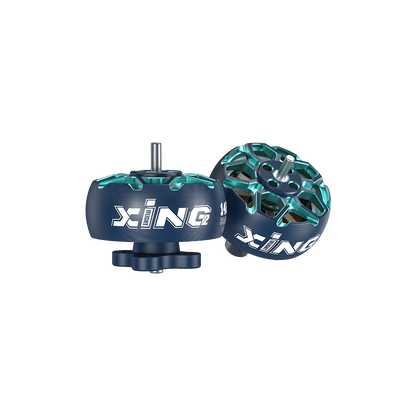

iFlight Xing2 1404 3000Kv Micro Motor

Description

XING2!  The new MOTOR XING2 X1404 designed for ultralight toothpick build, that micro drone change FPV in nowadays. Super light 3" builds like these just got much nicer since we got SucceX whoop style all in in one (AIO) with iflight new toothpick style frame you can build the ultralight microdrone.

Be sure to browse the rest of our iFlight products and vast motor selection.

Features

• N52H curved arch magnets
• reduced magnet air gap and stator lamination
• more efficiency & higher power

Specifications

• KV: 3000KV
• Weight(included wire): 9.1g
• Dimension: φ19.9x13.5mm
• Interphase Resistance: 0.309Ω
• Input Volts: 3S-4S
• Peak Current: 13.8A
• Max Watt: 220.8W
• Mounting Holes: 9x9 φ2mm
• Rotor Specifications: Unibell
• Lead: 120mm/26AWG
• Magnet: N52H Curved
• Configuration: 9N12P
• Bearing Type: NSK
• Winding: Single Strand copper winding

Includes

• 1x iFlight Xing2 1404 3000Kv Micro Motor
