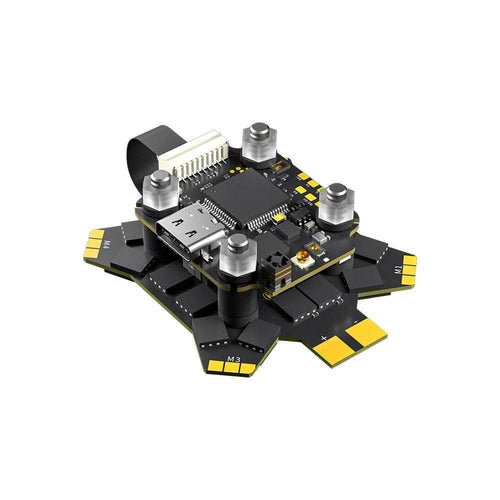

iFlight Borg 5S 60R Stack - F4 Flight Controller + 60A 3-8S BL32 4-in-1 ESC - 20x20

Description

The iFlight Borg 5S 60R Stack is built for serious FPV racers! The high-performance Borg 5S RX F4 FC with the powerful Borg 60R 60A 4-in-1 ESC with a compact 20×20 mounting - perfect for modern 5" racing drones. The FC features a built-in ELRS 2.4GHz receiver with an integrated antenna for a clean setup. With 60A continuous output, BL32 firmware and anti-spark/TVS protection, the ESC delivers race-ready performance.

Check out all our 20x20 stacks as well as our entire iFlight selection!

Features

• TVS (Transient Voltage Suppressor) Protection
• Bidirectional DShot & Telemetry Support
• 60A Continuous / 65A Burst Current
• Compact 20×20 Mounting Pattern
• Built-In High Polymer Capacitors
• Built-In ELRS 2.4GHz Receiver
• Integrated Anti-Spark Circuit
• External Receiver Support

• BL32 Firmware

Specifications

FLIGHT CONTROLLER

• VTX Protocol: Supports DJI MSP, SmartAudio, IRC Tramp, and HDZero
• Firmware Target: IFLIGHT_BLITZ_ATF435 (Betaflight)
• Input Voltage: 4–8S; supports LiHV batteries
• BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
• Mount Pattern: 20×20mm / Φ4mm
• Dimensions: 34×28.5mm ±1mm
• Flash: 16MB (Blackbox flash)
• I2C Serial: Not supported
• MCU: AT32F435RGT7
• OSD Chip: AT7456E
• LED Controller: Yes
• Motor Outputs: 4
• Weight: 6.8g ±1g
• Beeper Pad: Yes
• Gyro: ICM42688
• Barometer: N/A
• UARTs: 4

ESC

• Protocol: Supports DShot150/300/600, MultiShot, OneShot, etc
• Input Voltage: 3–8S; supports LiHV batteries
• Firmware Target: IFLIGHT_BLITZ_G3 32.9
• Mounting Holes: 20×20mm / Φ4mm
• Bidirectional DShot: Supported
• Dimensions: 45×52mm ±1mm
• Max Continuous Current: 60A
• Max Burst Current: 65A (10s)
• Firmware: BL32 (32-bit ESC)
• Telemetry: Supported
• MCU: STM32G071N
• Current Sensor: No
• Weight: 14.5g ±1g
• Driver: FD6288
• BEC: No

Includes

• 1x iFlight 60R 60A 3-8S BL32 4-in-1 ESC - 20x20
• 1x iFlight Borg 5S F4 Flight Controller - 20x20
• 1x Hardware Kit
• 1x Cable Set
