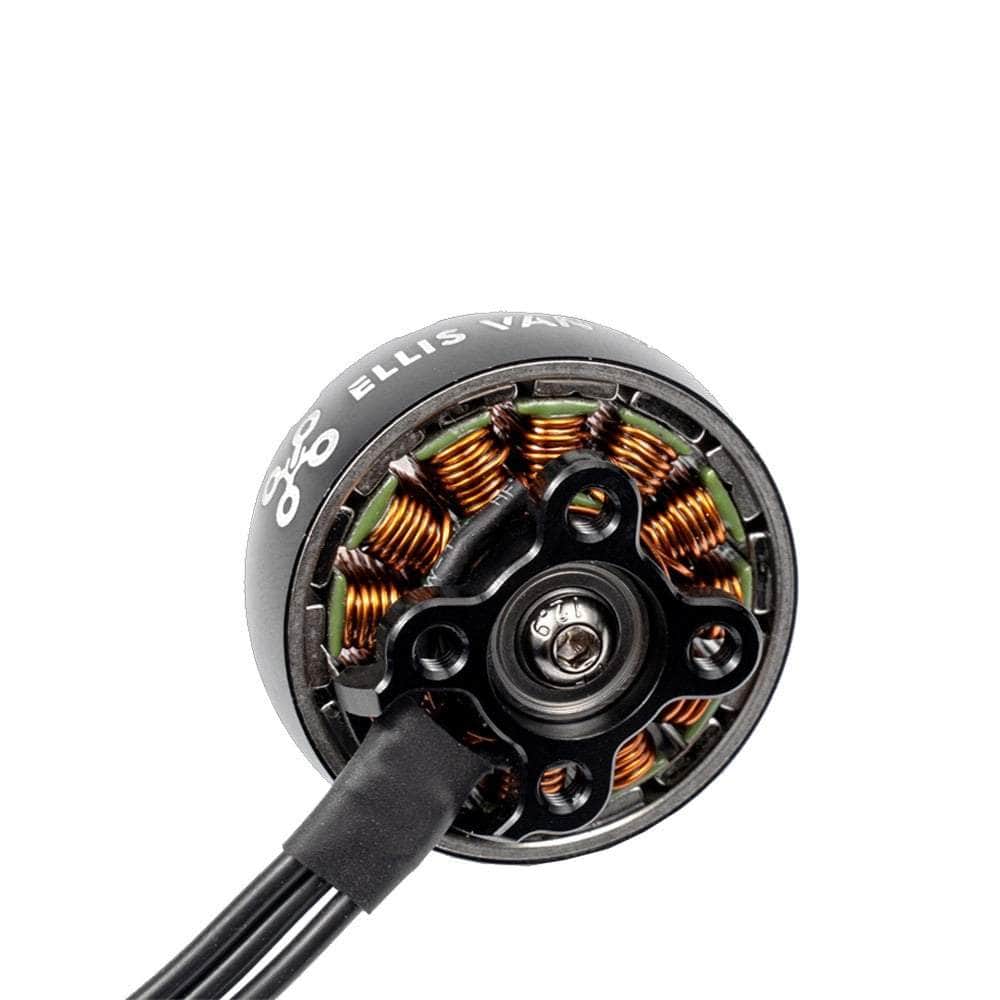

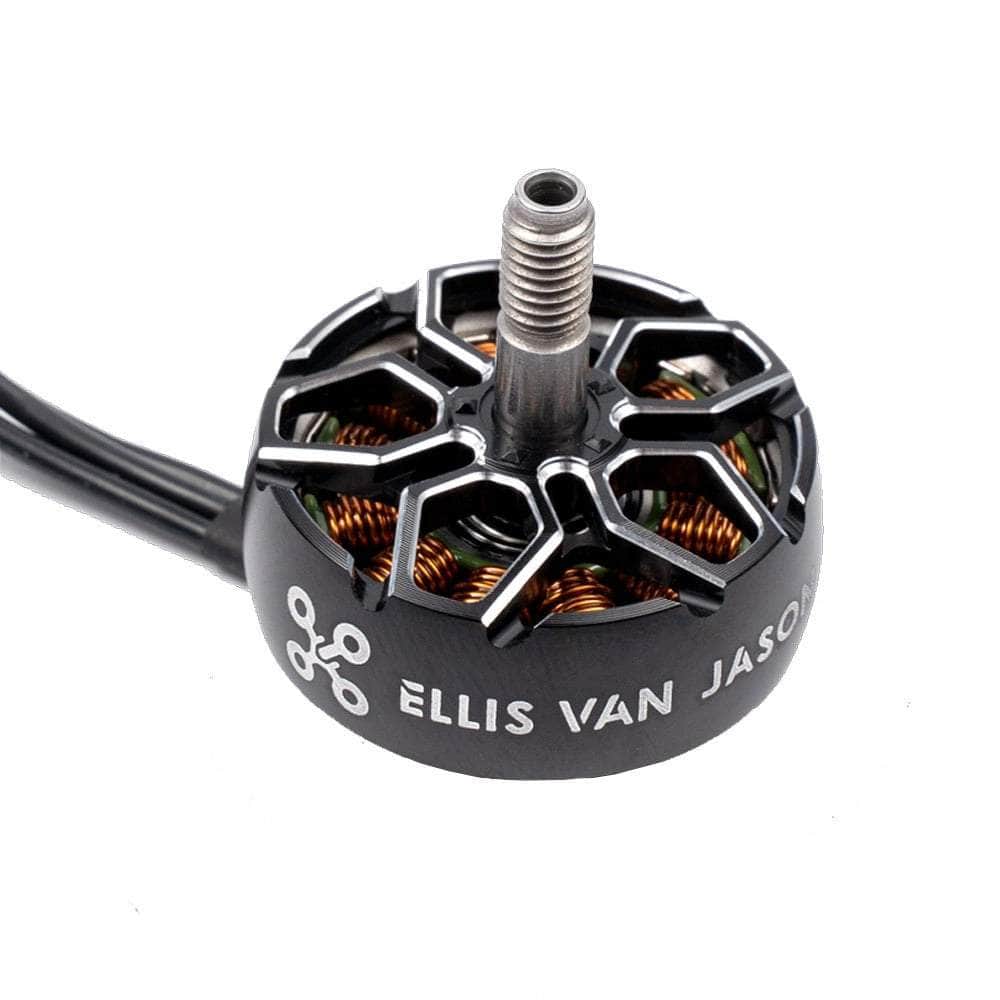

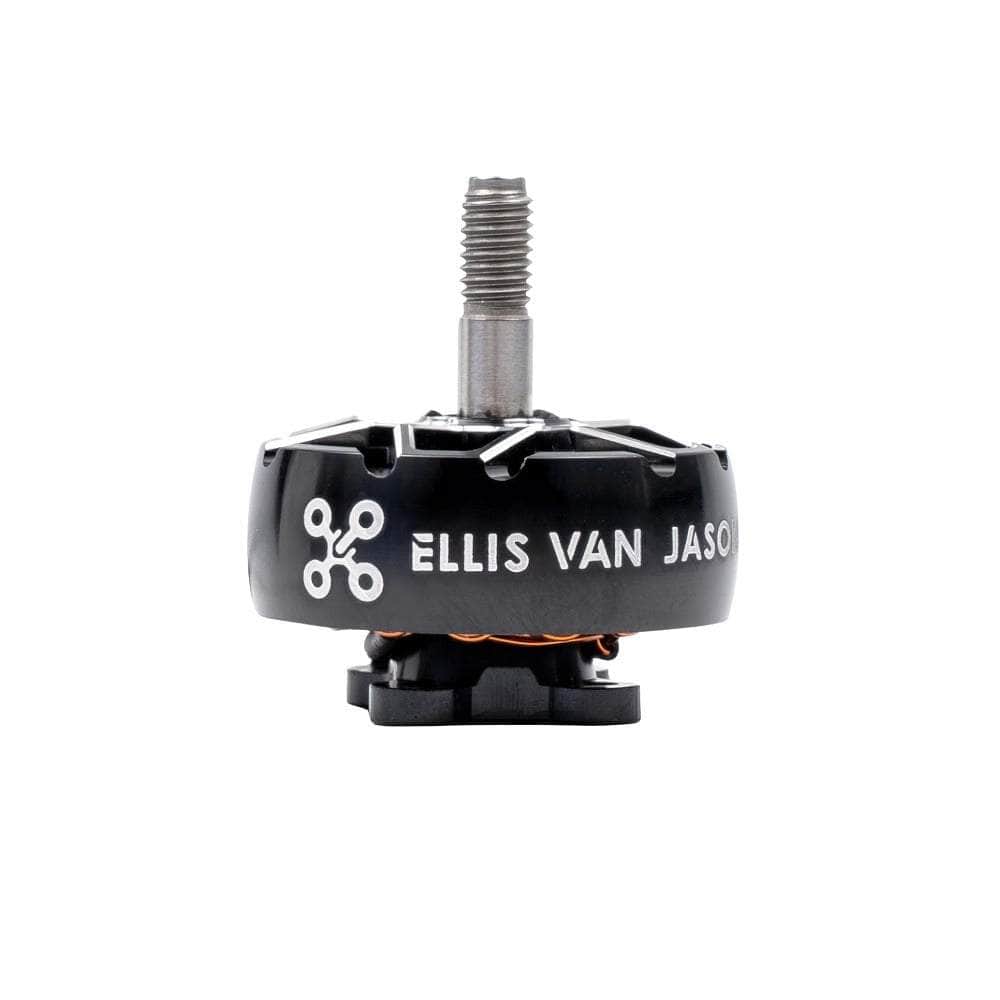

iFlight BOB57 2506 Motor - 1500KV

Description

Specifically engineered for the BOB57 Cinematic LR & Freestyle 6-inch BNF, the iFlight BOB57 2506 Motor is here. With upgraded center-slotted N52H curved arc magnets, it drastically reduces motor response time and delivering that locked-in flight feel. Built with premium materials and a durable unibell design, the BOB57 2506 features a reinforced bell-to-shaft connection, reduced magnet air gap, and minimized stator lamination. Check out the iFlight BOB57 2506 Motor below!

Be sure to browse the rest of our iFlight products and vast motor selection.

Features

• 5mm titanium alloy shaft, our strongest prop shaft ever!
• Smooth and long-lasting NSK 10x4x4 bearings
• Center slotted N52H curved arc magnets
• XING O-ring bearing gap protection
• Crash-resistant 7075 aluminum bell
• Motor wire protector
• Dynamically balanced

Specifications

• Winding: Single-strand copper winding
• Bearing Specification: φ10×φ4×4
• Interphase Resistance: 74.88mΩ
• Shaft Protruding Length: 15mm
• Mounting Holes: 16×16 φ3mm
• Weight (including wire): 38.2g
• Rotor Specifications: Unibell
• Dimension: φ31.7×19.6mm
• Lead: 160mm / 20AWG
• Configuration: 12N14P
• Max Wattage: 817.5W
• Magnet: N52H Curved
• Peak Current: 33.26A
• Shaft Diameter: 5mm
• Input Voltage: 25.2V
• Bearing Type: NSK
• KV: 1500KV

Includes

• 1x  iFlight BOB57 2506 Motor - 1500KV
• 1x Hardware Kit
