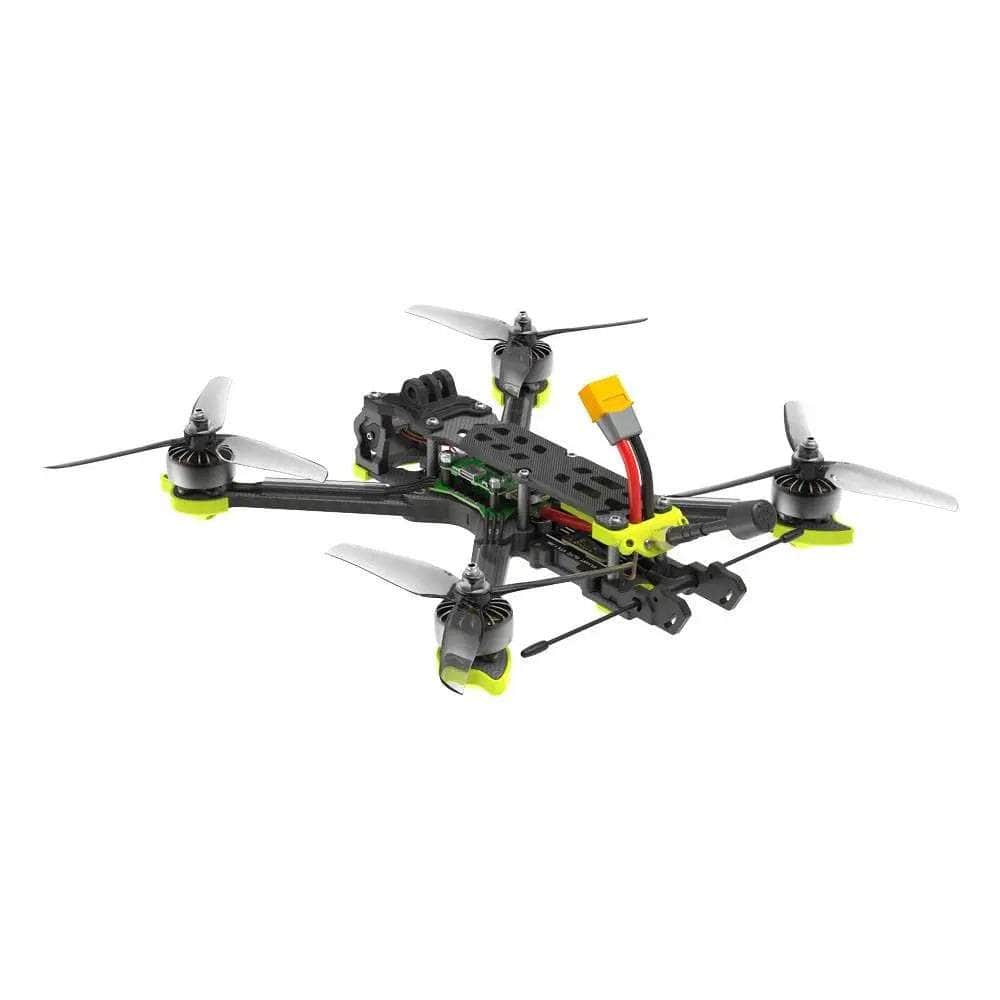

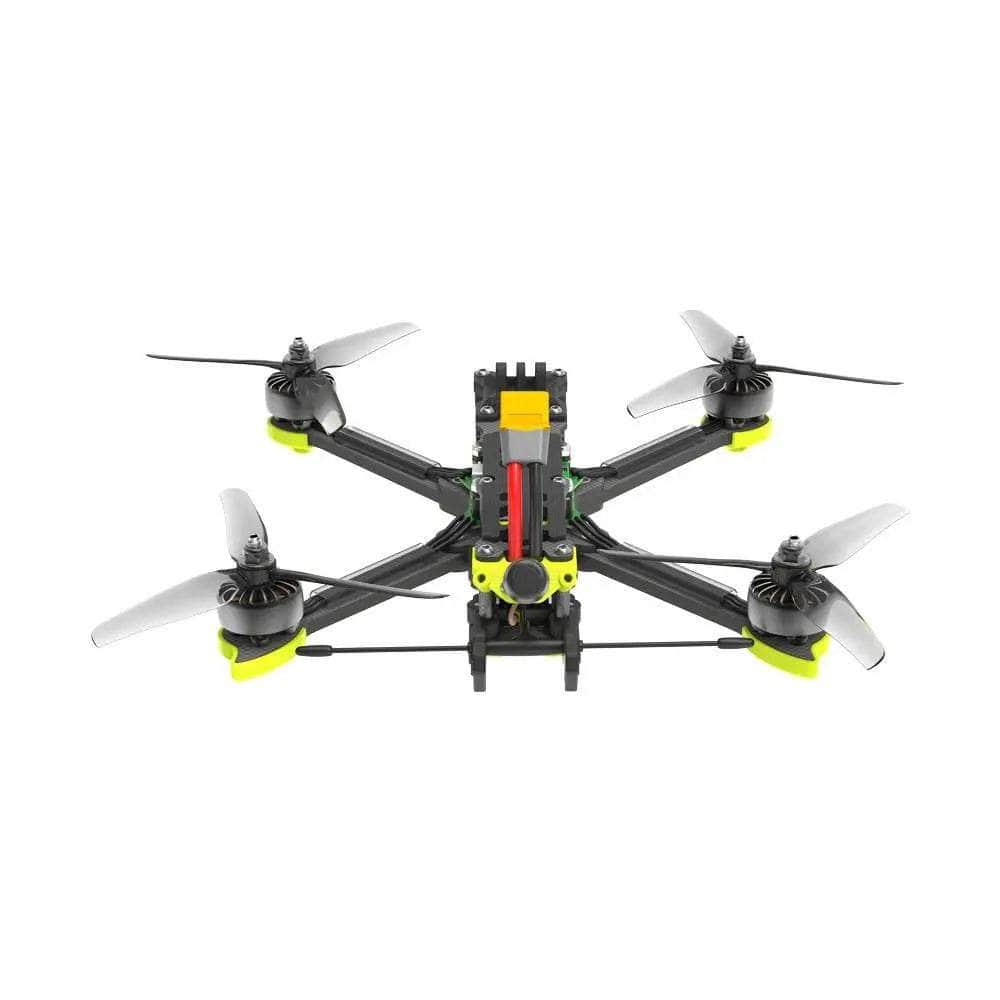

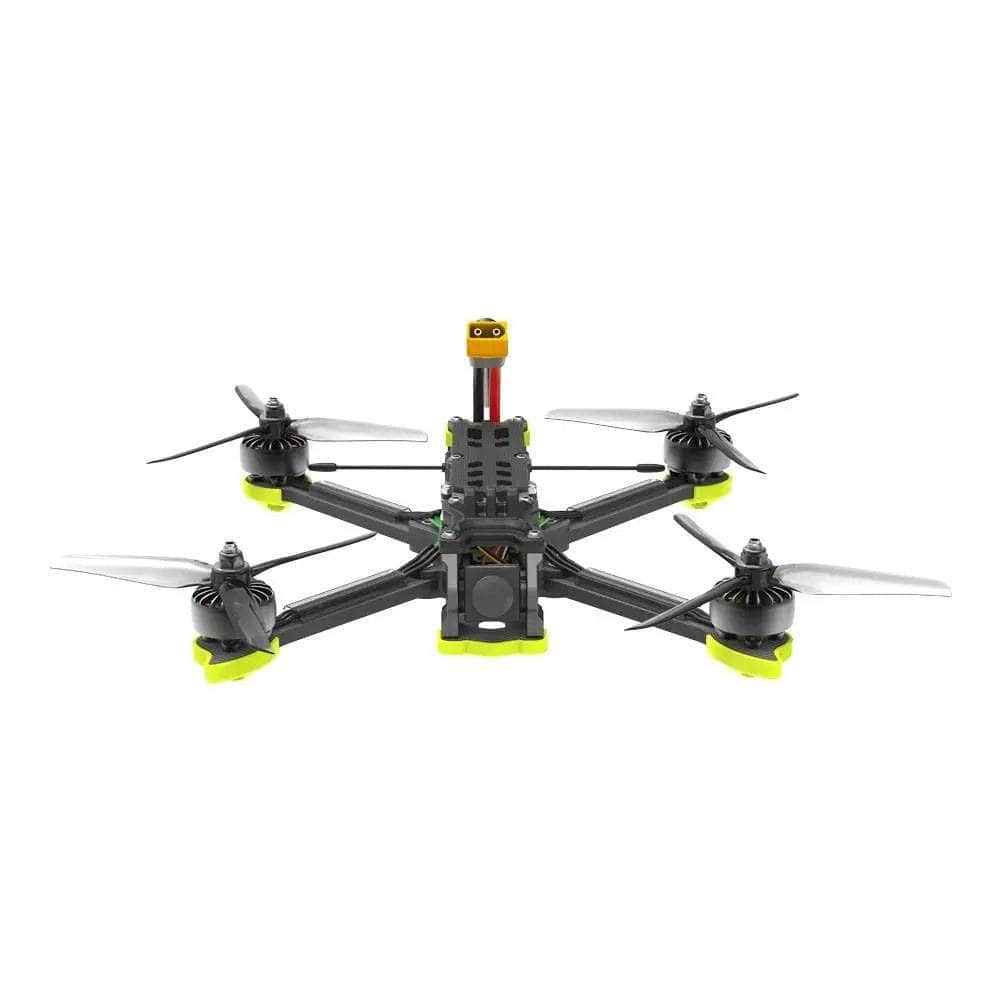

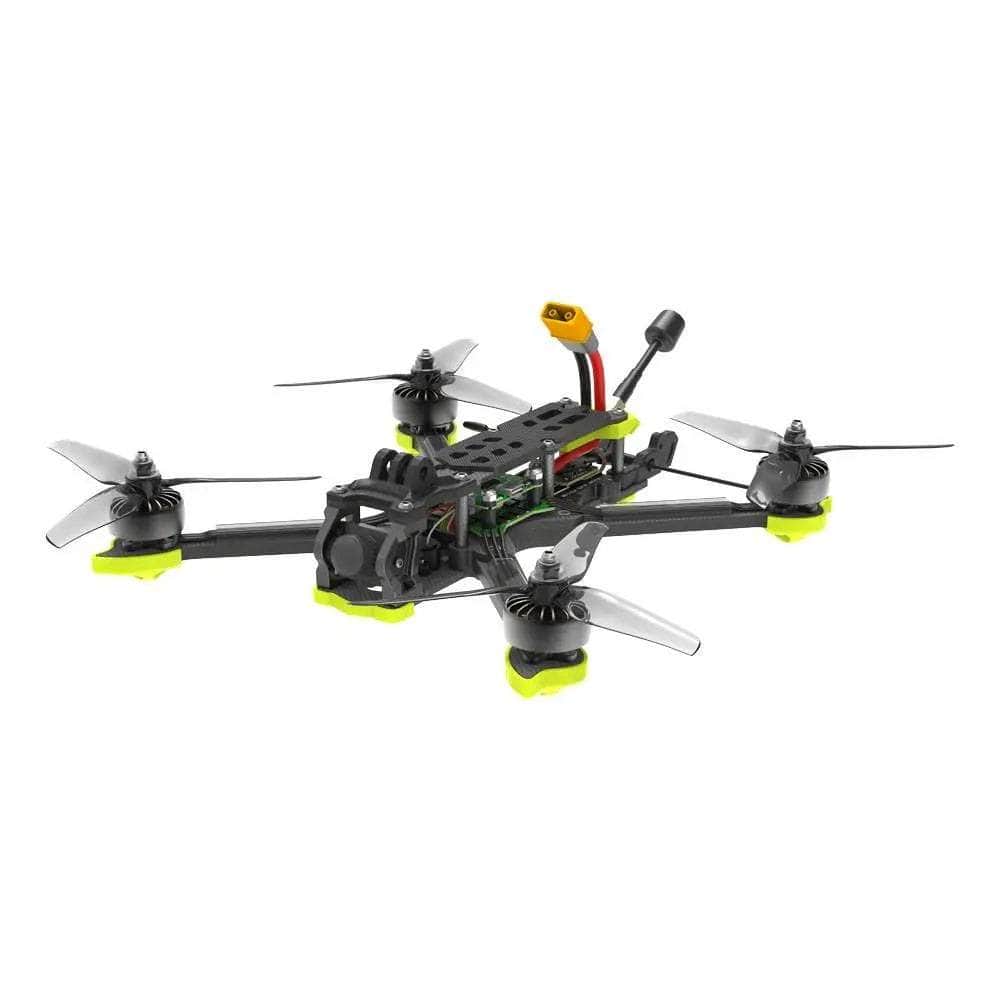

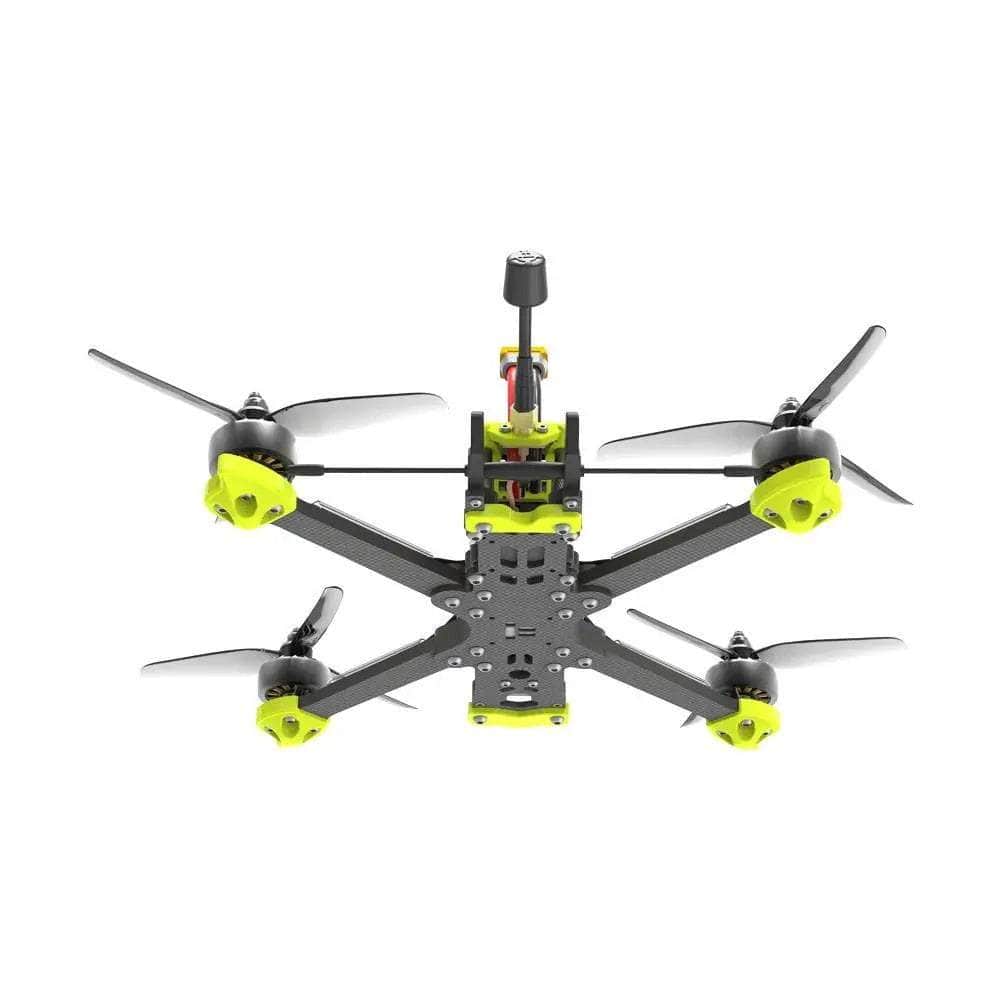

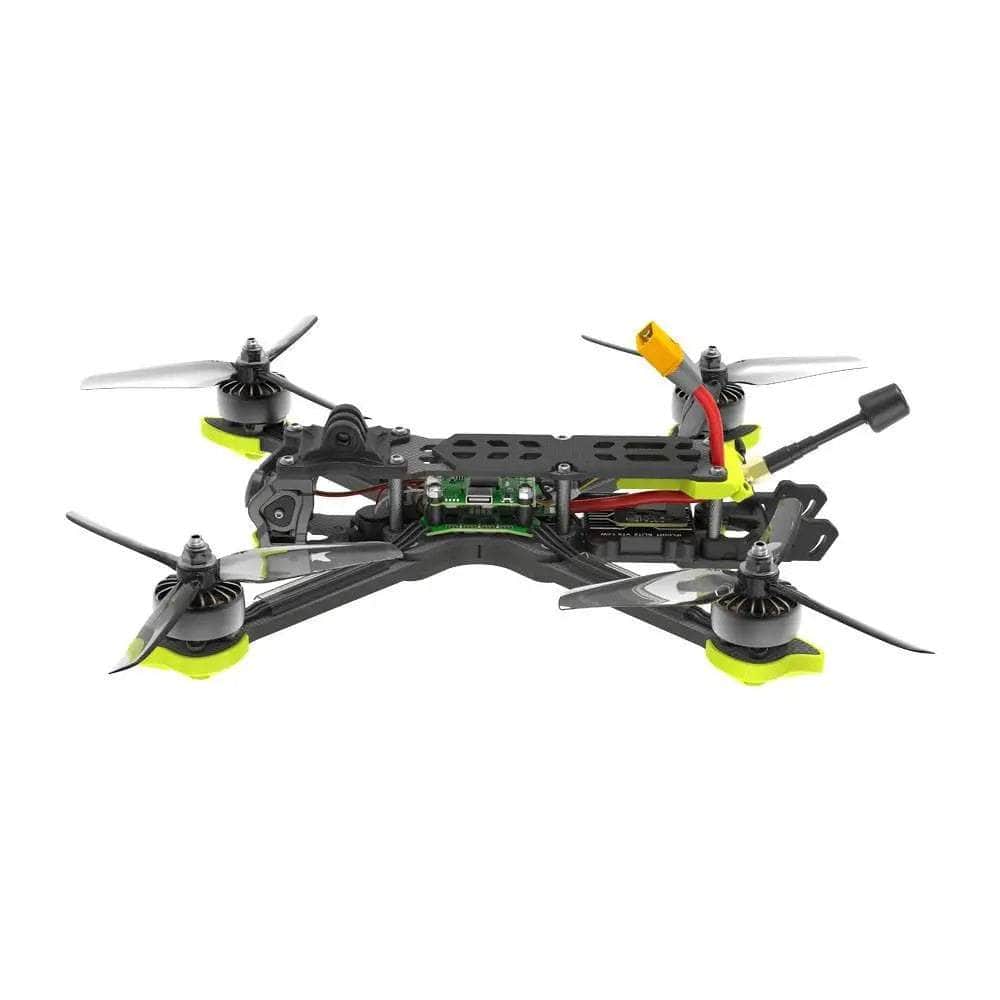

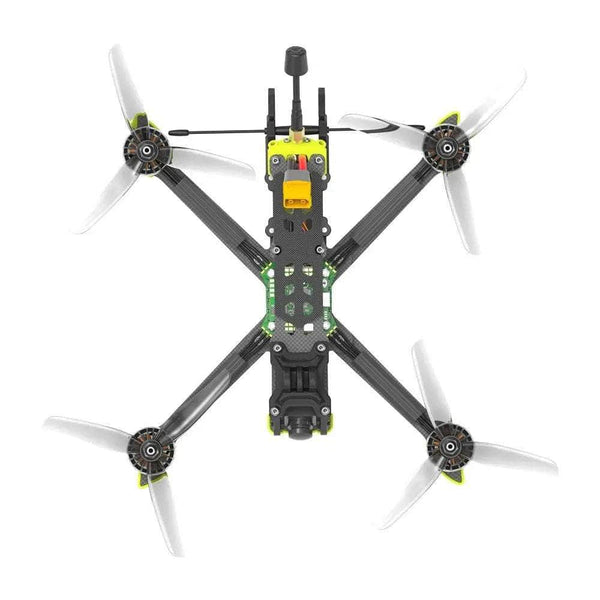

iFlight BNF Nazgul5 V3 6S 5" Analog Freestyle Quad - Choose Receiver

iFlight BNF Nazgul5 V3 6S 5" Analog Freestyle Quad - Choose Receiver

$259.99
$259.99 - $275.99
$259.99 - $275.99
$259.99
Receiver :
Add to Wishlist
Ask a Question

Details

Description

All PRE-ORDERS shipping ASAP!! ELRS in stock and shipping same day!

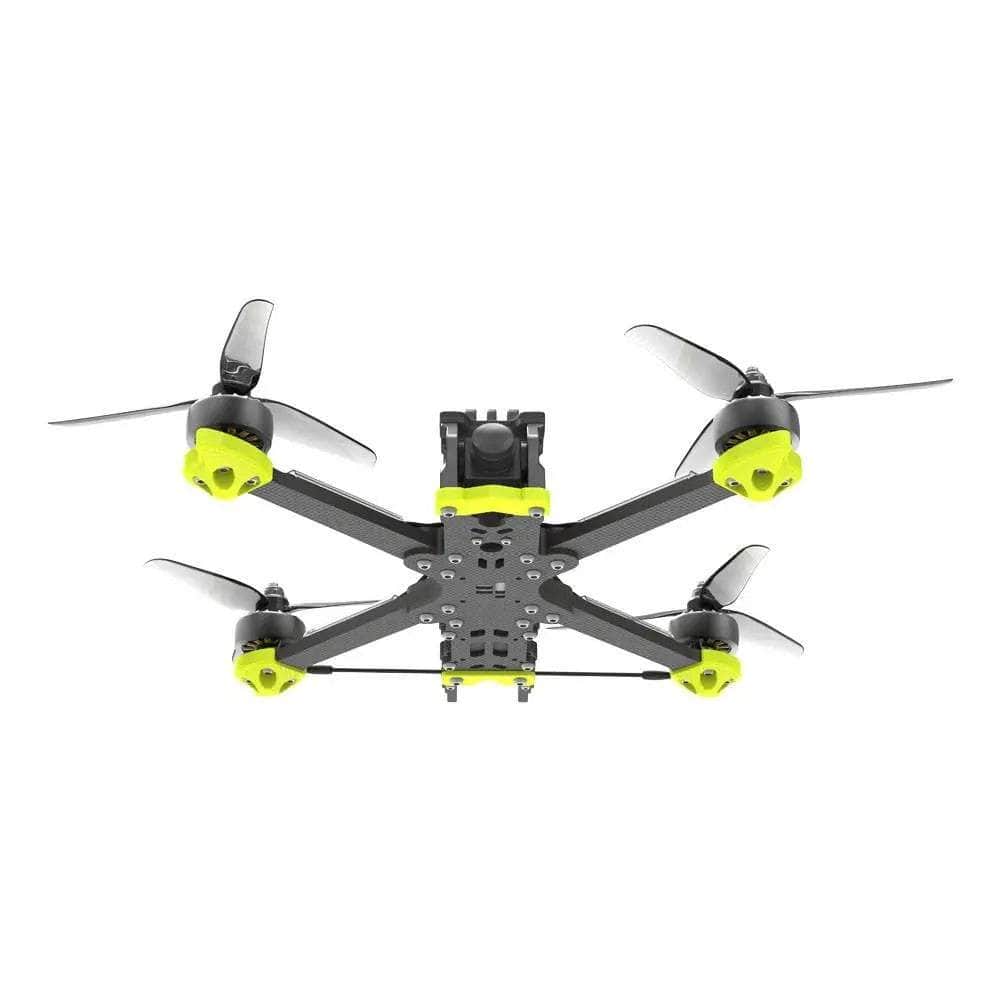

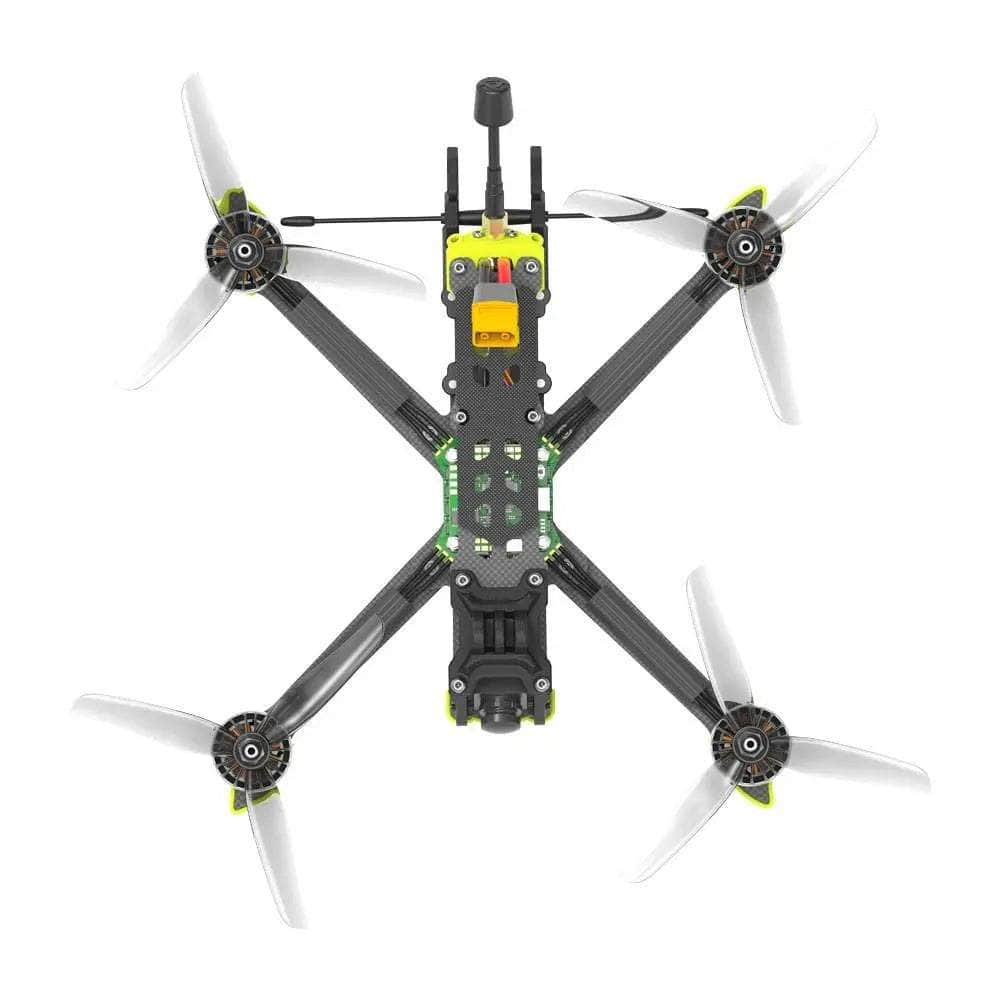

The iFlight Nazgul5 V3 6S 5" Freestyle Analog Quad is here! It includes the RaceCam R1 FPV Camera and Nazgul 5" tri-blade props, XING-E Pro 2207 motors, BLITZ F7 Flight Controller, BLITZ 1000mW+ VTX, and the BLITZ E45S 2-6S 45A BLHeli32 4-in-1 ESC. Boasting CNC aluminum camera mount with vibration-reduction silicone for increased protection. Great for freestyling and long-distance shots with your GoPro camera! The Nazgul5 Freestyle quad is a go-to gold standard for freestyle BNFs of great value made by the great people at iFlight.  The Nazgul5 V3 is a 5" freestyle frame is made of super stiff carbon for minimal resonance.

+ High-quality parts
+ Sturdy frame structure
+ Generous mounting space
+ Optimized for O3 Air Unit
+ GoPro camera mount included

Be sure to check out our Bind-n-Fly collection as well as all of our iFlight Products!

Features

  • XING-E Pro 2207 motors and NAZGUL F5 props
  • 5" version also fits 5.1" style propellers
  • Fits both 30.5x30.5 and 20x20 stacks
  • 5mm arm design for more durability
  • Popular True-X configuration
  • LED illuminated logo
  • TPU crash-guards
  • Easy-Swap arms

Specifications

  • Product Name：Nazgul5 V3 6S Analog
  • FC: BLITZ F722 FC
  • ESC: BLITZ E45S 45A 4-IN-1 ESC
  • Video Transmission: BLITZ 1mW+ VTX
  • Frame: 245 ±2 mm wheelbase
  • Motor: XING-E Pro 2207 motors
  • Prop: Nazgul 5 inch propellers
  • Takeoff Weight: Approx. 435g / 660±10g (With 6S 1400mAh Battery)
  • Dimensions (L×W×H): 173×173×34±2 mm
  • Diagonal Distance: 245mm
  • Max Speed: 190 Km/h (Manual Mode)
  • Maximum Takeoff Altitude: 3200 m
  • Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
  • Max Flight Distance: 5 km
  • Max Wind Speed Resistance: Level 7
  • Operating Temperature Range：-10° to 40° C (14° to 104° F)
  • Antennas: Single Antenna
Video Transmission System
  • Product Name: BLITZ Whoop 1mW+ VTX
  • Input voltage: 7V～34V
  • Interface: MMCX
  • Power levels: PIT/25mW/400mW/800mW/1600mW
  • Channels: 40 (including Raceband)
  • Mounting pattern: 30.5x30.5mm/Φ3
  • Lightweight: 18.9g (excluding antenna)
  • VTX telemetry: IRC Tramp
  • Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
  • RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Includes

  • 1x Nazgul5 V3 6S Analog BNF
  • 1x Antennas
  • 2x Battery pads
  • 2x Nazgul F5 Prop(Pairs)

More Information:

  • SKU: 20525
  • Barcode: 691023516793
