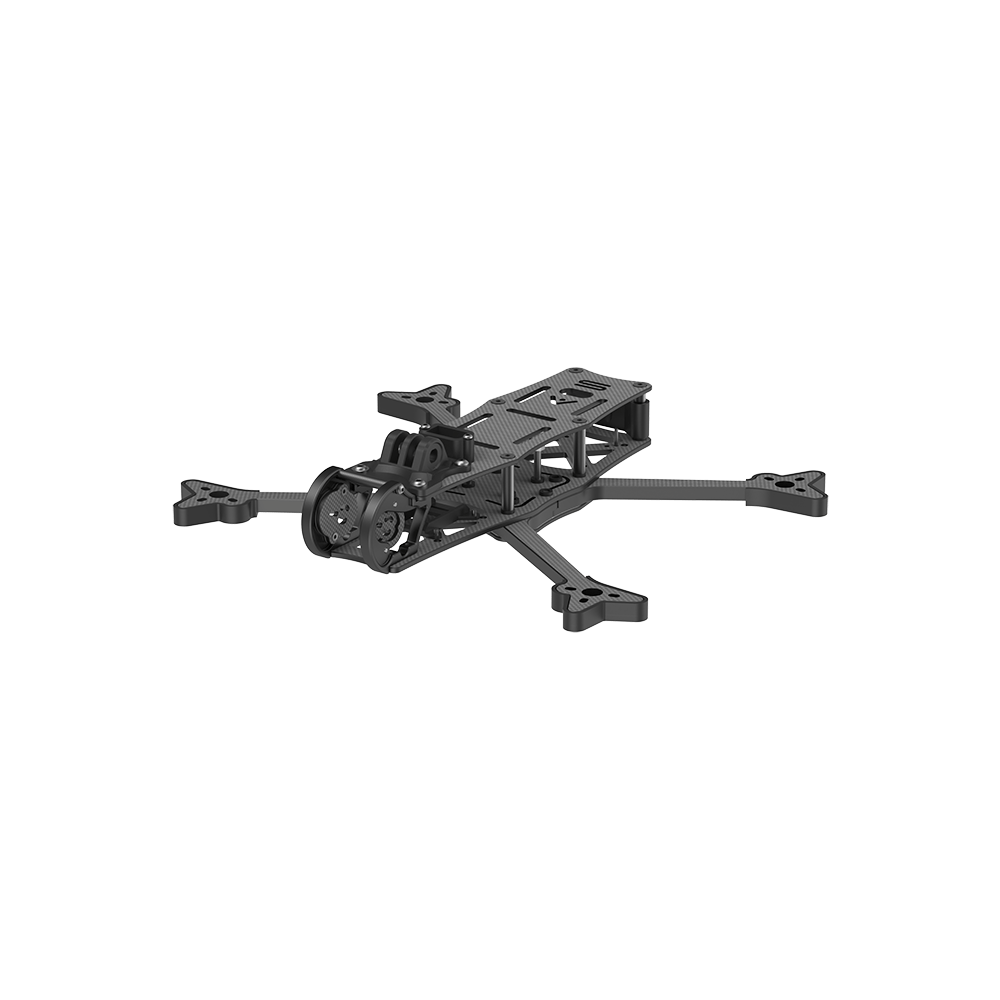

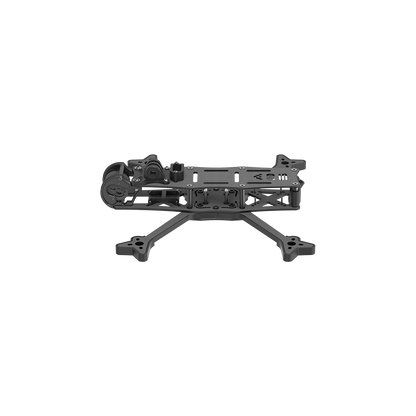

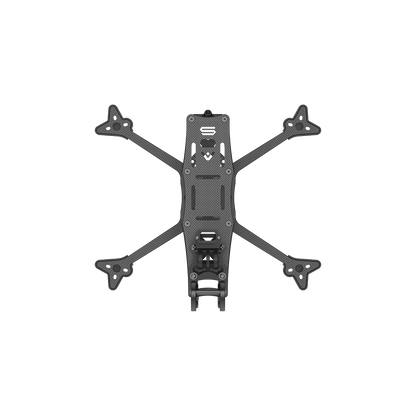

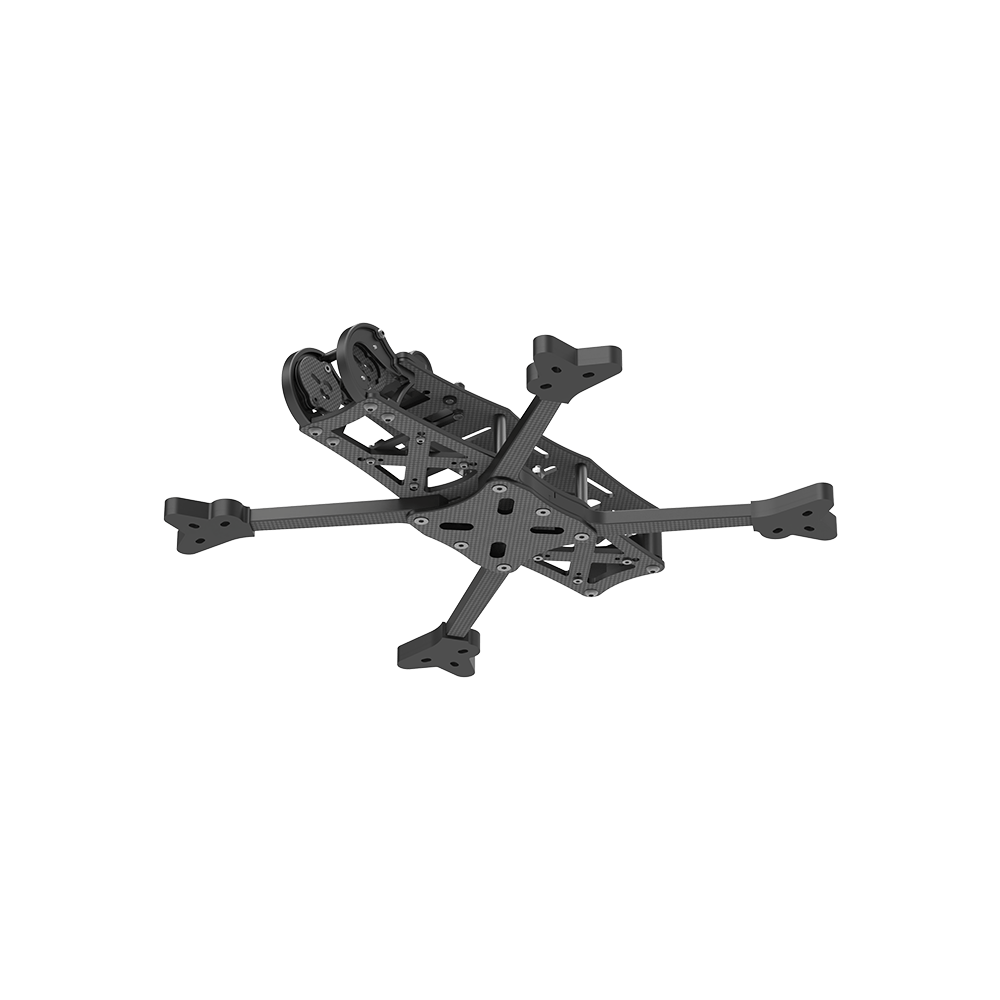

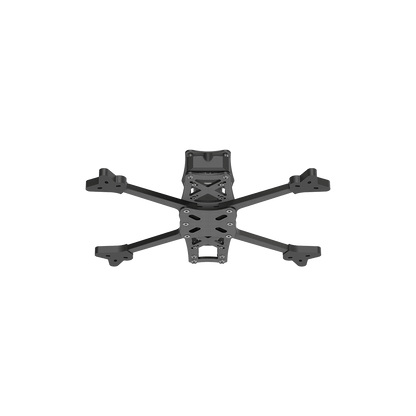

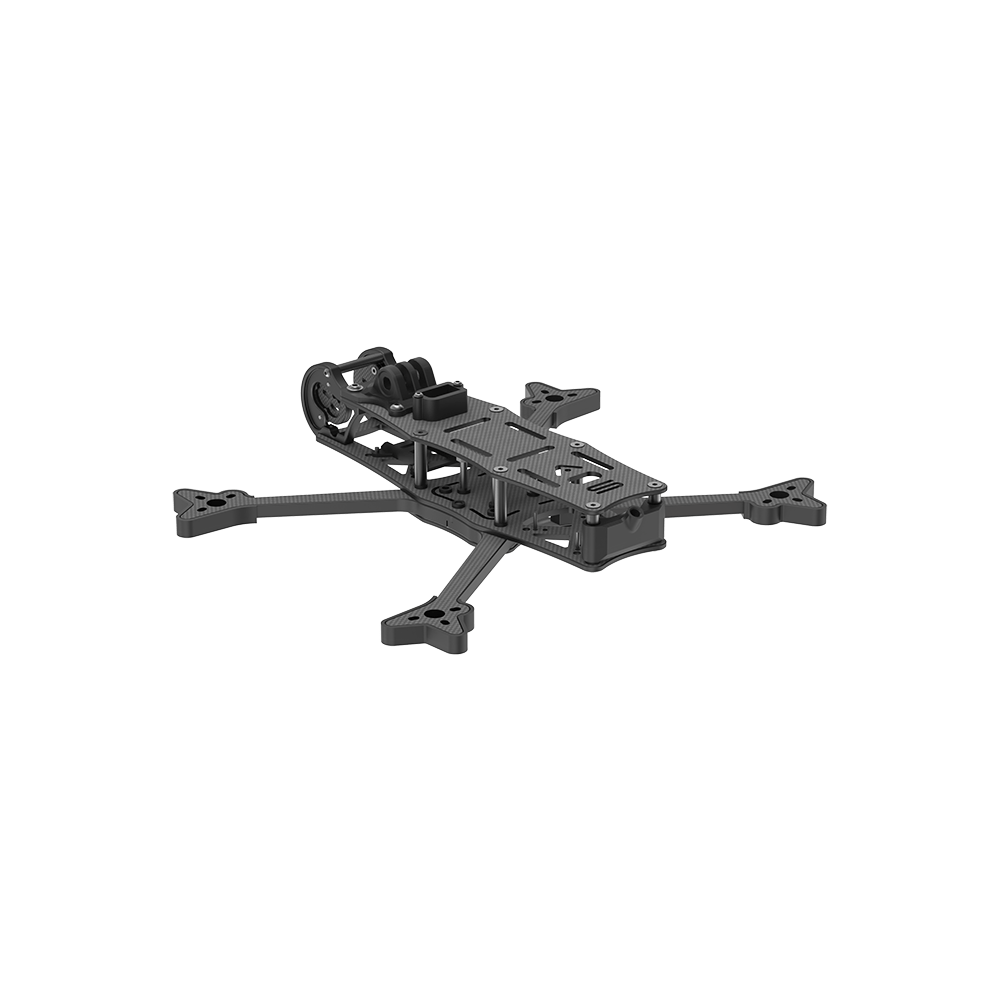

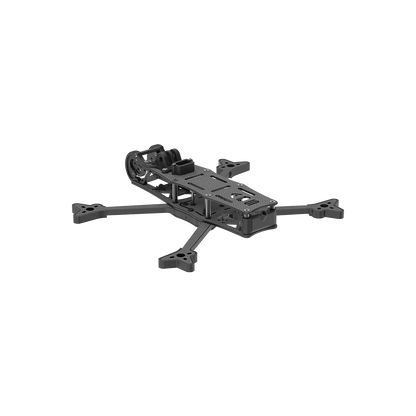

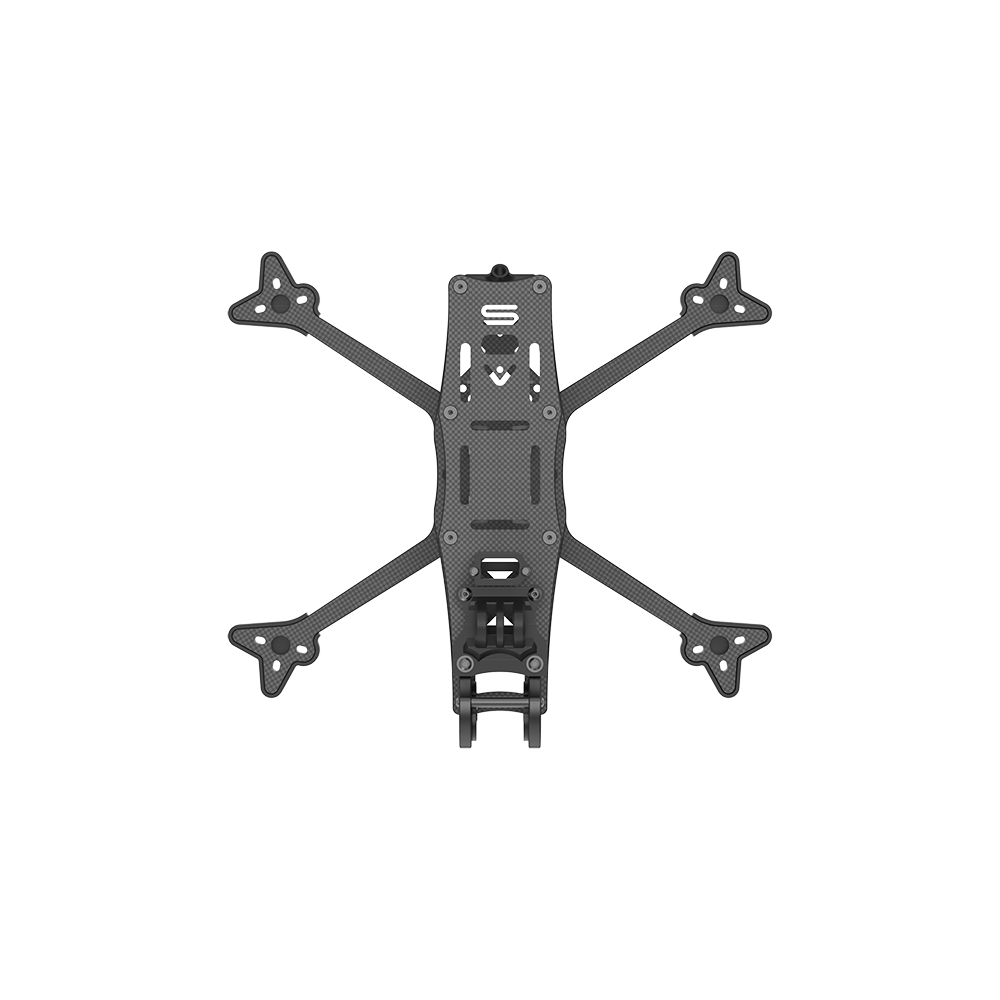

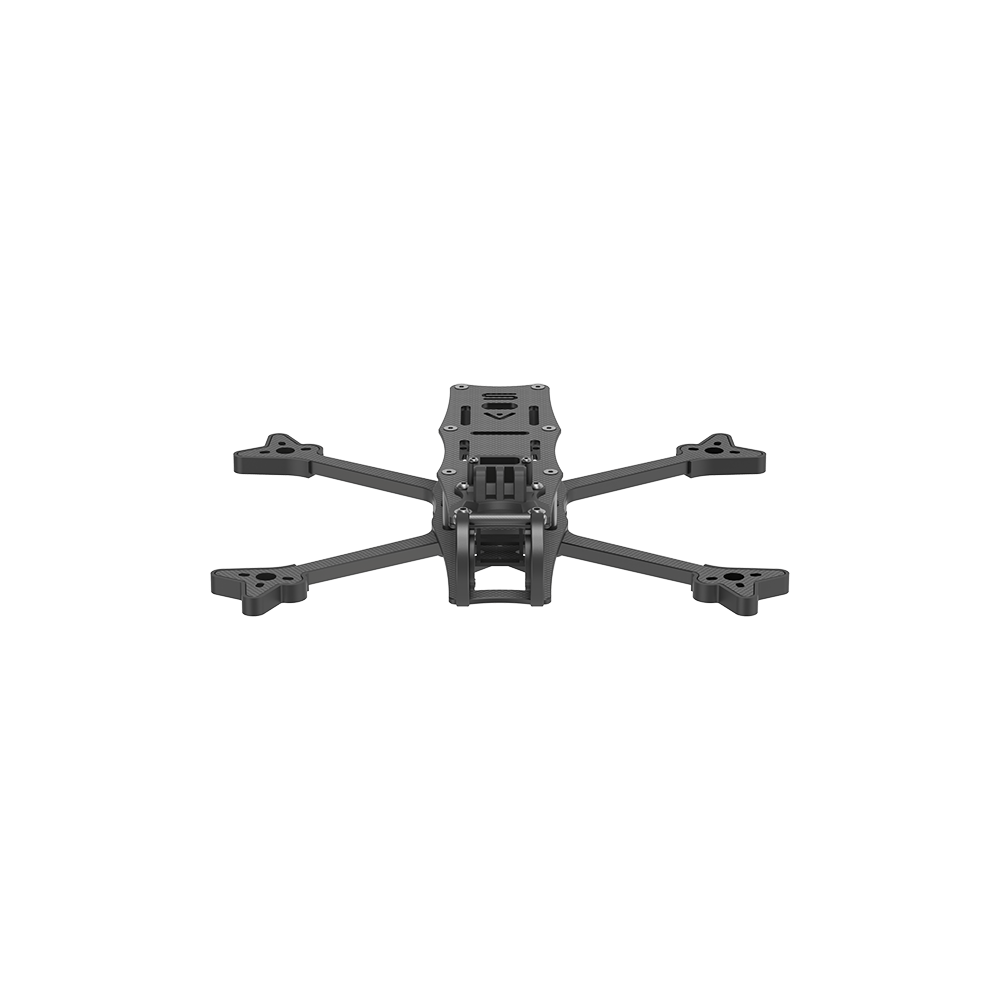

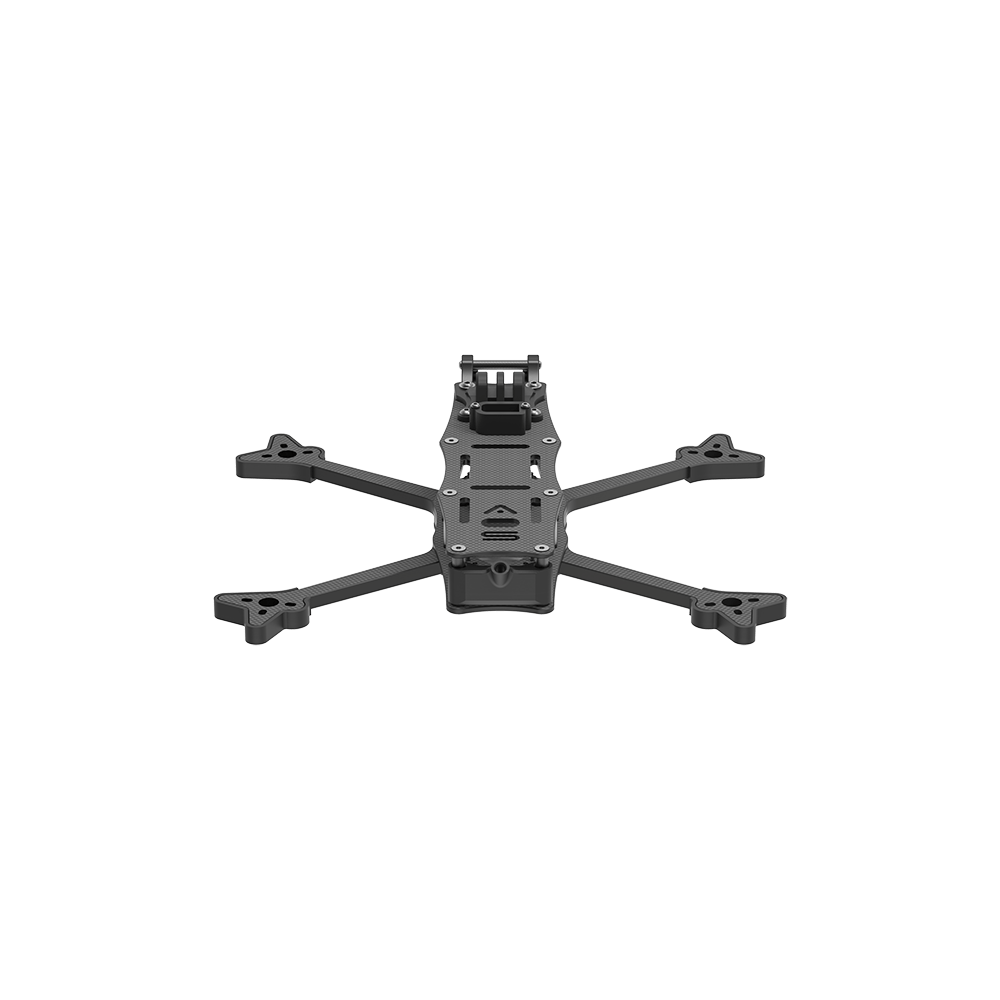

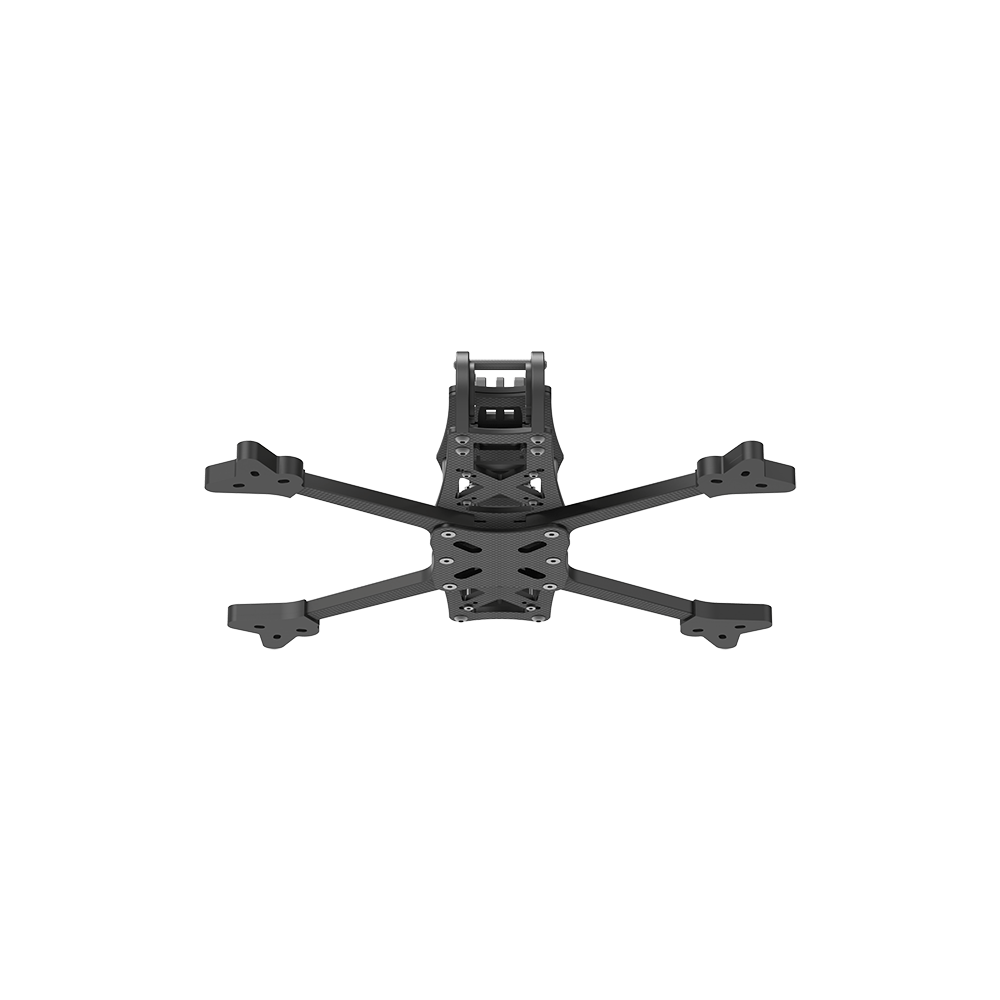

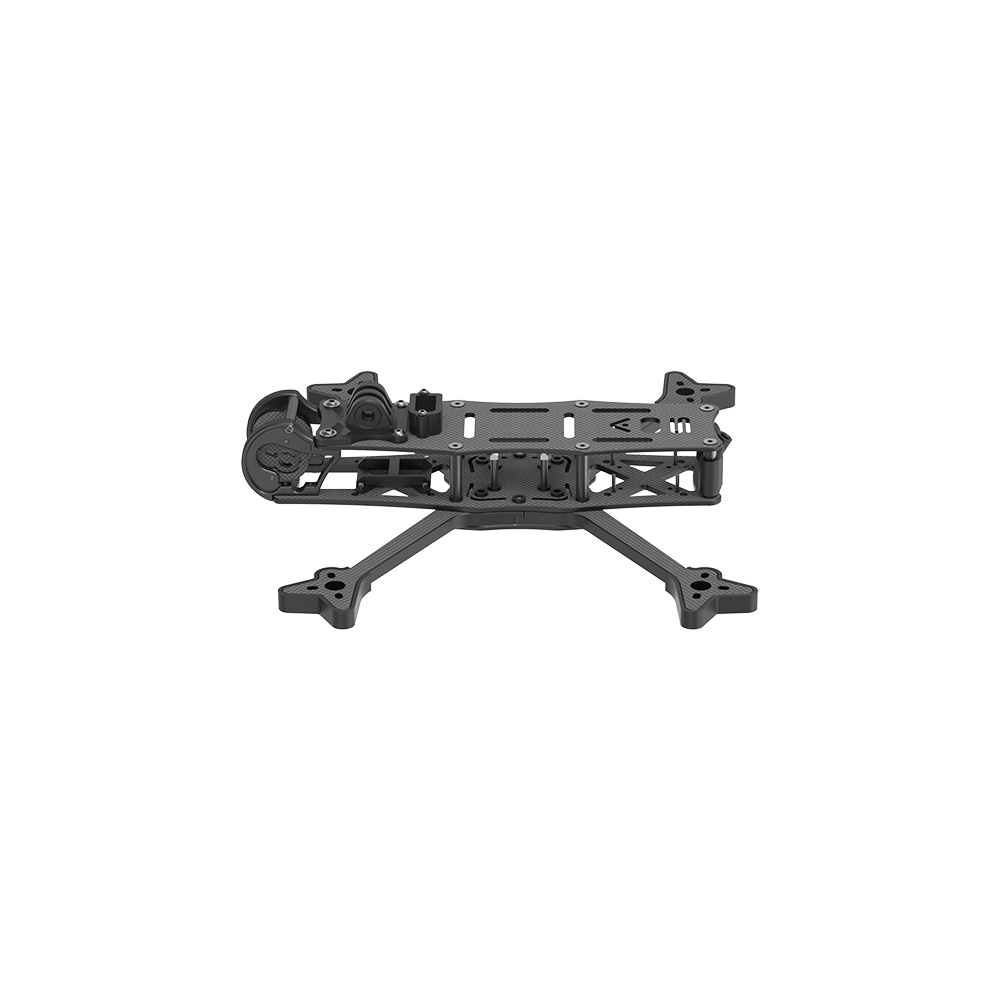

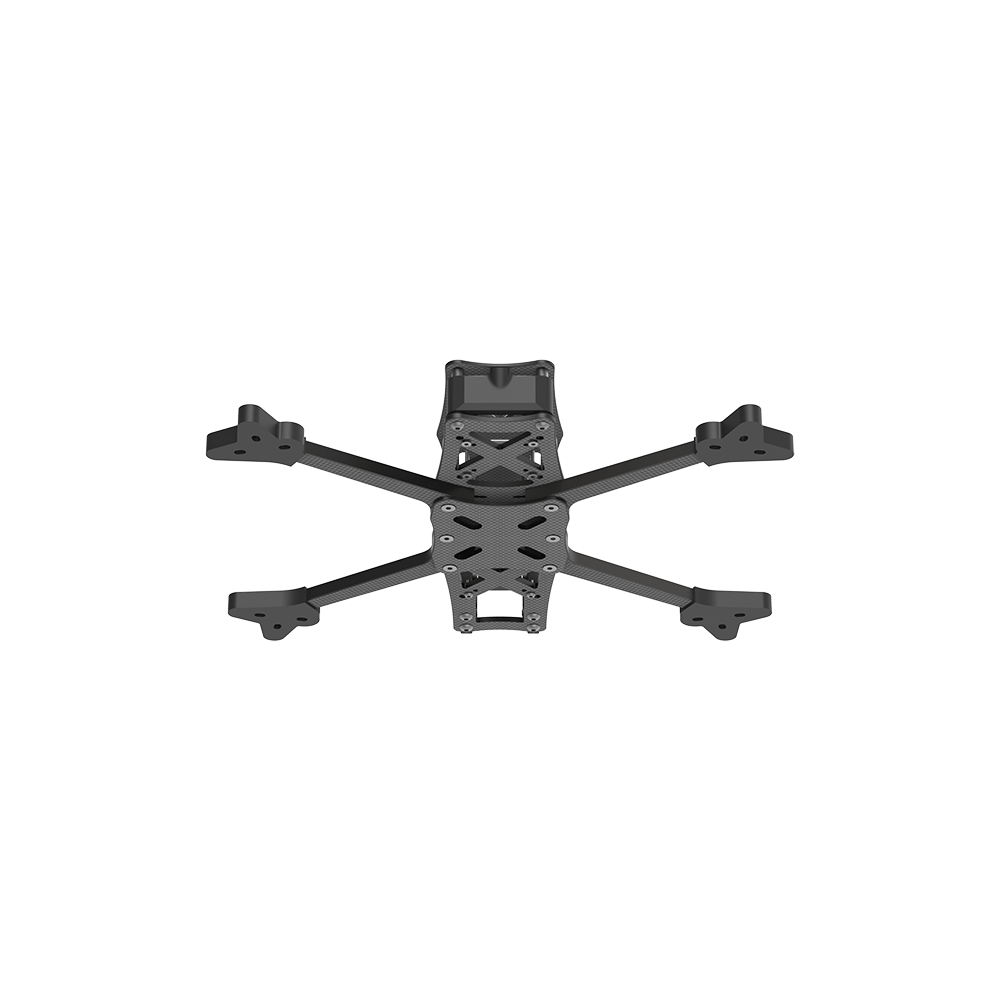

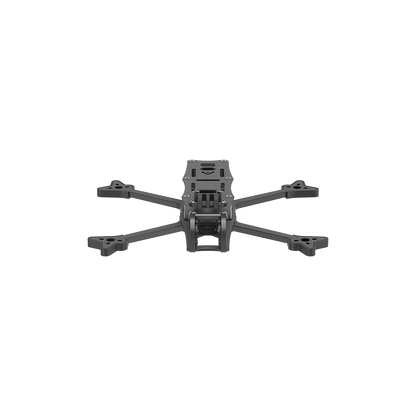

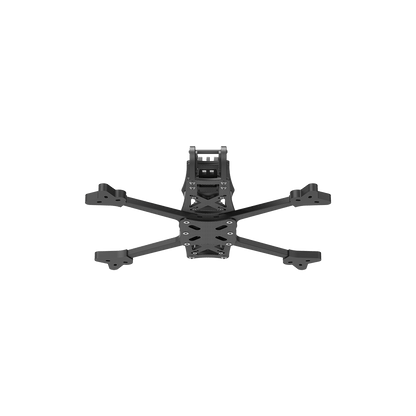

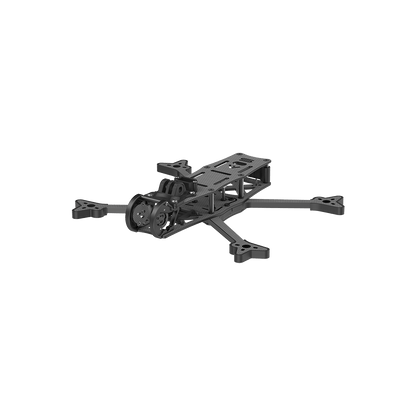

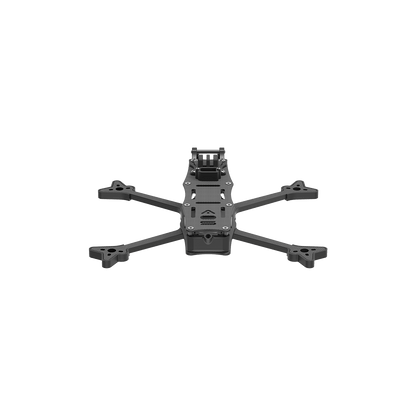

iFlight AOS 5 V5 5" Frame Kit

Description

Discover the future of 5" FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here's why the AOS 5 V5 is the ultimate choice for drone enthusiasts.

Be sure to browse the rest of our iFlight products and our other DJI O3 Compatible Quads and DJI compatible frames, electronics and accessories.

Features

• Supports up to 5.2" Props
• AOS X-Cell Anti-Vibration Technology
• Three 30.5x30.5, 25.5x25.5, or 20x20 mm stacks
• 155° FOV no props in view
• Fully DJI O3 compatible (soft mount + ND filters)
• Supports 19-20mm cameras (hard or soft mounted)
• Reinforced 7075 Aluminium Camera Cage
• Supports Lengthwise or Toilet Tank battery mounting
• ⌀16 - ⌀19mm motor mounting (supports all standard 5" motors)
• 28x28mm M3 GoPro Mounting Pattern
• 32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)

Specifications

• Product Name: AOS 5 V5 Frame Kit
• Frame wheelbase: 228mm
• Frame Dimension: L180xW140xH34 mm
• Arm Thickness: 6mm
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 2mm
• Upper Plate Thickness: 2.5mm
• Max Flight Stack Height: 20mm
• Max VTX Height: 20mm
• Motor Mounting: 19x19-φ3mm/16x16-φ3mm
• Flight Stack Mounting: 20x20 Φ3mm / 25.5x25.5 Φ2mm / 30.5x30.5 Φ3mm
• VTX Mounting: 20x20 ⌀2mm / 25.5x25.5 Φ2mm/30.5x30.5 Φ3mm
• Weight: 150g
• Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX

Includes

• 1x iFlight AOS 5 V5 5" Frame Kit
