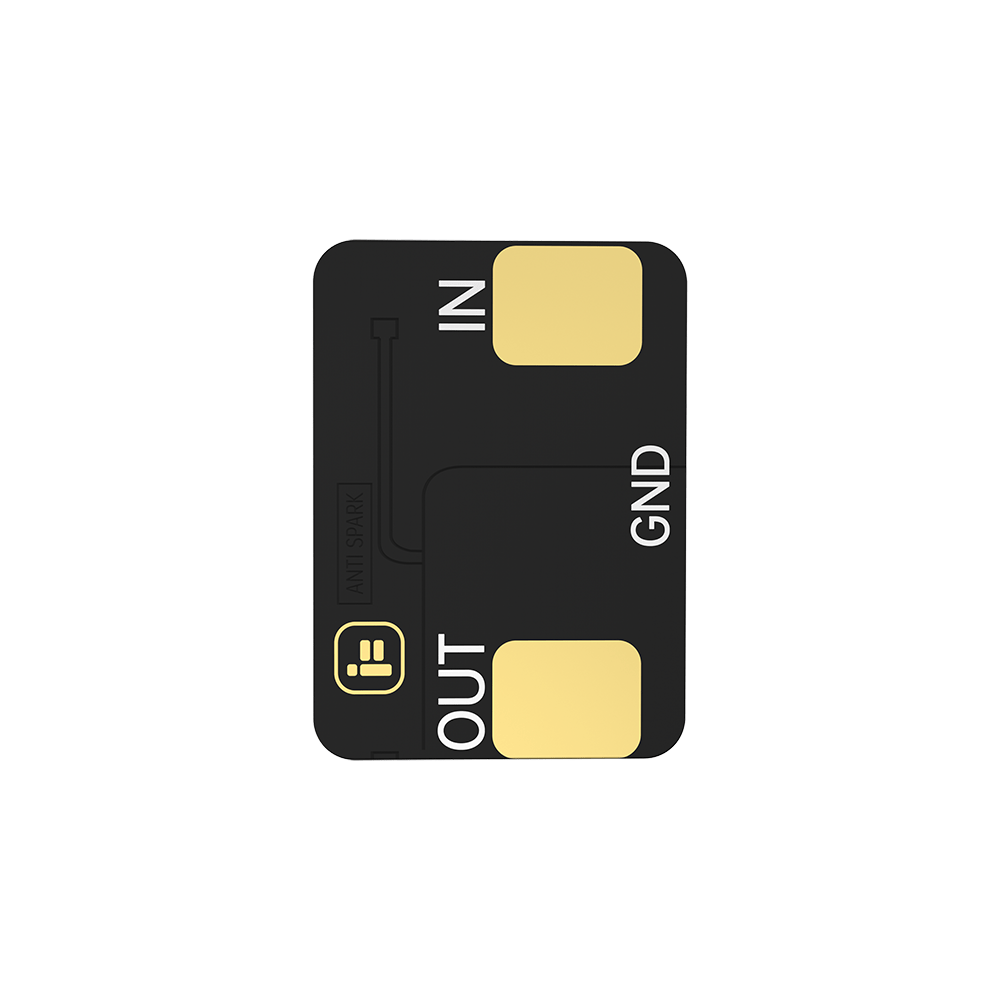

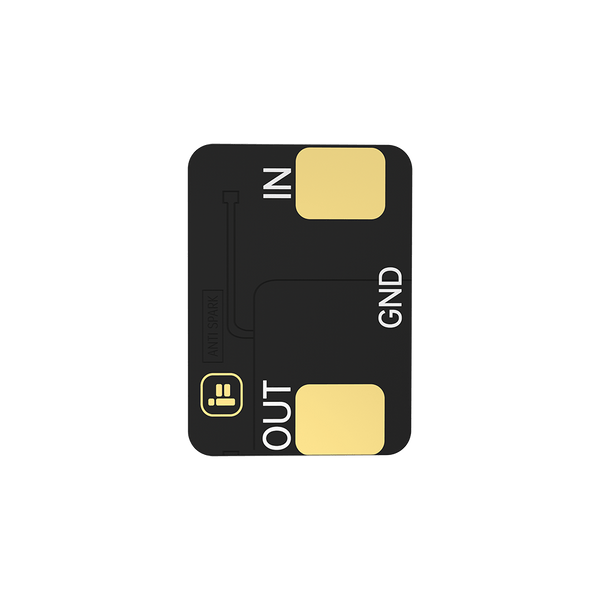

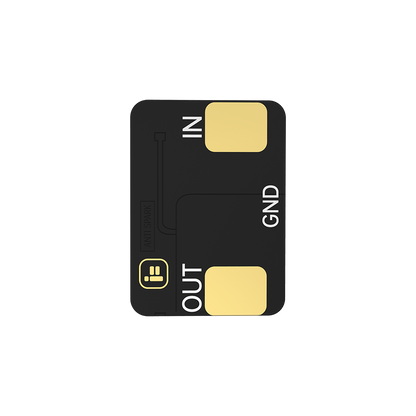

iFlight Anti Spark Filter (25x18mm)

Description

 Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.  iFlight offers this in 3 sizes.  This is their "version 2" measuring 25x18mm.

Check out the Rest of our iFlight product range and PDB/BEC selection while you're at it!

Features

• Size: 25x18mm
• Compatible:
• Nazgul Evoque F4 Frame kit
• Nazgul Evoque F5 V2 Frame Kit
• Nazgul Evoque F6 V2 Frame Kit
• or any application where space is available!

Specifications

• 25x18 mm
• Input voltage: 3-6S (9-26V)
• Continuous overcurrent: 30A for 60 minutes
• Weight: 2.6g

Includes

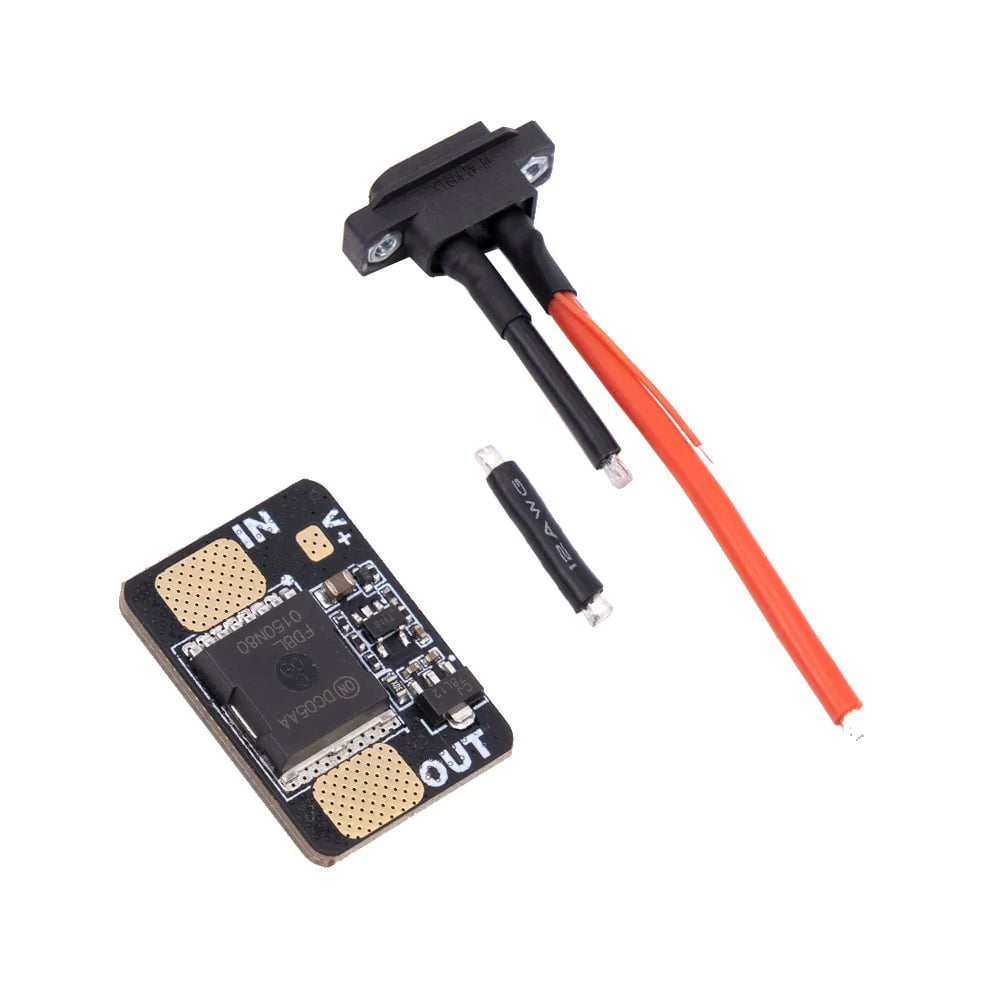

• 1x iFlight Anti Spark Filter (25x18mm)
