Hobbywing Xerun XD10 Pro Drift Spec Brushless Speed Controller

Hobbywing Xerun XD10 Pro Drift Spec Brushless Speed Controller

$220.99
$220.99 - $220.99
$220.99 - $220.99
$220.99
Color :
In Stock
Add to Wishlist
Ask a Question

Details

Description

Please note, this item is NOT available for Returns or Exchanges!

Hobbywing Xerun XD10 Pro Drift Spec Brushless Speed Controller

Features:

  • Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
  • A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.
  • Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
  • Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
  • Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
  • Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately)
Specifications:
  • Application: 1/10th drift car
  • Cont./Peak Current: 100A/800A
  • Input Voltage: 2S LiPo/4-6S NiMH
  • BEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)
  • Wires & Connectors: 13AWG 200mm
  • Programming device: LCD program box, OTA programmer (Available through Firmware update)
  • Firmware: LCD Program box via USB software (PC only), OTA  (iOS / Android)
  • Size & Weight: 40.7x35.0x32.0mm (w/Fan)
  • Weight: 95g (w/ wires)
  • Motor Limit: 2S LiPo/6S NiMH ?8.5T
Includes:
  • (1) XD10 PRO ESC

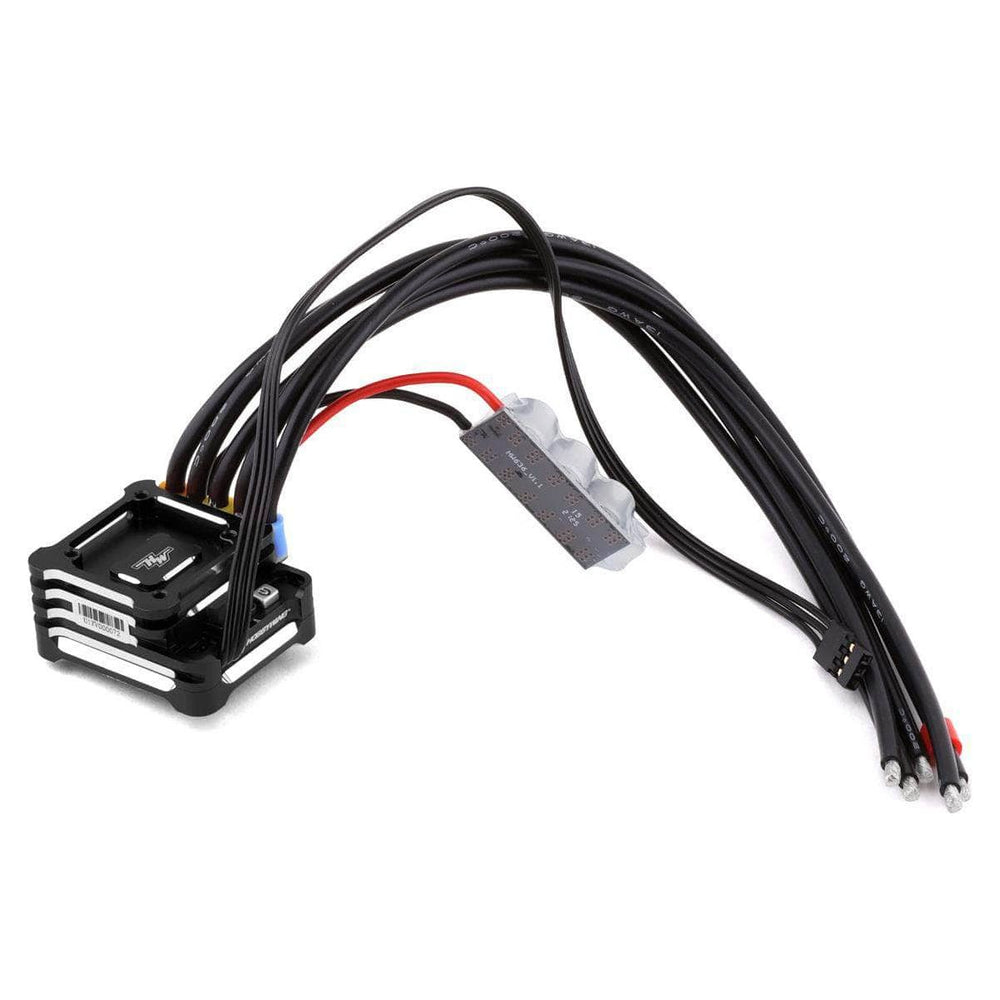

  • (2) Input wires & (3) Output wires (PRE-SOLDERED)

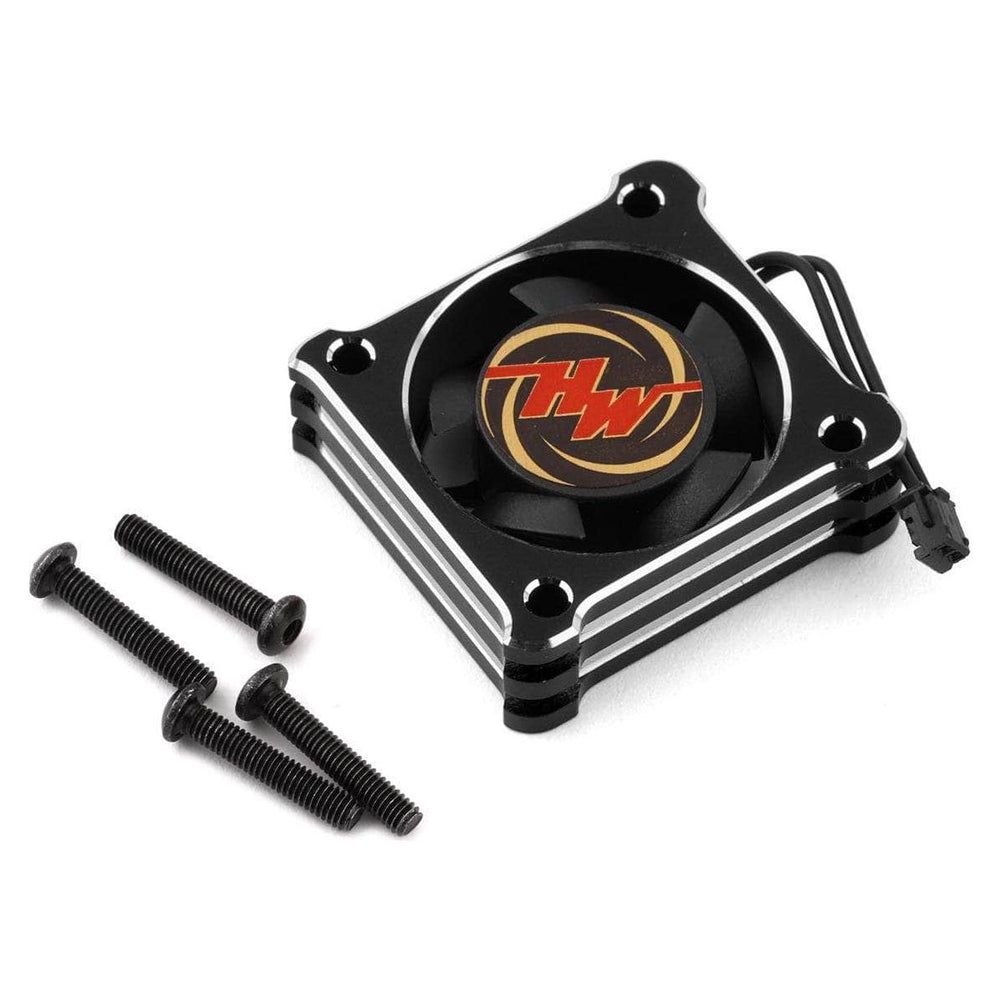

  • (1) cooling fan
  • Decals

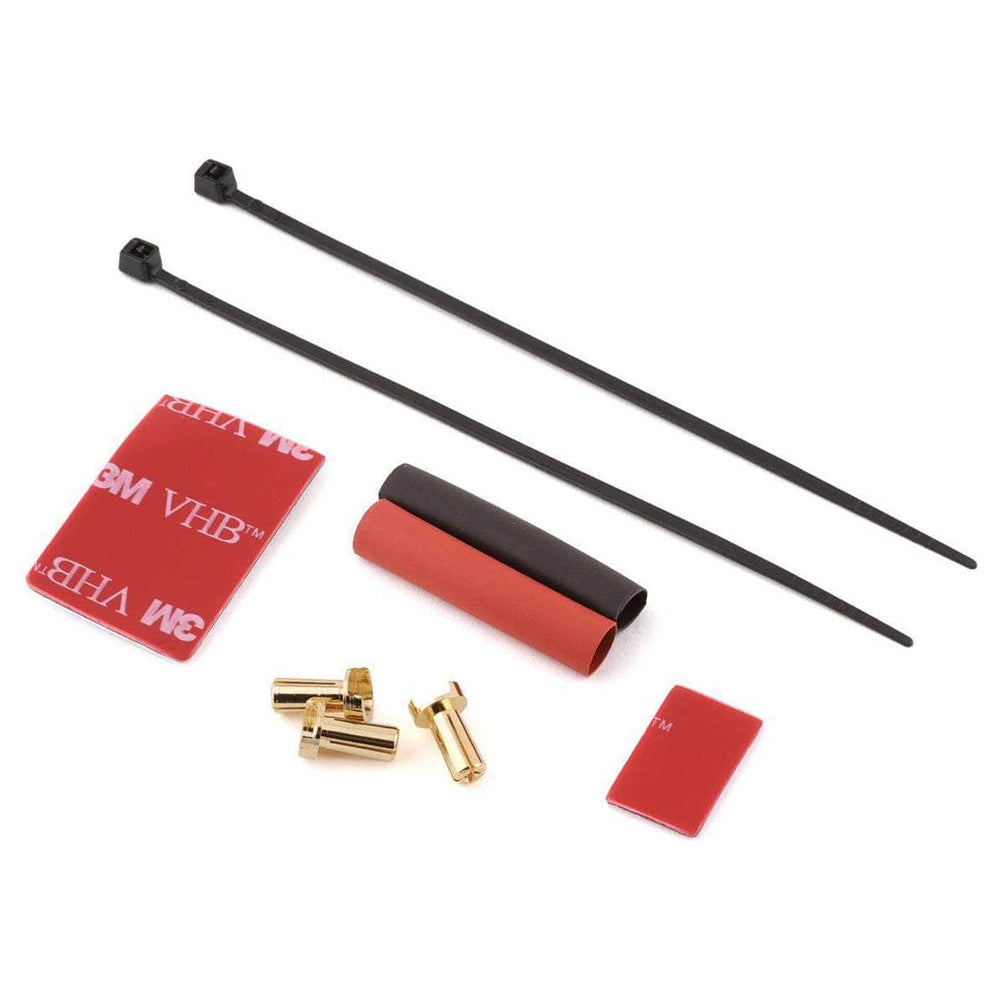

  • Bonus parts: heat tubes, double tape, nylon cable zap traps

This product was added to our catalog on May 3, 2023

More Information:

  • SKU: sku-44994034598138
