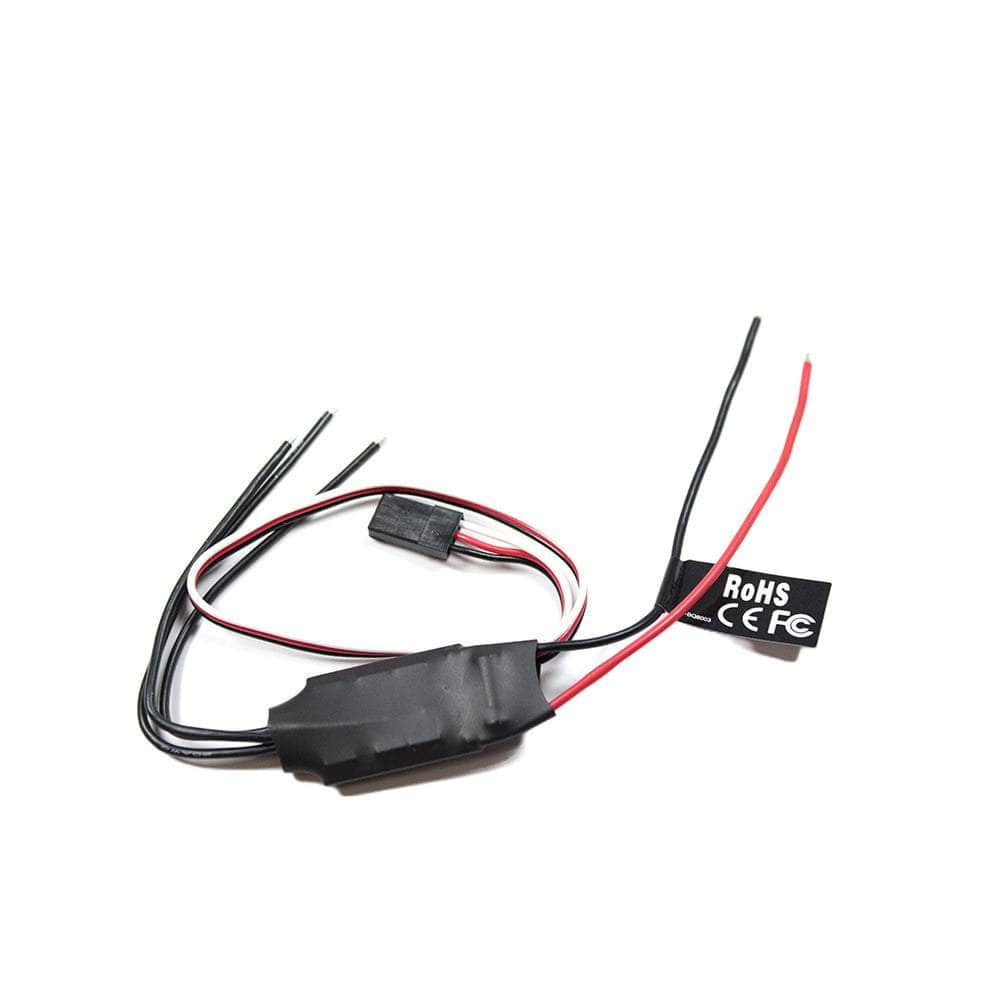

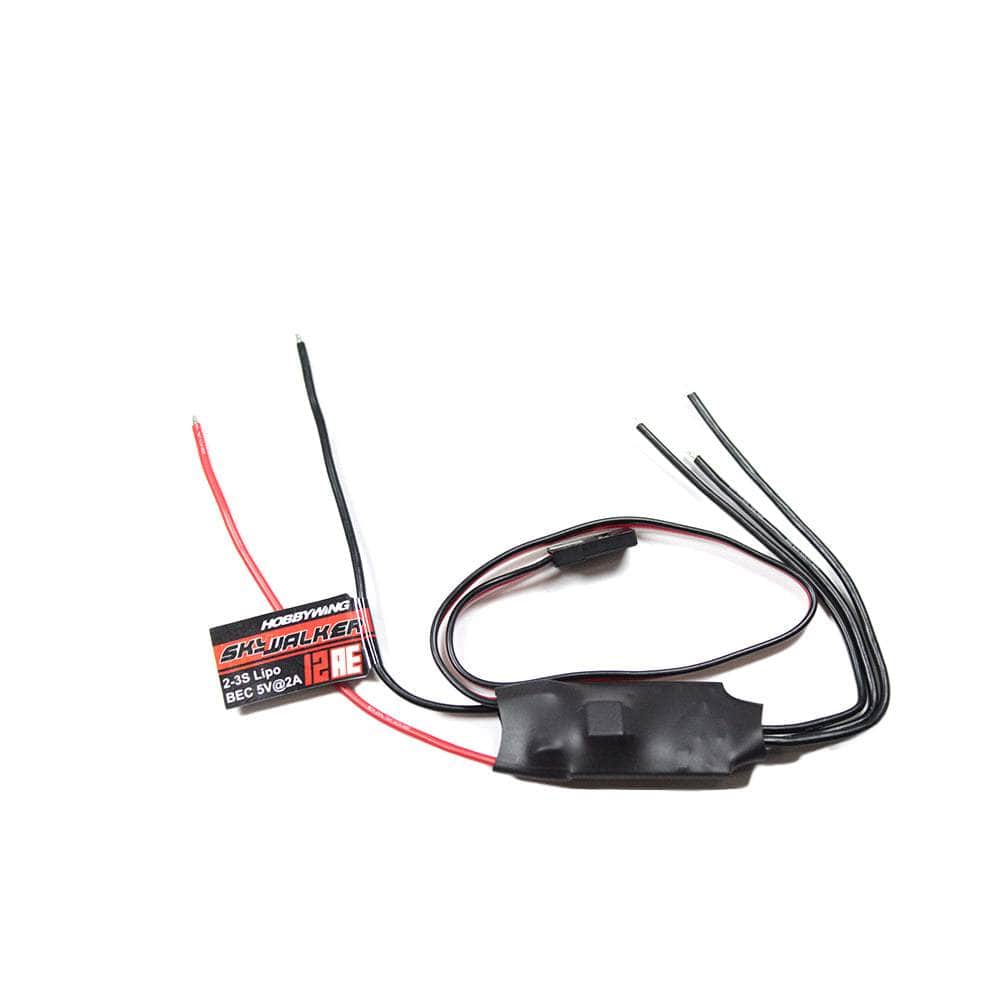

HobbyWing Skywalker 12AE 2-3S Individual 12A ESC

Description

This HobbyWing Skywalker 12A 32Bit 2-3S Individual ESC is a high-performance, reliable speed controller for small airplanes, helicopters, and multi-rotor drones. It has a high-speed processor to ensure smooth, powerful operations, and supports 2-3S LiPo batteries. Enjoy a high response rate and low-voltage protection for excellent control and power.

Make sure to check out the rest of our wing products and our entire line of HobbyWing gear!

Features:

• Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
• Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
• User programmable.
• Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
• Compatible with LiPO and NiMH battery.
• Timing can be changed to be suitable for different brushless motors.
• Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
• Power connectors and motor connectors are not included.

Specifications

• Model: 12AE

• Refresh rate of the throttle signal: 50Hz to 432Hz.

• Cont.Current: 12A

• Peak.Current: 15A

• Input Vol (Lipo): 2-3S

• BEC Output: 5V@2A (Linear mode)

• Size (mm): 38x18x7mm

• Weight(g): 19

• Wires input: 20AWG-100mm

• Wires output: 20AWG-100mm

• Output connectors: N/A

• Programming: Stick / LED program box

• Firmware update: N/A
• Weight: 10g

Includes

• HobbyWing Skywalker 12AE 2-3S Individual 12A ESC
