Happymodel Mobula7 80mm Whoop HD w/ DJI O4 - ELRS 2.4GHz

Description

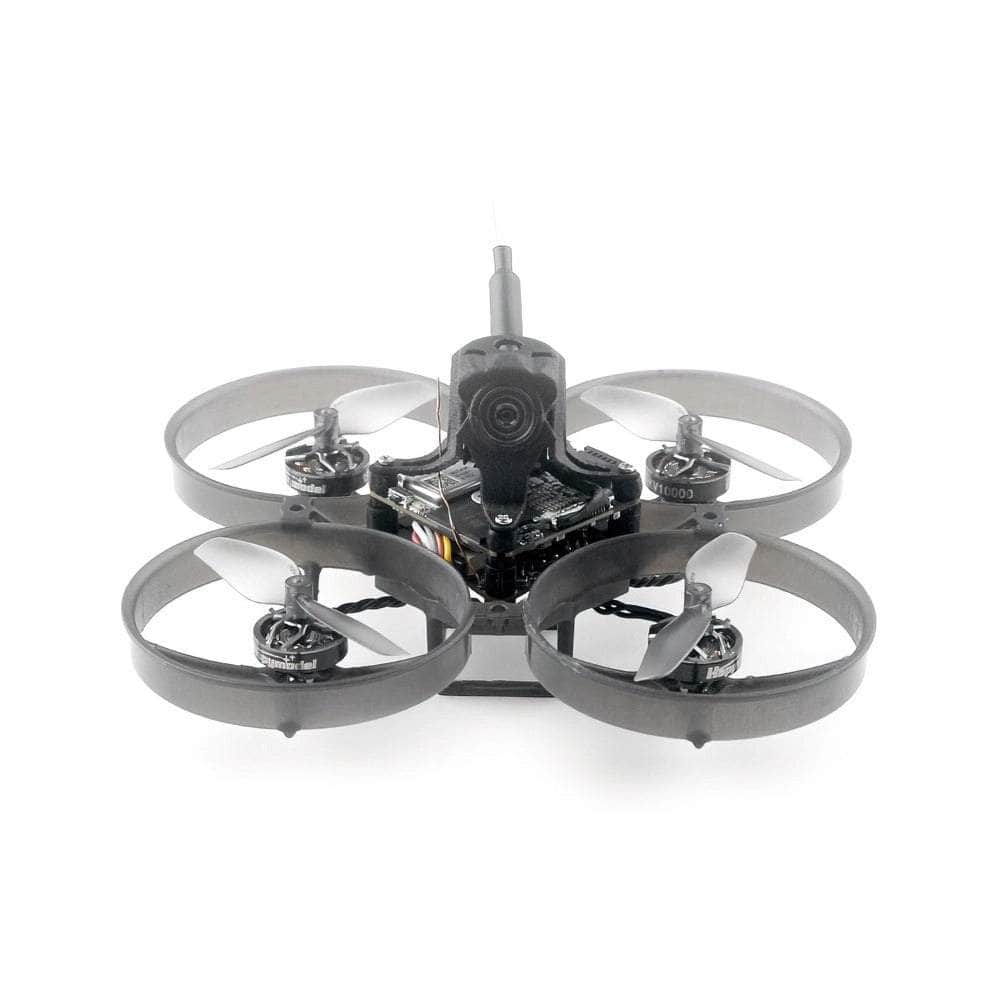

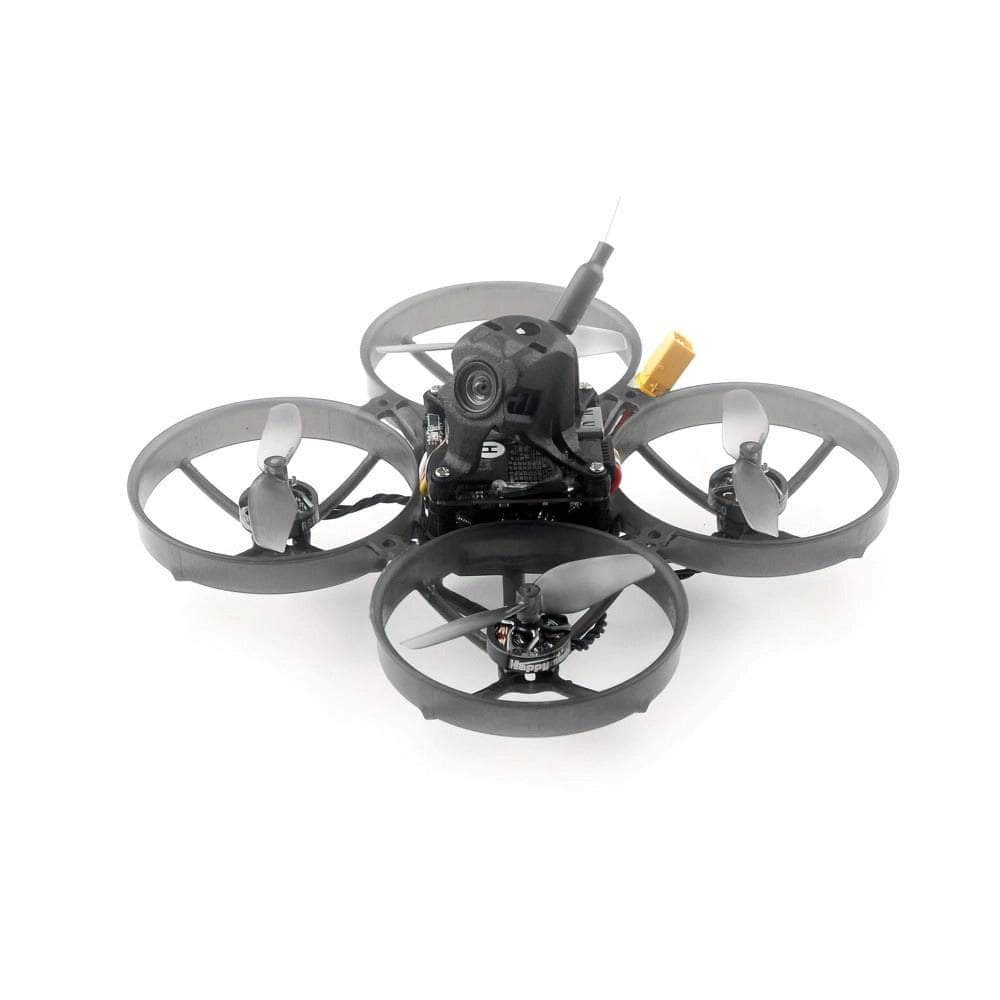

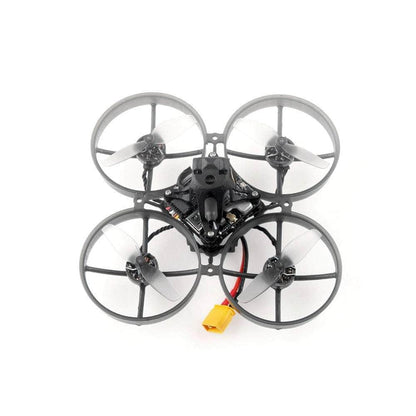

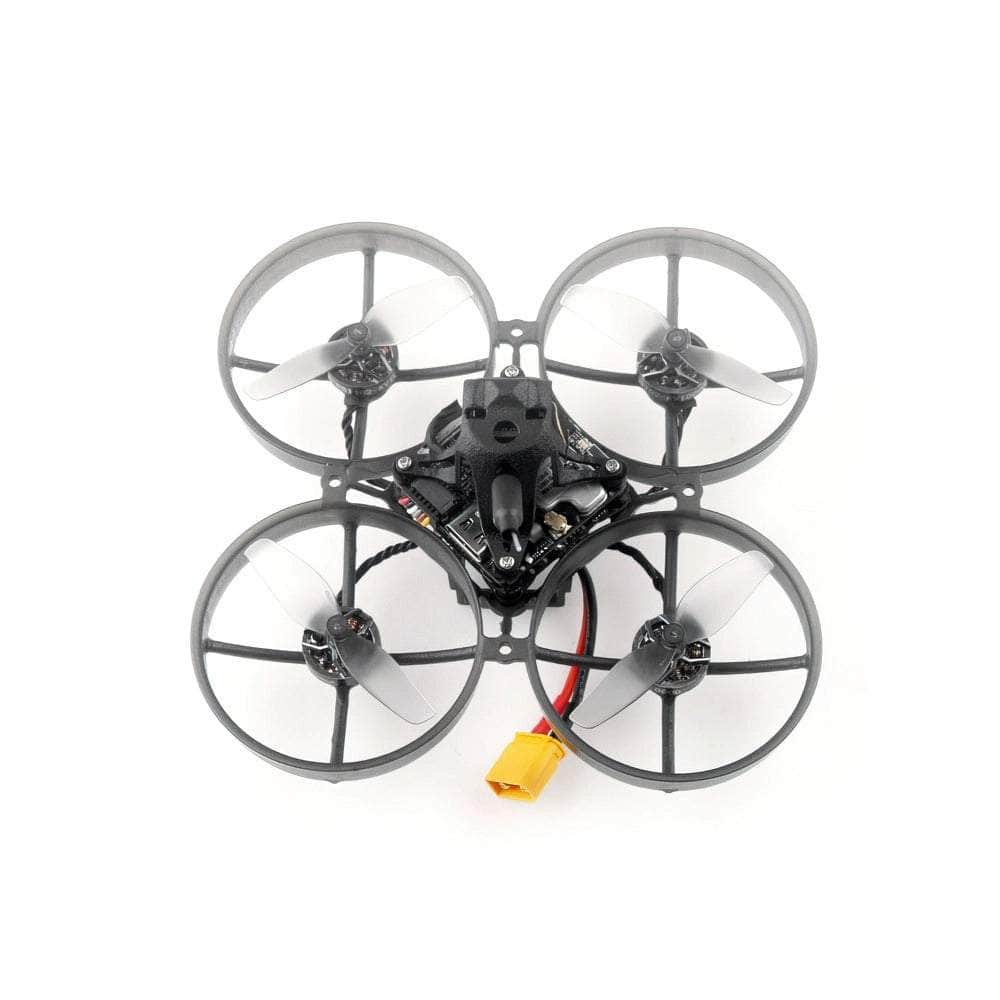

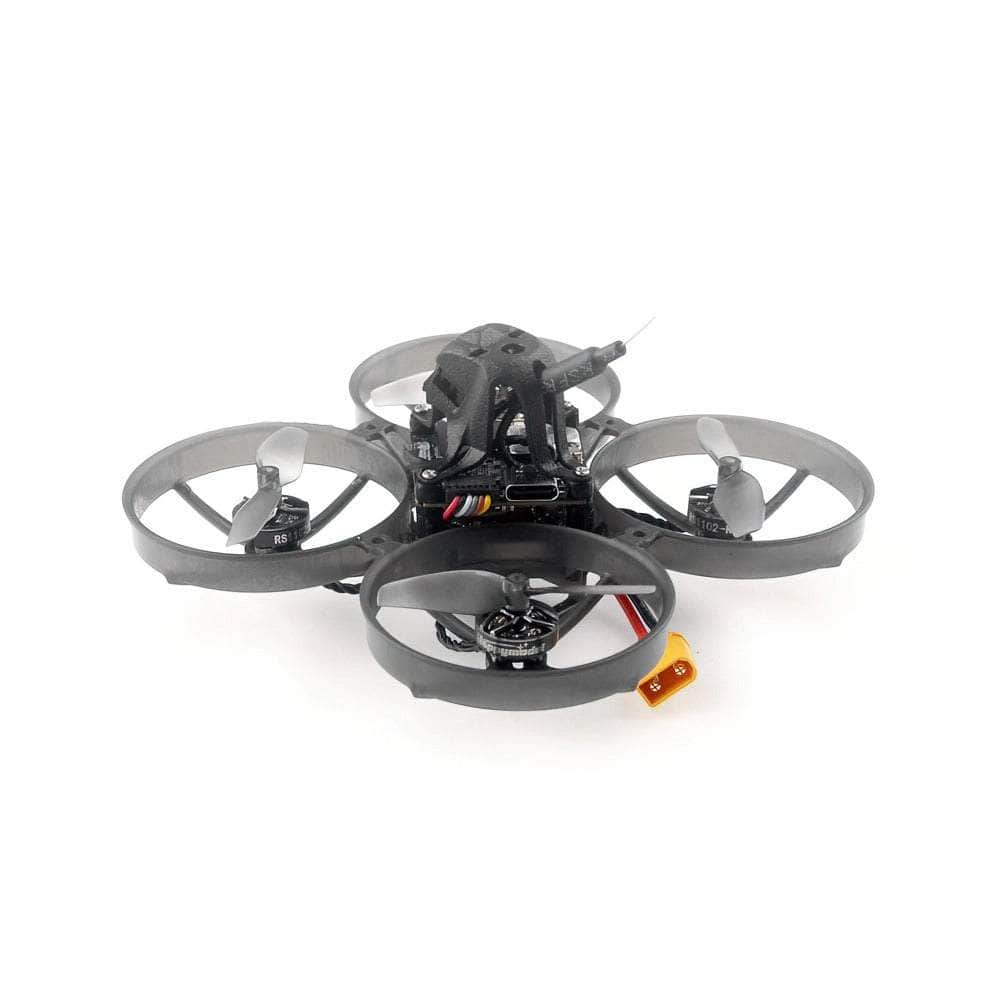

The Happymodel Mobula7 O4 is here! This 80mm micro FPV whoop combines the DJI O4 Air Unit, delivering unbelievable HD FPV footage with ultra-low latency in a tiny package. Powered by the new Happymodel RS1102 KV10000 motors get ready for a responsive flying experience. Designed for both indoor and backyard FPV whooping, the Mobula7 O4 is the perfect blend of performance and agility.

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Features

• Ideal for HD FPV Enthusiasts
• 80mm Micro Whoop Design
• Lightweight & Durable
• Optimized Propulsion
• Powerful Motors
• DJI O4 Air Unit

Specifications

ONBOARD 4-in-1 ESC

• When using 1S battery and high KV 0702/0802 motors, set startup power to 1100/1200
• Firmware: BLHeli_S Bluejay firmware (Factory firmware: Bluejay ESC V0.19)
• Current: 12A continuous, peak 15A (3 seconds)
• Power Supply: 1-2S LiPo/LiPo HV
• Default Protocol: DSHOT300
• Firmware Target: Z-H-30

FLIGHT CONTROLLER

• Built-in: Serial ExpressLRS 2.4G, BMP280 Barometer, 8MB Blackbox
• Built-in Current Meter Sensor: Current meter scale 470
• Built-in Voltage Meter Sensor: Voltage meter scale 110
• Power Supply: 1-2S battery input (DC 2.9V-8.7V)
• MCU: STM32F405RGT6 (168MHz, 1MB Flash)
• Built-in ESC: 12A (each), BLHeli_S 4-in-1 ESC
• Gyro Sensor: BMI270 (SPI connection)
• Mount Hole Size: 25.5mm x 25.5mm

DJI O4 AIR UNIT

• Weight: Air Unit (camera module included): Approx. 8.2g
• Transmission Module: 30×30×6 mm (L×W×H)
• Camera Module: 13.44×12.36×16.50 mm (L×W×H)
• Camera Cable Length: 50mm
• Coaxial Cable: 50mm
• 3-in-1 Cable: 50mm
• Operating Frequency:

  • 5.170-5.250 GHz
  • 5.725-5.850 GHz
  • Operating frequency varies by region. Refer to local regulations
• Transmitter Power (EIRP):

  • 5.8 GHz:<30 dBm (FCC)
  • 5.1 GHz: <23 dBm (CE)
  • <30 dBm (SRRC)
  • <14 dBm (CE)
  • Live View Quality: 1080p at 30/50/60/100fps

MOTOR

• Motor Dimension (Dia. x Len.): Φ13.5mm x 14mm
• Shaft Diameter: Φ1.5mm
• Mode: RS1102 KV10000
• Stator Diameter: 11mm
• No. of Cells (LiPo): 1-2S
• Configuration: 9N12P
• Stator Length: 2mm
• Weight (g): 2.8g

PROPELLERS

• Material: Polycarbonate
• Hub Thickness: 5mm
• Props Dia: 45mm
• Weight: 0.25g
• Shaft: 1.5mm
• Pitch: 0.9

Includes

• 1x Happymodel Mobula7 80mm Whoop HD w/ DJI O4 - ELRS 2.4GHz
• 1x HQPROP 45MMX2 bi-blade propellers (4 CW + 4 CCW)
• 1x Hardware Kit
• 1x Canopy
