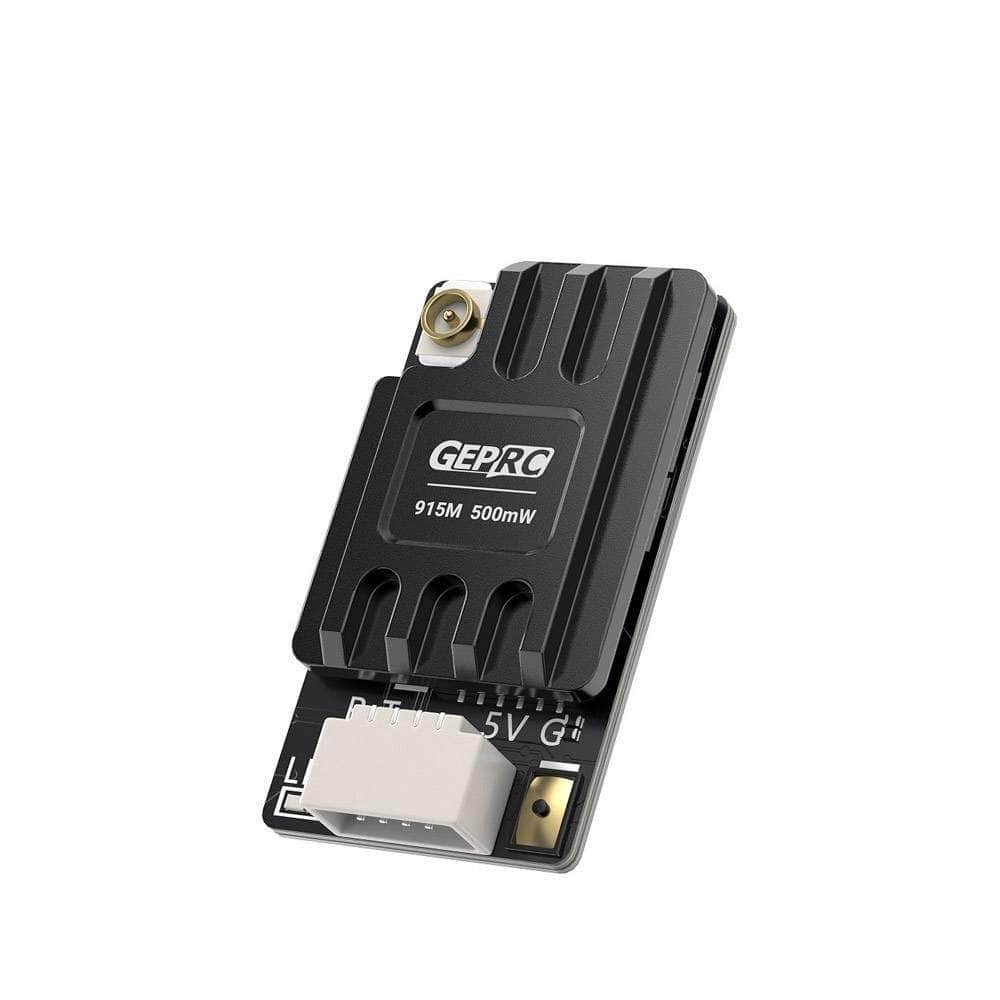

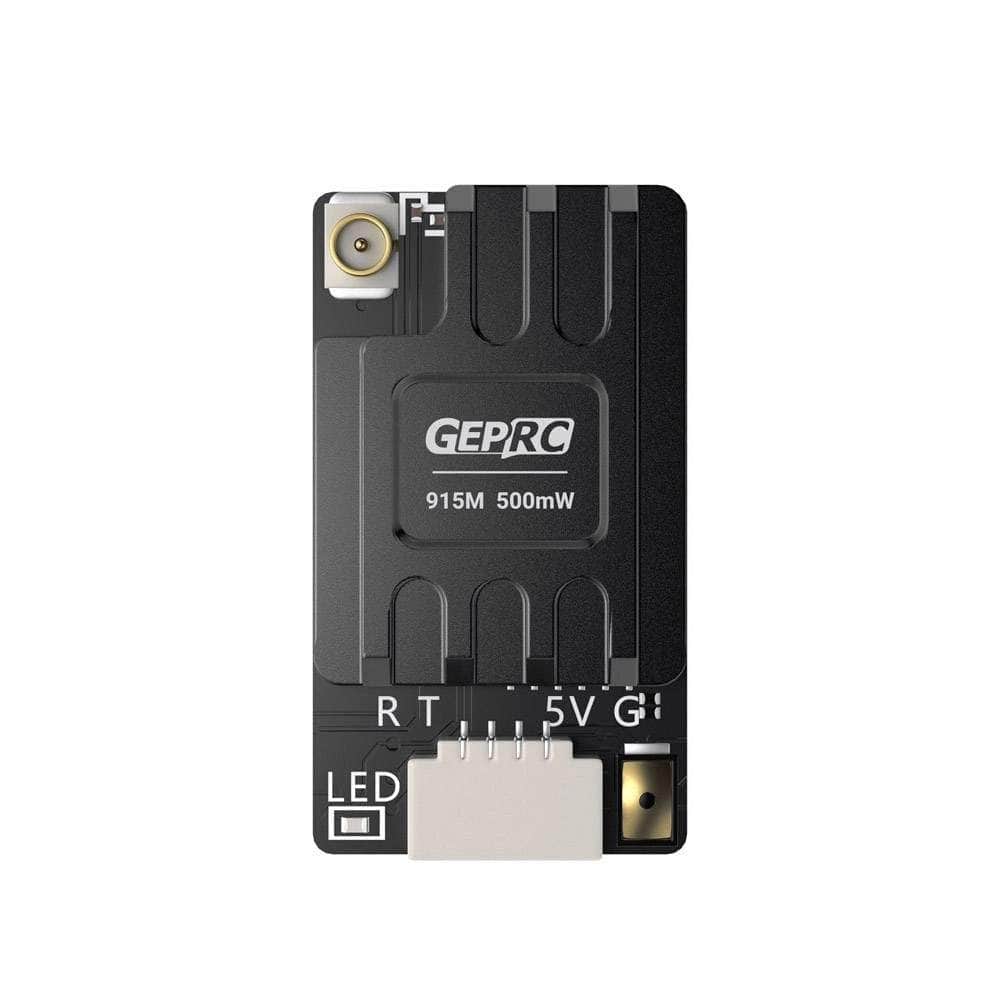

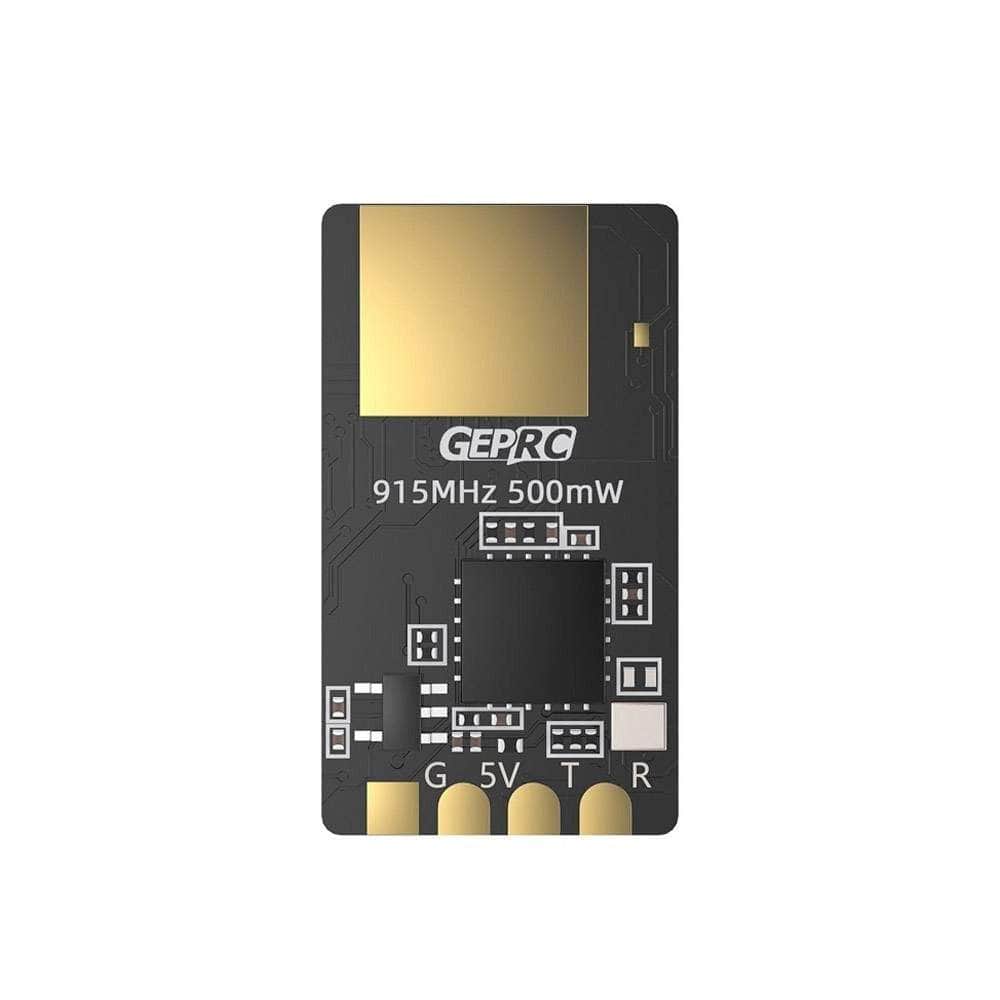

GEPRC Nano PA500 Receiver - ELRS 915MHz

Description

The GEPRC ELRS Nano 915M PA500 Receiver is an advanced ExpressLRS-based receiver. The PA500 is ready fir long-range and has low-latency. Equipped with a TCXO and heat sink to prevent frequency shifts, a high-power PA chip for 500 mW telemetry, built-in WiFi for easy firmware updates.

Check out our other great receivers, as well as the rest of our GEPRC selection.

Features

• Temperature-Compensated Crystal Oscillator (TCXO)

• ELRS Open-Source Compatibility

• Enhanced Heat Dissipation

• WiFi Firmware Upgrade

• Compact Size

• Lightweight

Specifications

• Model: GEPRC ELRS Nano 915M PA500 Receiver

• Frequency Band: 915 MHz (FCC) / 868 MHz (EU)

• Firmware: GEPRC Nano 915M PA500 RX

• Dimensions: 13 x 23 x 5.5 mm

• Refresh Rate: 25 Hz - 200 Hz

• Antenna Connector: IPEX1

• Telemetry Power: 500 mW

• Chips: ESP8285, SX1276

• Crystal Oscillator: TCXO

• Weight: 1.9 g (RX only)

• Operating Voltage: 5V

Includes

• 1x GEPRC Nano PA500 Receiver - ELRS 915MHz

• 1x 4pin Silicone Cable

• 1x User Manual

• 1x Heat Shrink

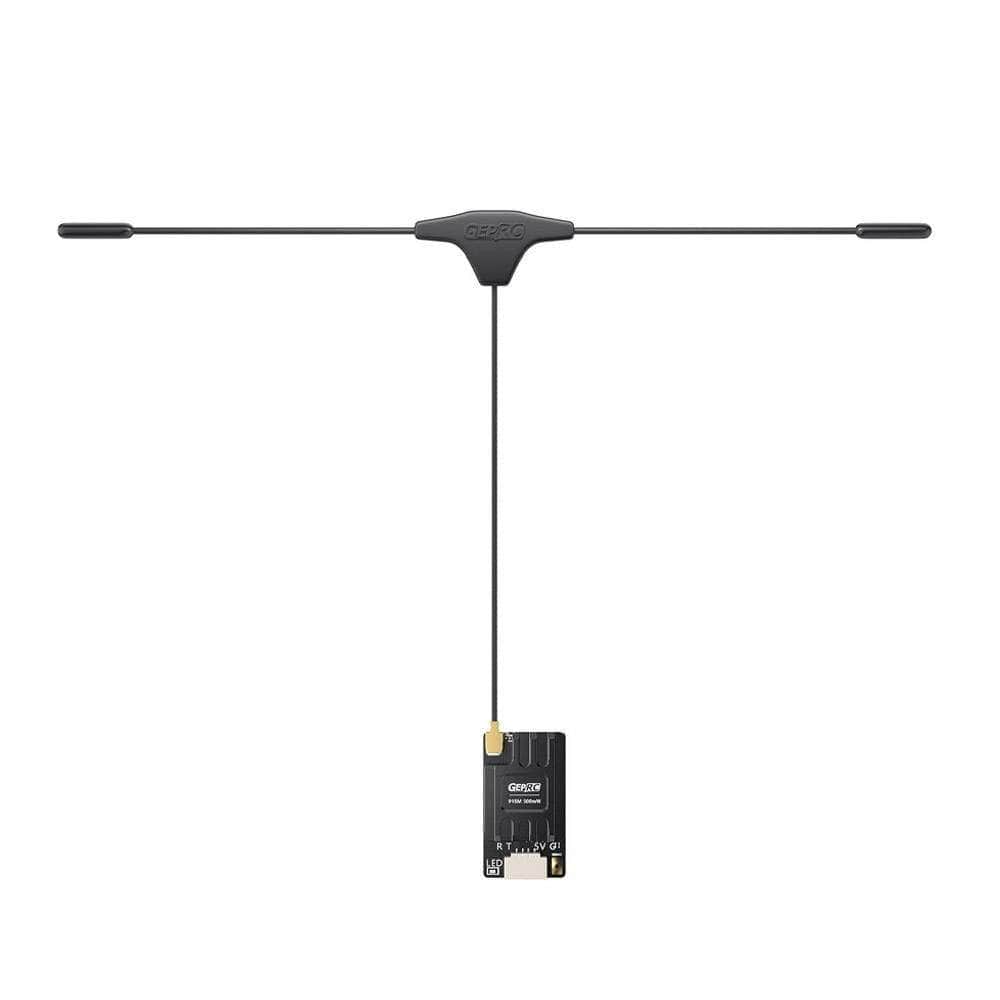

• 1x Antenna
