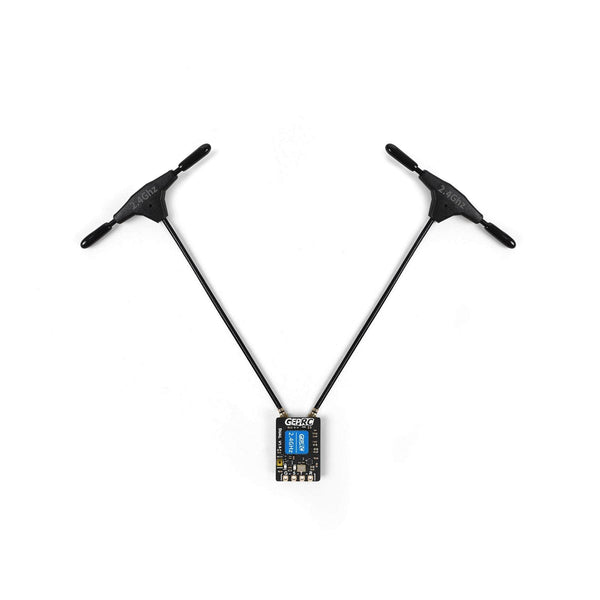

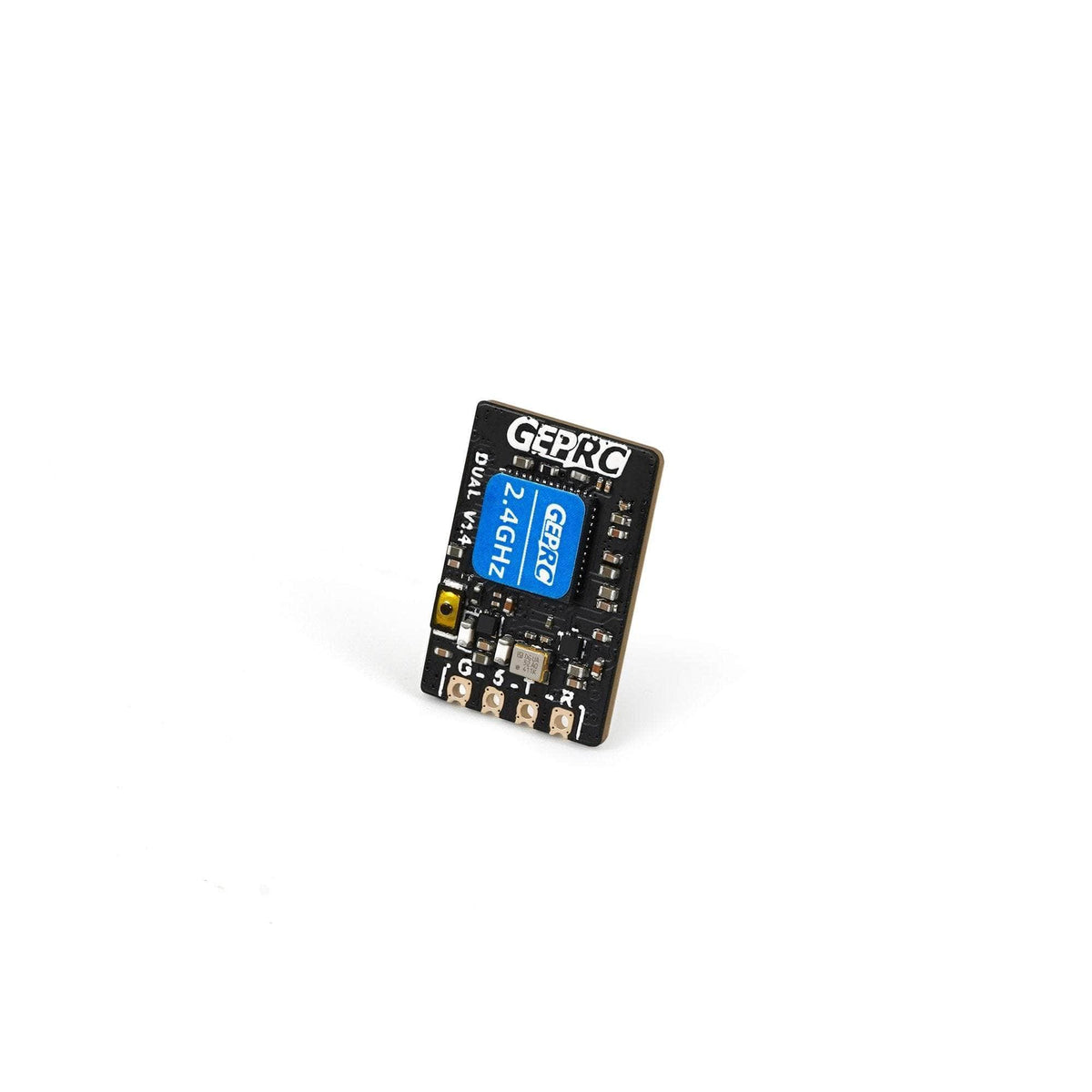

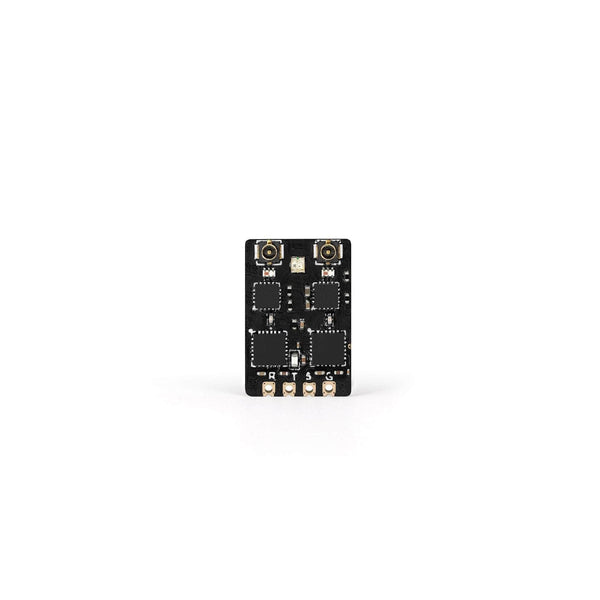

GEPRC ELRS 2.4GHz Dual RX Diversity Receiver

Description

Features

• 20mmx14mm Small size

• 1.2g weight

• WIFI Upgrade firmware

• ELRS open source project, remote control

• Maximum refresh rate of 1000Hz

• Two independent RF receiving links, true diversity receiver

• The use of a temperature-compensated crystal oscillator (TXCO), no fear of high or
• low-temperature impact, more stable performance, even if long hours of work is
• not easy to cause loss of control

• Built-in PA + LNA, up to 100mW telemetry power

Specifications

• Size: 20x14mm

• Weight: 1.2g (RX only)

• Chips: ESP32-PICO-D4, SX1281

• Crystal Oscillator: TCXO

• Frequency Band: 2.4GHz ISM

• Refresh Rate: 25Hz-1000Hz

• Input Voltage: 5V

• Antenna Connector: ipex1

• Indicator Light: RGB light

• TLM Power: 20dBm

Binding

The factory firmware version of ELRS DUAL 2.4G Diversity Receiver is above 3.x , 3.x and 2.x firmware are not compatible, so the TX module firmware needs to be upgraded to above 3.x before binding.

1. Power on and off the diversity receiver three times with 1 second between each interval continuously to enter the Binding Mode.；
2. RGB indicator flashes twice quickly on the diversity receiver, indicating that the receiver is now in Binding Mode.；
3. Configure remote control or transmitter module to bind with the receiver; If the receiver RGB indicator is solid on, this indicates that the receiver has successfully bound.

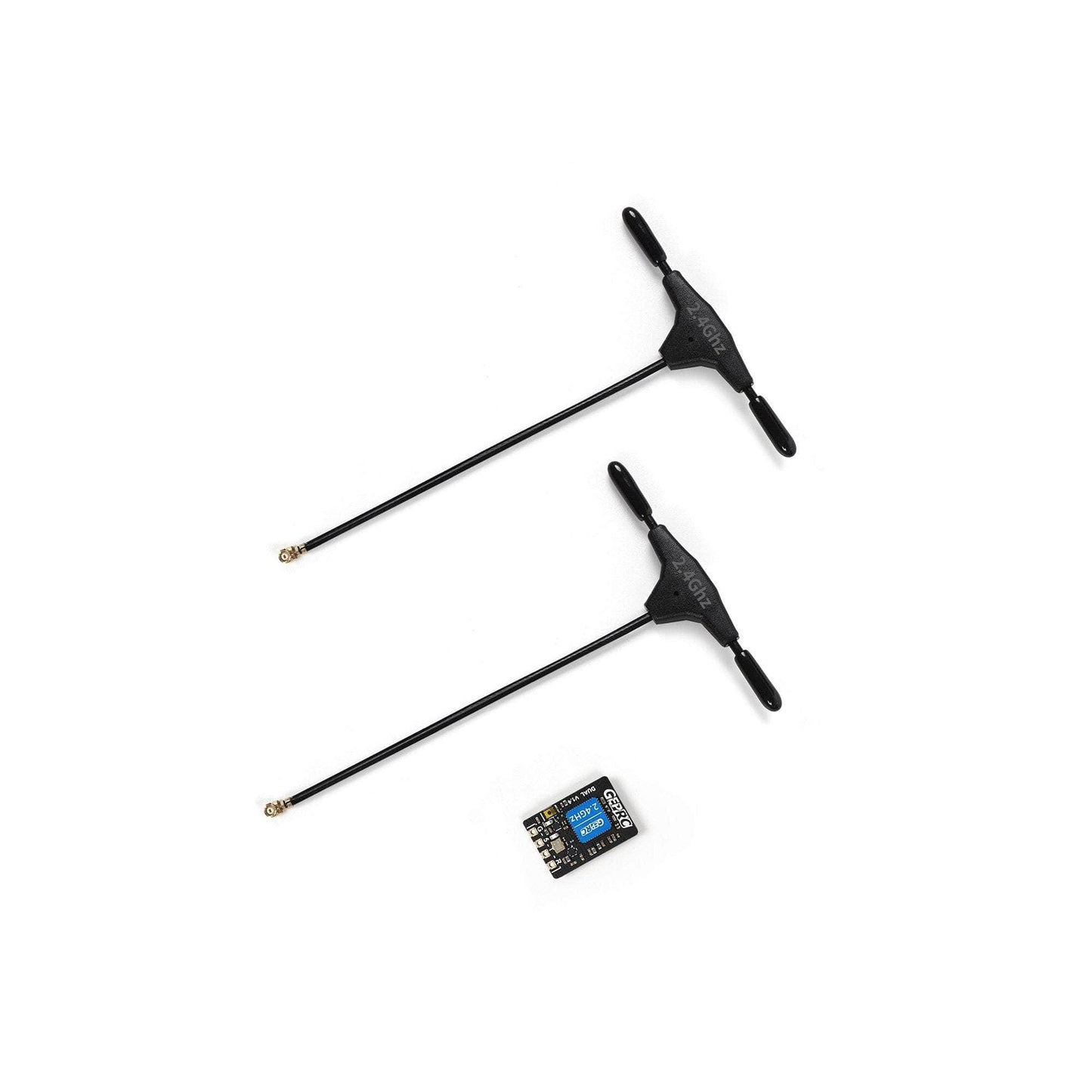

Includes

• 1x GEPRC ELRS 2.4GHz Dual RX Diversity Receiver
• 2x ELRS 2.4GHz Antenna
