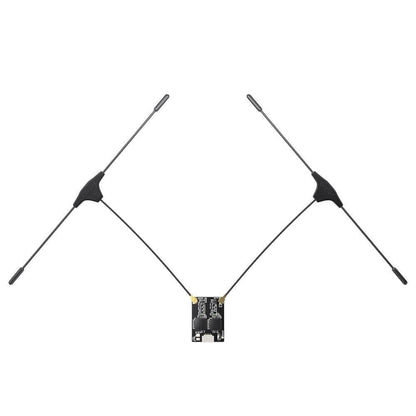

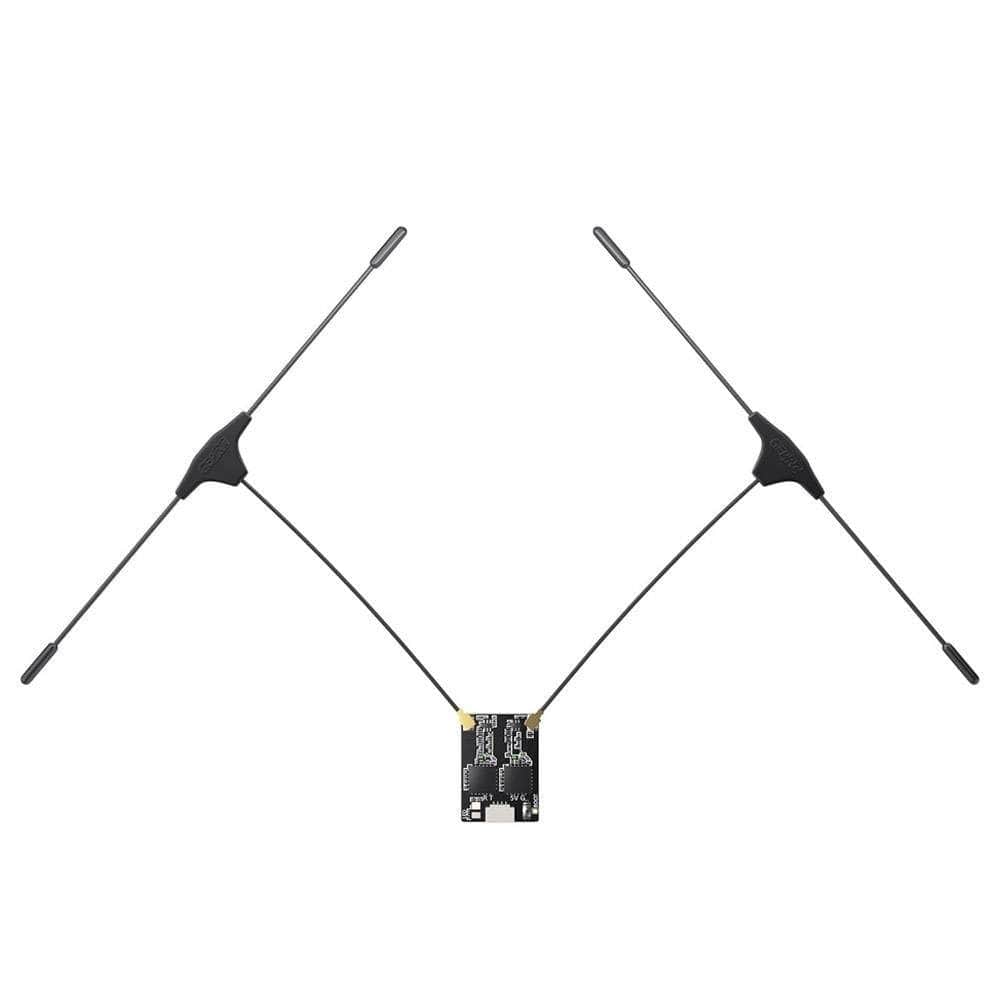

GEPRC Dual Antenna Diversity Receiver - ELRS 915MHz

Description

The GEPRC ELRS DUAL 915M Diversity Receiver is a next-gen, diversity receiver with ELRS protocol for delivering superb long-range operation and low latency. Its dual antennas ensure broad signal and stable connections, while the TCXO prevents frequency shifts due to temperature changes. With a built-in WiFi antenna for easy firmware updates and an SH1.0 connector, this receiver will quickly replace that old one.

Check out our other great receivers, as well as the rest of our GEPRC selection.

Features

• Temperature-Compensated Crystal Oscillator (TCXO)

• ELRS Open-Source Compatibility

• WiFi Firmware Upgrade

• True Diversity Receiver

• Compact Size

Specifications

• Model: GEPRC ELRS DUAL 915M Diversity Receiver

• Frequency Band: 915 MHz (FCC) / 868 MHz (EU)

• Firmware: GEPRC True Diversity 900 MHz RX

• Chips: ESP32-PICO-D4, SX1276

• Dimensions: 18 x 25 x 5.5 mm

• Refresh Rate: 25 Hz - 200 Hz

• Antenna Connector: IPEX1

• Crystal Oscillator: TCXO

• Weight: 1.7 g (RX only)

• Operating Voltage: 5V

• TLM Power: 50 mW

Includes

• 1x GEPRC Dual Antenna Diversity Receiver - ELRS 915MHz

• 1x 4pin Silicone Cable

• 1x Heat Shrink Tube

• 1x User Manual

• 2x Antenna
