FOXEER Antenna Red / LHCP Foxeer Micro Lollipop 5.8GHz RP-SMA Antenna 2 Pack - Choose Version

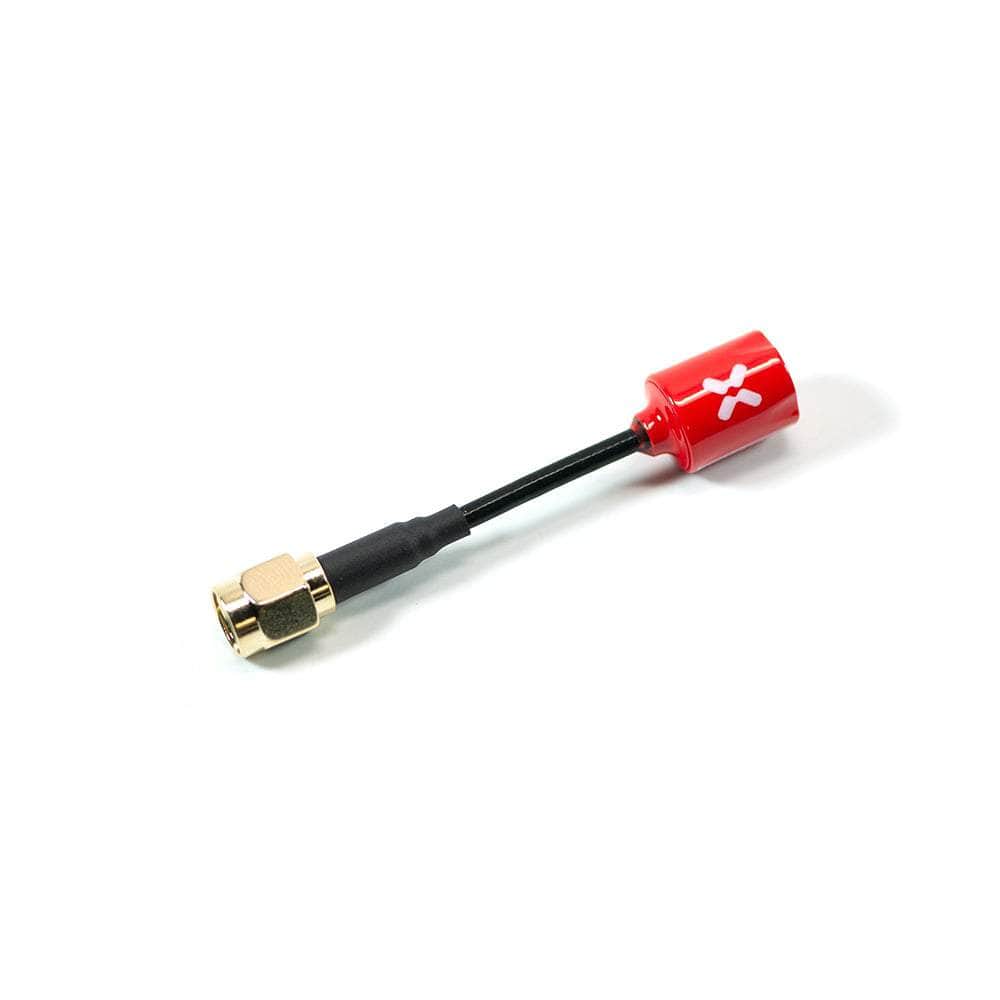

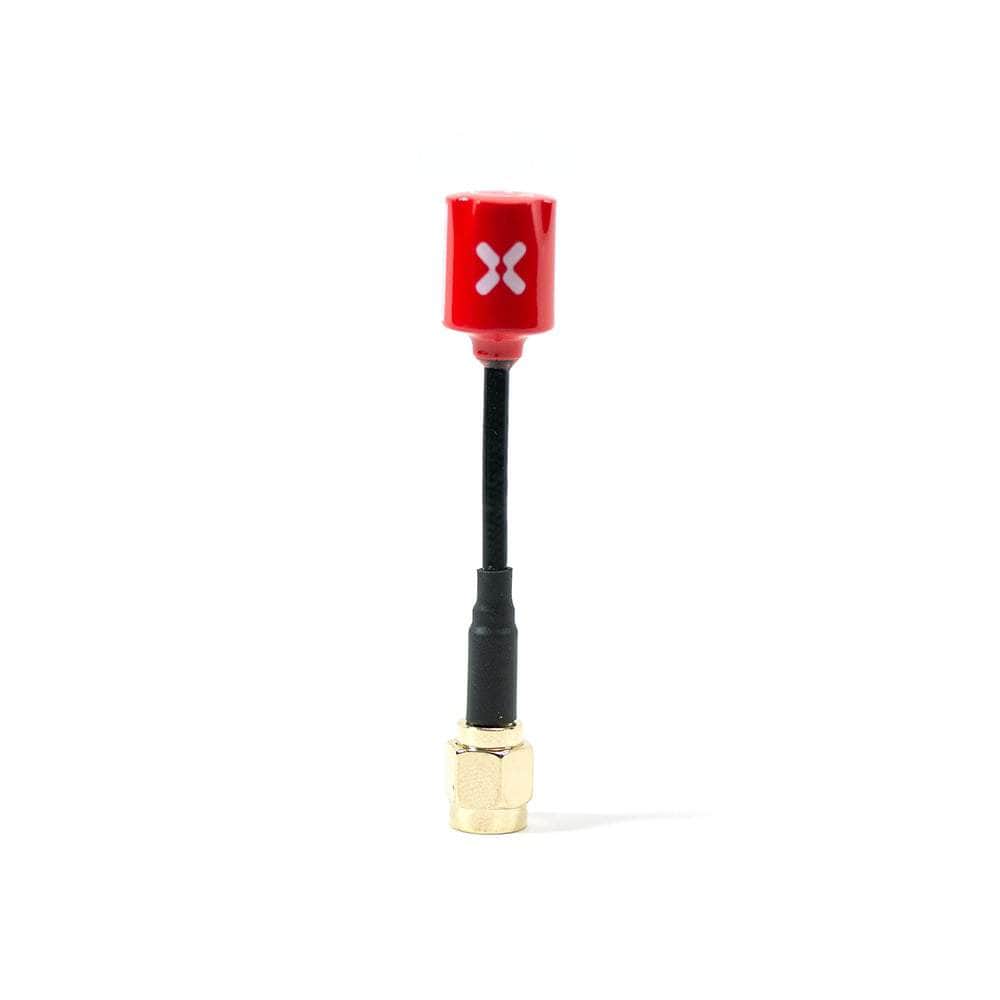

Foxeer Micro Lollipop 5.8GHz RP-SMA Antenna 2 Pack - Choose Version

$19.89
$19.89 - $19.89
$19.89 - $19.89
$19.89
Color :
Polarization :
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

Foxeer FPV antennas are known for their great performance and price, with these new micro Lollipop antennas they are bringing that same performance to the micro world like Toothpick and Ultralight builds. But that does not mean they still can't be used in bigger rigs!

Check out the rest of our VTX Antennas and our selection of Foxeer products!

Features

  • Smaller, Lighter but stronger
  • Durable structure
  • Available in 3 different colors
  • Ultra Lightweight

Specifications

  • Center Frequency: 5.7GHz
  • Gain: 2.5dBi
  • Axial Ratio: Close to 1
  • Band Width: 5.5G~6GHz
  • Radiation Efficiency: 98%
  • SWR: 1.06 at Center Frequency
  • Connector: RP-SMA
  • Dimension: 11*65mm
  • Cable Length: 51mm
  • Polarization: RHCP/LHCP
  • Case Material: PC+ABS
  • Cable: RG178 SFX086
  • Weight: 4.7 Grams

Includes

  • 2x Foxeer Micro Lollipop 5.8GHz RP-SMA Antenna

More Information:

  • SKU: FOXE-PA1448##LHCP_RED_RPSMA
  • Barcode: 691023505025
