FLYWOO Motor Flywoo Robo 1002 23,500Kv Micro Motor

Flywoo Robo 1002 23,500Kv Micro Motor

$12.99
$12.99 - $12.99
$12.99 - $12.99
$12.99
In Stock
Add to Wishlist
Ask a Question

Details

Description

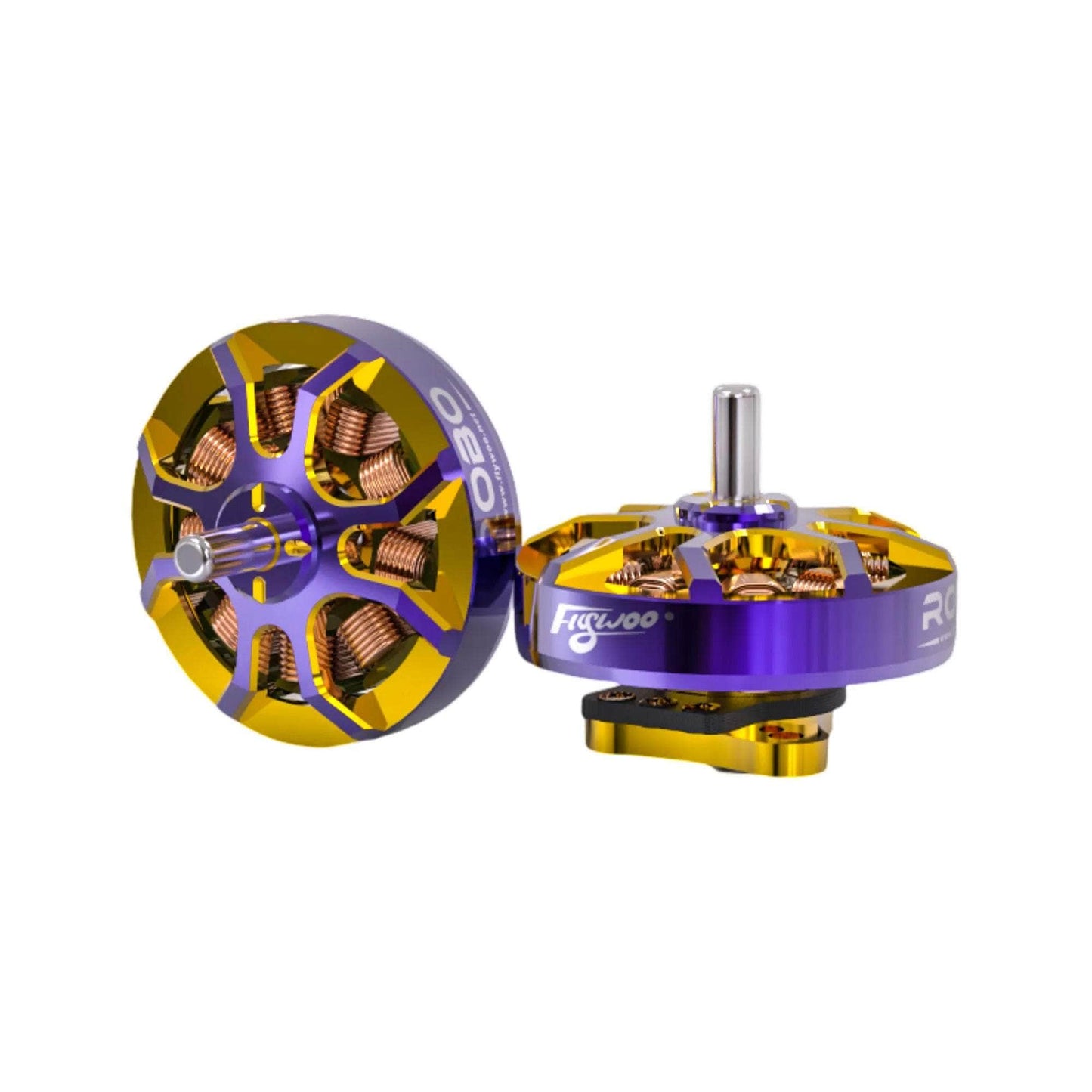

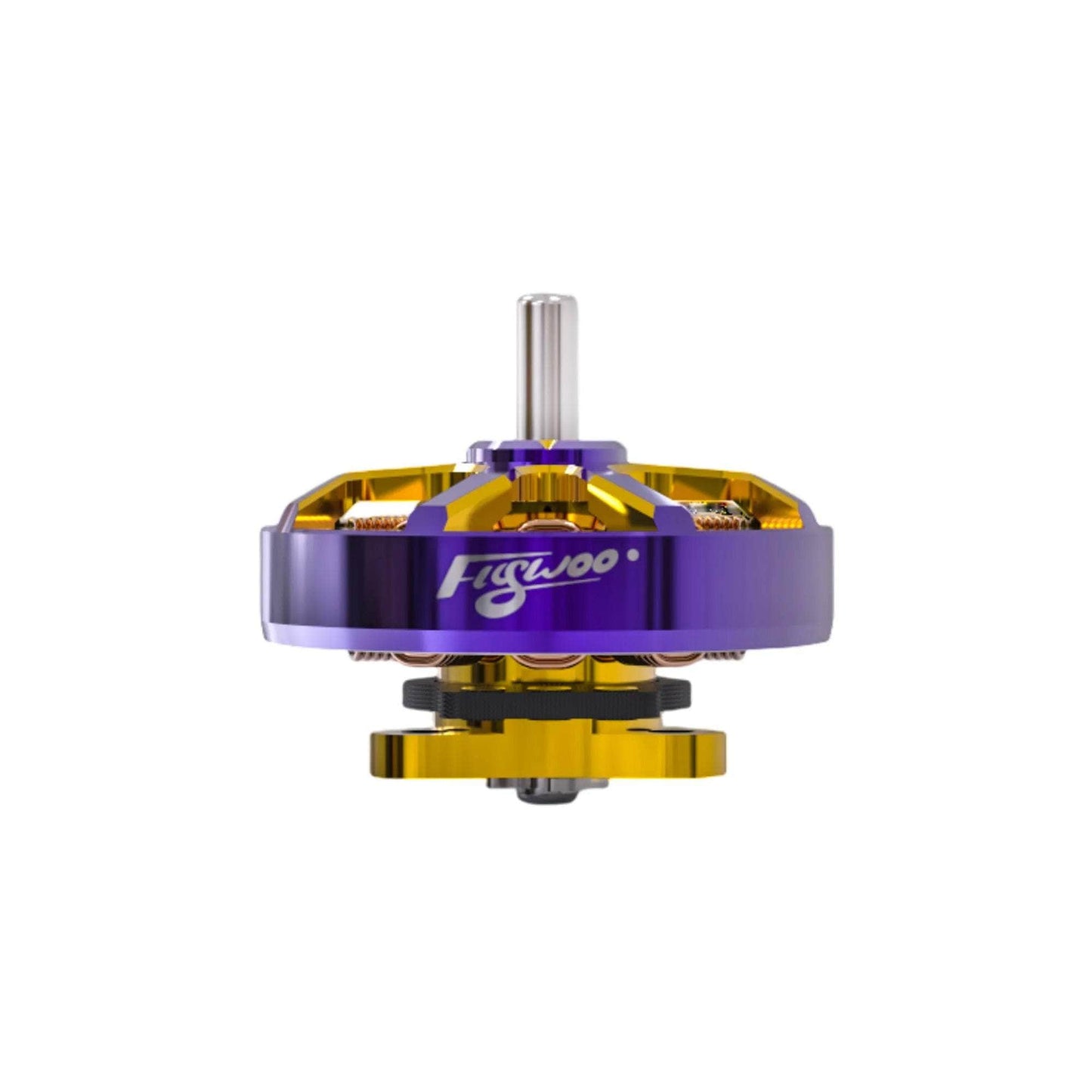

Replacement motor for the Firefly DC16 or a new motor to style out your next micro build with this purple and gold micro motor from Flywoo. Rated with a stator 1002 and Kv of 23,500, giving you great power for your whoop builds.

Check out our Micro Motors and Flywoo gear selection!

Specifications

  • KV: 23500
  • Stator: 1002
  • Motor Bolt Pattern: 6mm Tri-Mount
  • Configuration: 9N12P
  • Stator Diamter: 10mm
  • Stator Length: 2mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension(Dia.xLen): Φ13.5x7.75mm
  • Weight(g): 2.5(5cm wire)
  • Idle current(5)@5V(A): 1.5
  • No.of Cells(Lipo): 1S
  • Max Continuous Power(W)3S: 52
  • Internal Resistance: 75mΩ
  • Max Current(3S): 14A
  • Max Efficiency Current: (2-4A)>84%

Includes

  • 1x Flywoo Robo 1002 23500Kv Micro Motor
