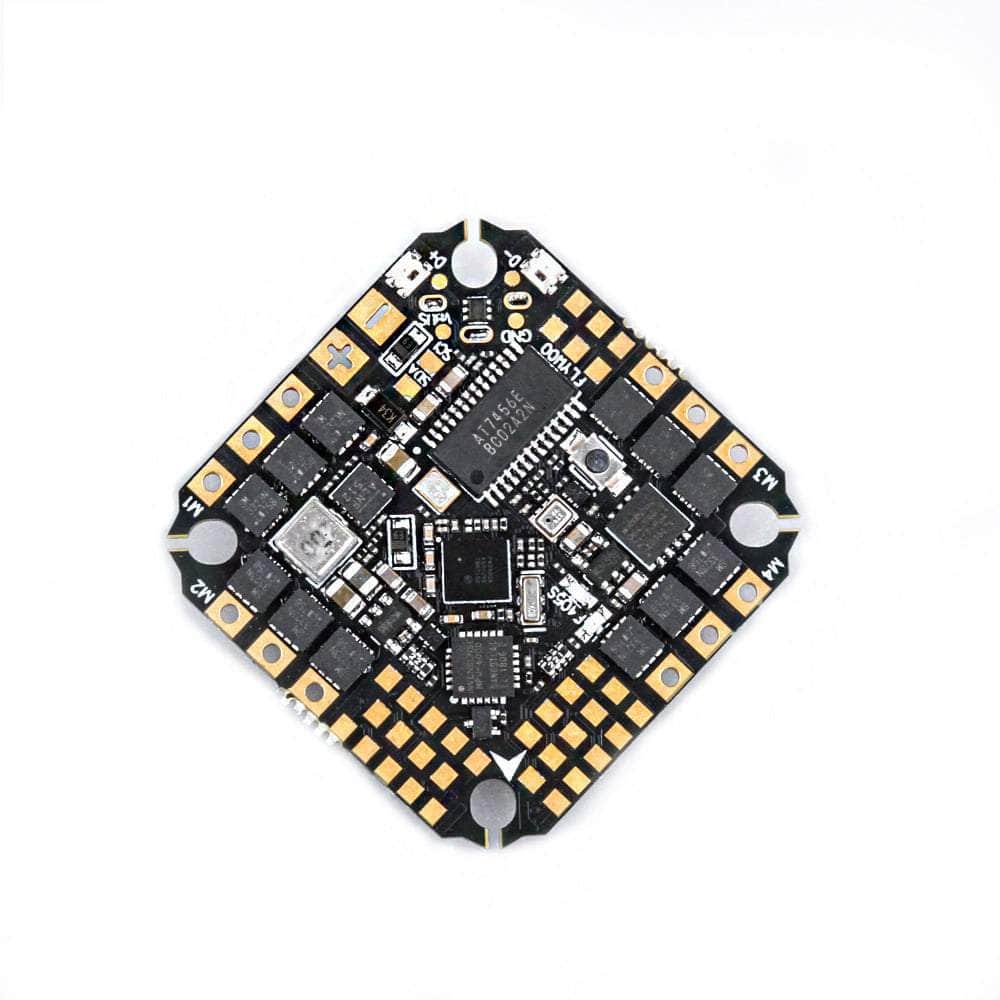

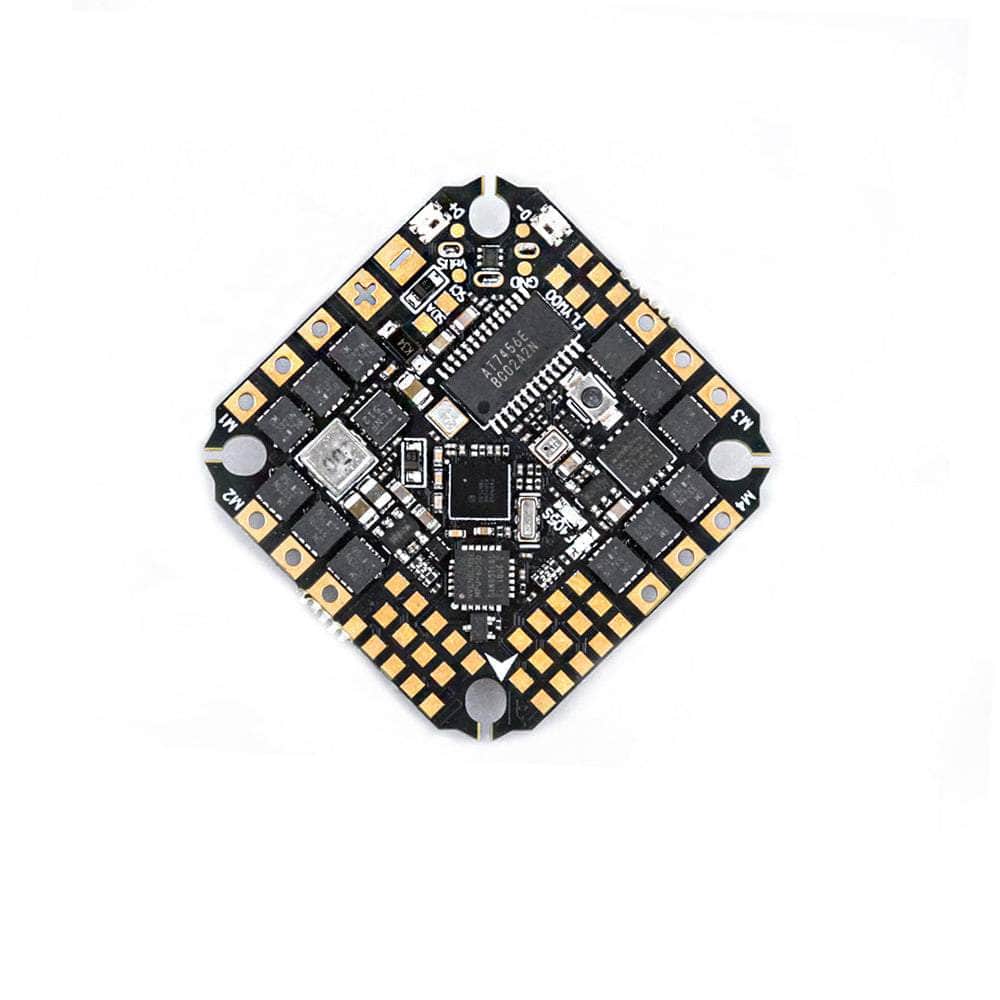

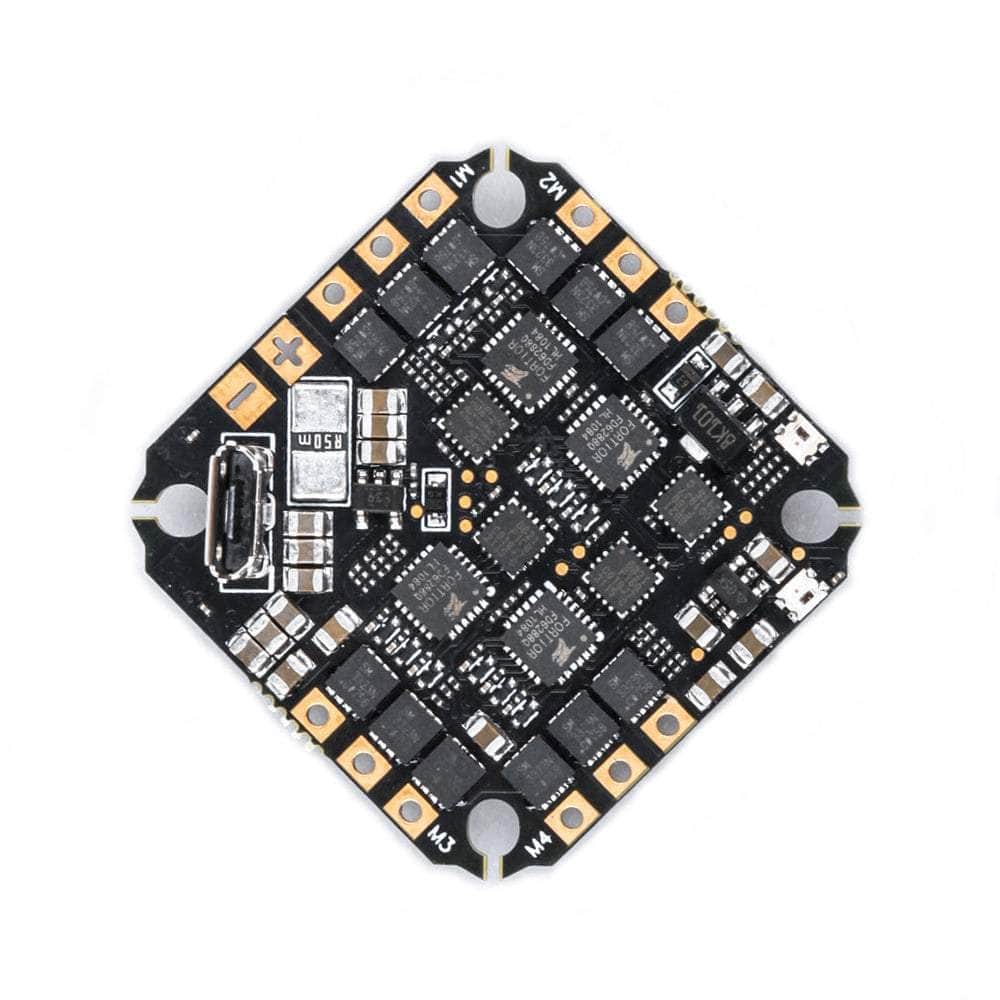

Flywoo GOKU F405S 2-6S AIO Whoop/Toothpick Flight Controller w/ 40A 8Bit 4in1 ESC

Description

Meet the new Flywoo GOKU F405 2-6S AIO Whoop/Toothpick Flight Controller w/ 40A 8Bit 4in1 ESC. This advanced system is made with the powerful F405 chip, with a integrated 5V BEC, barometer, black box, and WS2812LED, as well as 6 complete hardware serial ports, I2C and other functions. Everything you need for a reliable and efficient flight experience.

Look at our other Whoop/AIO Flight Controllers, as well as the rest of our Flywoo selection.

Feature

• This AIO come installed with a MPU6000
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• The GOKU includes a barometer
• Featuring a Black Box
• Current Sensor

Specification

• MCU: STM32F405 BGA  8bit processor
• IMU: MPU6000
• Barometer: BMP280
• Onboard LED: WS2812x4
• 6 hardware UARTS (UART1,2,3,4,5,6)
• Onbord Storage: 8Mbytes for Blackbox logging

• 5V Power Out: 2.0A max

• 3.3V Power Out: 0.5A max
• Dimensions: 33.5x33.5mm
• Mounting Holes: Standard 25.5x25.5mm

• Weight: 8.5g

• Input Voltage: 2-6S Lipo

• Continuous Current: 40A
• Firmware: BLHELI_S

Includes

• Flywoo GOKU F405 2-6S AIO Whoop/Toothpick Flight Controller w/ 40A 8Bit 4in1 ESC
• 1x XT60H-M Power Lead
• 4x Black M2 grommets
• 1x Capacitor
• 1x Sticker
