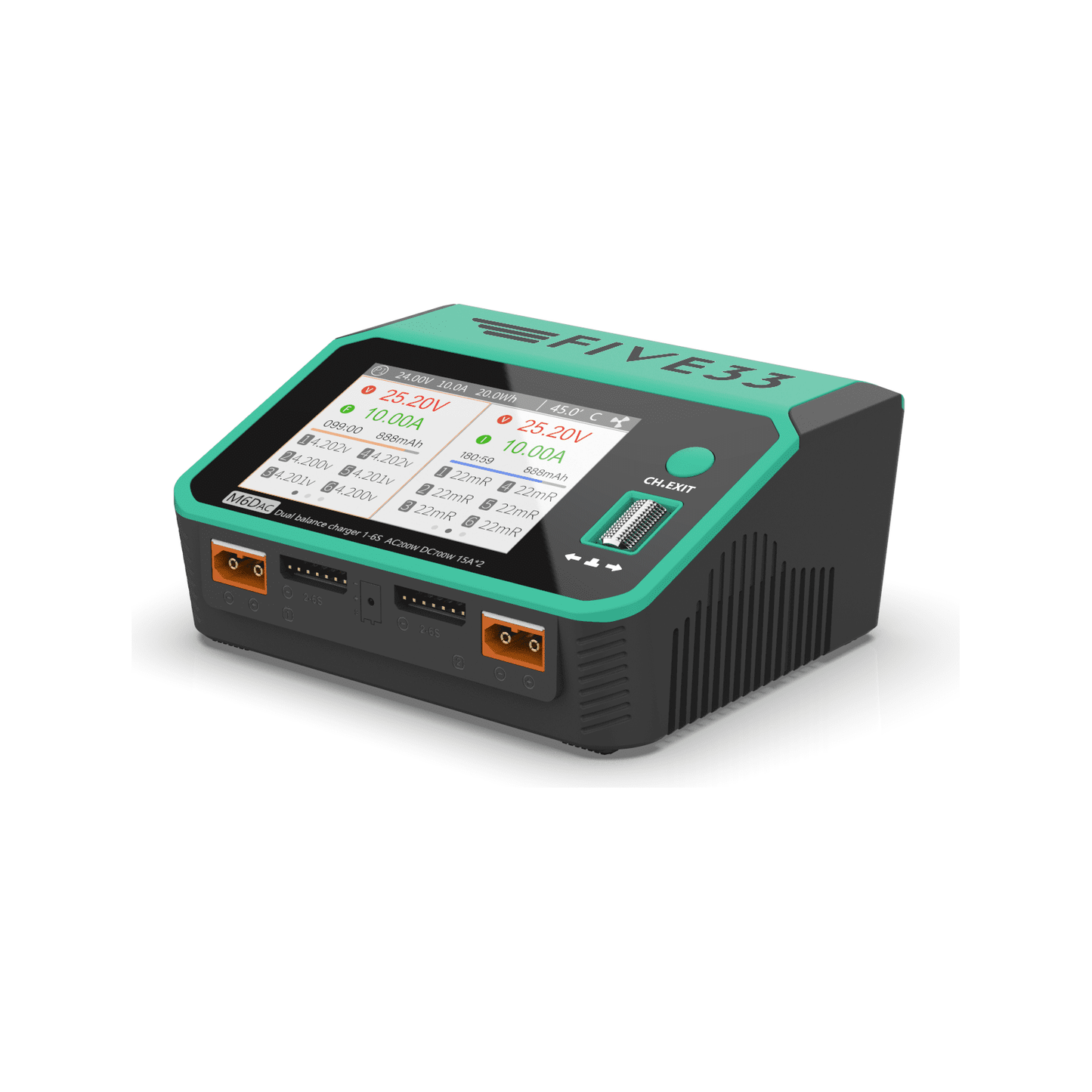

The Five33 M6DAC 200w AC/DC Smart Charger is a desktop power supply with a 3.5" IPS wide-angle display and 65w fast charge output. This power supply has an AC/DC dual-mode input which is ideal for your charging needs. The metal dial wheel allows for better control and can withstand well over 100,000 clicks!
Custom Five33 Firmware Features:
-Continuous work mode by default- Ever out practicing and hate having to unplug a battery, plug in a new one and go through the menu's again to start a new charge? even though it's exactly the same settings you always use? Continuous work will automatically start the next charge once it detects you put on a dead battery. You unplug the charged battery, plug in the new battery, and it will automatically charge for you with the identical settings.
-Trickle charge by default - the standard in all modern chargers, when the charge is complete the charger will keep your battery topped off completely
- Easy to see channel indicators - the previous toolkitrc charger firmware made it very difficult to tell which port you had selected. Now it is easier then ever to see what port is selected and which one is done charging!
-Dark mode by default - You have the option to change to the bright mode, but c'mon dark mode is so cool haha
-Sound off by default - sometimes I swear I hear charger beeps in my sleep. But not anymore
Features
- 3.5" IPS Panel with 48x320 Resolution Display
- Multi Dial Wheel with Tactile Feel
- Higher DC-Input Voltage (7-28V)
- 65W TypeC Fast Charge Output
- Dual-Channel Charge Function
- Built-In 200w AC Power Supply
- IPS Full Viewing Angle Display
- No External Adapter Needed
- Multilingual User Interface
- AC/DC Dual Mode Input
- IPS Wide-angle viewing
Specifications
- USBC protocol: PD,QC,AFC,FCP,SCP,PE,SFCP,VOC
- USBC power: MAX 65W 3.25A @20.0V or Upgraded
- Charger power:
- 0.1-15A @350W *2 (Asynchronous mode)
- 0.1-25A @700W (Synchronous mode)
- Discharge power:
- 350W @MAX 15A *2（Recycle mode)
- 15W@3A *2 (Normal mode)
- LCD: IPS 3.5 inch LCD 480x320 Pixel
- Internal resistance: 1-100mR@1-6S
- Input voltage:
- DC 7.0-28.0V @MAX 30A
- AC 100-240V @ MAX 2.5A
- Type of battery:
- Lipo LiHV LiFe Lion@1-6S
- NiMh @1-16S Pb @1-10S
- Battery voltage: 1.0V-5.0V@1-6S
- Balance current: 1000mA @2-6S
- Product size: 127x106x57 mm
- Pack size: 158x134x63 mm
- Balance accuracy: <0.005V
- Product weight: 520g
- Pack weight: 700g
Includes
- 1x Five33 M6DAC 200w AC/DC Smart Charger
