Description

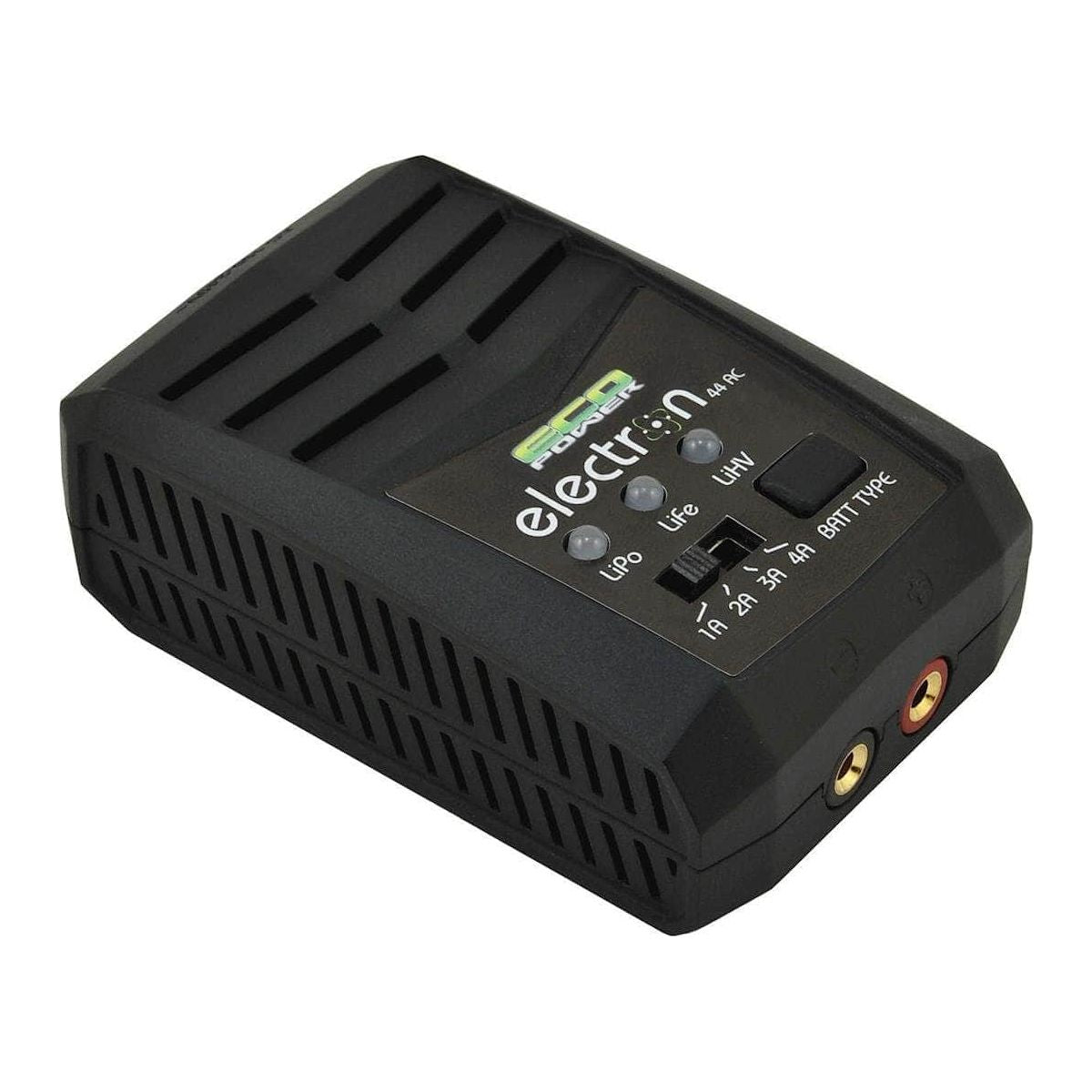

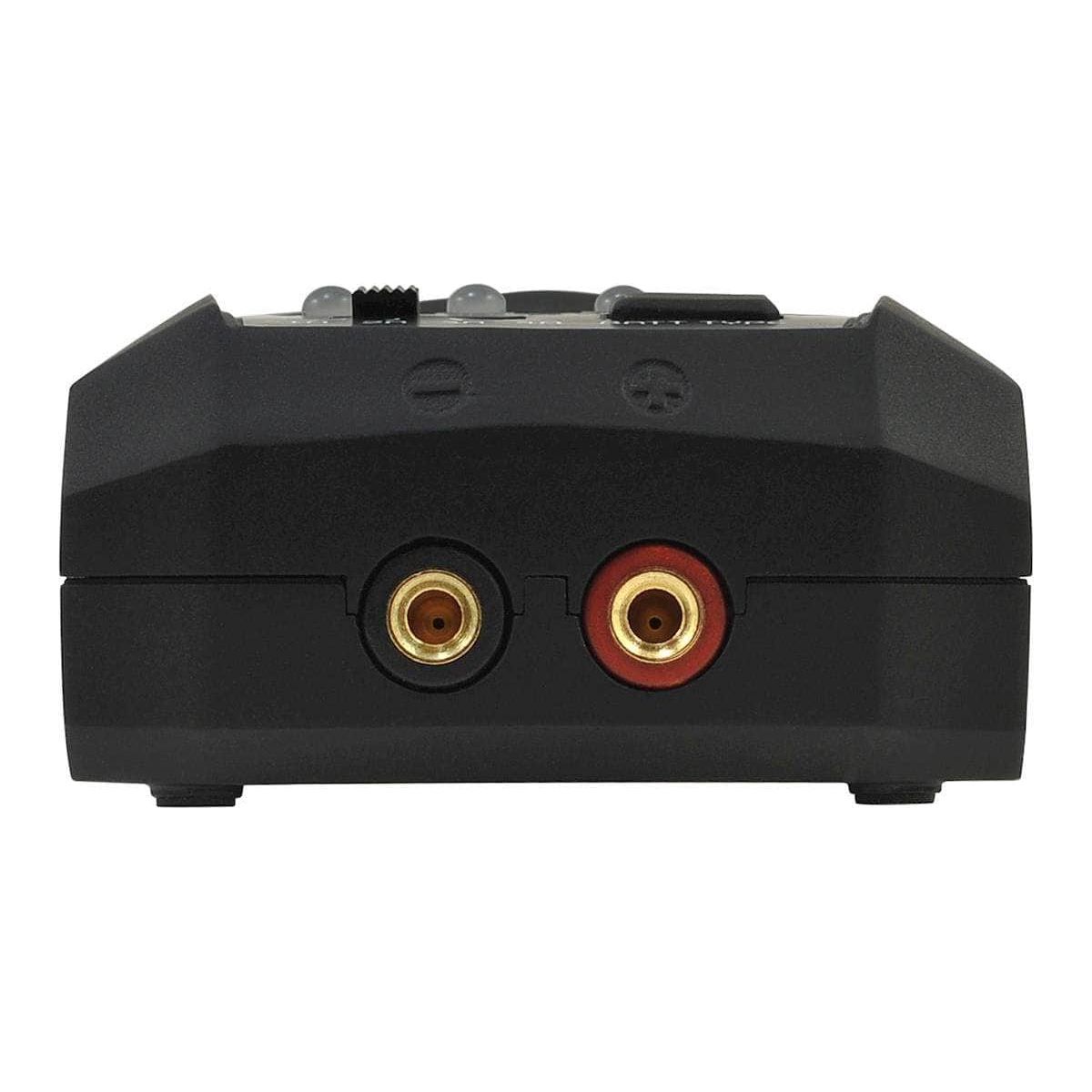

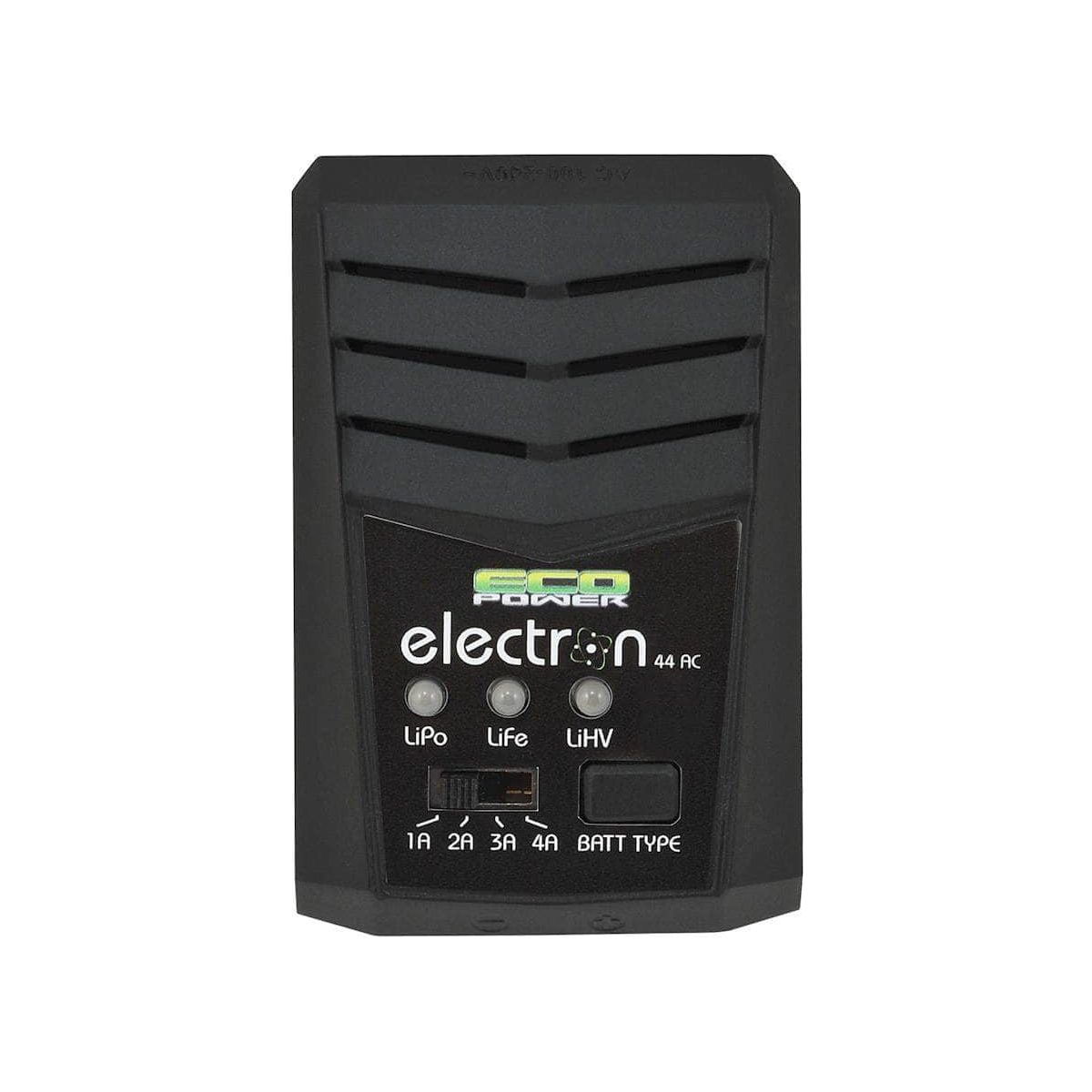

ECP-1006, EcoPower "Electron 44 AC" LiHV/LiPo/LiFe Battery Charger (2-4S/4A/50W)
Simple, Versatile and LiHV Ready!
This is the EcoPower "Electron 44 AC" LiHV/LiPo/LiFeMulti-Chemistry AC Battery Charger. Every hobby enthusiast is unique, each with their own specific needs and expectations. Not everyone needs a professional grade, high performance battery charger, while others simply don’t want to spend big bucks on the latest “flavor of the month”. The common thread between these customers is they both want a reliable and affordable charger that can charge anything and at the same time provide consistent performance. EcoPower is ready to deliver with the Electron 44 AC!
The EcoPower "Electron 44 AC" is an electronically controlled single port balance charger that features a high performance microprocessor, combined with specialized operating software that allows you to reliably charge batteries of varying chemistry's and cell counts. Multiple charge modes, a 4S cell Lithium limit and an internal lithium cell balancer are only a few of the features that make this charger a powerful and flexible tool for any RC enthusiast. So stop beating yourself with cheap chargers, and buy from a trusted source that proves itself time after time with outstanding customer service and quality products at affordable prices!
Hi-Voltage Capable
This charger features a Hi-Voltage LiHV mode that allows you to safely charge Hi-Voltage LiHV capable batteries. You can adjust the charging end voltage of this mode up to 4.40V per cell, which is considerably higher than 4.20V per cell of an ordinary LiPo battery. Charging at this higher end voltage requires a Hi-Voltage LiHV capable battery, but the power gains are significant to the overall punch and power for the R/C model. But please note: battery voltages exceeding 4.20V per cell is prohibited from sanctioned racing rules, such as ROAR, IFMAR, etc.
Features:
-
Multi-Chemistry Versatility
- 50W Dedicated Power Supply
- 2S, 3S & 4S LiPo, LiFe and LiHV Compatibility
- Selectable Amperage Charge Rate
- Compatible with XH Balance Plug
- LED Status Indication
- Small & Lightweight
- Ultra Portable Design
Specifications:
-
AC Input: 100-240 Volt 50/60Hz
-
Chemistry: LiPo/LiFe/LiHV
-
LiPo/LiIon/LiFe Cell Count: 2-4 Cells
-
Charger Current Range: 1A/2A/3A/4A (50W max)
-
Cell Terminate Voltage: LiPo: 4.2V; LiFe: 3.6V; LiHV: 4.35V
-
Current Drain for Balancing: 300mA
-
Net Weight: 220g
-
Dimensions: 69.4x110.7x40.5mm
Includes:
- (1) Electron 44 AC Charger

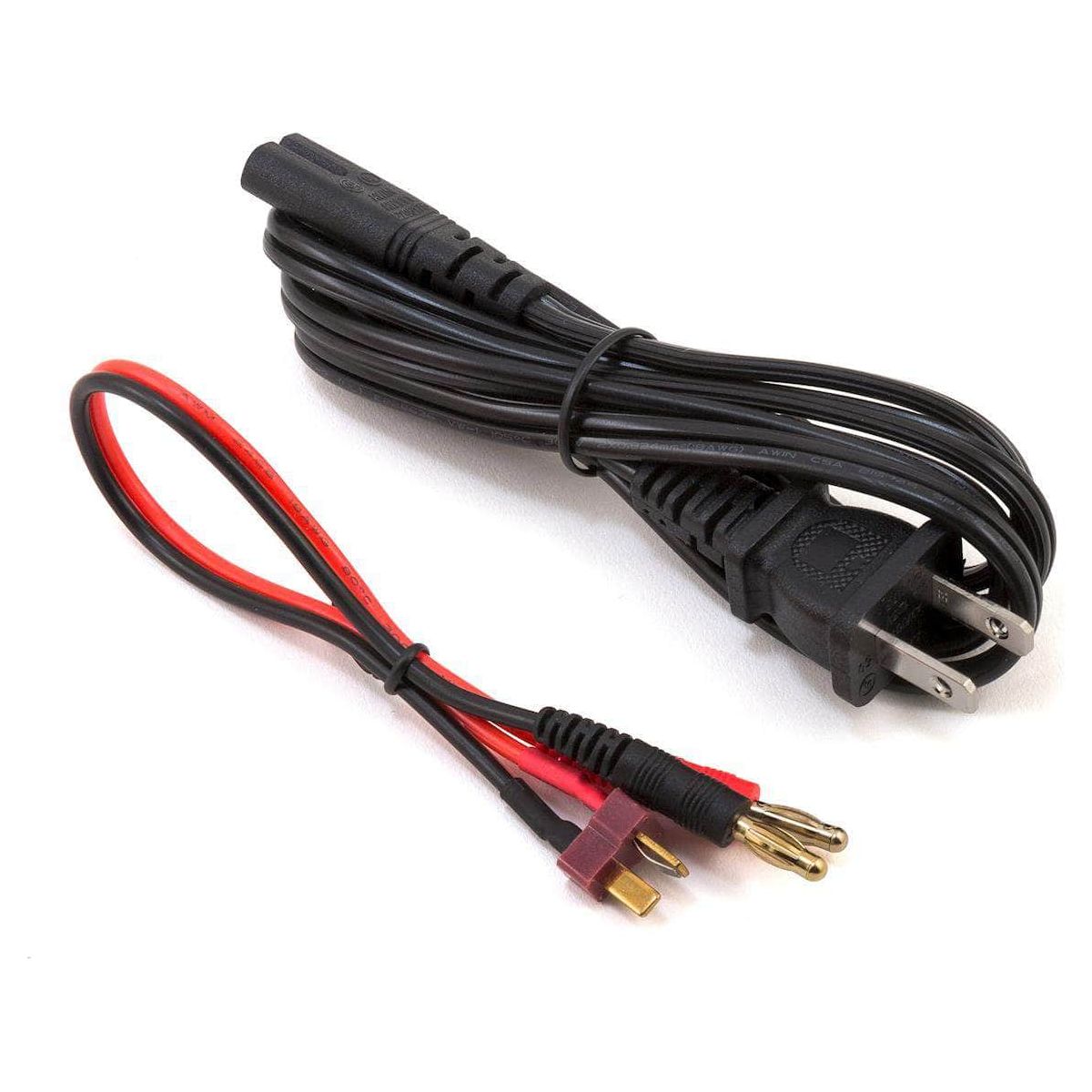

- (1) T-Style Charge Lead
- (1) Instruction Sheet
WARNING NOTE: This charger is not recommended for use with Traxxas batteries with ID connectors or Spektrum Smart batteries with IC connectors. Charging batteries equipped with ID or IC connectors may require additional steps in order to safely balance charge your Lipo batteries. Please refer to your vehicle or aircraft owner’s manual for recommended batteries and charging equipment.
LiPo Battery & Charger Warnings:
-
DO NOT leave the battery in your model when charging
-
DO NOT leave unattended when charging
-
ALWAYS balance charge the battery
-
ALWAYS use a LiPo charging bag
-
YOU MUST use a Li-Poly specific charger to charge the pack (NiMH or NiCd only chargers WILL NOT WORK!)
-
YOU MUST not over discharge the Li-Poly battery pack
-
READ & UNDERSTAND the instructions carefully before operating this battery
This product was added to our catalog on November 21, 2021
