Description
Please note, this item is NOT available for Returns or Exchanges!

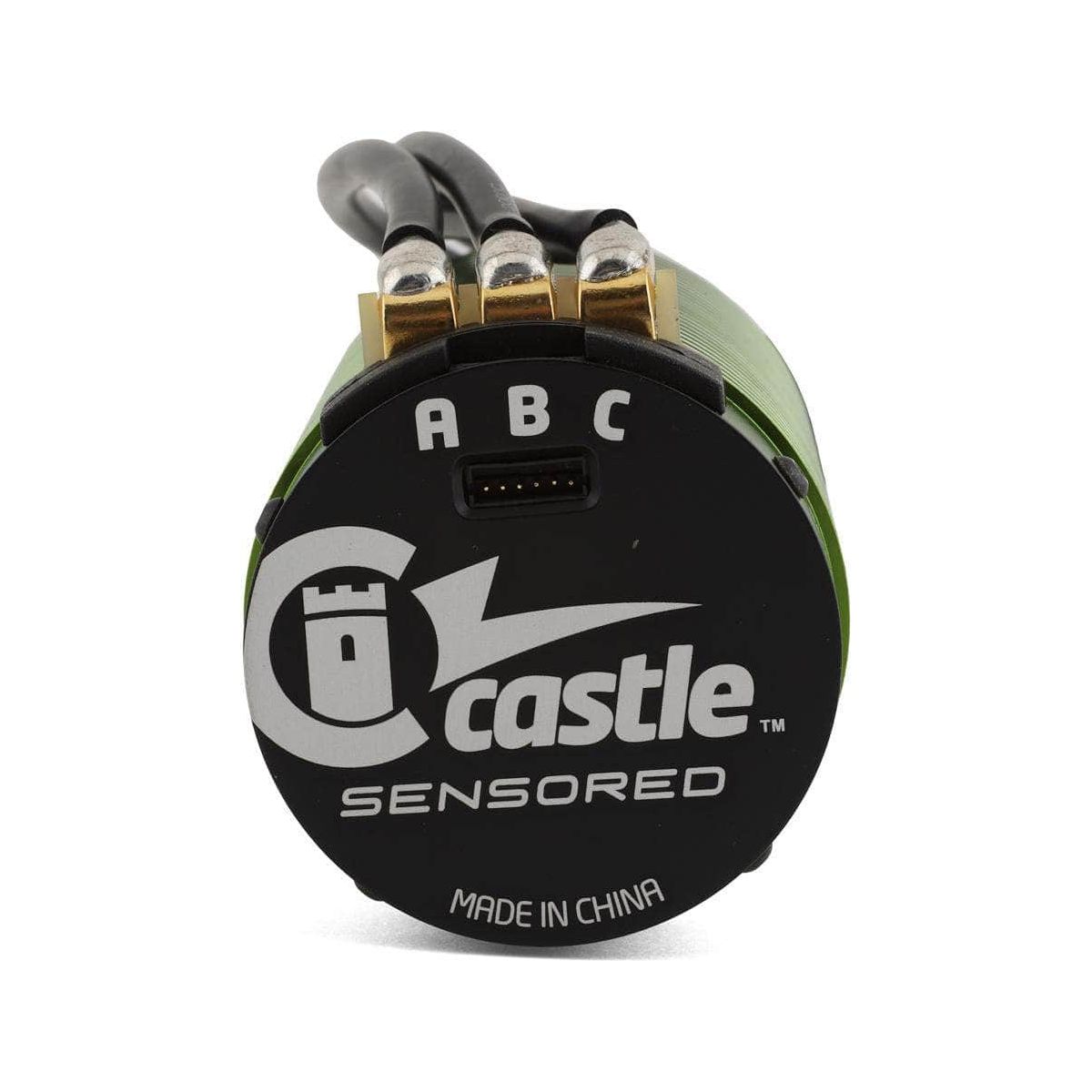

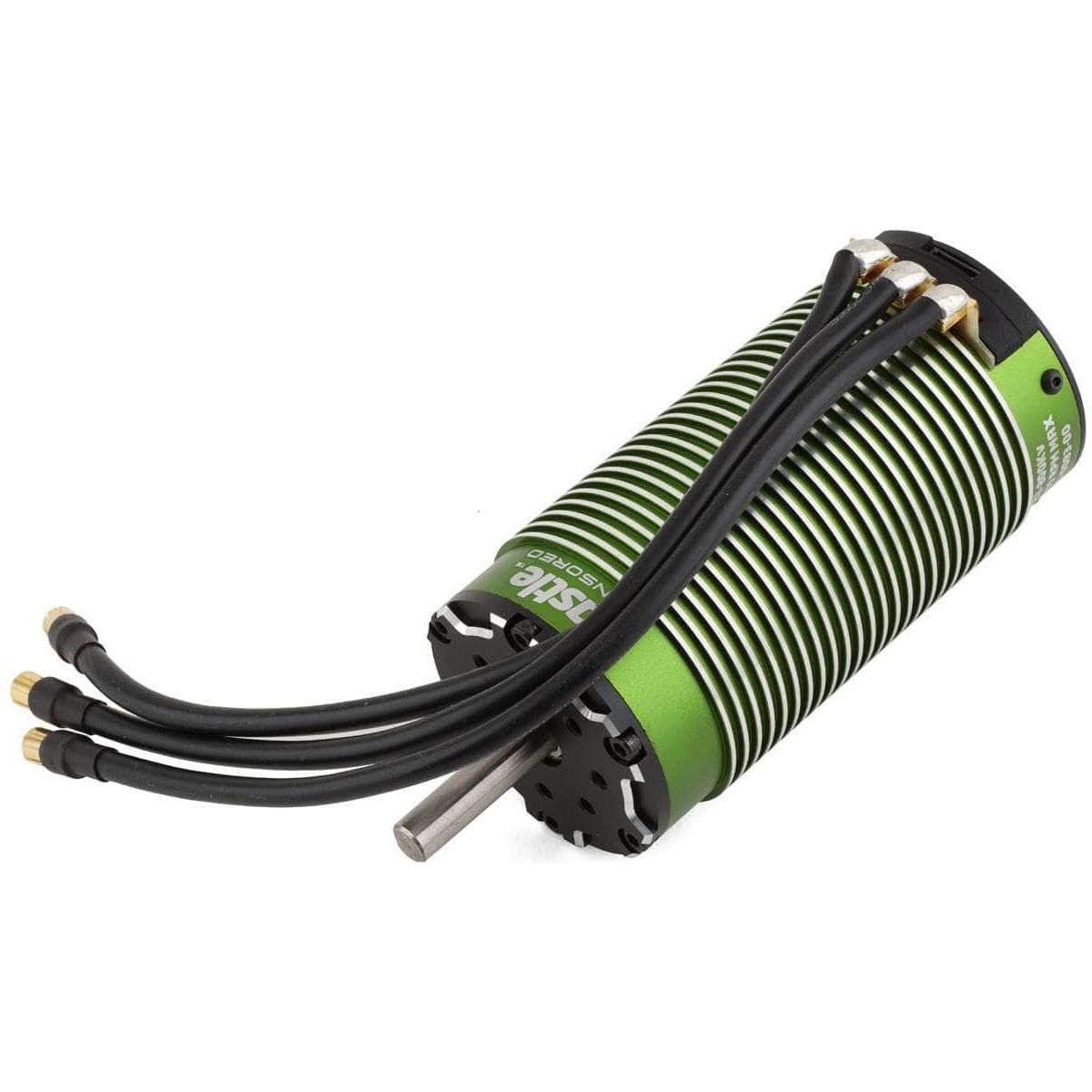

CSE060-0083-00, Castle Creations 2028 1/6 4-Pole Sensored Brushless Motor (800kV)
This is the Castle Creations 2028 1/6 4-Pole Sensored Brushless Motor now offered in this 1/6 version. Using the same high quality, powerful 2028 design used in 1/5 vehicles this 1/6 version has been tailored to accept the Mamba Monster X 8S ESC with 6.5mm bullet connectors and 10AWG wire. Designed to take on the harsh demands of todays 1/6 vehicles this 2028 motor from Castle Creations offers extreme power and efficiency. This 800KV motor now has an improved 4-Pole 12-Slot design that boasts exceptional efficiency and produces less heat. If you need large scale power this 2028-800KV brushless sensored motor will no doubt hold up to the heavy throttle and extended usage that 1/6th scale vehicles encounter.
Features:
- Running modes include Sensored and an ULTRA-EFFICIENT Sensorless mode.
- High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
- Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
- Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
- Dual sensor ports to ensure optimal installation in your large-scale vehicle.
- Updated modern and sleek design; looks as cool as it performs.
Specifications:
Input Voltage Range: 8S LiPo
Kv: 800
Max. RPM: 45,000
Sensored Capable: Yes
Length: 4.4" (112.7mm)
Diameter: 2.2" (56.3mm)
Weight (w/wires): 44 oz. (1.25kg)
Shaft Length: 30mm
Shaft Diameter: 8mm
Mounting Hole Specifications: 4mm holes @ 30mm spacing.
Cooling Fan: Available, but not included. Recommended CSE011-0153-00
Connectors: 6.5mm male connectors
Recommended ESC: Mamba Monster X 8S
Running Modes: Sensorless and Sensored
Max. Recommended Vehicle Weight: 4WD vehicles weighing less than 25lbs.
Includes:
- (1) 2028 1/6 4-Pole Sensored Brushless Motor (800kV)

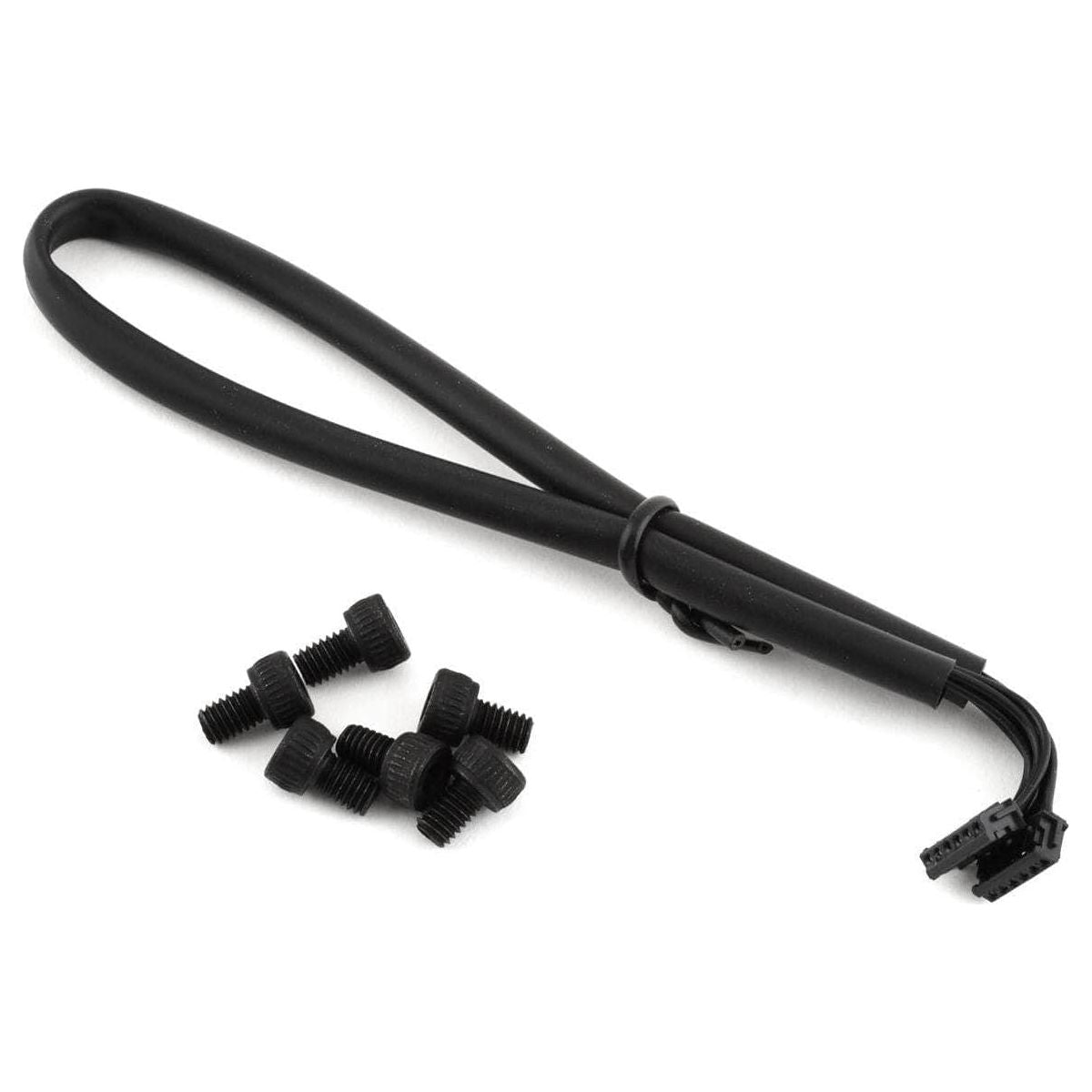

- (1) Sensor Cable

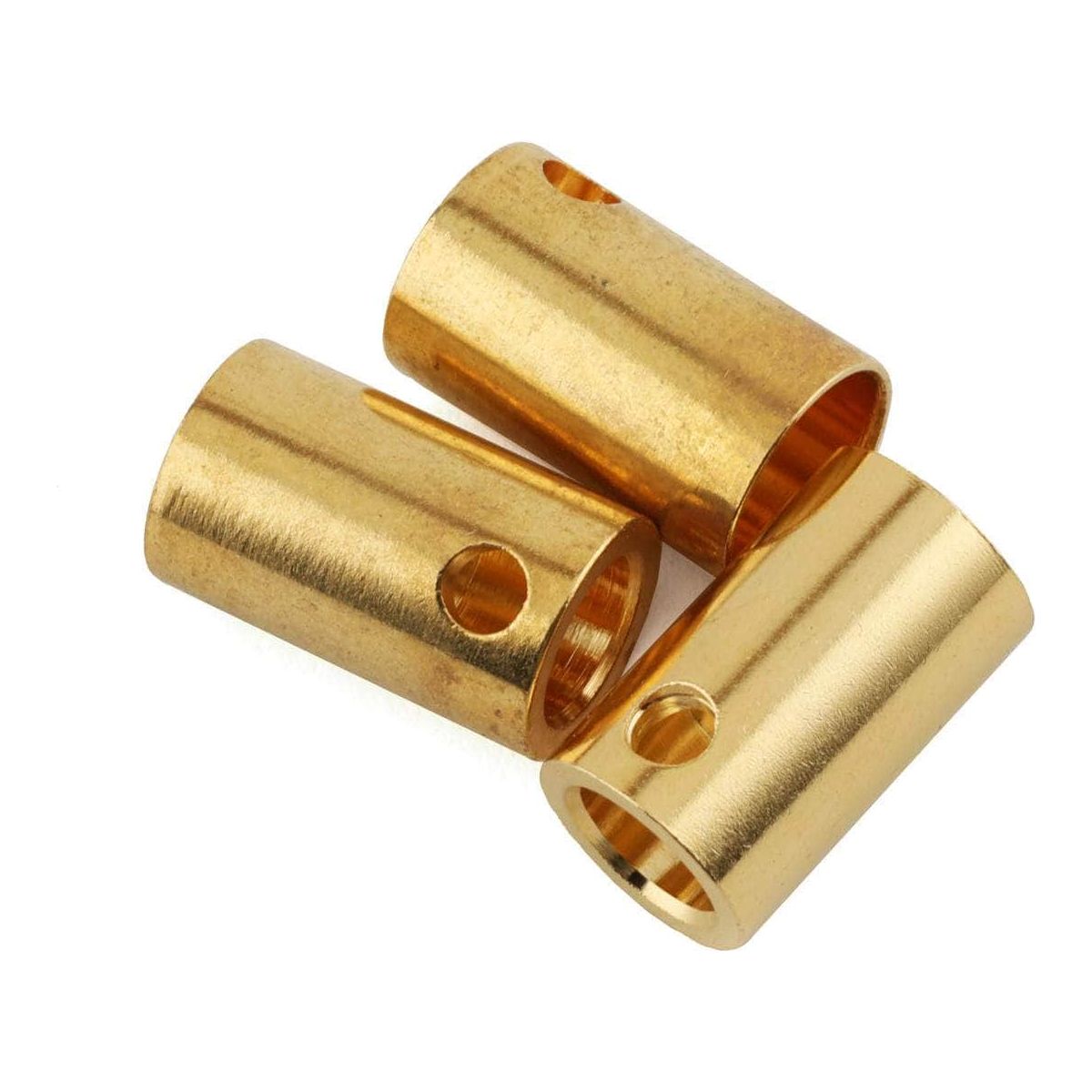

- (3) 6.5mm Female Bullet Connectors
- Mounting Hardware
This product was added to our catalog on November 16, 2022
