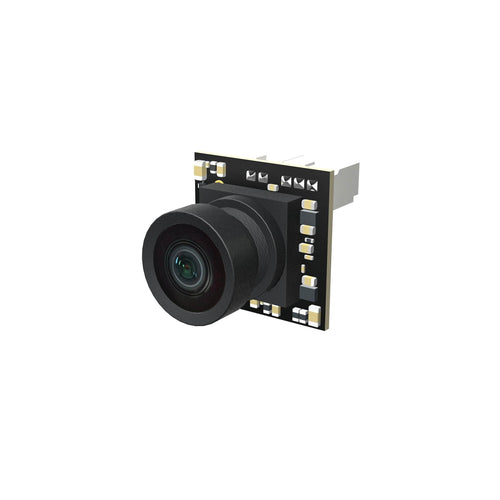

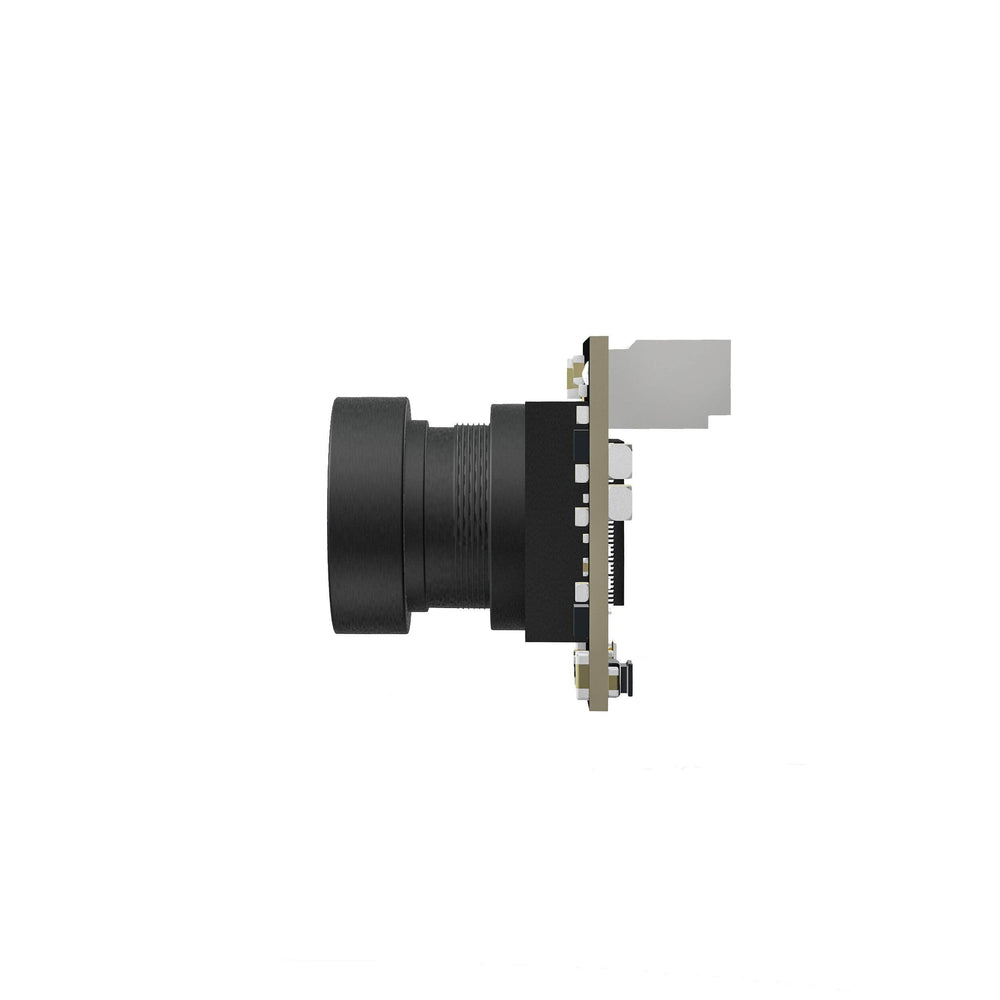

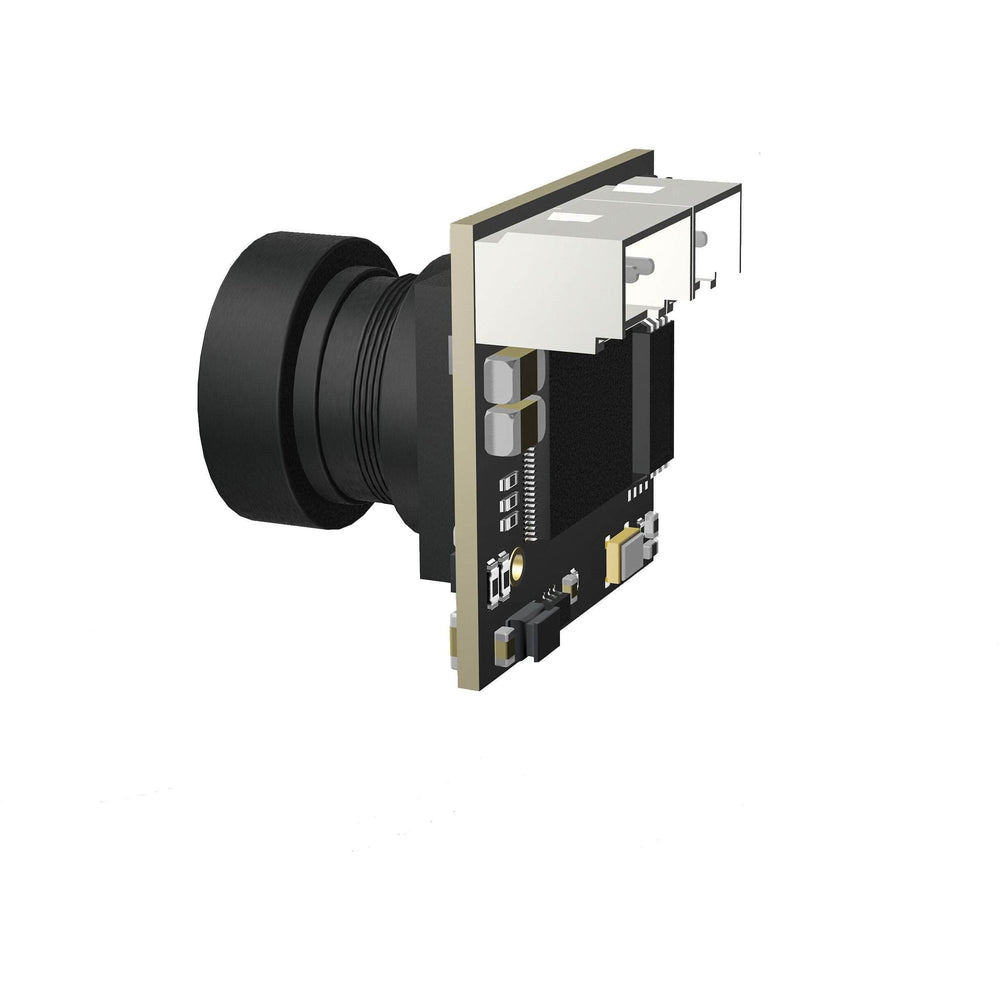

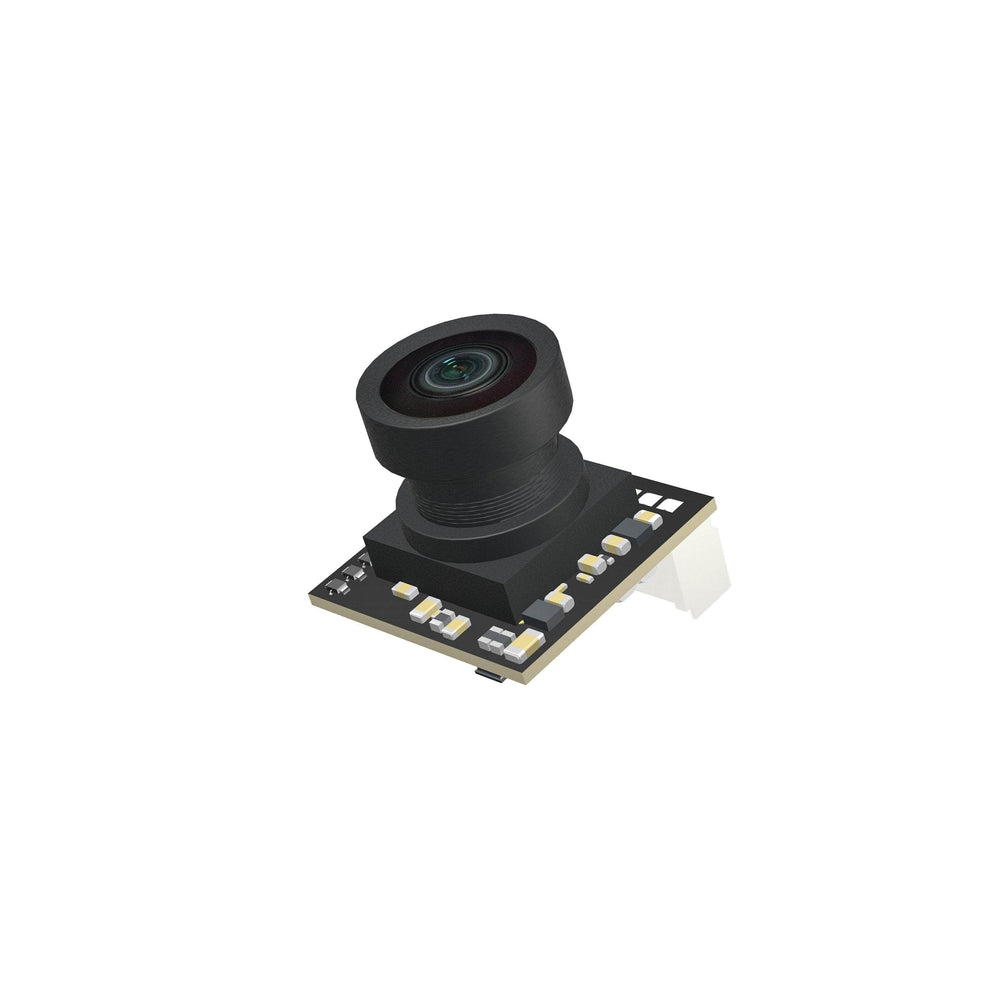

CADDX Camera Caddx Ant Lite Nano 1200TVL CMOS PAL/NTSC FPV Camera - Choose Your Aspect Ratio

Caddx Ant Lite Nano 1200TVL CMOS PAL/NTSC FPV Camera - Choose Your Aspect Ratio

$23.99
$23.99 - $23.99
$23.99 - $23.99
$23.99
Aspect Ratio :
In Stock
Add to Wishlist
Ask a Question

Details

Description

This camera was designed to fit into the NewBeeDrone BeeBrain V2 mount although the lens does protrude slightly out from the mount bumpers. All in all, this camera inside the NewBeeDrone BeeBrain V2 mount is the best combination of image quality per gram and mounting durability we could find for small, light platforms.

Check out all our nano cameras, and the rest of our ever-growing selection of Caddx cameras!

Features

  • Image Sensor: 1/3" CMOS Sensor
  • Horizontal Resolution: 1200 TVL
  • TV System: NTSC and PAL(switchable)
  • MENU: Support
  • IMAGE: 4:3 or 16:9
  • Synchronization: Internal
  • Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
  • S/N Ratio: >52dB (AGC OFF)
  • Video Output: CVBS
  • Lens: 1.8mm/F2.5
  • Minimum illumination: 0.001Lux
  • Auto Gain Control: YES
  • BLC: YES
  • WDR: Global WDR
  • DNR: 3D DNR
  • Dimensions: 14x14mm
  • Wide Power Input: DC 5-25V
  • Work Temperature: -20°C~+60C
  • Work Humidity: 20%~80%
  • Weight: 1.7g

Includes

  • 1x Caddx Ant Lite Nano 1200TVL CMOS PAL/NTSC FPV Camera

More Information:

  • SKU: 15124
  • Barcode: 691023529847
